Description

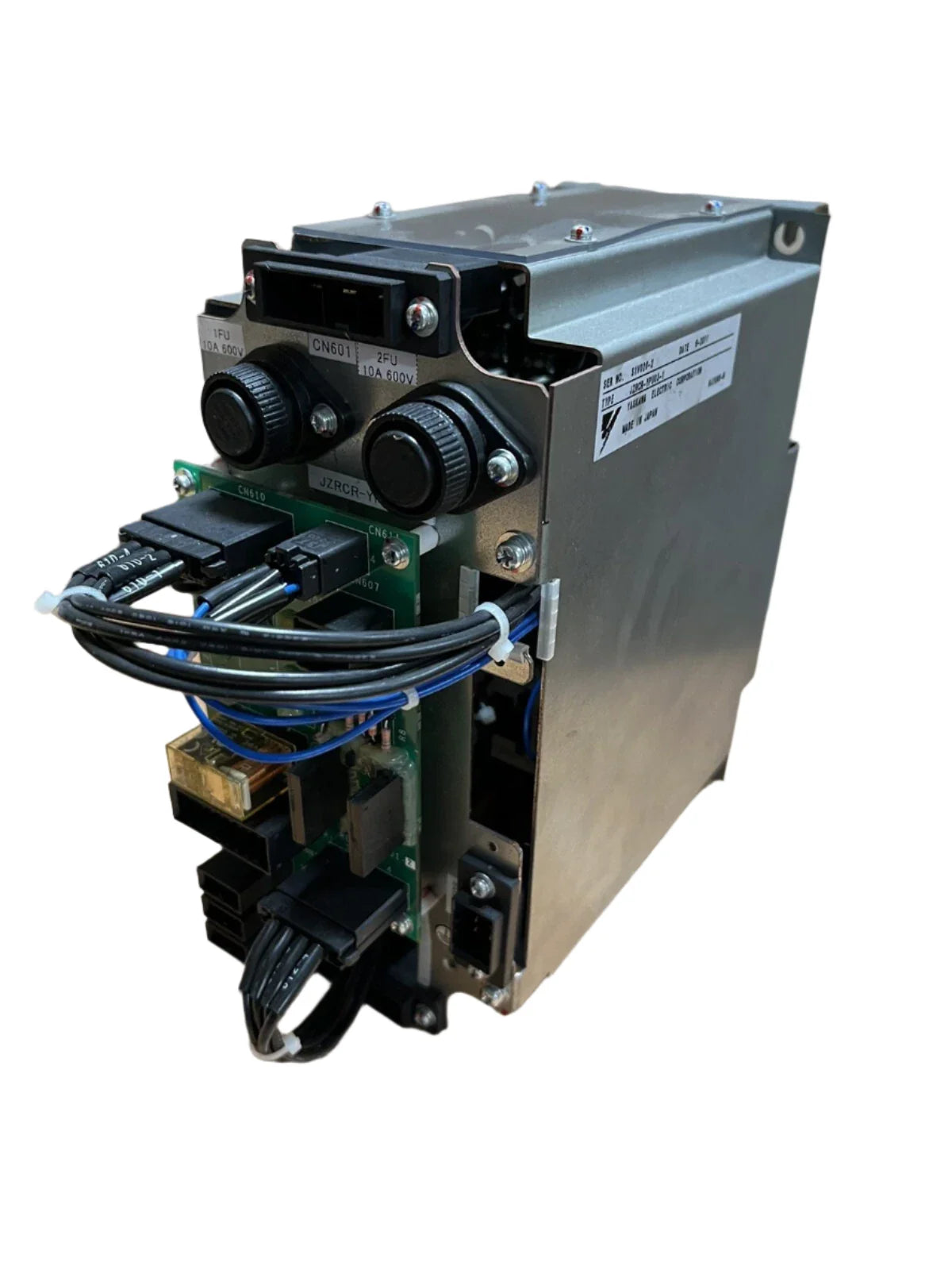

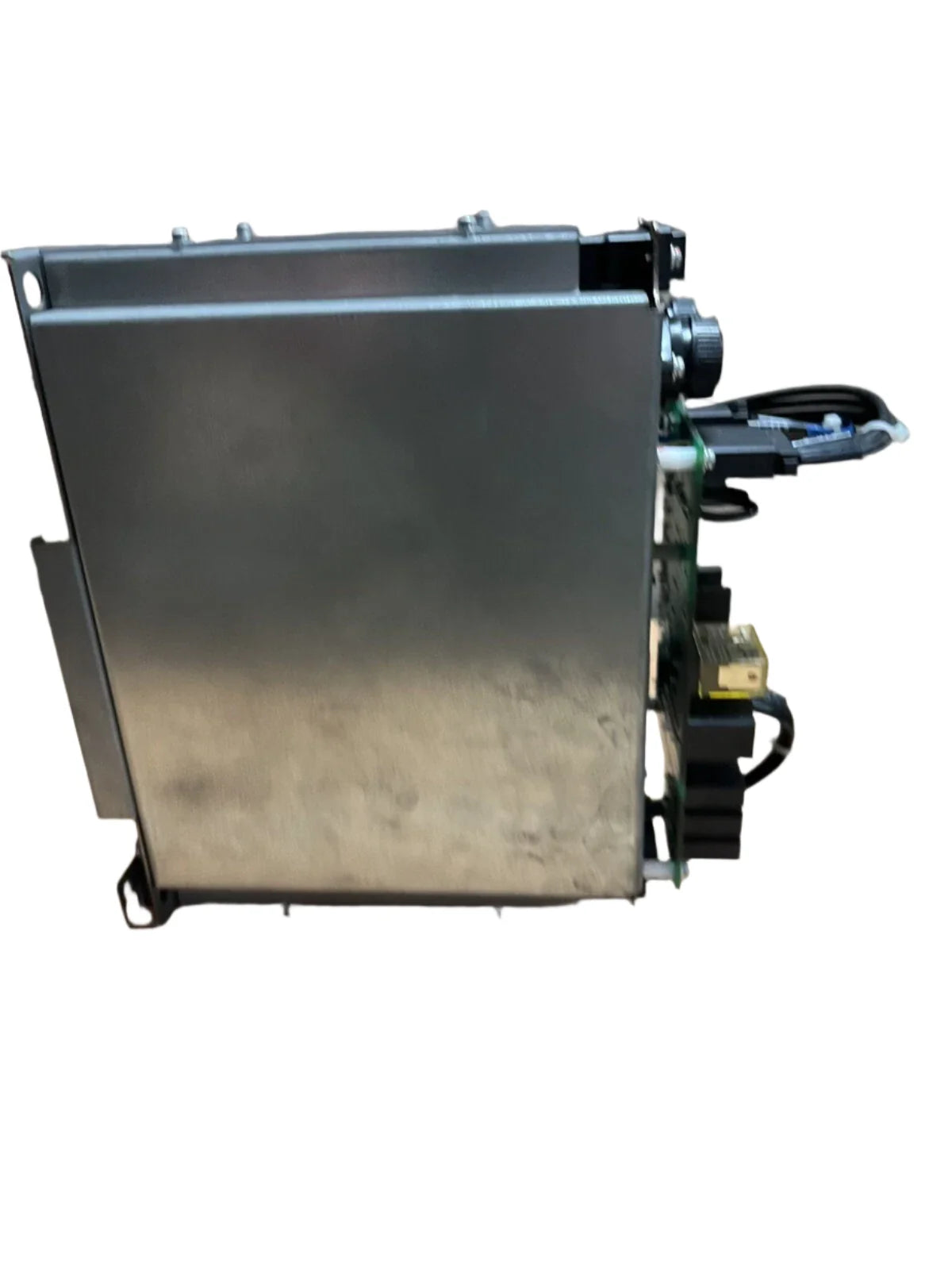

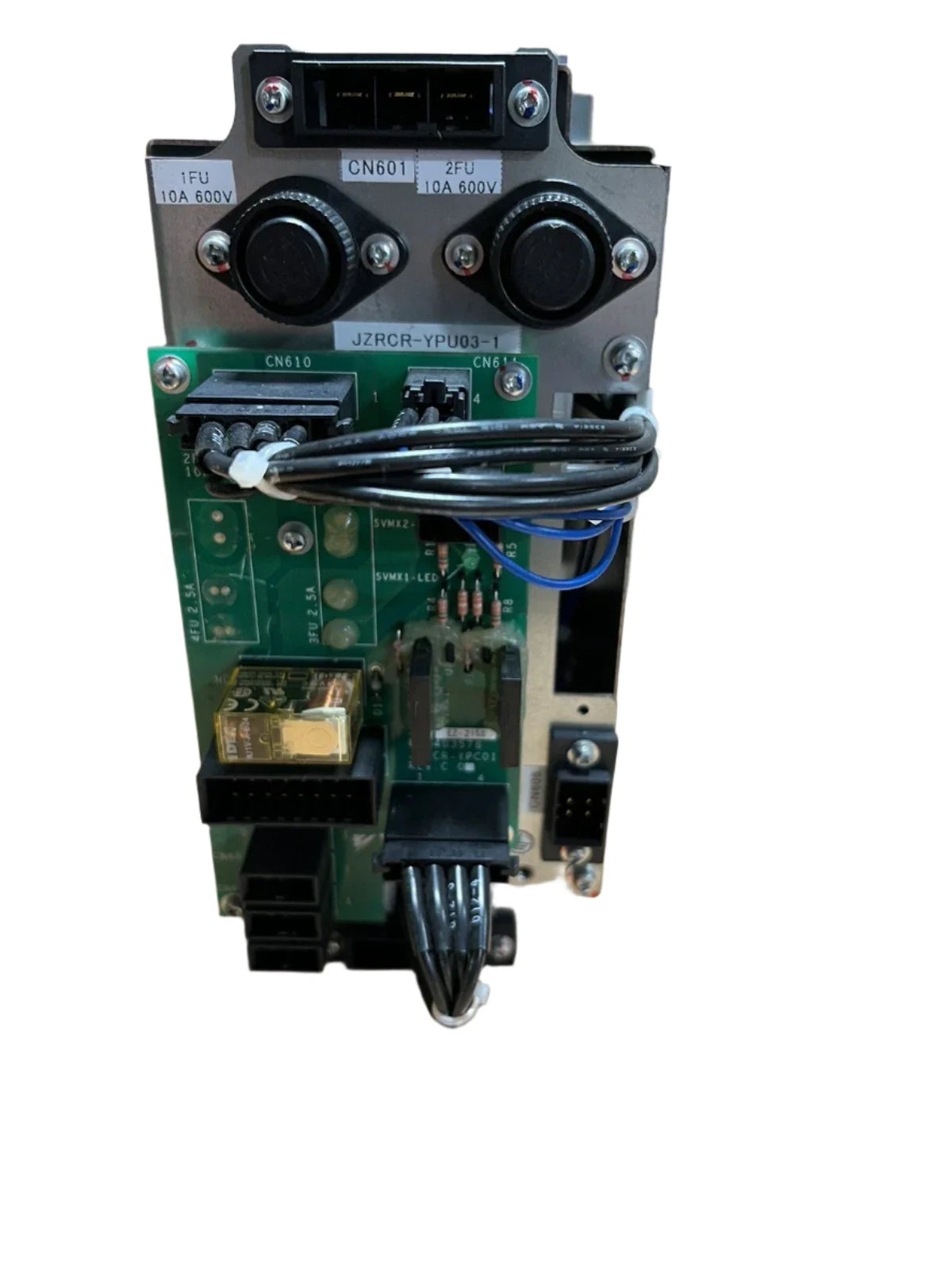

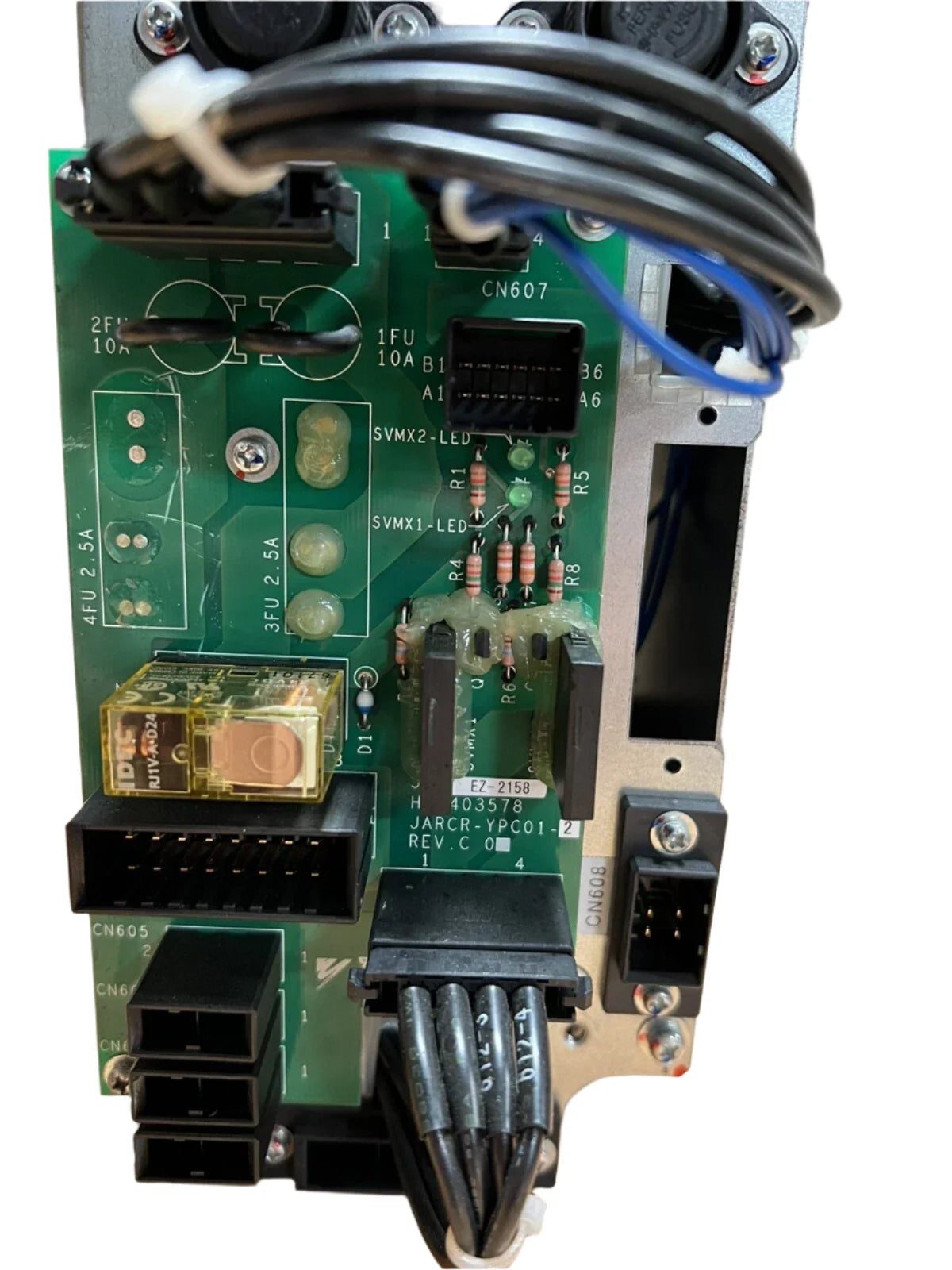

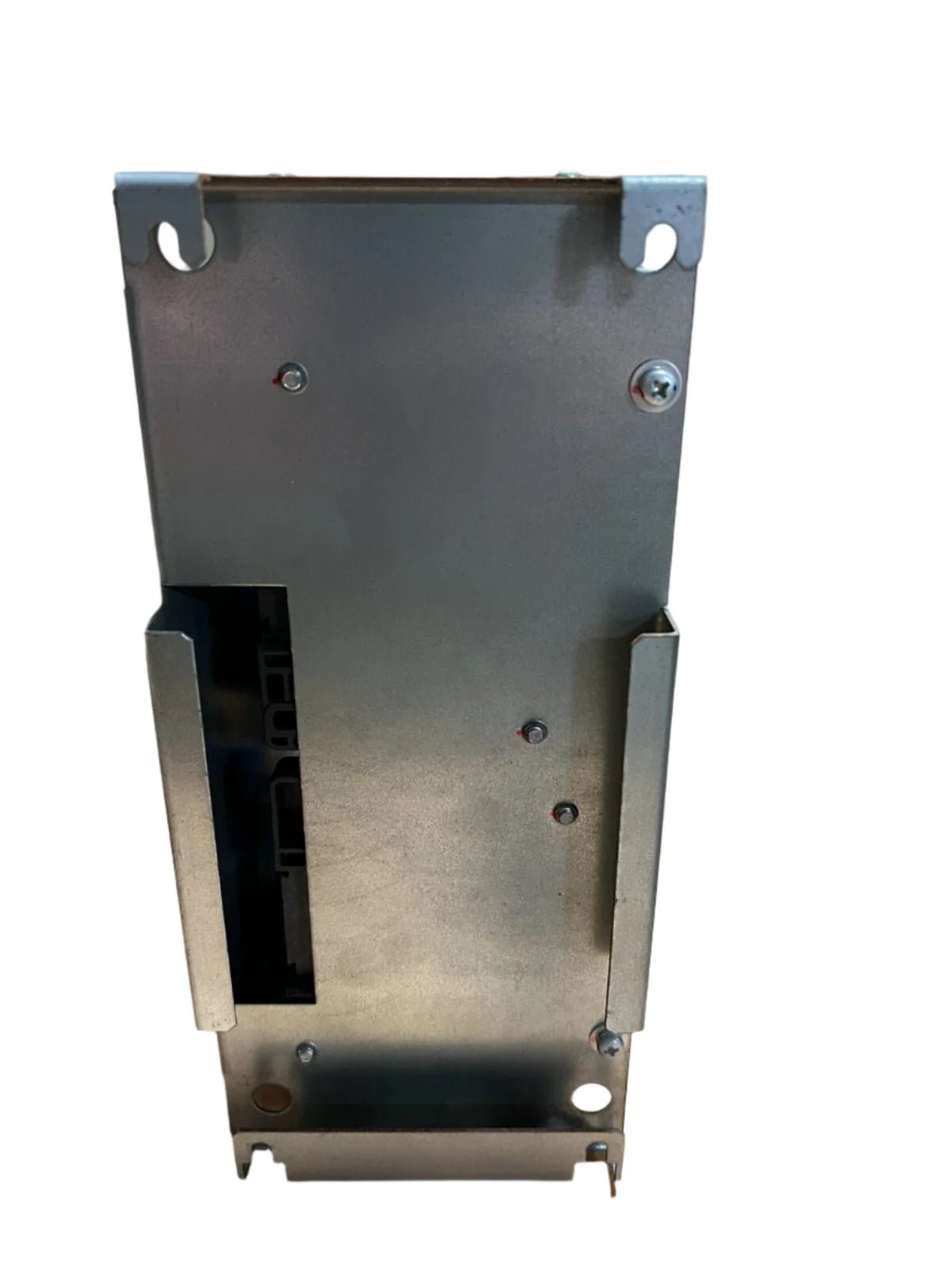

The Yaskawa JZRCR-YPU03-1 is a power supply contactor and relay switch unit designed specifically for use with the Motoman DX100 robotic controller. This compact unit facilitates secure and efficient power management, including power-on and power-off control, within robotic systems. The JZRCR-YPU03-1 ensures stable switching performance in industrial automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
Drives |
| Part Number |
JZRCR-YPU03-1 |
| Subcategory |
Drive |
| Voltage Rating |
200–240V AC (typical for DX100 systems) |
| Control Voltage |
24V DC |
| Function |
Relay Switch + Contactor Assembly |
| Compatibility |
Motoman DX100 |
| Mounting Type |
Enclosure-integrated |
| Included Components |
Contactor + Relay Module |
| Application |
Robot Power Management |
| Dimensions |
14.00 x 14.00 x 8.00 inches |
| Status |
Discontinued by Manufacturer |
| Weight |
7.39 lbs |
Information About JZRCR-YPU03-1
The JZRCR-YPU03-1 is a dedicated relay switch and power contactor assembly tailored for Yaskawa's DX100 series of robotic controllers. It integrates essential switching and protection features in a single unit, allowing for direct control of robot power-up and shutdown functions. Designed as a plug-compatible component, it simplifies installation and maintenance in existing Motoman systems. This module includes a prewired contactor block and control circuitry to support seamless relay actuation.
Key Features:
- Integrated Contactor Assembly: Features a pre-assembled contactor for power supply switching.
- Optimized for DX100: Designed specifically to work with Motoman DX100 robotic systems.
- Compact Relay Unit: Consolidates contactor and relay functions into a single enclosure.
- Power ON/OFF Functionality: Enables full power control of robotic operation.
- Reliable Switching: Ensures consistent operation in industrial environments.
- Simple Mounting Design: Built to fit within standard DX100 cabinet configurations.
- 24V Control Signal Compatibility: Interfaces with common industrial logic voltages.
- Discontinued Status: No longer manufactured, suitable for replacement or spares.
The JZRCR-YPU03-1 delivers the reliability and precision required for secure robot power control and automation safety.
