- High performance services processing card for SRX5K, Requires high capacity power supplies, fan trays and filters for operation
[/shortdesc]
[properties]
| Product Name |

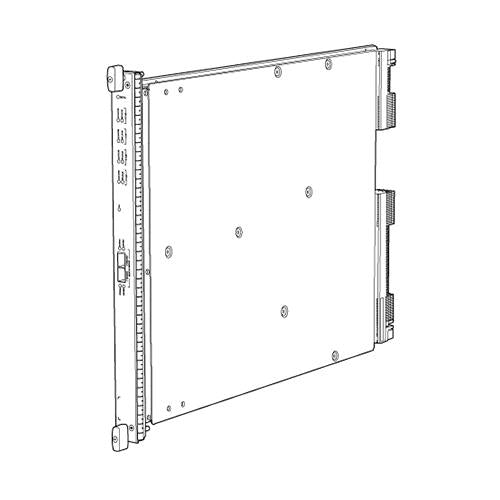

Juniper SRX5K-SPC-4-15-320 Services Processing Card |
| Product Description |
High-performance SPC designed for SRX5000 line services gateways, enabling advanced security processing and scalability. |
| Type |
Services Processing Card (SPC) |
| Compatibility |
Compatible with SRX5400, SRX5600, and SRX5800 services gateways. |
| Software Requirement |
Requires Junos OS Release 12.1X44-D10 or later. |
| Services Processing Units (SPUs) |
4 |
| Supported Platforms |
SRX5400, SRX5600, SRX5800 |
| Power Requirements |
Requires high-capacity power supplies, fan trays, and filters for operation |
[/properties]
[specifications]
| Physical Dimensions (H x W x D) |
1.6 x 14.5 x 11.2 inches (4.1 x 36.8 x 28.4 cm) |
| Weight |
3.5 lbs (1.6 kg) |
| Operating Temperature Range |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature Range |
-40°F to 158°F (-40°C to 70°C) |
| Humidity |
5% to 90% non-condensing |
| Scalability |
Multiple SPCs can be pooled for increased performance and capacity |
| Functions |
Supports advanced security services such as firewall, IPsec, and IDP |
[/specifications]The SRX5400 Services Gateway is a next-generation security platform ideally suited for large enterprise, service provider, and public sector networks. Based on a sophisticated architecture and using high-performance line cards, the SRX5400 provides unrivaled connectivity, performance, and service integration. The Service Process Card 3 (SPC3) with advanced security acceleration enhances the SRX5400 to deliver the power you need for the most demanding use cases, including high-end data centers, IoT, and 5G.
