- SRX5600 Chassis spare, Enhanced midplane, Fan tray not included
[/shortdesc]
[properties]
| Product Name |

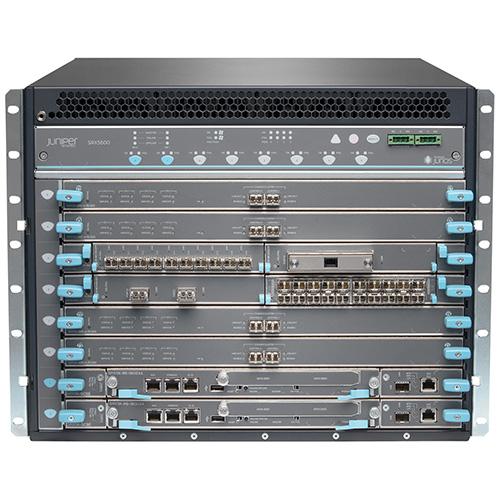

Juniper SRX5600X-CHAS Firewall |
| Product Description |
SRX5600 chassis spare, enhanced midplane; fan tray not included |
| Type |
Firewall Chassis |
| Manufacturer |
Juniper Networks |
| Product Line |
Juniper Networks |
| Model |
SRX 5600 |
| Bundled with |
Enhanced midplane |
| Packaged Quantity |
1 |
| Built-in Devices |
Enhanced midplane |
| Form Factor |
Rack-mountable |
| Connectivity Technology |
Wired |
| Remote Management Protocol |
SNMP 2, Telnet, HTTPS, HTTP, CLI, SSH, SNMP 3 |
| Features |
Supports Service Processing Cards (SPCs) and I/O Cards (IOCs) for flexible configuration |
| Expansion Slots |
Supports multiple SPCs and IOCs for scalability |
| System Requirements |
OS: JUNOS |
| Compliant Standards |
NEBS level 3, EMC |
| Color Category |
Gray |
| Dimensions (WxDxH) |
17.5 x 23.5 x 27.8 inches |
| Operating Temperature |
41°F to 104°F |
| Humidity Range |
5 – 85% (non-condensing) |
[/properties]
[specifications]
| Description |
High-performance security platform for service provider, large enterprise, and public sector networks |
| Firewall Throughput |
Up to 1.44 Tbps |
| IPS Throughput |
Up to 245 Gbps |
| Concurrent Sessions |
Up to 182 million |
| New Sessions per Second |
Up to 350,000 |
| Virtual Interfaces (VLANs) |
4096 |
| Security Zones |
2000 |
| Maximum Number of Users |
Unlimited |
| OSPF Routes |
1,000,000 |
| RIP Instances |
50 |
| Maximum Logical Network Members |
32 |
| VPN Tunnels (Site-to-Site) |
15 |
| BGP Routes |
1,000,000 |
| BGP Instances |
1000 |
| VPN Tunnel Interfaces |
15 |
| Virtual Routers |
2000 |
| BGP Peers |
2000 |
| OSPF Instances |
400 |
[/specifications]The SRX5600 Services Gateway is a next-generation security platform ideally suited for service provider, large enterprise, and public sector networks. The Service Process Card 3 (SPC3) with advanced security acceleration enhances the SRX5600 to deliver the power you need for the most demanding use cases, including high-end data centers, IoT, and 5G.
