[shortdesc]
- SRX4600 Services Gateway
- Junos Software Base
- Up to 24 x 1GbE/10GbE and 4 x 40GbE/100GbE
- 2 x DC power supply
- 256 GB RAM
- 2 x 1 TB M.2 SSD
- Routing
- NAT
- MPLS
- IPSec
[/shortdesc]
[properties]
| Properties |
Juniper SRX4600-SYS-JB-DC |
| Description |
SRX4600 Services Gateway includes hardware (up to 24x1GbE/10GbE, 4x40GbE/100GbE, 256 GB RAM, 2x 1 TB M.2 SSD, two DC power entry modules, cables and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing and MPLS). |
| Product Family |
SRX4600 Series |
| Product Type |
Security Firewall |
| Connectivity Specification |
| Total onboard I/O ports |
Up to 24x1GbE/10GbE (SFP+) and 4x40GbE/100GbE (QSFP28) |
| Out-of-Band (OOB) management ports |
RJ-45 (1 Gbps) |
| Dedicated high availability (HA) ports |
2x1GbE/10GbE (SFP+) Control, 2x1GbE/10GbE (SFP+) Data |
| Console |
RJ-45 (RS232) |
| USB 2.0 ports (Type A) |
1 |
| Form factor |
1U |
| Size (WxHxD) |
With DC PEMs: 17.4 x 1.7 x 29.20 in (44.19 x 4.32 x 74.17 cm) |
| Weight (system and 2 power entry modules) |
With DC PEMs: 40 lb (18.14 kg)
Shipping weight: 47.47 lb (21.53 kg) |
| Power |
| Power supply |
2x 1100 W DC-DC PSU redundant |
| Redundant PSU |
1+1 |
| Average power consumption |
650 W |
[/properties][specifications]
| Specifications |
SRX4600-SYS-JB-DC |
| System memory (RAM) |
256 GB |
| Secondary storage (SSD) |
2x 1 TB M.2 SSD |
| Firewall (IMIX) throughput in Gbps |
400 |
| Firewall throughput (1518 B) in Gbps |
400 |
| IPsec VPN throughput (IMIX) in Gbps |
44 |
| IPsec VPN throughput (1400 B) in Gbps |
71 |
| Application security performance (TPS/CPS) in Gbps |
92/41 |
| Next-generation firewall (TPS/CPS) in Gbps |
90/21 |
| Secure Web Access firewall (CPS) in Gbps |
19 |
| Advanced Threat (CPS) Gbps |
10.5 |
| Connections per second (64B) |
570,000 |
| SSL connections per second |
16,000 |
| Maximum concurrent sessions (IPv4 or IPv6) |
60 million |
| Route table size (RIB/FIB) (IPv4) |
4 million/1.2 million |
| IPsec VPN tunnels |
7,500 |
[/specifications]

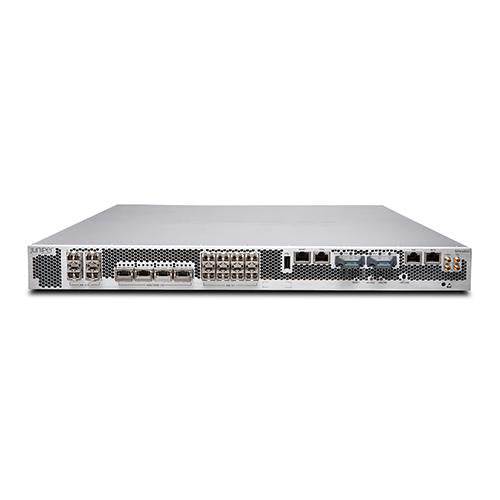

Juniper SRX4600-SYS-JB-DC Firewall
The Juniper SRX4600-SYS-JB-DC Firewall is a high-performance services gateway built for enterprise campuses, data centers, secure WAN edge deployments, and VPN concentration. It combines advanced firewall capabilities with routing, NAT, IPSec, and MPLS services in a 1U platform designed for demanding network environments. With support for up to 24 x 1GbE/10GbE SFP+ interfaces and 4 x 40GbE/100GbE QSFP28 ports, the SRX4600 delivers the connectivity and scale needed for modern security architectures while maintaining reliable performance with redundant DC power.
