[shortdesc]
- MIC with 10x10GE SFP+ Interfaces, Requires SRX5K-MPC, Requires Junos release 12.1X46-D10 or greater, Optics sold separately
[/shortdesc]
[properties]
| Product Name |
SRX-MIC-10XG-SFPP |
| Product Description |
MIC with 10x10GE SFP+ Interfaces, Requires SRX5K-MPC, Requires Junos release 12.1X46-D10 or greater, Optics sold separately |
| Brand |
Juniper |
| Type |
Interface Card / MIC |
| Compatibility |
Requires SRX5K-MPC; compatible with SRX5400, SRX5600, and SRX5800 Services Gateways |
| Software Requirement |
Requires Junos OS Release 12.1X46-D10 or later |
| Optics |
SFP+ transceivers sold separately |
| Ports |
10 x 10-Gigabit Ethernet SFP+ |
[/properties]
[specifications]
| Form Factor |
Fits into a Modular Port Concentrator (MPC) |
| Supported Platforms |
SRX5400, SRX5600, and SRX5800 Services Gateways |
| Maximum Throughput |
Up to 100 Gbps full-duplex traffic |
| Maximum Configurable MTU |
9,192 bytes |
| Power Consumption |
Approximately 100 watts |
| Operating Temperature Range |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature Range |
-40°F to 158°F (-40°C to 70°C) |
| Humidity |
5% to 90% non-condensing |
| Dimensions (H x W x D) |
1.6 x 14.5 x 11.2 inches (4.1 x 36.8 x 28.4 cm) |
| Weight |
3.5 lbs (1.6 kg) |

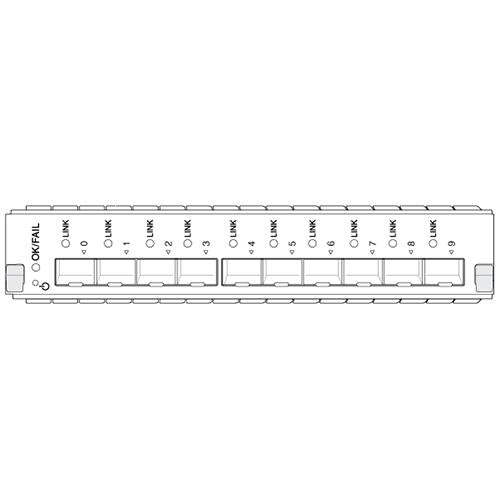

[/specifications]Juniper SRX-MIC-10XG-SFPP is a Modular Interface Card for SRX5000 Series Services Gateways, adding ten 10-Gigabit Ethernet SFP+ ports when installed in an SRX5K-MPC. Optics are sold separately.
