[shortdesc]

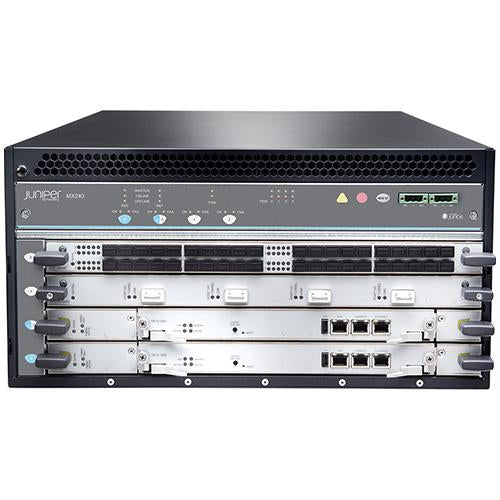

- MX240 Premium Chassis Bundle with Midplane. Also includes redundant RE, redundant SCB-E, redundant Highline AC Power
[/shortdesc]
[properties]
| Properties |
MX240-PREMIUM2-AC-HIGH |
| Description |
4 slot MX240 premium 2 chassis with midplane, redundant RE, SCBEs, highline AC power |
| Product Family |
Juniper MX Routers |
| Product Type |
Router |
| Slots |
2 MPCs |
| Per slot capacity |
1.5 Tbps |
| Maximum system throughput1 |
3 Tbps |
| PDH |
Yes |
| Sonet/SDH |
Yes |
| Maximum 1GbE |
80 |
| Maximum 10GbE |
120 |
| Maximum 40GbE |
30 |
| Maximum 100GbE |
30 |
| Maximum 400GbE |
6 |
| 10GbE DWDM |
16 |
| 100GbE DWDM |
4 |
| Rack units |
5 |
| Systems per rack |
9 |
| Redundancy Components |
Power supplies, REs, fans |
| Air flow |
Side to side |
| Mounting |
Front or center |
| Dimensions |
17.45 x 8.71 x 24.5 (44.3 x 22.1 x 62.2 cm) |
| Weight fully loaded |
130 lb/59 kg |
| Weight unloaded |
52 lbs/23.6 kg |
[/properties] [specifications]
| System capacity |
3 Tbps |
| Slot orientation |
Horizontal |
| Default memory |
2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD |
| Number of cores |
6 cores |
| Security |
Firewall filters/ACLs
DDoS—control plane
DDoS—FlowSpec
Stateless filters L2-L4
Stateful services |
| Inline Services |
GRE reassembly
1:1 NAT
Flow monitoring
Video monitoring
Lawful intercept
Mirroring
Corero SmartWall Threat Defense Director
SecIntel Threat Intelligence |
| Service Card Supported Services6 |
Deep packet inspection
CGNAT
Flow monitoring
Server traffic load balancing7
IPsec
Stateful firewall
HTTP header manipulation
Web filtering
DNS sinkhole
Intrusion detection system |
| Resiliency |
Redundant RE
Unified ISSU
Nonstop active routing (NSR)
Fast restoration
Operation, Administration, and Maintenance (OAM) |
| System Virtualization |
Enhanced SLA and queuing
Junos Fusion Edge (AD)
Logical systems
Virtual router/switch
Path Computation Element Protocol (PCEP)
OpenConfig
YANG data modeling
Juniper Extension Toolkit |
| Operating temperature |
32° to 115° F (0° to 46° C) at sea level |
| Certifications |
GR-1089-Core EMC and Electrical Safety
- Common Bonding Network (CBN)
- National Electrical Code (NEC)
- GR-63-Core |
[/specifications] [accesories] [/accesories]
The SDN-enabled MX240 Universal Routing Platform offers high performance, scale, and investment protection for a wide variety of service provider and enterprise applications. Those include business and residential broadband services and high-volume data center internetworking.
