[properties]

Properties	Juniper EX9204-AC-BND2
Description	Bundle comprising of EX9204-BASE3B-AC and EX9200-32XS line card, shipped separately as two items.
Product Family	EX9200 Series
Product Type	Ethernet Switch
Total number of slots	4
Slots available for line cards	2 with fabric redundancy (3 without)
Routing Engine	1x EX9200-RE2
Switch Fabric Module	1x EX9200-SF2
Includes	EX9200-32XS Line Card
Maximum GbE Port Density (wire speed)
1GbE	120
10GbE	144 (96)
25GbE	120
40GbE	30
100GbE	30
Fabric	• Up to 3 Tbps backplane capacity • Up to 1.5 Tbps (full duplex) per slot fabric capacity • 1+1 fabric redundancy
Routing Engine	• Master and backup Routing Engines (1+1 redundancy) • Up to 64 gigabytes DRAM • Dual front pluggable solid-state drive (SSD) (Up to 64 GB each) • Console, auxiliary serial, and Ethernet management ports • USB storage interface
Operating system	Juniper Networks Junos operating system
Power	Holds up to four power supplies: • 100-120 V AC (2+2 redundancy) • 200-240 V AC (1+1 redundancy) • -40 to -72 V DC Maximum power draw: 2,421 W (AC)
Cooling	• Front-to-back airflow • Hot-swappable fan tray with 1+1 redundancy
Dimensions (W x H x D)	17.5 x 8.7 x 27.75 in (44.5 x 22.1 x 70.5 cm)
Weight (fully loaded)	128.0 lbs (58.1 kg)
Rack units	5 U
Power Consumption
EX9204 Base Typical Power	410 W
EX9204 Base Reserved Power	410 W
Additional Units	Typical Power
EX9200 Routing Engine	90 W
EX9200 Switch Fabric-2	155 W
EX9200-32XS Line Card	550 W
Additional Units	Maximum Power
EX9200 Routing Engine	90 W
EX9200 Switch Fabric-2	155 W
EX9200-32XS Line Card	610 W
Power Supply Capacity
100-120V AC Input	1,167 W
200-240 V AC Input	2,050 W
-40 to -72 V DC Input	2,400 W
Maximum number of line cards in a chassis
EX9200-40XS	3
EX9200-15C	2
EX9200-12QS	3
EX9200-32XS	2
EX9200-6QS	2
EX9200-2C-8XS	3
EX9200-40T	3
EX9200-40F	3
EX9200-MPC	3

[/properties]

[specifications]

Specifications	EX9204-AC-BND2
Backplane capacity	Up to 3 Tbps
Maximum fabric bandwidth/slot	1.5 Tbps/slot
Switch fabric throughput per slot	480 Gbps (EX9200-SF2)
RE DRAM	16 GB
RE CPU	1.73 GHz, quad-core
RE Storage	32 GB

[/specifications]

[accesories]

Line Cards
EX9200-15C	15x 100GbE/40GbE line card with MACsec AES-256 for EX9200
EX9200-40XS	40-port 10GbE SFP+ line card supporting MACsec AES-256 (requires SFL software license for activation); requires SFP+ optics sold separately
EX9200-12QS	12-port 40GbE QSFP+

[/accesories]

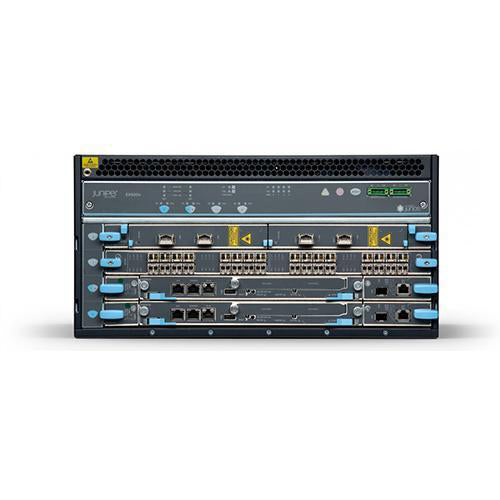

Juniper EX9204-AC-BND2 Switch Bundle

The Juniper EX9204-AC-BND2 is a bundled EX9200 Series Layer 3 managed Ethernet switch solution that combines the EX9204-BASE3B-AC chassis base system with an EX9200-32XS line card (shipped separately). The bundle includes a 4-slot chassis with passive midplane, 1x EX9200-RE2 Routing Engine, 1x EX9200-SF2 switch fabric module, 2 x 2520W AC power supplies, 1 fan tray, and required blank panels, providing a modular high-performance platform for enterprise core, aggregation, and data center deployments.
