[shortdesc]SFP (mini-GBIC) transceiver module, GigE, 1000Base-SX
[/shortdesc]
[specifications]
| Specifications |
EX-SFP-1GE-SX |
| Description |
EX-SFP-1GE-SX is a SFP 1000Base-SX Gigabit Ethernet Optics Module, 850nm |
| Product Family |
Juniper Transceivers |
| Product Type |
Optical Transceiver |
| Transceiver Type |
SFP |
| Signaling rate, each lane |
1000 Mbps |
| Connectors |
Duplex LC |
| Fiber mode |
MMF |
| Transmitter wavelengths (range) |
850 nm |
| Transmit power range |
-9.5 to -3 |
| Receive power range |
-21 to 0 |
| Max Power consumption (W) |
1 W |
| Operating Temperature |
0° C to 70° C |
| DOM |
Yes |
| Wavelength (nm) |
Cable Type |
Core Size (Microns) |
Modal Bandwidth (MHz*km) |
Cable Distance |
| 850 |
MMF |
62.5 |
160(FDDI) |
220 m |
| 200(OM1) |
275 m |
| 50.0 |
400 |
500 m |
| 500(OM2) |
550 m |
| 2000(OM3) |
500 m |
| 4700(OM4) |
550 m |
[/specifications]

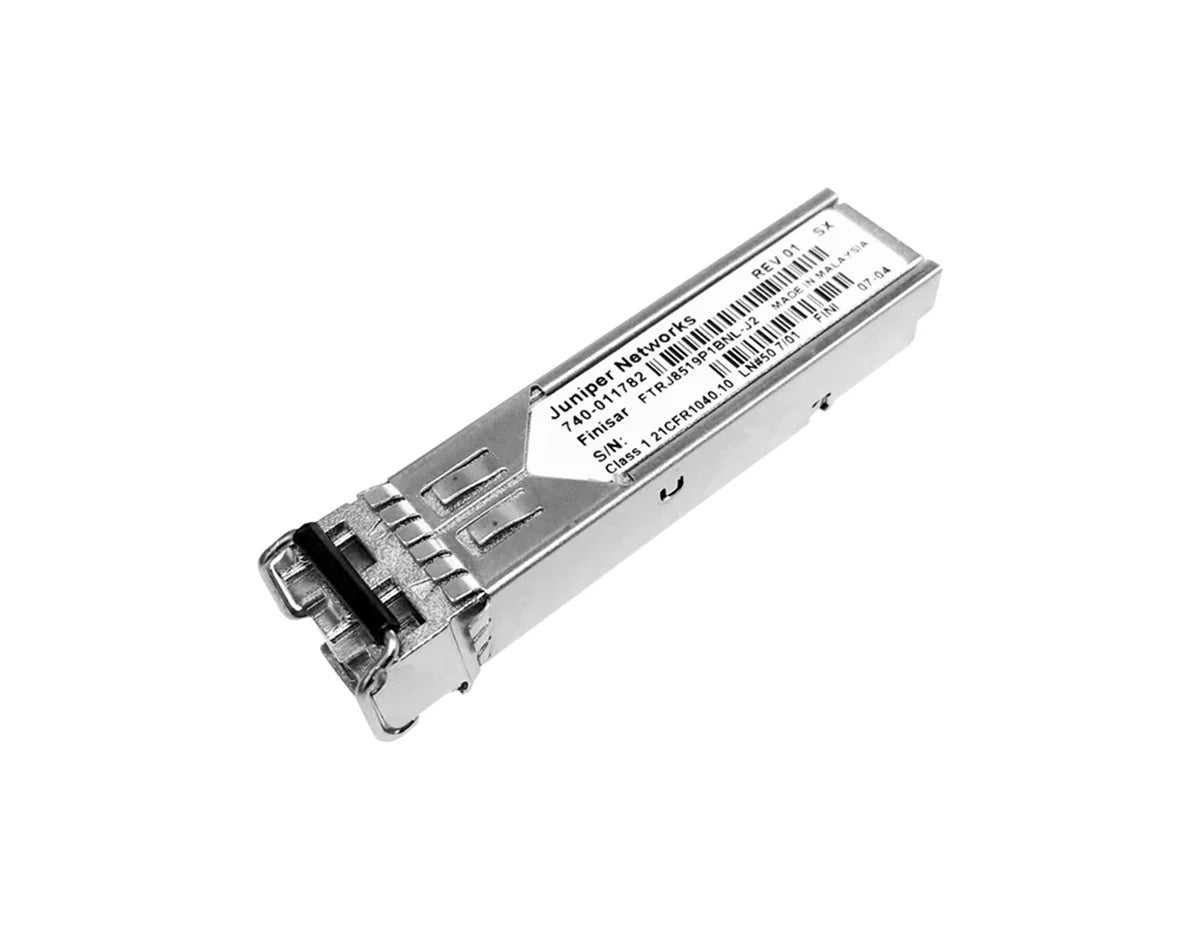

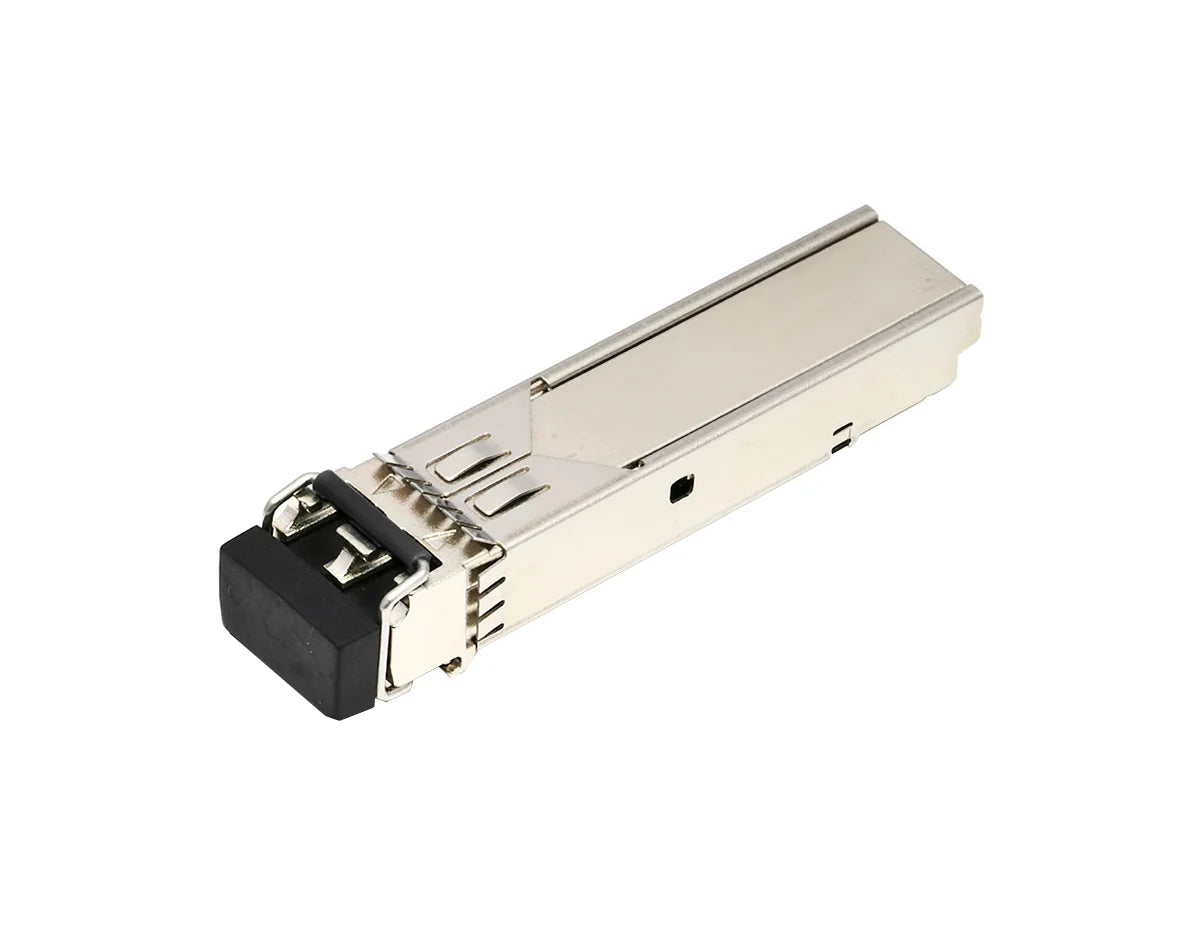

Juniper EX-SFP-1GE-SX Transceiver
The Juniper Networks EX-SFP-1GE-SX SFP transceiver provides 1000Base-SX throughput up to 550m over multi-mode fiber (MMF) at a wavelength of 850nm using an LC connector. This product features a 1000 Mbps signaling rate and dual transmitter fibers.
Quick Specs:
-
Signaling rate, each lane: 1000 Mbps
-
Transmitter wavelengths: 850 nm
-
Operating Temperature: -10 C to 85 C
-
Transceiver Type: SFP
Please see the related tabs for the EX-SFP-1GE-SX datasheet and compatible accessories.
