Description

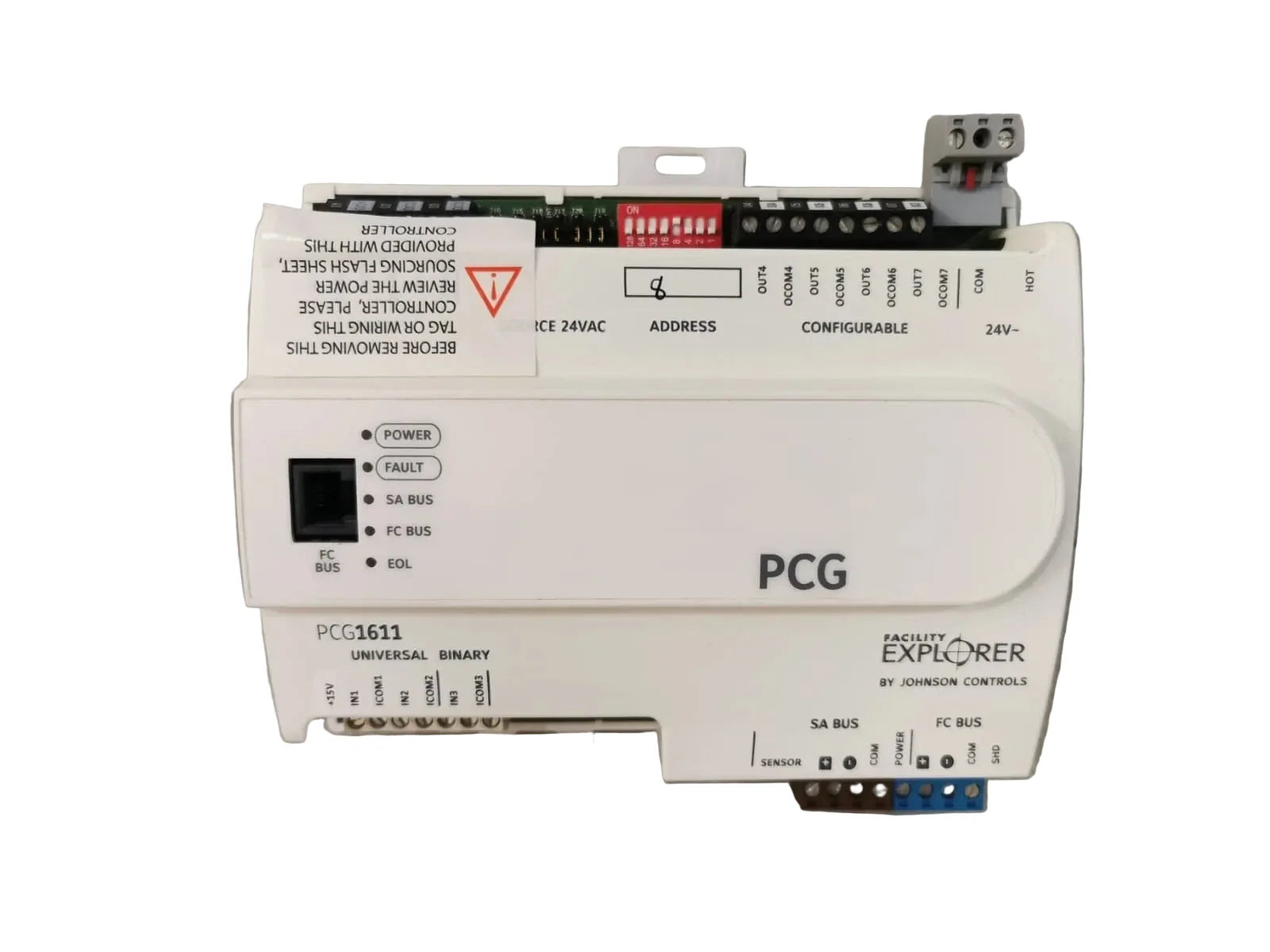

The Johnson Controls FX-PCG1611-1 is a programmable general-purpose controller designed for HVAC and building automation applications. Operating on 24 VAC, it features 10 onboard I/O points, providing flexible monitoring and control for commercial heating, ventilation, and air conditioning systems.
Technical Specifications
| Condition |
New |
| Brand |
Johnson Controls |
| Part Number |
FX-PCG1611-1 |
| Category |
HVAC |
| Subcategory |
HVAC Control System Board |
| Product Type |
Programmable General-Purpose Controller |
| Power Supply |
24 VAC |
| Universal Inputs |
2 |
| Binary Inputs |
1 |
| Configurable Outputs |
4 |
| Binary Outputs |
3 |
| Total I/O Points |
10 |
| Binary Output Type |
24 VAC Triac (Internal Power Source) |
| Application |
HVAC and Building Automation Systems |
| Weight |
0.85 lb |
Information About FX-PCG1611-1
The FX-PCG1611-1 is part of the Johnson Controls Facility Explorer (FX) controller family, engineered for general-purpose building automation applications. It communicates with connected field devices through configurable inputs and outputs, enabling precise control of HVAC equipment and mechanical systems. With 10 integrated I/O points, including universal inputs, binary inputs, configurable outputs, and binary outputs, the controller offers a compact and versatile solution for commercial control systems. Its programmable architecture allows it to be customized for a wide range of HVAC applications.
Key Features:
- General-Purpose Controller: Designed for flexible HVAC and building automation applications.
- 10 Integrated I/O Points: Includes 2 universal inputs, 1 binary input, 4 configurable outputs, and 3 binary outputs.
- 24 VAC Operation: Compatible with standard commercial HVAC control systems.
- Programmable Architecture: Supports customized control sequences for various equipment.
- Binary Triac Outputs: Internal 24 VAC powered outputs for reliable field device control.
- Compact Design: Ideal for control panels with limited installation space.
- OEM Johnson Controls Component: Designed for seamless integration with compatible Facility Explorer systems.
- Reliable Performance: Engineered for continuous operation in commercial HVAC environments.
The FX-PCG1611-1 delivers the reliability and flexibility required for efficient HVAC equipment control and building automation.
