Description

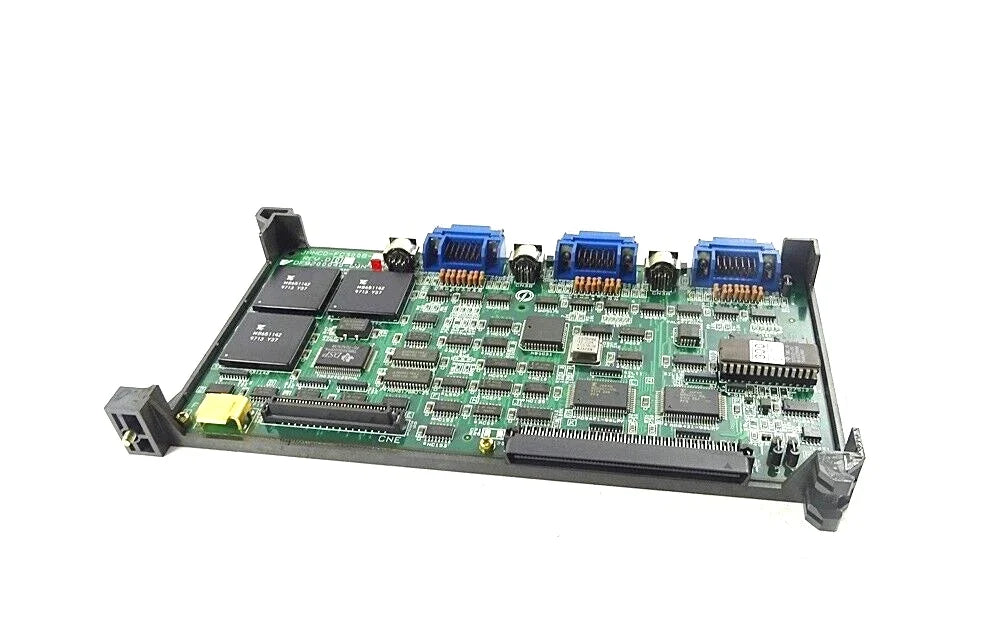

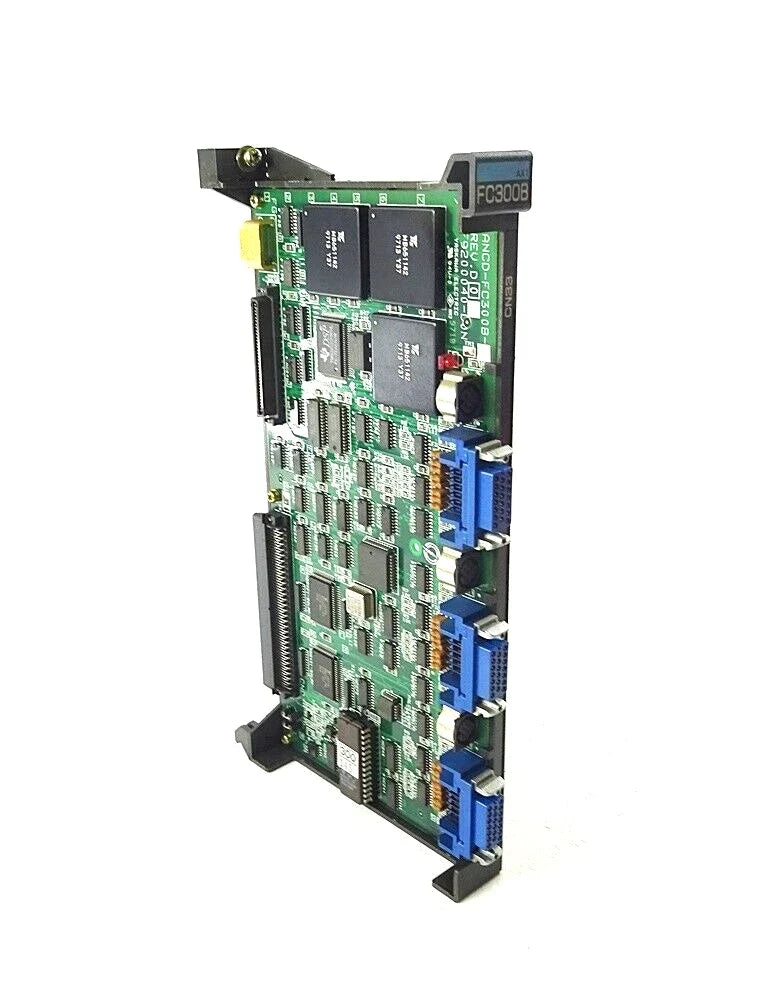

The Yaskawa JANCD-FC300B-3 is a 3-axis control PC board designed for precise axis coordination within YASNAC I80 CNC control systems. This AX1 module provides reliable multi-axis control through parallel I/O communication. It is used in CNC environments requiring stable and accurate axis management.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
Industrial Automation |
| Part Number |
JANCD-FC300B-3 |
| Subcategory |
Control Boards |
| Product Name |
3-Axis Control Board |
| Module Type |
AX1 Module |
| Axis Control |
3 Axis |
| Interface |
Parallel I/O |
| CNC Compatibility |
YASNAC I80 |
| Minimum Operating Temperature |
0°C |
| Maximum Operating Temperature |
60°C |
| Minimum Storage Temperature |
-20°C |
| Maximum Storage Temperature |
75°C |
| Operating Humidity |
≤95% RH (Non-Condensing) |
| Maximum Altitude |
2000 m |
| Weight |
0.75 lbs (0.34 kg) |
Information About JANCD-FC300B-3
The JANCD-FC300B-3 is a Yaskawa automation control board engineered as an AX1 module for three-axis motion control applications. It is specifically designed for compatibility with YASNAC I80 CNC systems, integrating seamlessly into existing control architectures. The board supports parallel I/O interfacing to manage coordinated axis commands and feedback. Built for industrial environments, it operates reliably within defined temperature, humidity, and altitude limits.
Key Features:
- 3-Axis Control Capability: Supports coordinated control of up to three motion axes.
- AX1 Module Design: Functions as a dedicated axis control board within CNC systems.
- Parallel I/O Interface: Enables reliable communication with CNC control hardware.
- YASNAC I80 Compatibility: Designed specifically for Yaskawa YASNAC I80 controllers.
- Industrial Environmental Tolerance: Rated for operation in non-corrosive environments.
- Compact PC Board Form Factor: Supports efficient installation within control cabinets.
The JANCD-FC300B-3 delivers the reliability and precision required for multi-axis CNC motion control in industrial automation systems.
