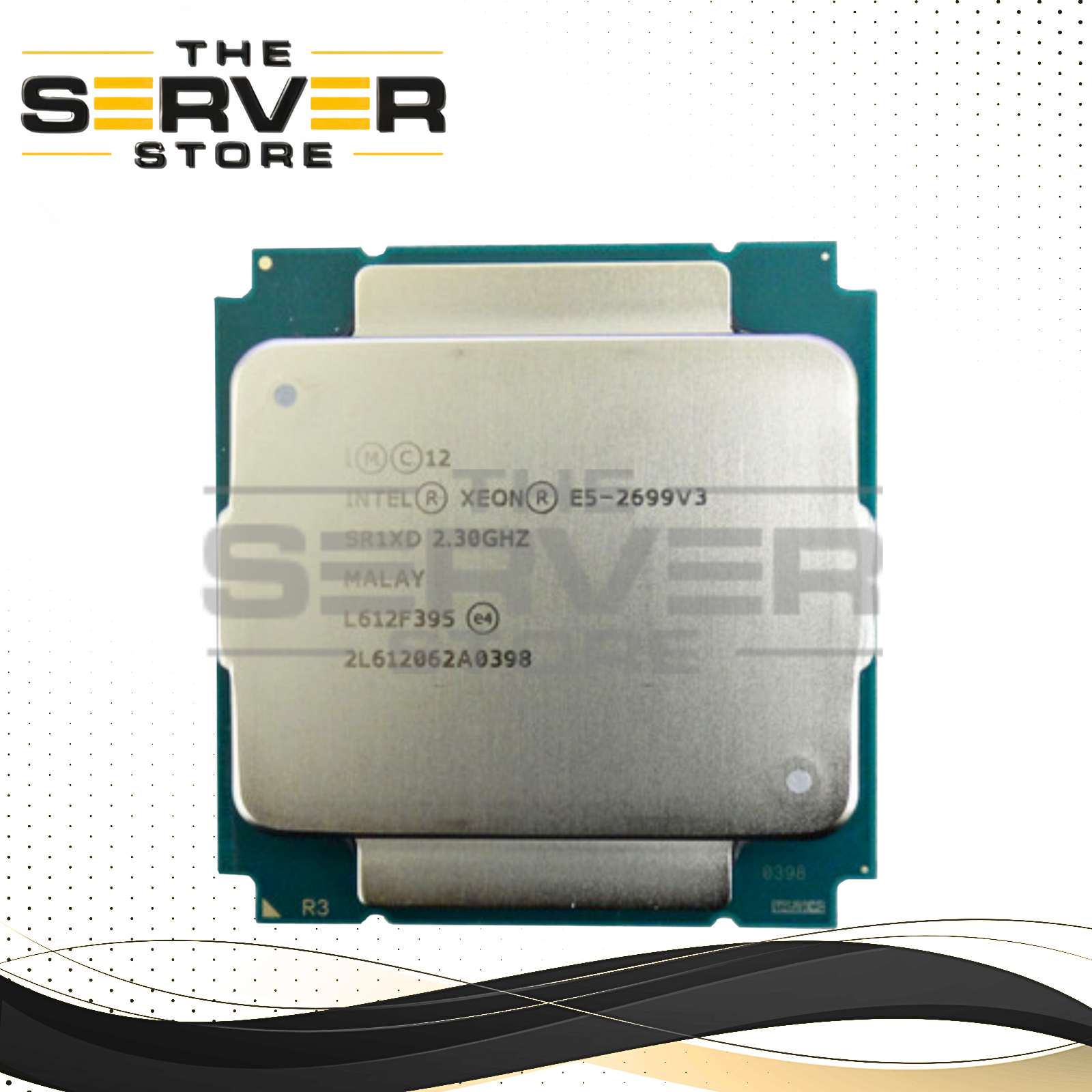

Intel Xeon Processor E5‑2699 v3 (45M Cache, 2.30 GHz)
The Intel Xeon Processor E5‑2699 v3 is a high‑end, enterprise‑grade CPU built for dual‑socket server platforms where performance and reliability matter. Built on the Haswell‑EP architecture, this processor features 18 cores and 36 threads, making it ideal for multithreaded workloads like virtualization, data processing, and scientific computing.
With a base clock of 2.30 GHz and a turbo boost up to 3.60 GHz, it delivers excellent single‑thread and multi‑thread performance. It includes 45 MB of Smart Cache to help reduce latency in data‑heavy tasks. Memory architecture supports quad‑channel DDR4, up to 2133 MT/s, with ECC support and a maximum capacity of 768 GB. It offers 40 PCIe 3.0 lanes for high-bandwidth expansion and supports advanced Intel technologies such as Hyper‑Threading, virtualization (VT-x, VT-d), AES-NI, and more.
Specifications
| Category |
Specification |
| Processor Number |
E5‑2699 v3 |
| Codename / Architecture |
Haswell‑EP |
| Launch Date |
Q3 2014 |
| Status |
Discontinued |
| Cores / Threads |
18 cores / 36 threads |
| Base Frequency |
2.30 GHz |
| Max Turbo Frequency |
3.60 GHz |
| Cache |
45 MB Smart Cache |
| Socket / Package |
LGA 2011‑v3 (FCLGA2011‑3) |
| Lithography |
22 nm |
| TDP (Thermal Design Power) |
145 W |
| Memory Support |
DDR4‑1600 / 1866 / 2133 MT/s |
| ECC Memory Support |
Yes |
| Memory Channels |
4 (Quad‑channel) |
| Max Memory Capacity |
768 GB |
| Memory Bandwidth |
Up to 68 GB/s |
| PCI‑Express Lanes |
40 (PCIe 3.0) |
| Bus / QPI |
9.6 GT/s QPI, 2 links |
| Max CPU Configuration |
2 CPUs per system (dual-socket) |
| Thermal Specs (Tcase) |
Approximately 76.4 °C |
| Voltage Range |
0.65 V – 1.30 V |
| Instruction Set Extensions & Features |
AVX, AVX2, Hyper‑Threading, VT‑x, VT‑d, AES‑NI, TSX, EIST, Secure Key, Trusted Execution |
Kits / Part Numbers Compatible with Intel Xeon E5‑2699 v3
-
CM8064401739300
-
E5-2699V3
-
UCS-CPU-E52699D
-
780761-001
-
780003-B21
-
780003-L21
-
781915-B21
-
781915-L21
-
781828-B21
-
781828-L21
-
779795-B21
-
779795-L21
-
793056-B21
-
793056-L21
-
732384-B21
-
732384-L21
-
821792-B21
-
821792-L21
-
338-BGRM
-
01F03K
