Overview

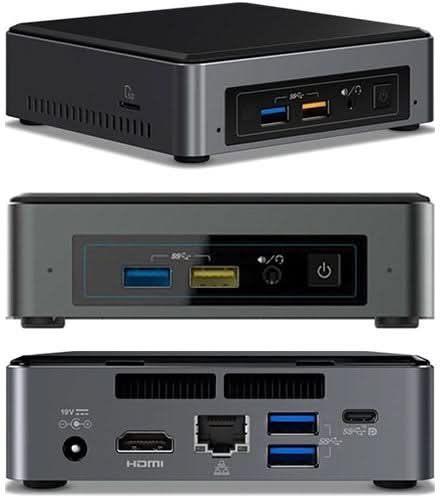

The Intel NUC7i3BNK is a compact Mini PC kit designed for customization, allowing users to select their own memory, storage, and operating system.This barebone system comes equipped with an Intel Core i3-7100U processor and offers various connectivity options.
Specifications
Model Number: NUC7I3BNK
Brand: Intel
Alt Part Number(s): NUC7I3BNK
Product Type: Barebone System
Technical Description
Brand: Intel
Model:NUC7I3BNK
CPU: Intel Core i3-7100U, Dual-Core, 2.40GHz, 3MB Cache, 15W TDP
RAM: 2x DDR4 SO-DIMM slots, dual channel, PC4-17000S (2133MHz), up to 32GB
Storage: 1x M.2 M-Key slot (PCIe 3.0 x4, supports 2280/2242 SSDs)
Graphics: Intel HD Graphics 620 (integrated),
- 1x HDMI 2.0 (4K @ 60Hz)
- 1x Mini DisplayPort 1.2
USB Ports: 4x USB 3.0
Networking:
- 1x Gigabit LAN (Intel I219-V)
- WLAN 802.11a/b/g/n/ac
- Bluetooth 4.2
Audio: 7.1 channel (Intel HD Audio),
Other Features:
- SD card reader (SD/SDHC/SDXC)
- NFC header
- VESA mounting support (75x75 mm and 100x100 mm, mount included)
Power Supply: External 65W
Boost your enterprise performance with the Intel NUC7I3BNK NUC Barebone System Mini PC 1 x Processor Support Intel—ORDER TODAY!
*
