Description

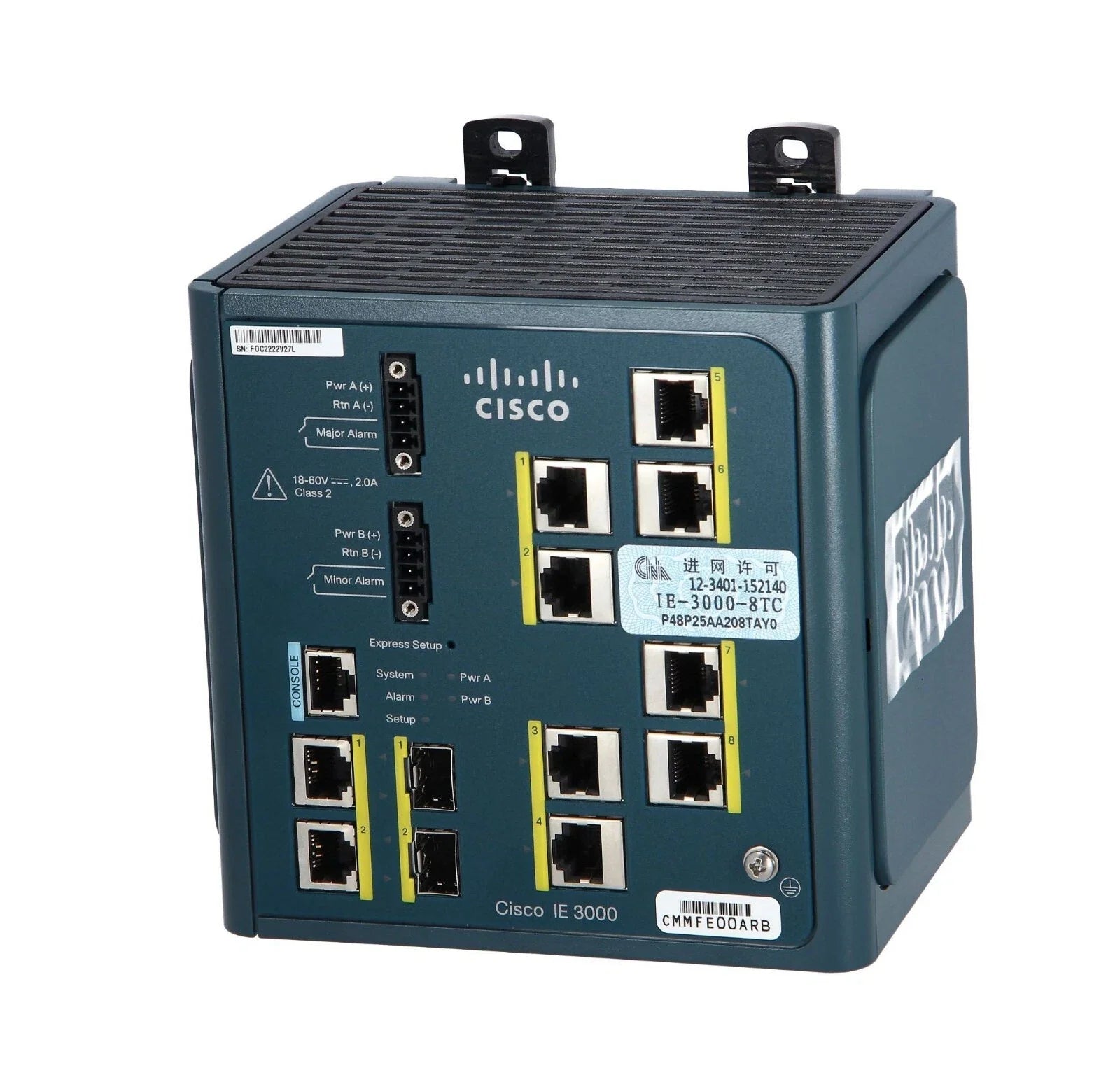

The Cisco IE-3000-8TC is an industrial-grade Layer 2 managed Ethernet switch built for robust performance in harsh and mission-critical environments. Designed for sectors such as manufacturing, transportation, and utilities, this switch delivers secure, reliable connectivity and modular expansion capabilities to support evolving network demands.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
IE-3000-8TC
|
| Subcatecory |
Industrial Ethernet Switches
|
| Ports |
8 x 10/100Base-TX (RJ-45), 2 x SFP |
| Switching Fabric |
16 Gbps |
| Forwarding Rate |
6.5 Mpps |
Layer Support
|
Layer 2 |
| MAC Address Table |
Up to 8000 addresses |
| Unicast Routes (Layer 3) |
Up to 3000
|
| Multicast Routes (Layer 3) |
Up to 1000
|
| DRAM |
128 MB
|
| Compact Flash |
64 MB
|
| Form Factor |
DIN-rail or wall mount (rugged industrial)
|
| Dimensions (H x W x D) |
6.0” W x 5.8” H x 4.4” D
(152mm W x 147mm H x 112mm D)
|
| Weight |
4.4 lb (2.0 kg)
|
Information About IE-3000-8TC
The IE-3000-8TC is part of Cisco’s Industrial Ethernet 3000 Series, known for its durability, flexibility, and scalability. The switch features 8 Fast Ethernet RJ-45 ports for local device connectivity and 2 SFP slots for Gigabit uplink expansion, offering versatility in deployment. This model supports a switching capacity of 16 Gbps and a forwarding rate of 6.5 Mpps, ensuring fast and efficient data handling. The device supports Layer 2 switching and is equipped with 128 MB of DRAM and 64 MB of compact flash for reliable operation and software storage.
Key Features:
-
8 Fast Ethernet Ports + 2 SFP Slots: Supports legacy and fiber-based connections in industrial settings.
-
16 Gbps Switching Fabric: Ensures high-throughput performance for latency-sensitive operations.
-
Layer 2 Switching Support: With capabilities like IGMP snooping and VLANs for traffic optimization.
-
Robust Management Options: Fully manageable with SNMP, CLI, and Cisco's standard configuration utilities.
-
Scalable and Modular: Offers up to 6 expansion slots for additional modules to accommodate network growth.
The IE-3000-8TC provides a rugged, manageable, and expandable switching solution that meets the needs of demanding industrial applications.
