- 5MP resolution
- Vari-focal Lens (f=3.0mm ~ 13.5mm)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Motion Detection
- De-fog
- HLC
- Vandal Proof / IP66 supports
- Coaxial OSD Control
| Video |
| Image Sensor |
1/2.8" CMOS Sensor |
| Max. Resolution |
2592 x 1944 |
| Scanning Mode |
Progressive Scan |
| Frame Rate |
TVI : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
AHD : 20ips@5MP, 12.5ips@5MP, 30ips@4MP, 30ips@2MP
CVBS : NTSC / PAL(for previewing video) |
| Lens Type |
Motorized Vari-focal |
| Focal Length |
3.0mm ~ 13.5mm |
| Aperture |
F1.4 ~ 3.2 |
| Iris Control |
DC Iris |
| Angular Field of View |
Wide : 91º(H) 66º(V) 120º(D)
Tele : 31º(H) 23º(V) 38(D) |
| Min. Illumination |
COLOR : 0.13 Lux @ F1.4
B/W : 0 Lux (IR LED ON) |
| S/N Ratio |
More than 50dB |
| Dynamic Range |
120dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker |
| Day and Night |
Yes (ICR) |
| IR Distance (LEDs) |
30m / 98.4 ft (4ea) |
| Video Out |
1 HD BNC (Signal Switchable) |
| Function |
| Functions via OSD menu control |
· AGC : 0 ~ 10 Level Adjustable
· Brightness : 0 ~ 20 Level Adjustable
· Sens-UP : OFF / x2 ~ x32
· WDR(Wide Dynamic Range) :
OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available
· Backlight Compensation(BLC) : OFF/ON
· HLC : 1 ~ 20 Level Adjustable (ALL DAY/NIGHT ONLY)
· ACE(D-WDR/ATR-EX) : OFF / LOW / MIDDLE / HIGH
· Motion Detection : OFF/ON (4 Zone)
· Privacy Masking : OFF/ON (24 Zone) BOX:16 POLYGON:8
· Day & Night : Color/B&W/EXTERN
· Smart-IR(IR OPTIMIZER) : 0~20 Level Adjustable
· White Balance : AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K)
· Digital Noise Reduction : OFF / LOW / MIDDLE / HIGH
· Mirror : MIRROR, FLIP
· D-ZOOM(EZOOM) : x1 ~ x16
· Sharpness : 0~10 Level Adjustable
· De-fog : OFF/ON
· GAMMA Correction : r = 0.45 ~ 0.75
· Lens Shading(LSC) : OFF / ON(0 ~ 100% Level Adjustable)
· Language : ENG / CHN / CHN(S) / JPN / KOR |
| Environmental |
| Vandal Proof Casing |
IK10 |
| Outdoor Ready |
IP67 |
| Operating Temperature |
-10℃ ~ +55℃ (14℉ ~ +131℉) |
| Operating Humidity |
0% ~ 90% |
| Electrical |
| Power Source |
DC 12V, AC 24V |
| Power Consumption |
DC12V/8W, AC 24V/ 8.3W |
| Mechanical |
| Dimensions |
80mm x 75mm x 237mm (3.15” x 2.95” x 9.33”) |
| Weight |
0.87kg (1.92lb) |

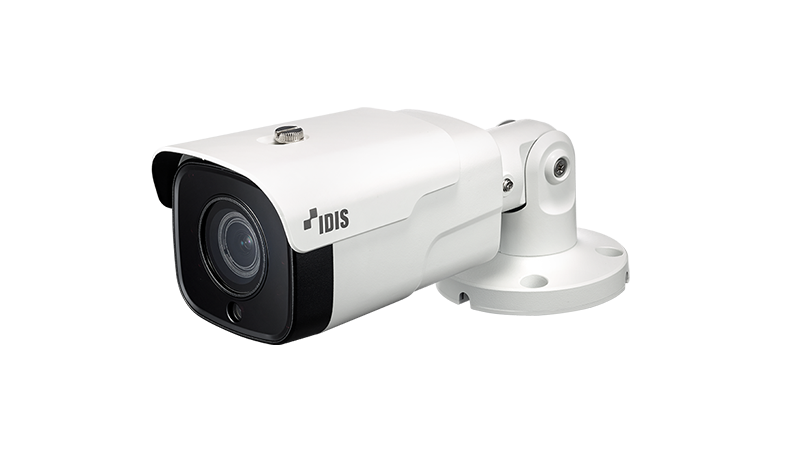

IDIS, 5MP DirectCX Bullet Camera, Vandal IK 10, IP67, 20ips@5MP, 1/2.8" CMOS Sensor, 3.0mm ~ 13.5mm, TVI / AHD/ CVBS coaxial protocol, WDR, Motion Detection, De-fog, Coaxial OSD Control, DC 12V/ 8W, AC 24V/ 8.3W, IR 30m / 98.4 ft(4ea)
