- Total incoming throughput 370Mbps
- Up to 960ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Up to 960ips live display
- Easy to install, set-up, and play with DirectIP cameras
- Built-in 16 channel PoE Switch
- Expandable up to 252TB using eSATA storage
- Supports RAID 1
- Supports one click network configuration through FEN service
- Supports third party cameras (Axis, Panasonic, ONVIF)
- NDAA Compliance
| Video |
| Video Inputs |
32 IP Channels |
| Max. Incoming Throughput |
370Mbps |
| Supported Camera |
DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs |
2 HDMI |
| Display Resolution |
HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed |
Up to 960ips |
| Digital Zoom |
x2 ~ x12 |
| NVR Side Dewarping |
Yes |
| Recording |
| Max. Throughput |
230Mbps, 960ips@UHD |
| Recording Resolution |
Up to 12MP (Depending on IP Camera) |
| Video Compression |
H.265, H.264 |
| Recording Mode |
Time-lapse, Event, Pre-event, Panic |
| Trigger Event |
IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback |
| Performance |
32ch synchronous playback |
| Search Mode |
Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom |
x2 ~ x12 |
| Storage |
| HDD |
SATA x 6, eSATA x 4, RAID 1 Supported |
| Total Capacity |
The maximum HDD capacity is updated as new HDD models become available.
For the most recent information, please check here
|
| Network |
| Client Connection |
Gigabit Ethernet (Client) x1 |
| Video In Connection |
Gigabit Ethernet(IP Camera) x16 +Gigabit Ethernet(Ext) x1 |
| Transmission Speed |
50Mbps / 100Mbps (BRP Mode) |
| PSE Power |
PoE (IEEE 802.3at Class 4) Supported 16 Ports, 120W |
| Event Notification |
Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio |
Yes |
| Interface |
| Audio In / Out |
Local (NVR) : 1 RCA / 1RCA + 2HDMI
IP Camera :32 / 32 (Depending on IP Camera) |
| Alarm In / Out |
Local(NVR) : 4 / 1
IP Camera : 32 / 32 (Depending on IP Camera) |
| Alarm Reset In |
Yes |
| Serial Interface |
RS232 (Terminal Block), RS485 (Terminal Block) |
| USB |
USB 2.0 x 2, USB 3.0 x 1 |
| User Interface |
Mouse, IR Remote Control, Network Remote Keyboard |
| General |
| Operating System |
Embedded Linux |
| Environmental |
| Operating Temperature |
0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity |
0% ~ 90% |
| Electrical |
| Power Consumption |
100-240V~, 50/60Hz, 3.0-1.5A, 250W |
| Approval |
FCC, UL, CE, CB |
| Mechanical |
| Unit Dimensions (W x H x D) |
430mm x 88mm x 420mm (16.9" x 3.5" x 16.5") |
| Unit Weight |
6.75kg (14.88lb) (with 1HDD) |

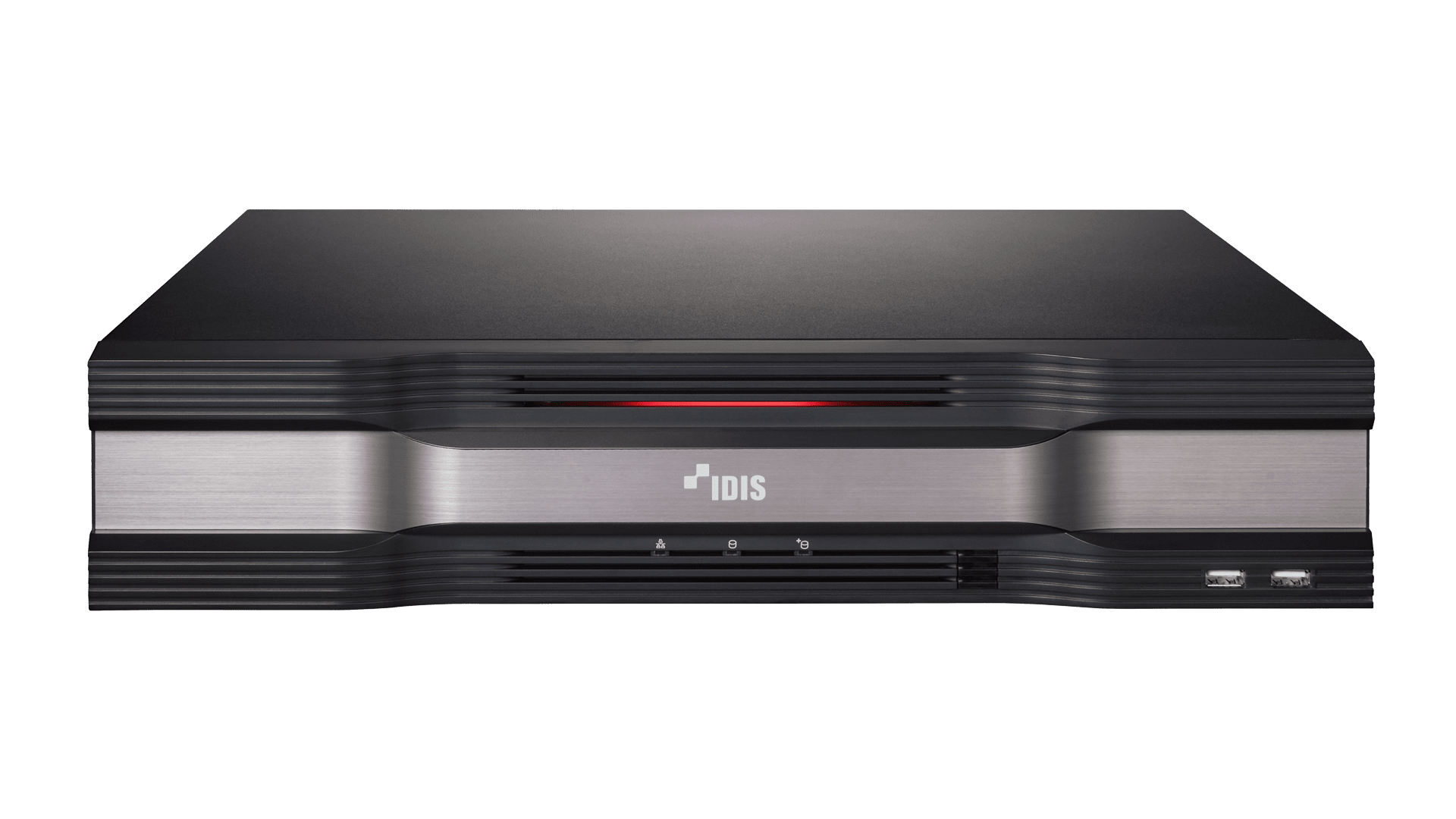

IDIS, 32-Ch, DirectIP NVR, H.265, Built-in 16 Port PoE (IEEE 802.3at Class 4), Total POE 200W, Recording 230Mbps, Total 370Mbps, 960ips@UHD, 6 SATA, 4 eSATA, ONVIF Profile S, Supports RAID 1, Alarm in- 4 / out- 1, Audio in / out Local(NVR) : 1RCA / 1RCA + 2HDMI, RS232 (Terminal Block) / RS485 (Terminal Block), USB 2.0 x 2, USB 3.0 x 1, 2 HDMI Monitor out, AC 100-240V~, 50/60Hz, 4.0-2.0A, Hard Drive: 60TB
