- Easy installation with DirectIP NVR
- 5MP (2592x1944) resolution
- Fixed-focal lens (f=2.8mm)
- micro SD/SDHC/SDXC
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- PoE (IEEE 802.3af Class 3)
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (30 m / 98.4 ft (4 ea))
- Supports ONVIF
| Video |
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
2592 x 1944 |
| Scanning Mode |
Progressive Scan |
| Lens Type |
Fixed-focal |
| Focal Length |
2.8mm |
| Aperture |
F2.0 |
| Iris Control |
Fixed Iris |
| Angular Field of View |
4:3 mode : 104.8º(H) 76.9º(V) 130º(D)
16:9 mode : 104.8º(H) 57.1º(V) 122.9º(D) |
| Min. Illumination |
COLOR : 0.15 lux @ F2.0
B/W : 0 lux (IR LED ON) |
| Dynamic Range |
120dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night |
Yes (ICR) |
| IR Distance (LEDs) |
30 m / 98.4 ft (4 ea) |
| Image Setting |
Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation |
BLC |
| Mirroring / Pivot |
Horizontal / Vertical / Pivot |
| Image Stabilizer |
- |
| De-fog |
Yes |
| Privacy Masking |
8 Zones |
| Intelligent Video |
Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out |
- |

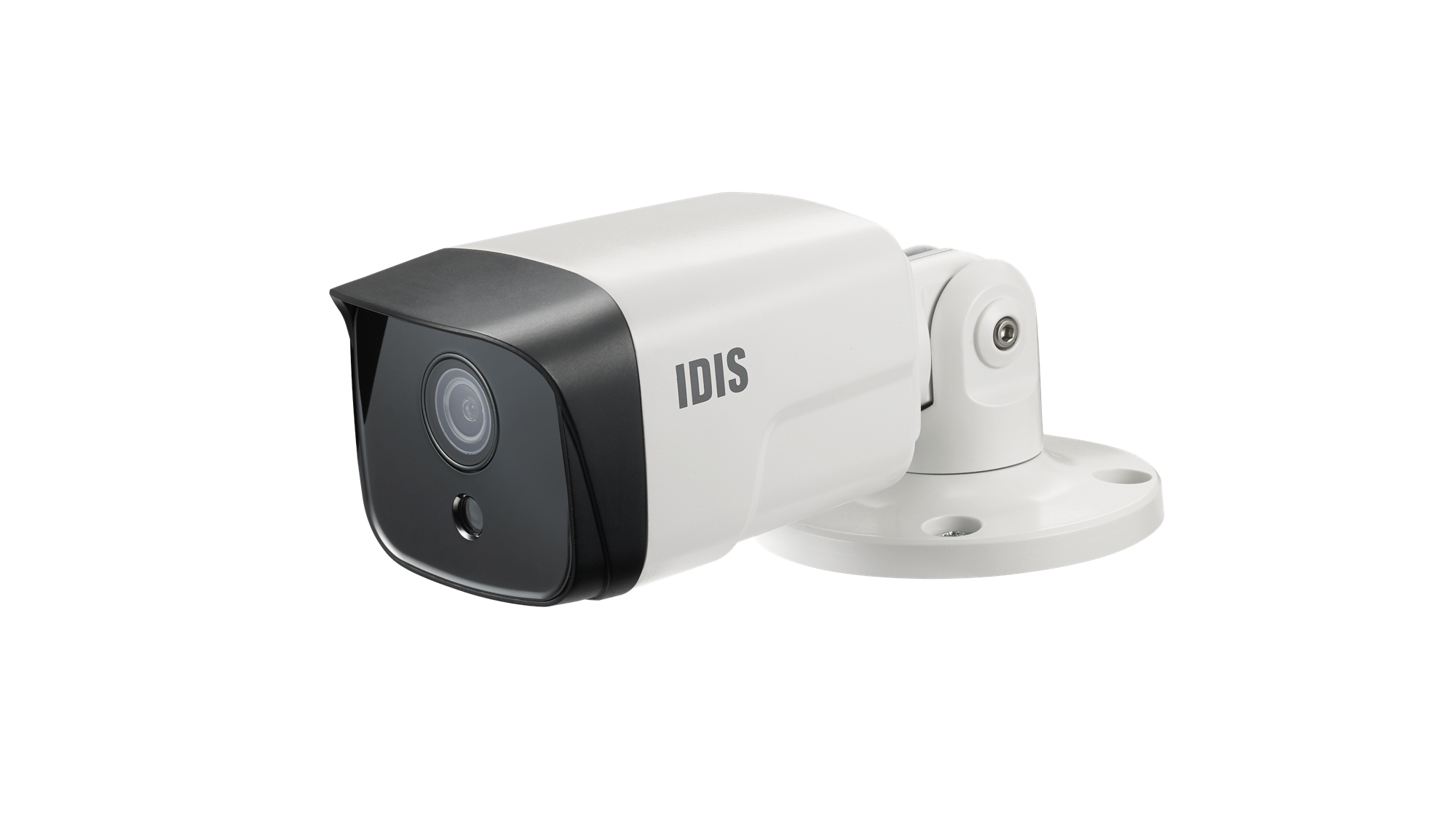

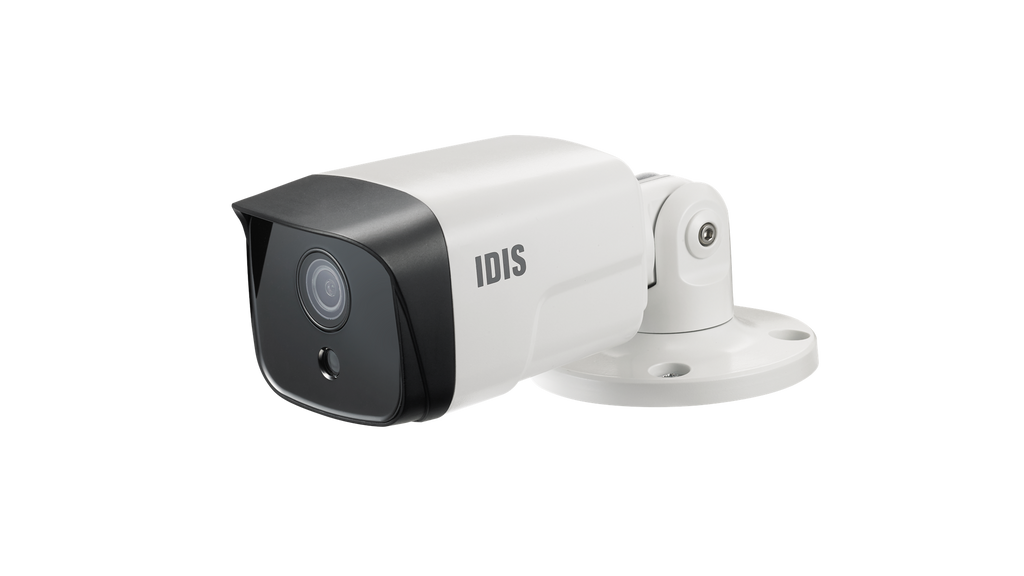

IDIS, 5M Bullet Camera, Vandal IK10, IP67, H.265@30ips, 1/2.8" CMOS, 2.8mm, DirectIP 2.0, ONVIF, Alarm in/out, Audio in/out, Micro SD/SDHC/SDXC (Up to 512GB), PoE, (IEEE 802.3af Class 3), 7.9W, IR (4ea) 30 m / 98.4 ft
