- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- Remote Motorized Focus and Zoom
- PoE (IEEE 802.3af Class 3)
- IR LED (40m / 131.2 ft (6ea))
- IDIS Deep-Learning Analytics (IDLA)
- Alarm in / out
- Audio in (+ Built In MIC) / out
| Video |
| Image Sensor |
1/2.8" CMOS |
| Max. Resolution |
2592 x 1944 |
| Scanning Mode |
Progressive Scan |
| Lens Type |
Motorized Vari-focal |
| Focal Length |
2.7 ~ 13.5mm |
| Aperture |
F1.4 ~ 3.2 |
| Iris Control |
DC Iris |
| Angular Field of View |
[4:3 mode]
Wide : 101.2º(H) 72.5º(V) 137.4º(D)
Tele : 30.4º(H) 22.8º(V) 38º(D)
[16:9 mode]
Wide : 101.2º(H) 53.3º(V) 121.6º(D)
Tele : 30.4º(H) 17º(V) 34.7º(D) |
| Min. Illumination |
COLOR : 0.13 lux @ F1.4
B/W : 0 lux (IR LED ON) |
| Dynamic Range |
120dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night |
Yes (ICR) |
| IR Distance (LEDs) |
40m / 131.2 ft (6ea) |
| Image Setting |
Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation |
- |
| Mirroring / Pivot |
Horizontal / Vertical / Pivot |
| Image Stabilizer |
- |
| De-fog |
Yes |
| Privacy Masking |
8 Zones |
| Intelligent Video |
Object Metadata: Human, Vehicle, Face
IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out |
- |

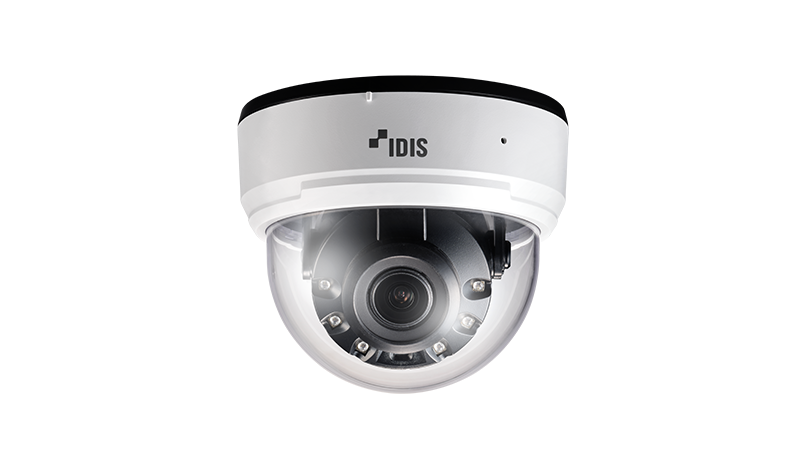

IDIS, 5M AI IR Dome Camera (LightMaster NIR), Indoor, H.265@30ips, 1/2.8" CMOS,2.7 ~ 13.5mm, DirectIP 2.0, ONVIF, Alarm in/out, Audio in (+ Built In MIC) / out, AI: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Micro SD/SDHC/SDXC (Up to 512GB), 12V=, 1A, 12W, PoE IEEE 802.3af(Class 3), 9.5W, IR (6ea) 40m / 131.2 ft
