Description

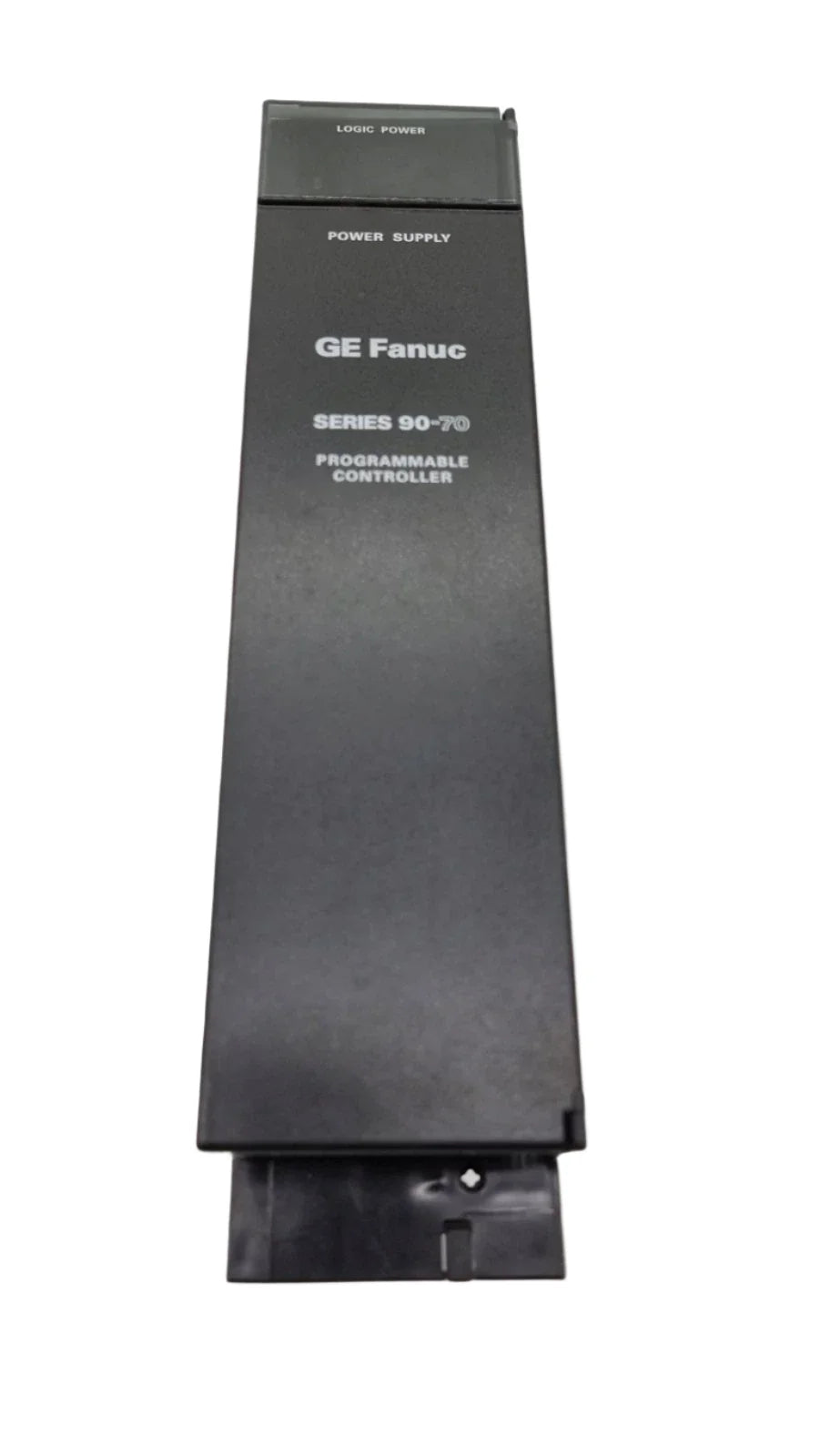

The IC697PWR711J is a 100 W rack‑mounted power supply designed for the GE Fanuc Series 90‑70 (and compatible 90‑30) PLC platforms.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fanuc |
| Category |
Industrial Automation |
| Part Number |
IC697PWR711J |
| Subcategory |
PLC Power Supply Modules |
| Series |
GE Fanuc Series 90-70 |
| Application |
Logic Power for Programmable Controllers |
| Mounting Location |
Leftmost slot on baseplate |
| Nominal Rated Voltage |
120/240 VAC or 125 VDC |
| Input Voltage Range |
90 to 264 VAC / 100 to 150 VDC |
| Input Power |
135 watts at full load |
| Output Power |
100 watts total |
| DC Output Voltages |
+5 VDC at 20 A, +12 VDC at 2 A, −12 VDC at 1 A |
| Input Frequency |
50/60 Hz |
| AC Input Current |
1.4 A @ 120 V, 0.7 A @ 240 V |
| DC Input Current |
1.4 A @ 125 VDC |
| Conductor Requirements |
75°C copper conductor |
| Torque Requirement |
12 in-lb (1.3 N·m) |
| Environmental Rating |
Class I, Div 2, Groups A, B, C, D |
| Weight |
1.850 kg (approx. 4.08 lbs) |
Information About IC697PWR711J
The IC697PWR711J is a robust GE Fanuc power supply module engineered for the Series 90‑70 programmable controller platform. It delivers up to 100 watts of regulated DC power to support logic modules and I/O devices across single or dual rack configurations. Designed for flexible voltage environments, it accepts both 120/240 VAC and 125 VDC input, ensuring dependable operation in a variety of industrial settings. Installed in the leftmost slot of the baseplate, this module features slide-in rack mounting, automatic protection circuits, and power factor correction, making it a reliable power backbone for demanding control systems.
Key Features:
- Multi-Voltage Input Support: Accepts a wide input range of 90–264 VAC or 100–150 VDC, providing installation flexibility across industrial environments.
- High-Capacity Output: Supplies +5 VDC at 20 A, +12 VDC at 2 A, and –12 VDC at 1 A with a total output power of 100 W, ideal for powering logic and analog circuits.
- Slide-In Modular Design: Mounts in the leftmost rack slot with quick-connect functionality, enabling simple installation or field replacement.
- Dual Rack Support: Capable of powering a second rack via linking cable when within power constraints, enhancing system scalability.
- Built-In Protection: Features overcurrent and overvoltage protection on all outputs, with automatic shutdown and manual reset for safety.
- Power Factor Correction: Improves energy efficiency and reduces harmonic distortion when operated with AC input.
- Rugged Construction: Operates reliably in temperatures up to 60 °C, with a durable chassis and copper conductor torque spec of 12 in-lb (1.3 N·m).
- USA-Made Quality: Manufactured in Charlottesville, VA, ensuring adherence to industrial-grade engineering and reliability standards.
The IC697PWR711J is a proven power solution for GE Fanuc Series 90-70 systems, offering durability, precise voltage regulation, and easy integration into mission-critical automation environments. Whether used in legacy upgrades or as part of scalable PLC infrastructure, it delivers consistent performance where reliability matters most.
