Description

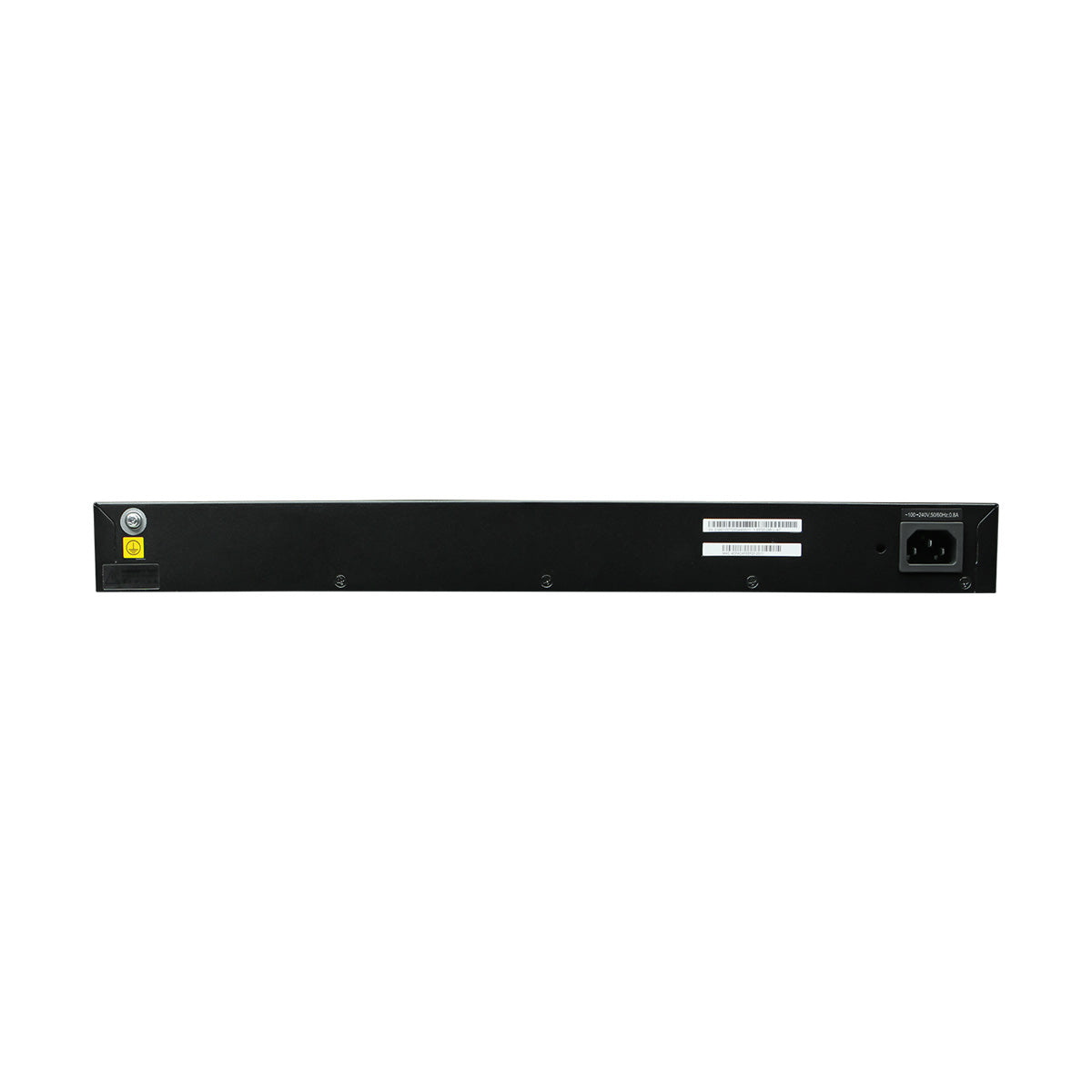

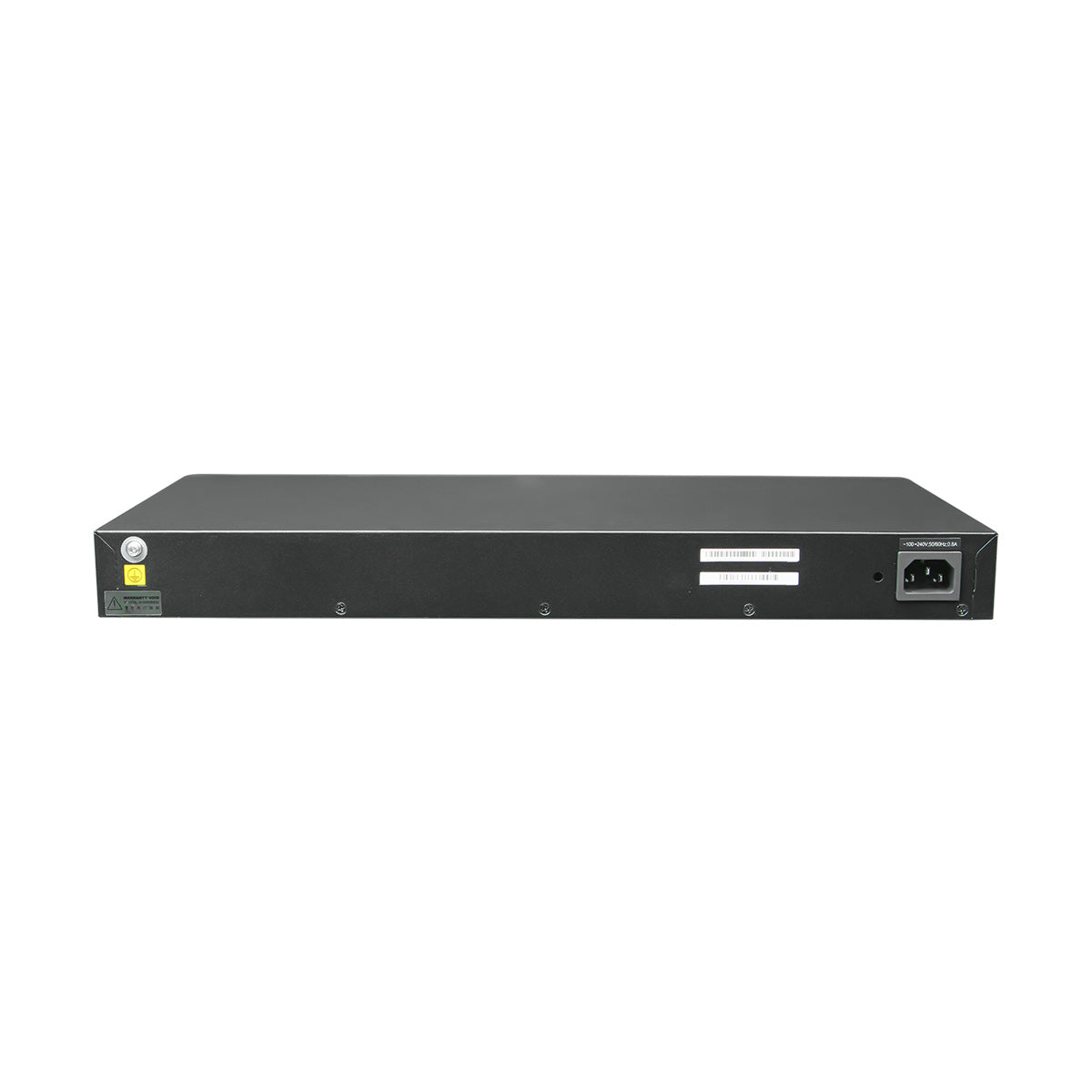

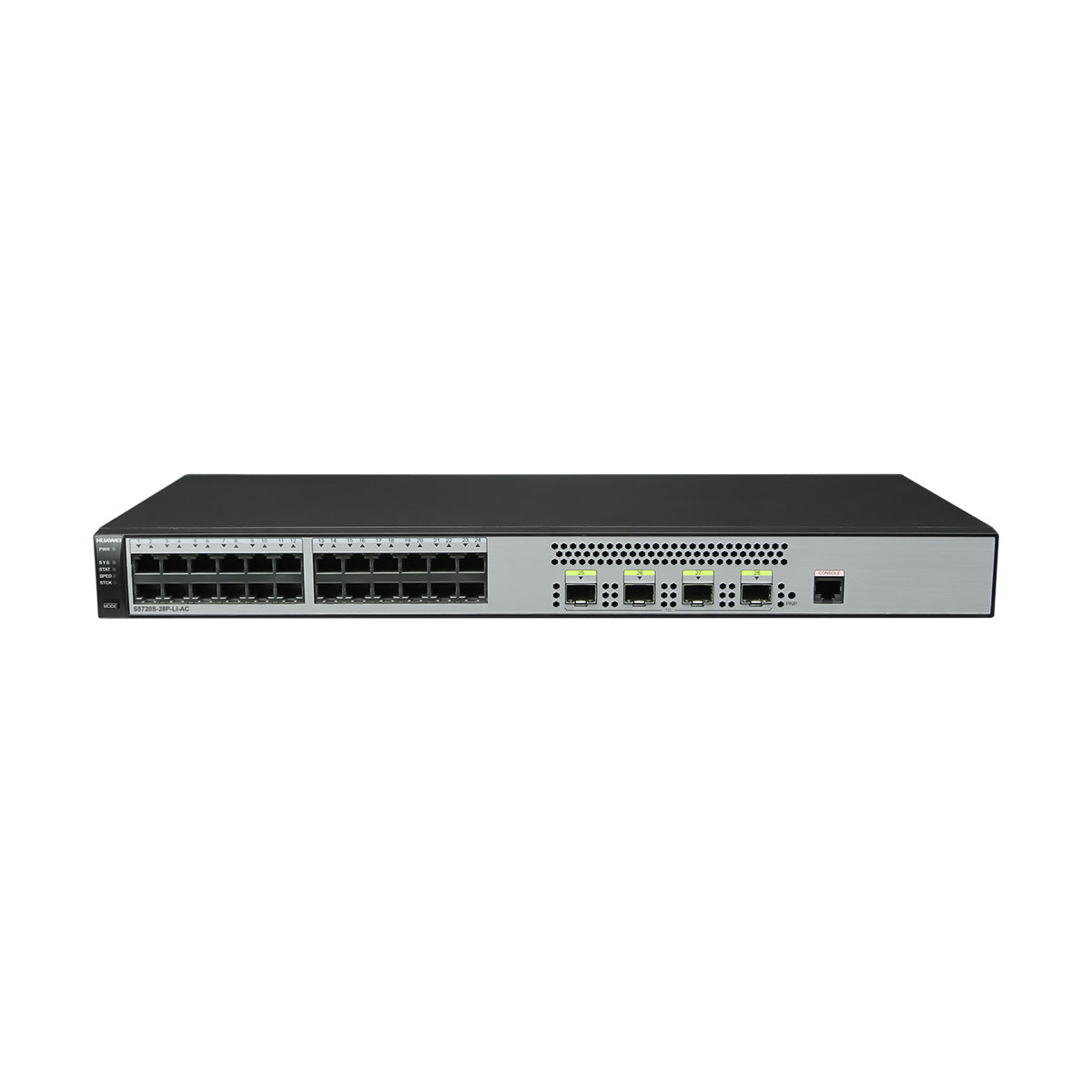

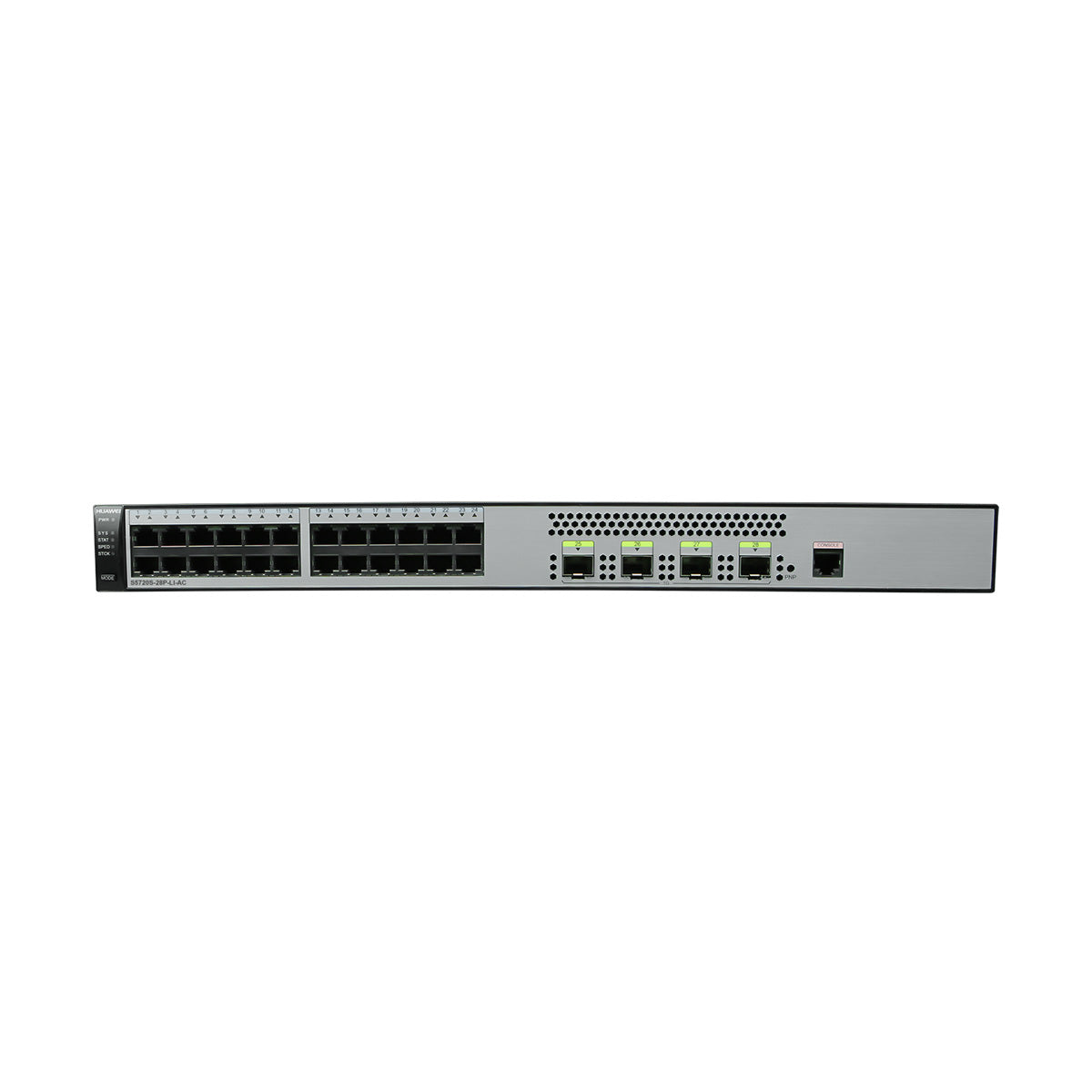

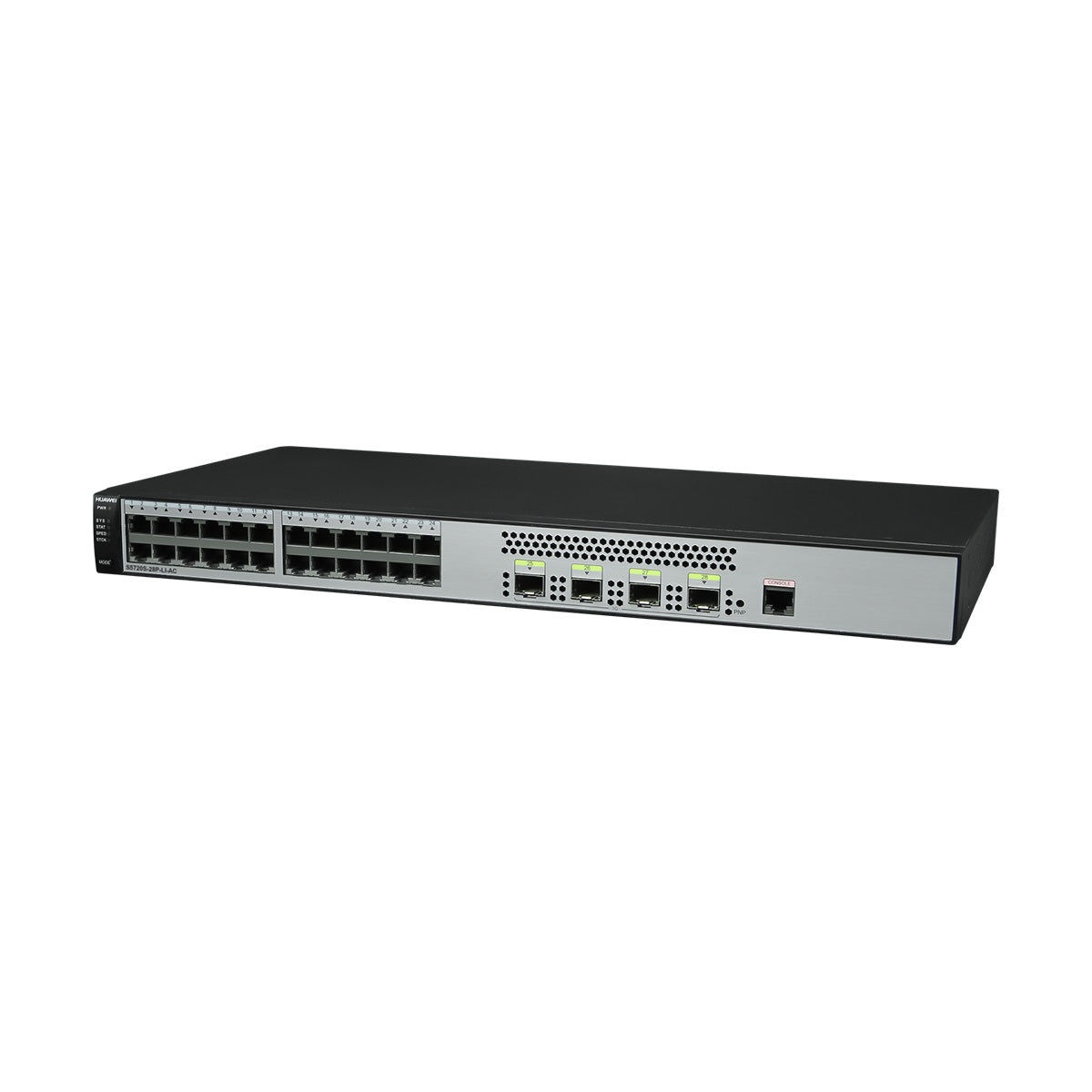

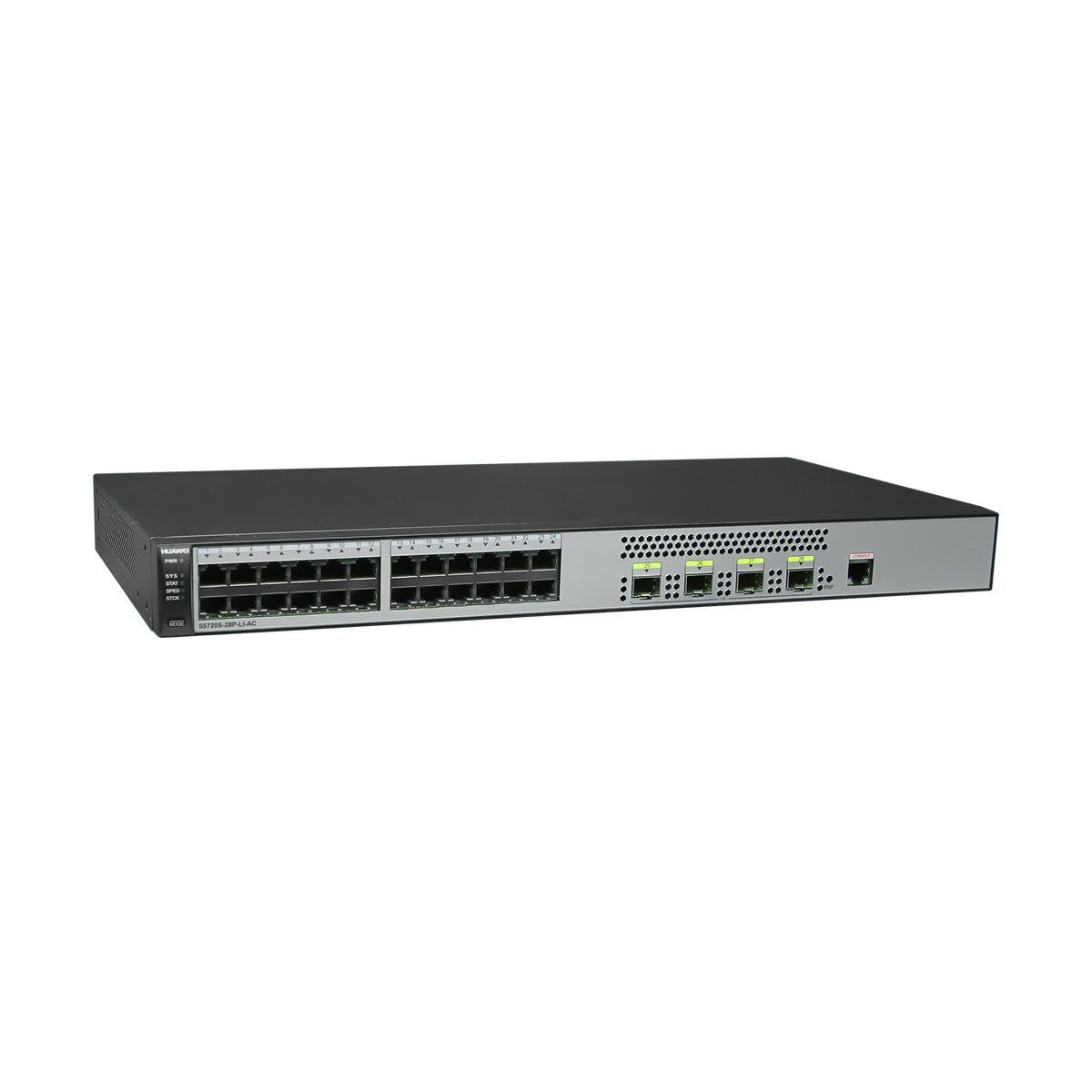

Huawei S5720S-28P-LI-AC Layer 3 Gigabit Ethernet Switch
The Huawei S5720S-28P-LI-AC is a Layer 3 Gigabit Ethernet switch designed for enterprise campus networks and high-density deployments. It offers 24 10/100/1000BASE-T ports and 4 Gigabit SFP uplink ports, providing flexible deployment options.
With a switching capacity of 336 Gbps and a forwarding rate of 51 Mpps, this switch ensures efficient data handling. It supports advanced features such as intelligent stacking (iStack), comprehensive security mechanisms, and energy-efficient design, making it a versatile solution for various networking needs.
Overview
Highlights
-
Port Configuration: 24 × 10/100/1000BASE-T ports and 4 × Gigabit SFP uplink ports.
-
High Performance: 336 Gbps switching capacity and 51 Mpps forwarding rate ensure efficient data processing.
-
Advanced Layer 3 Features: Supports static routing, RIP, and OSPF for robust network routing capabilities.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.
-
Intelligent Stacking (iStack): Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.
-
Energy-Efficient Design: Intelligent fan speed adjustment for reduced power consumption and noise.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-GE-SX-MM850 | SFP Transceiver | 1000BASE-SX SFP, 850nm, multimode fiber, up to 550m |
| SFP-GE-LX-SM1310 | SFP Transceiver | 1000BASE-LX SFP, 1310nm, single-mode fiber, up to 10km |
| SFP-GE-LH40-SM1310 | SFP Transceiver | 1000BASE-LH SFP, 1310nm, single-mode fiber, up to 40km |
| SFP-GE-ZX50-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 50km |
| SFP-GE-ZX80-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 80km |
| SFP-GE-ZX100-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 100km |
| SFP-GE-LX20-SM1310-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 20km |
| SFP-GE-LX20-SM1550-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 20km |
| SFP-GE-LH40-SM1310-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 40km |
| SFP-GE-LH40-SM1550-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 40km |
Comparison with Similar Items
| Feature | S5720S-28P-LI-AC | S5720S-28P-PWR-LI-AC | S5720S-28X-LI-AC |
|---|---|---|---|
| Downlink Ports | 24 × GE | 24 × GE PoE+ | 24 × GE |
| Uplink Ports | 4 × GE SFP | 4 × GE SFP | 4 × 10GE SFP+ |
| PoE Support | No | Yes (370W budget) | No |
| Switching Capacity | 336 Gbps | 336 Gbps | 336 Gbps |
| Forwarding Rate | 51 Mpps | 51 Mpps | 108 Mpps |
| Stacking Support | Yes (iStack) | Yes (iStack) | Yes (iStack) |
| Ideal Use Case | Standard access | High-density PoE access | High-performance access |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5720S-28P-LI-AC |
| Downlink Ports | 24 × 10/100/1000BASE-T ports |
| Uplink Ports | 4 × Gigabit SFP ports |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 51 Mpps |
| MAC Address Table | 8K entries |
| VLANs | Supports up to 4,000 VLANs (IEEE 802.1Q) |
| QoS | 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6 |
| Security Features | 802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | Built-in AC power module |
| Power Consumption | Typical: 16.1W; Maximum: 20.2W |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (W×D×H) | 442 mm × 220 mm × 43.6 mm (17.4 in. × 8.7 in. × 1.7 in.) |
| Weight | ≤ 3.4 kg (7.5 lbs) |
| Warranty | Limited lifetime warranty |
