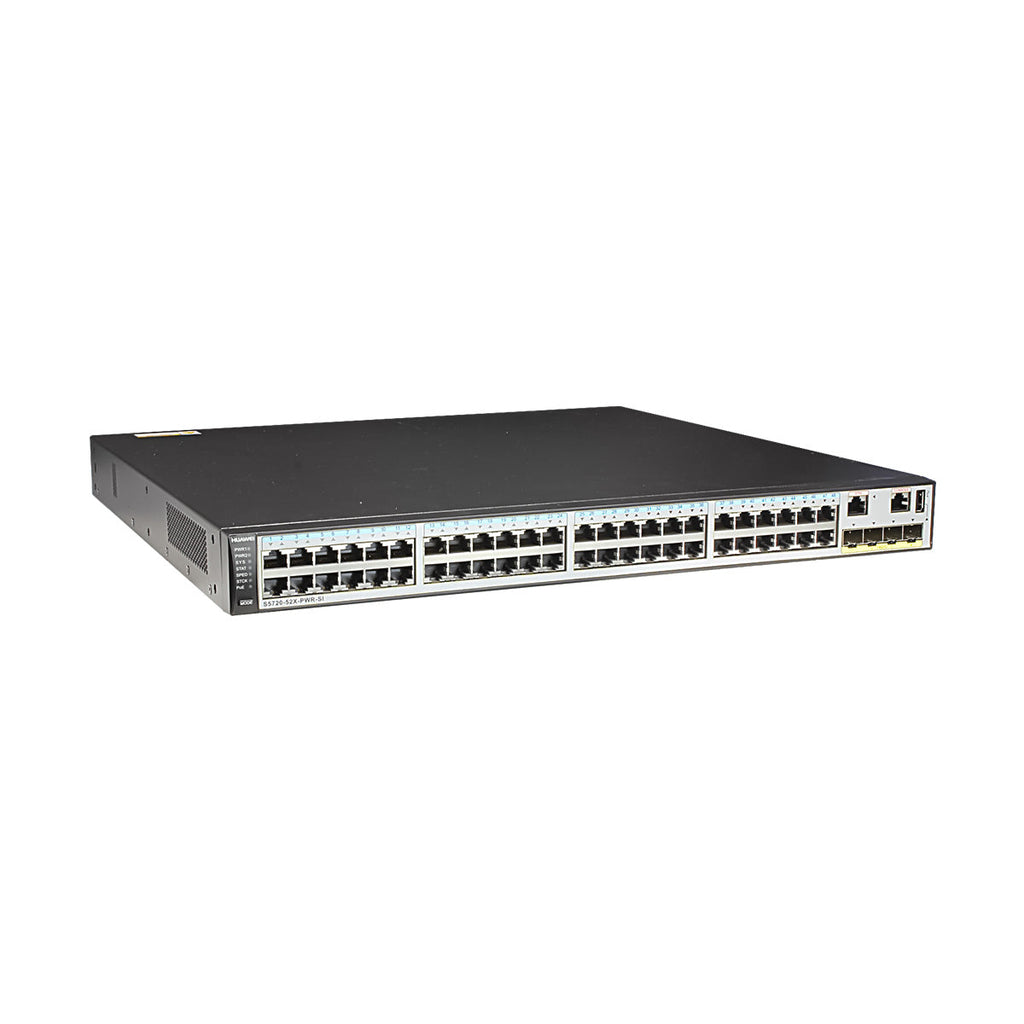

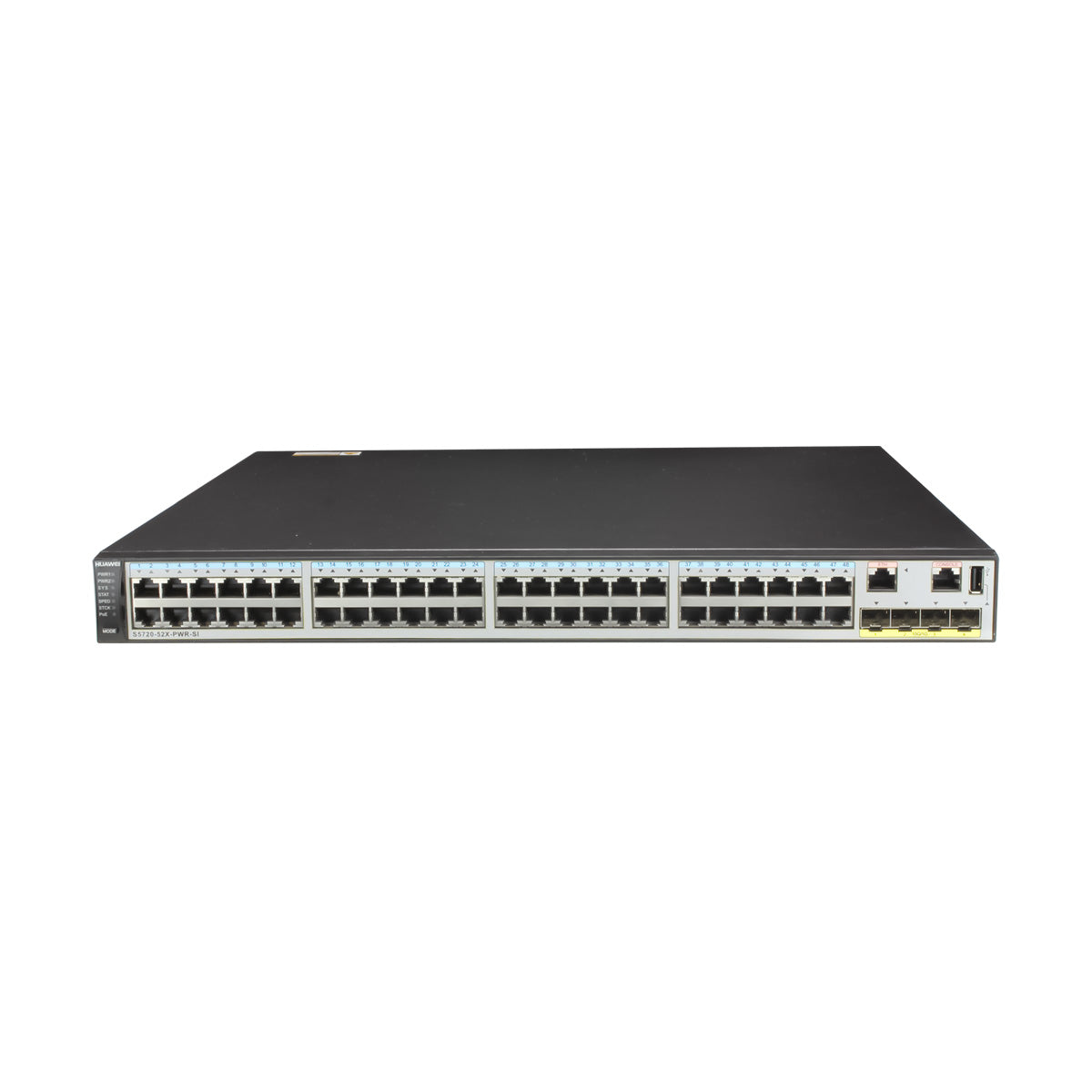

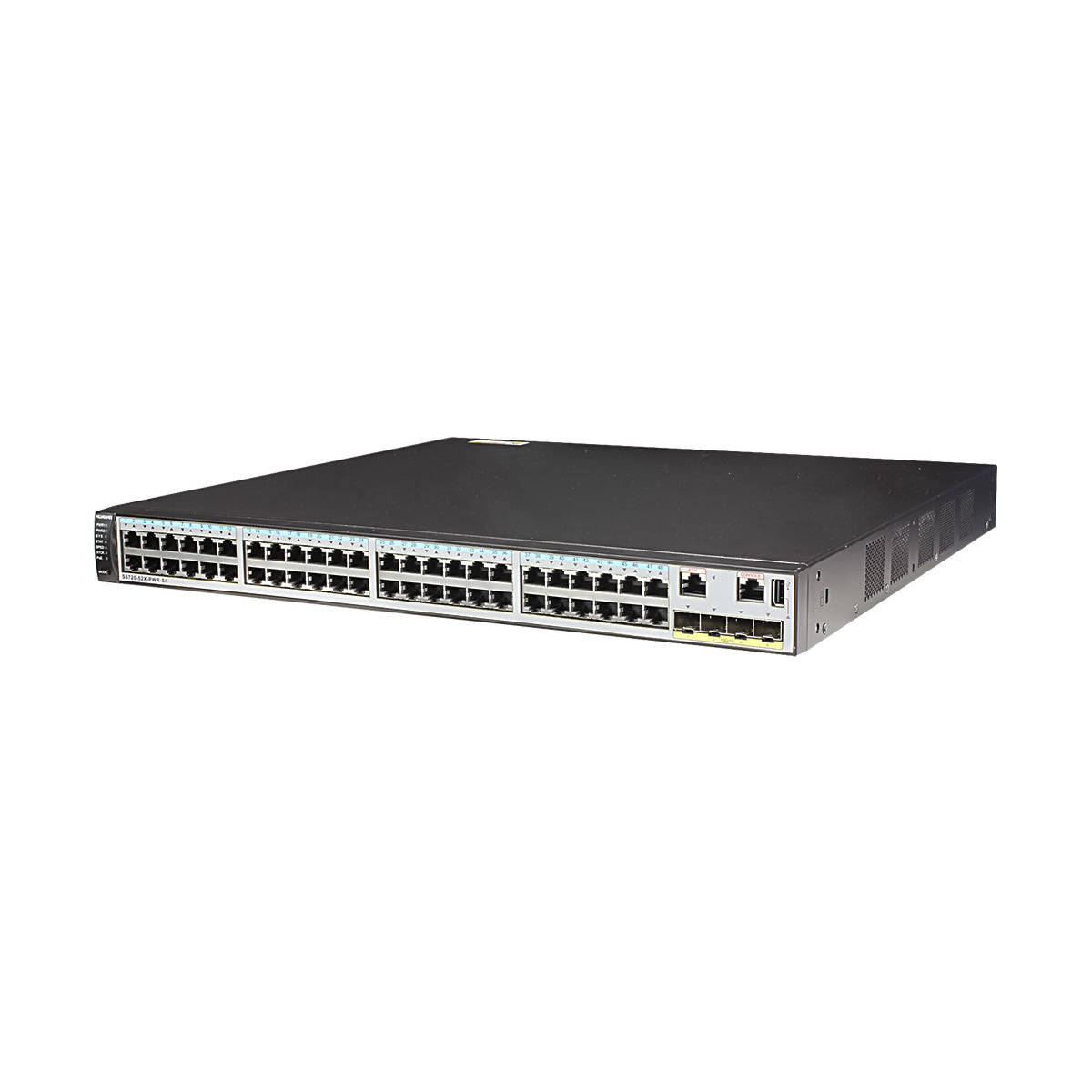

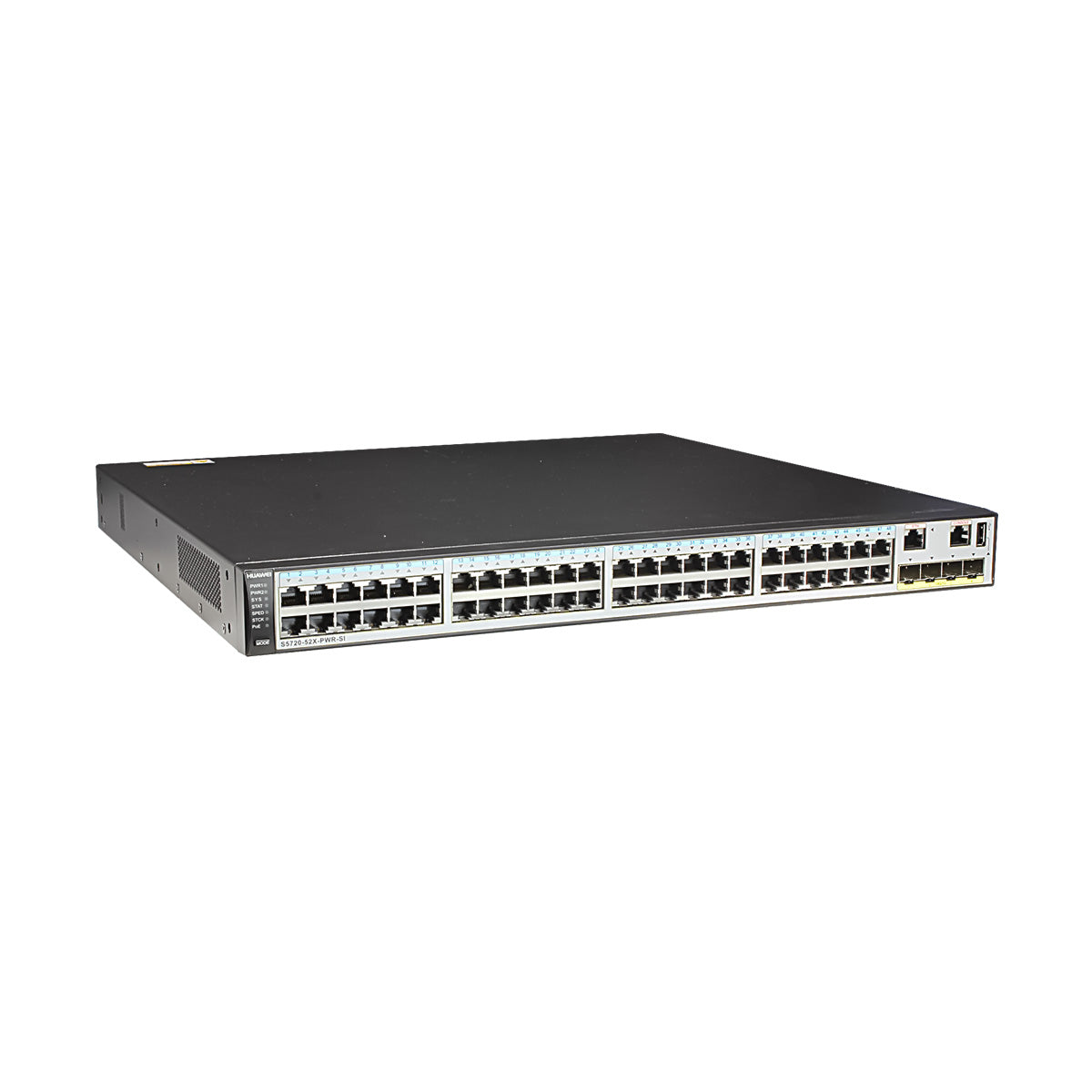

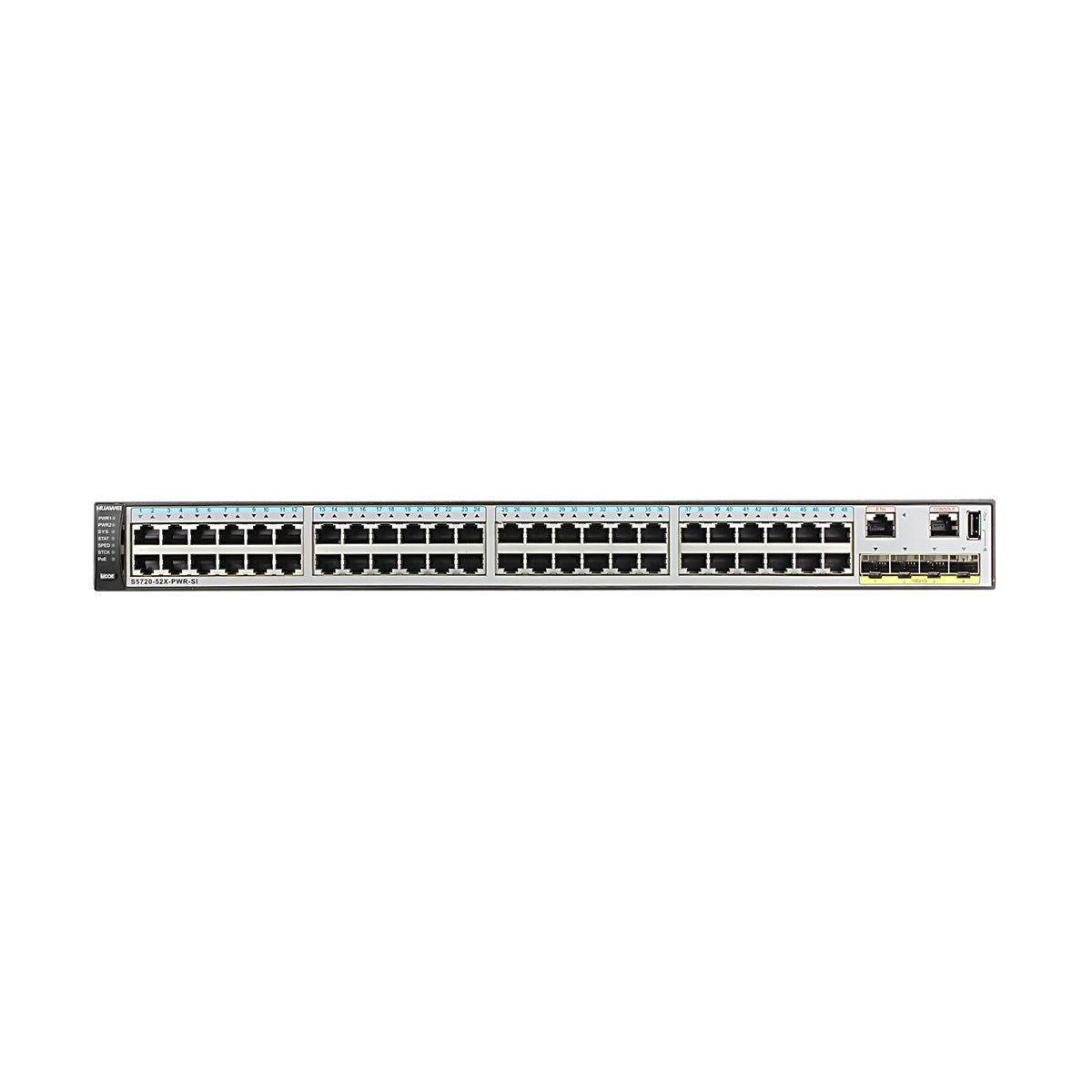

Huawei S5720-52X-PWR-SI-AC Layer 3 Gigabit Ethernet Switch

The Huawei S5720-52X-PWR-SI-AC is a high-performance Layer 3 Gigabit Ethernet switch designed for enterprise campus networks and high-density PoE deployments. It offers 48 10/100/1000BASE-T PoE+ ports and 4 10 Gigabit SFP+ uplink ports, providing flexible deployment options.

With a switching capacity of 336 Gbps and a forwarding rate of 132 Mpps, this switch ensures efficient data handling. It supports advanced features such as intelligent stacking (iStack), comprehensive security mechanisms, and energy-efficient design, making it a versatile solution for various networking needs.

Overview

Highlights

• Port Configuration: 48 × 10/100/1000BASE-T PoE+ ports and 4 × 10 Gigabit SFP+ uplink ports.

• PoE Power Budget: Supports IEEE 802.3af/at standards with a total PoE power budget of up to 740W (with dual power modules).

• High Performance: 336 Gbps switching capacity and 132 Mpps forwarding rate ensure efficient data processing.

• Advanced Layer 3 Features: Supports static routing, RIP, OSPF, BGP, and IS-IS for robust network routing capabilities.

• Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.

• Intelligent Stacking (iStack): Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.

• Energy-Efficient Design: Intelligent fan speed adjustment for reduced power consumption and noise.

• Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.

Recommended Accessories

Product Model	Category	Description
SFP-10G-SR	SFP+ Transceiver	10GBASE-SR SFP+, 850nm, multimode fiber, up to 300m
SFP-10G-LR	SFP+ Transceiver	10GBASE-LR SFP+, 1310nm, single-mode fiber, up to 10km
SFP-10G-ER	SFP+ Transceiver	10GBASE-ER SFP+, 1550nm, single-mode fiber, up to 40km
SFP-10G-ZR	SFP+ Transceiver	10GBASE-ZR SFP+, 1550nm, single-mode fiber, up to 80km
PAC-500WA-BE	Power Module	500W AC PoE power module
PDC-650WA-BE	Power Module	650W DC PoE power module
W2PSA1150	Power Module	1150W AC PoE power module
RPS1800	Redundant Power Supply	Provides backup power for uninterrupted operation



Comparison with Similar Items

Feature	S5720-52X-PWR-SI-AC	S5720-52X-SI-AC	S5720-28X-PWR-SI-AC
Downlink Ports	48 × GE PoE+	48 × GE	24 × GE PoE+
Uplink Ports	4 × 10GE SFP+	4 × 10GE SFP+	4 × 10GE SFP+
PoE Support	Yes (up to 740W)	No	Yes (up to 740W)
Switching Capacity	336 Gbps	336 Gbps	336 Gbps
Forwarding Rate	132 Mpps	132 Mpps	96 Mpps
Stacking Support	Yes (iStack)	Yes (iStack)	Yes (iStack)
Ideal Use Case	High-density PoE access	Standard access	Medium-density PoE access



Specifications

Parameter	Specification
Model	S5720-52X-PWR-SI-AC
Downlink Ports	48 × 10/100/1000BASE-T PoE+ ports
Uplink Ports	4 × 10 Gigabit SFP+ ports
Switching Capacity	336 Gbps
Forwarding Rate	132 Mpps
MAC Address Table	16K entries
VLANs	Supports up to 4,000 VLANs (IEEE 802.1Q)
QoS	8 queues per port, SP, WRR, and SP+WRR scheduling algorithms
IPv6 Features	IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6
Security Features	802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation
Management	Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2

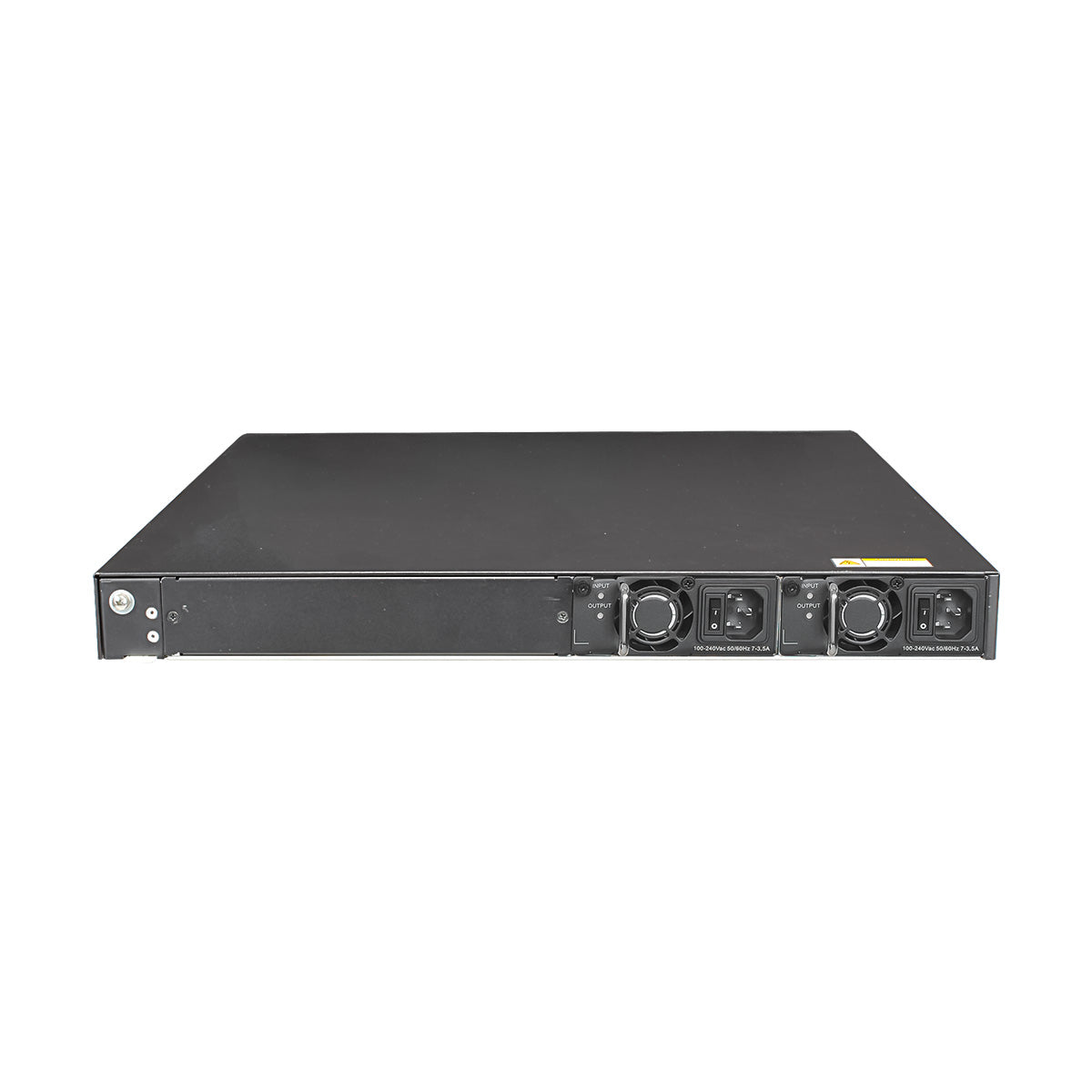

Power Supply	Dual pluggable AC/DC power modules, one 500W AC power module equipped by default
Power Consumption	Maximum: 740W (with dual power modules)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Dimensions (W×D×H)	442 mm × 420 mm × 44.4 mm (17.4 in. × 16.5 in. × 1.75 in.)
Weight	≤ 9.6 kg (21.2 lbs)
Warranty	Limited lifetime warranty
