Description

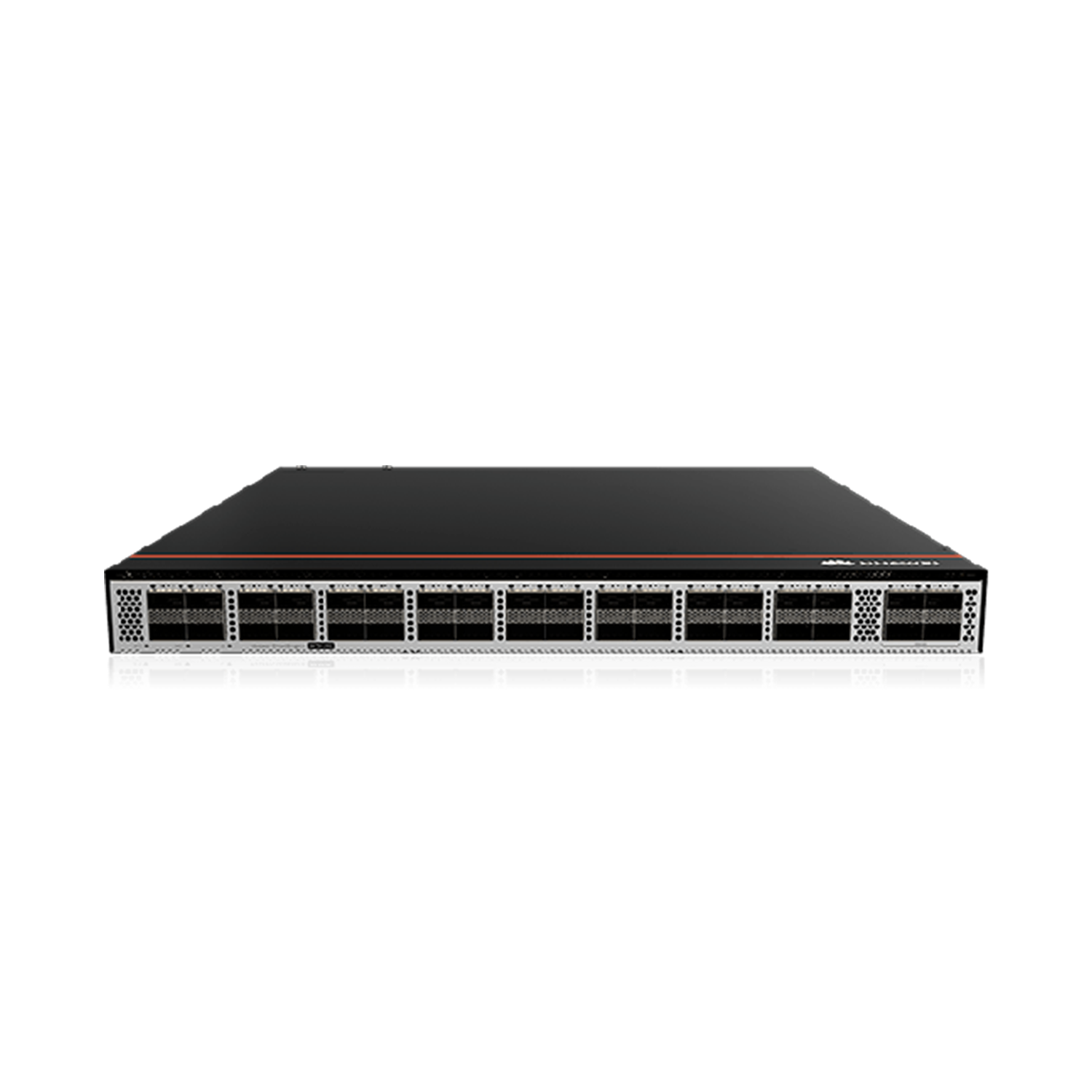

Huawei CloudEngine S6750-H36C Core Switch
The Huawei CloudEngine S6750‑H36C is a powerful fixed 1U core/aggregation switch built for high-performance enterprise campus and data-center networks. It offers 36 QSFP28 ports (40/100 GE), advanced virtualization, robust security, and intelligent O&M capabilities. Note: Power supply modules are not included and must be purchased separately
Overview
Highlights
-
High-Port Density (36×100 GE)
Equipped with 36 QSFP28 ports that support 40/100 Gbps, with future support for 200 GE uplinks via license. -
Exceptional Capacity & Throughput
Switching capacity of 7.2 Tbps (upgradable to 8 Tbps) and forwarding performance of 1,200 Mpps. -
Advanced Virtualization & Security
Supports VXLAN, SRv6 BE, BGP‑EVPN, and MACsec encryption for secure, software-defined networking. -
Smart, Cloud-Ready Operations
Enables IFIT real‑time telemetry, iStack intelligent stacking, rich QoS, and comprehensive cloud-based management.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| Power Supply Modules | Power Modules | Compatible with hot-swappable 1200 W AC (PAC1K2S12‑PB) or DC (PDC1K2S12‑CE); sold separately |
| Fan Modules | Cooling Modules | Five hot-swappable fans with front-to-rear airflow for reliable cooling |
Comparison with Similar Models
| Feature | Huawei S6750‑H36C | Huawei S6780‑H4Z | Cisco Nexus 9332D |
|---|---|---|---|
| Form Factor | 1U fixed | 2U modular | 1U fixed |
| Port Density | 36×100 GE QSFP28 | Modular up to 16×400 GE | 32×400 GE |
| Switching Capacity | 7.2 Tbps / 8 Tbps | 16 Tbps | 12.8 Tbps |
| Forwarding Rate | 1,200 Mpps | 2,400 Mpps | ~5,770 Mpps |
| Virtualization & Security | VXLAN, SRv6 BE, BGP‑EVPN, MACsec | VXLAN, SRv6, MACsec | VXLAN, MACsec, Cisco ACI |
| O&M Features | IFIT telemetry, iStack, cloud mgmt | iMaster, IFIT, cloud mgmt | Cisco ACI, NX-OS management |
| Ideal Deployment | Core/Aggregation in campus/data | Campus/core with mixed-port needs | High-density spine‑leaf fabrics |
Specifications
| Parameter | Specification |
|---|---|
| Model | CloudEngine S6750‑H36C |
| Ports | 36× QSFP28 (4×40/100 GE ports*) (*Future support for 200 GE uplinks via license) |
| Switching Capacity | 7.2 Tbps (upgradeable to 8 Tbps) |
| Forwarding Rate | 1,200 Mpps |
| System Memory | 8 GB DRAM |
| Storage (Flash) | 4 GB Flash |
| CPU | Quad-core, 1.4 GHz |
| Power Supply Slots | 2 hot‑swappable (AC/DC, 1200 W modules sold separately) |
| Fan Modules | 5 hot-swappable fans, front-to-rear airflow |
| Power Consumption | Typical 537 W, max 558 W under ATIS test |
| Dimensions (H×W×D) | 43.6 × 442 × 420 mm |
| Weight | 6.72 kg (chassis), 11 kg packaged |
| Operating Temp/Humidity | –5 °C to 45 °C, RH 5–95% non-condensing |
| Virtualization Features | VXLAN, distributed/central VXLAN gateway, SRv6 BE, BGP‑EVPN via NETCONF |
| Advanced Security | MACsec encryption, 802.1X, DHCP/VLAN/MAC/NAC features |
| Telemetry & Stacking | IFIT real-time network telemetry, iStack up to 9 units |
| Management Protocols | CLI, SNMPv1/2/3, NetConf, cloud mgmt, SSH, Telnet, FTP/TFTP/SFTP |
