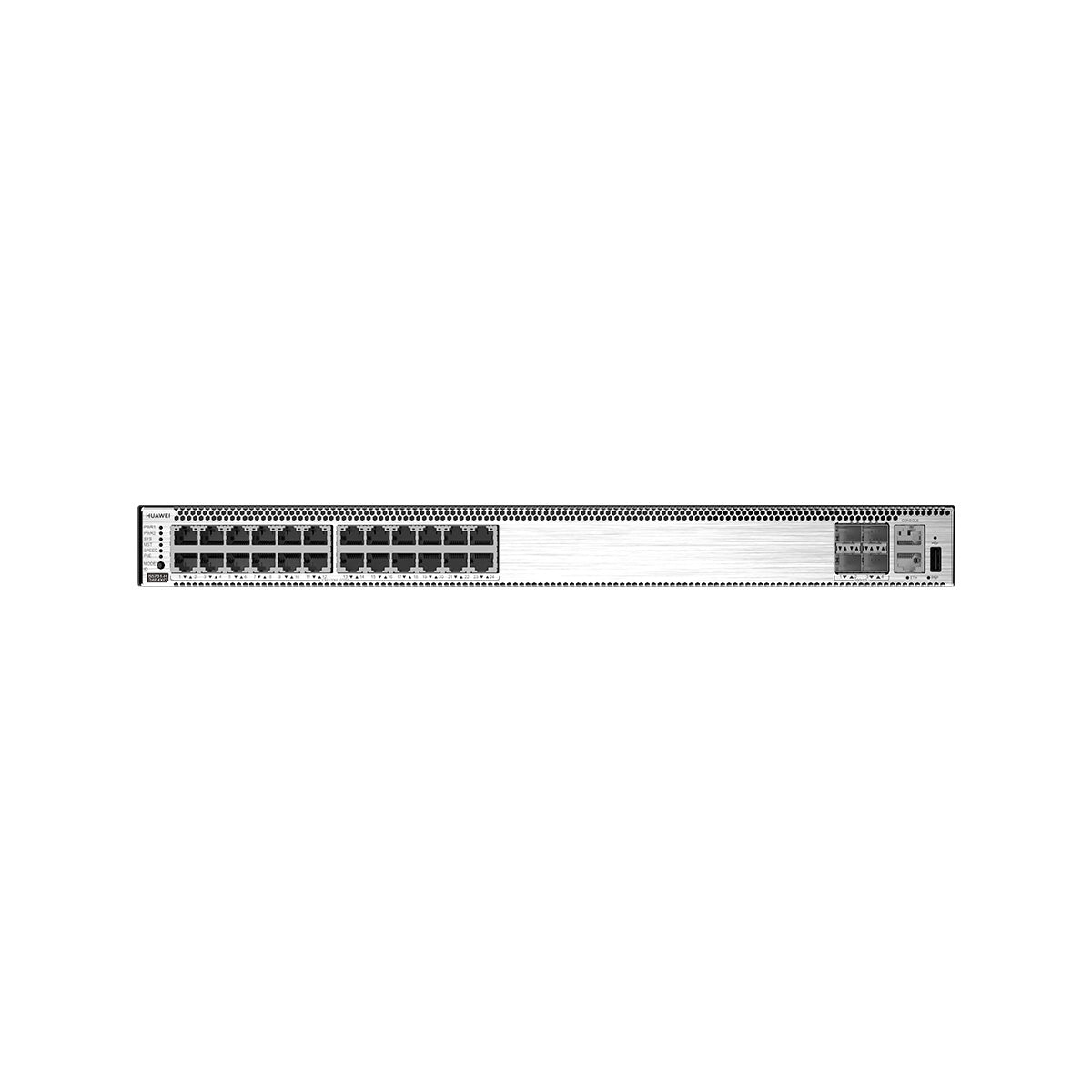

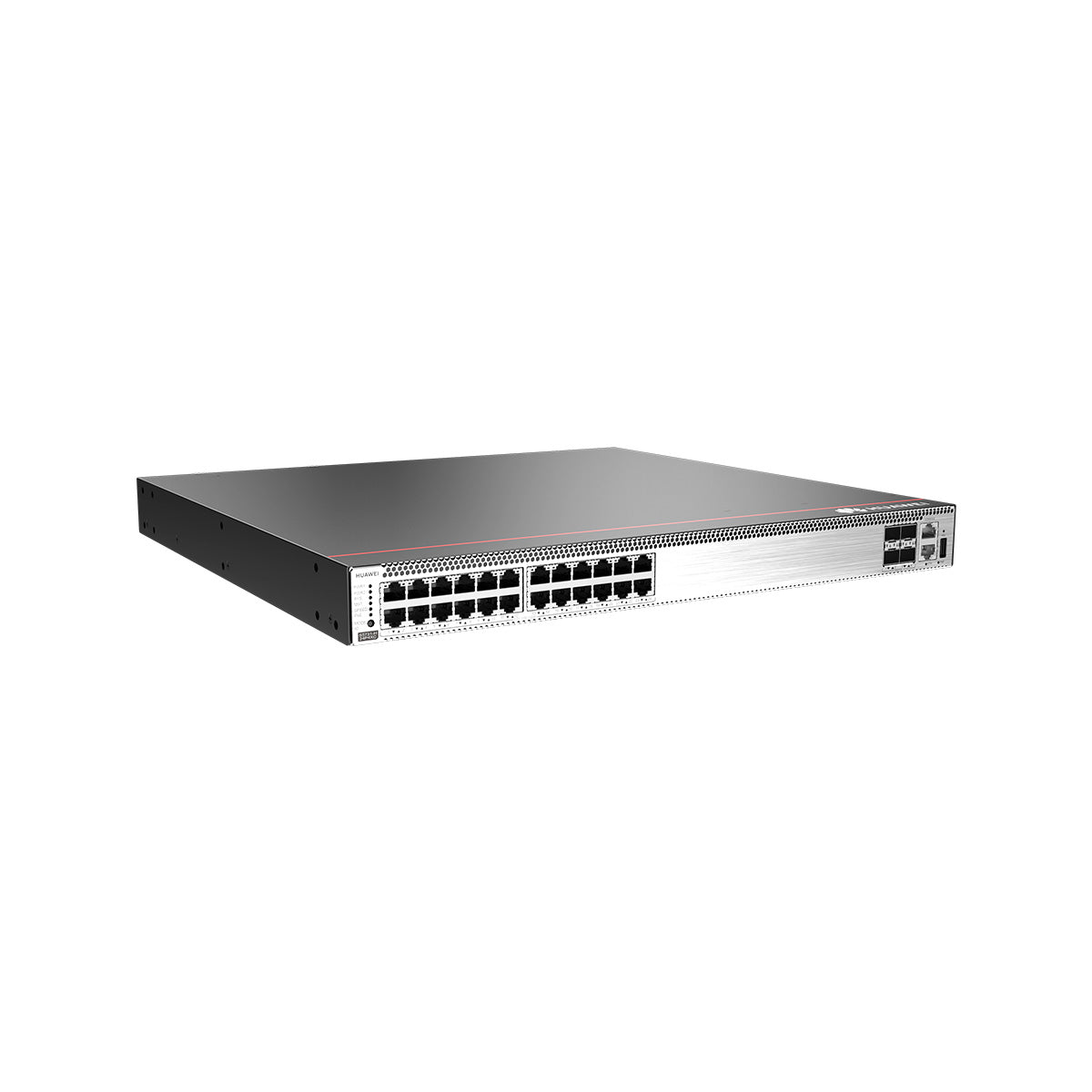

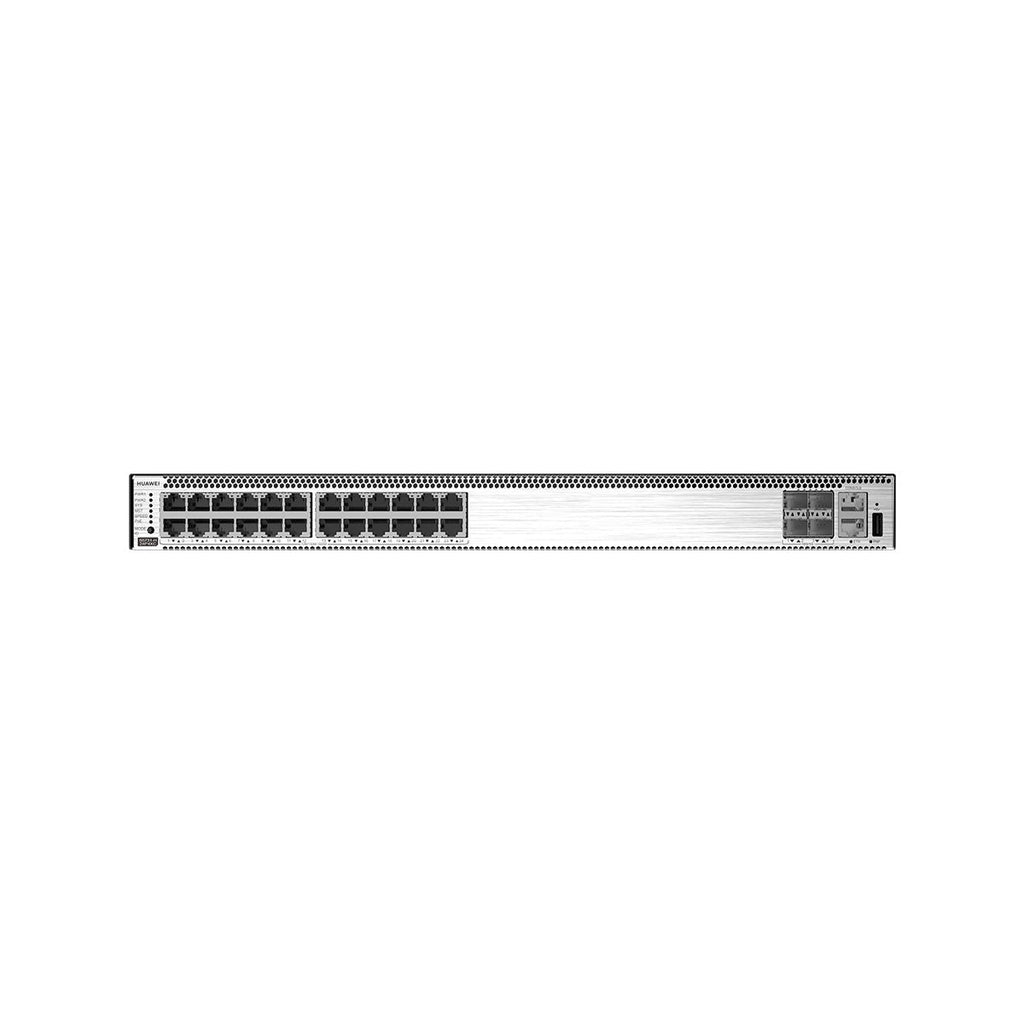

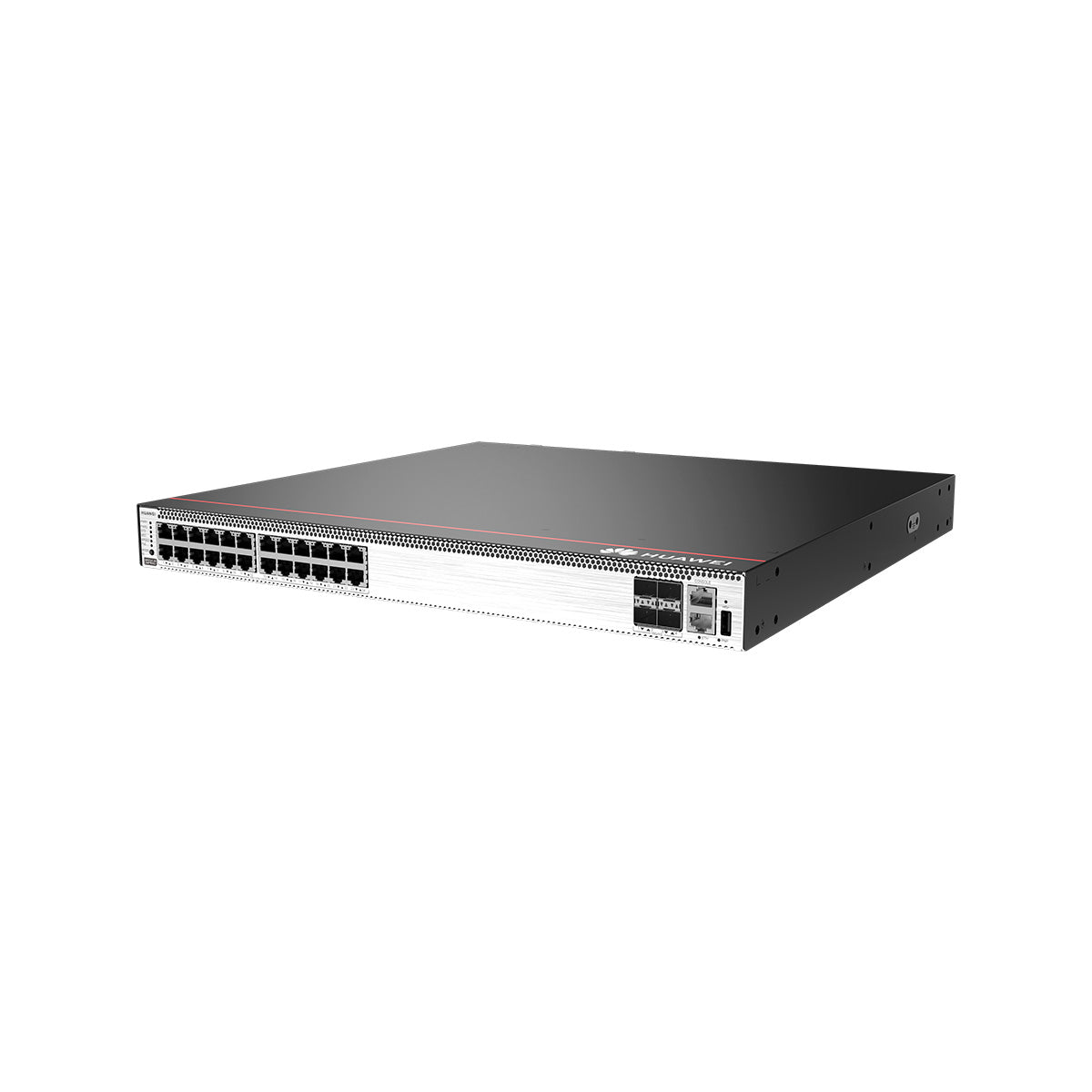

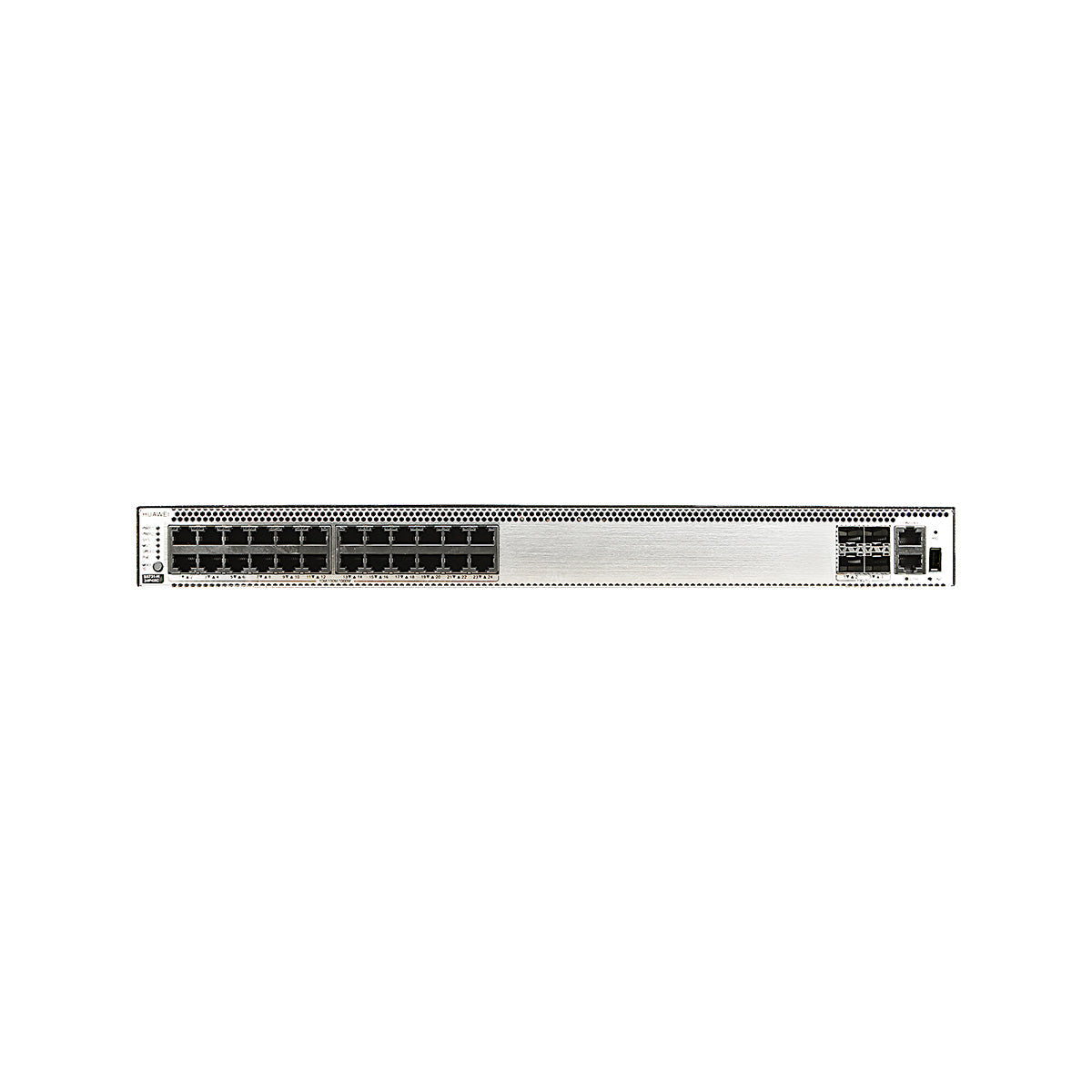

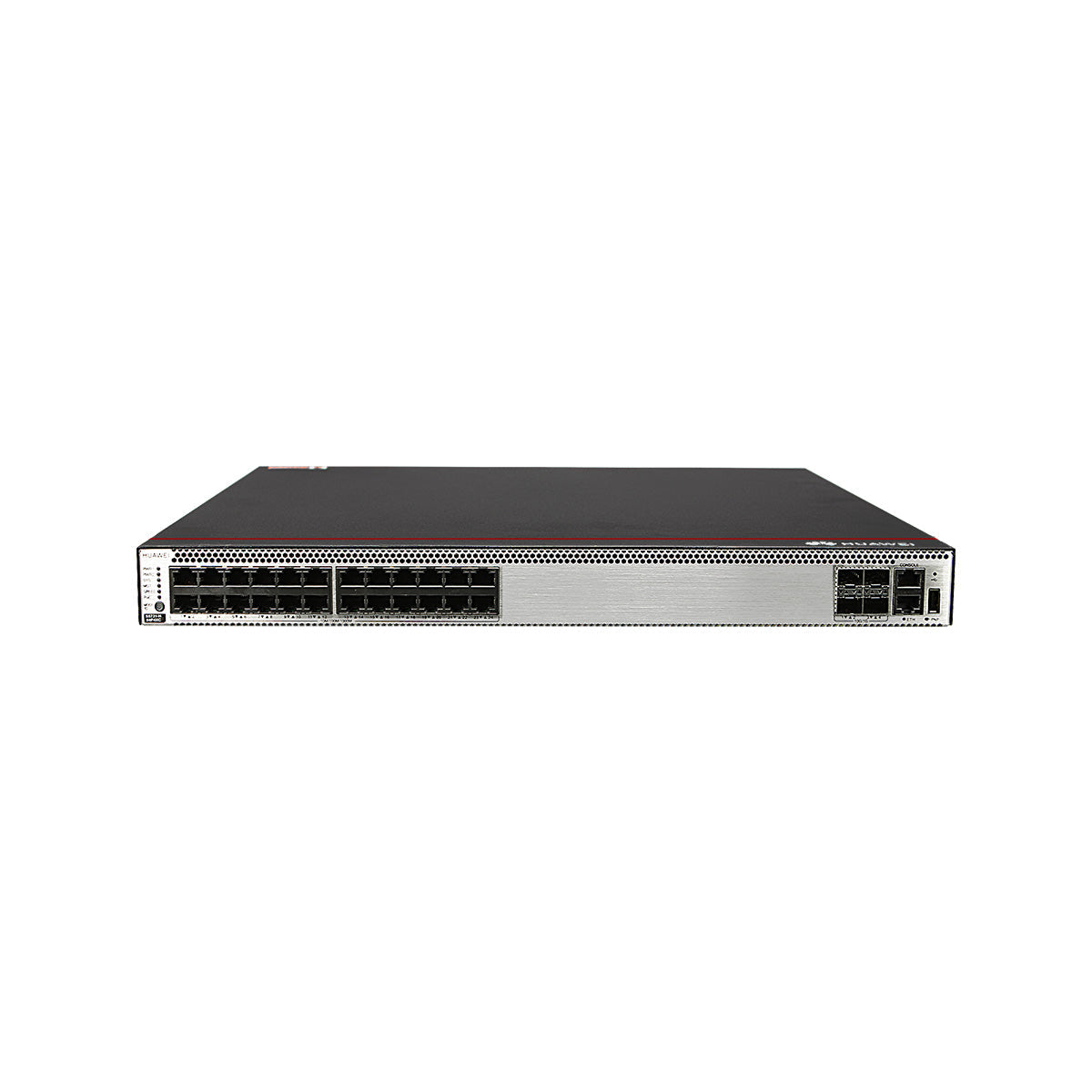

Huawei CloudEngine S5731-H24P4XC 24GE PoE+ & 4 x 10GE SFP+ Layer 3 Switch

Overview

The Huawei CloudEngine S5731-H24P4XC is a high-end H-series Layer 3 PoE+ enterprise switch designed for next-generation Wi-Fi 6/6E campus networks, smart buildings, and large-scale IoT and surveillance deployments.

It provides 24 10/100/1000BASE-T PoE+ ports and 410GE SFP+ uplinks, enabling stable connectivity for Wi-Fi 6 access points, IP cameras, VoIP phones, access control systems, smart sensors, and industrial IoT devices.

Unlike standard access-layer switches, the H-series integrates Native AC (Access Controller) functionality, allowing unified management of up to 1,024 wireless APs. This makes it a core enabler for fully wireless campuses, smart universities, hospitals, enterprise Wi-Fi 6 office networks, and distributed branch WLAN architecture.

With a switching capacity of 288 Gbps / 672 Gbps and forwarding performance up to 125 Mpps, the device ensures deterministic performance for high-density CCTV video backhaul, cloud collaboration systems, ERP/CRM applications, and real-time enterprise traffic.

The platform also supports a high-capacity PoE system up to 1600W (dual power module configuration), enabling dense deployments of Wi-Fi 6 AP clusters and multi-device IoT ecosystems without external power infrastructure.

Highlights

1. High-Density PoE Access for Smart Campus Networks

24 PoE+ ports support powering:

• Wi-Fi 6 / Wi-Fi 6E access points

• HD IP surveillance (CCTV systems)

• VoIP/IP telephony endpoints

• Smart building IoT sensors

• Access control & security terminals

2. Native AC (Up to 1024 APs) - Full Wireless Convergence

Built-in AC capability enables centralized WLAN management for:

• Large-scale Wi-Fi 6 campus deployments

• Smart education networks

• Hospital wireless infrastructure

• Enterprise full-wireless office transformation

• Multi-branch WLAN convergence

3. Massive PoE Power Capability (Up to 1600W)

Dual power module configuration supports:

• Up to 1600W PoE budget

• Simultaneous operation of AP clusters, cameras, IoT nodes

• High-density smart campus and industrial deployments

4. High Performance Switching Architecture

• Switching capacity: 288 Gbps / 672 Gbps

• Forwarding rate: 125 Mpps
  Designed for high-density east-west traffic, surveillance aggregation, and cloud enterprise workloads.

5. Advanced Layer 3 Routing

Supports enterprise routing scenarios including:

• Static routing

• RIP

• OSPF

• IS-IS

• BGP (campus aggregation / enterprise WAN edge)

6. Massive MAC Table for IoT-Scale Networks

• MAC address table: 288K entries
  Supports:

• Smart city IoT infrastructure

• Large-scale CCTV deployments

• Campus-wide sensor networks

• Enterprise digital transformation systems

7. Flexible Uplink Expansion

Supports modular uplink slot:

• 10GE SFP+ uplink modules

• 40GE QSFP+ expansion modules

Enables access-to-aggregation evolution and long-term scalability.

8. Intelligent Stacking (iStack)

Supports up to 9-device stacking for:

• Unified network management

• High availability design

• Campus-scale expansion

9. Enterprise Security & Access Control

• 802.1X authentication

• MAC filtering

• DHCP snooping

• ARP inspection

• ACL-based segmentation

• Port isolation
