Description

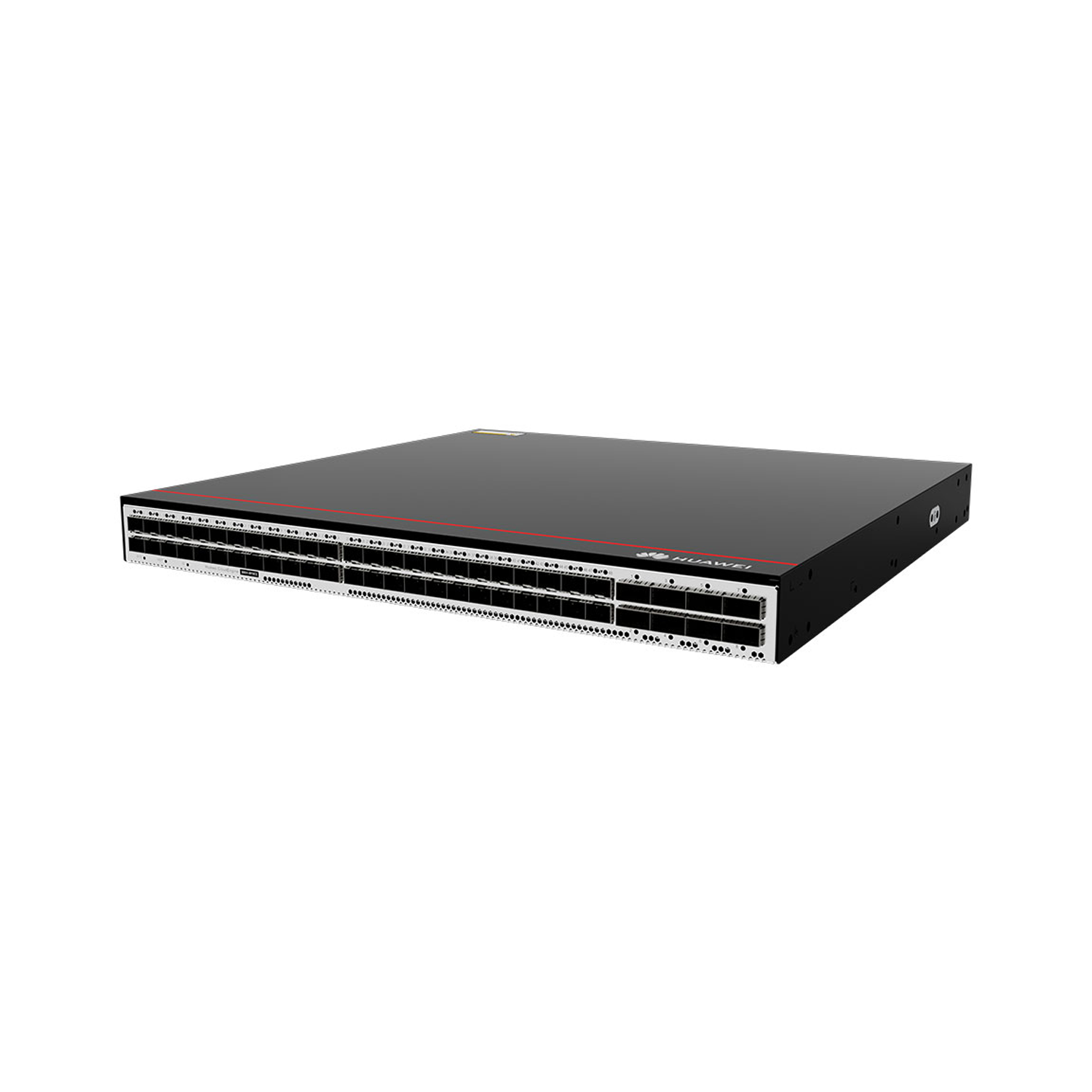

Huawei CE6885H-48YS8CQ Data Center Switch
The Huawei CloudEngine 6885H‑48YS8CQ is a fixed 1RU data center switch offering 48 × 10/25/50 GE SFP28 downlink ports, 8 × 100 GE QSFP28 uplinks (supporting 40/100 GE, upgradeable to 200GE). It includes 2 × 600 W AC power modules and 5 hot-swappable fan trays, with a front-port intake airflow (reversible).
Designed for high-density server connectivity and top-of-rack or aggregation deployments, it provides robust performance (8 Tbps switching capacity, 1,200 Mpps forwarding) and advanced features such as VXLAN, MACsec, RoCE, and AI‑ECN to support modern cloud data centers.
Overview
Highlights
-
Ultra-dense access: 48 × 25/50 GE SFP28 ports, with backward compatibility to 10GE.
-
Flexible uplinks: 8 × QSFP28 supporting 40/100GE or upgrade to 200GE via license.
-
High performance: 8 Tbps switching and 1,200 Mpps forwarding
-
Advanced DC features: VXLAN/BGP‑EVPN, M‑LAG, MACsec, PFC/ECN, AI‑ECN, RoCE, VXLAN OAM, YScale
-
Hot-swap resilience: Dual AC PSUs and 5 fan trays, front-panel maintenance LEDs
-
Smart O&M & Security: Telemetry, ZTP, ERSPAN, ACL, DoS/ARP protection, AAA, MAC binding, DDoS detection.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 100 GE QSFP28 optics/DAC | Uplink Module | Supports 40/100GE uplinks or licensed 200GE functionality |
| 25/50 GE SFP28 optics/DAC | Downlink Module | For various server access speeds (10/25/50 GE) |
| PAC600S12‑PF / PB 600 W AC PSU | Power Supply | Front/back installable, hot-swappable for redundancy |
| FAN‑031A‑F/B Fan Tray | Cooling | Supports intake/exhaust configurations, hot-swappable |
Comparison with Similar Models
| Feature / Model | 6885H‑48YS8CQ‑B (intake) | 6885‑48YS8CQ (bare chassis) | 6885‑48YS8CQ‑F (exhaust) |
|---|---|---|---|
| Downlink Ports | 48 × 25/50 GE SFP28 | 48 × 25/50 GE SFP28 | 48 × 25/50 GE SFP28 |
| Uplink Ports | 8 × 100 GE QSFP28 | 8 × 100 GE QSFP28 | 8 × 100 GE QSFP28 |
| Power Modules | 2 × 600 W AC | — | 2 × 600 W AC |
| Fan Modules | 5 × hot-swap, intake | — | 5 × hot-swap, exhaust |
| Airflow Direction | Front intake (reversible) | Flexible | Exhaust |
| Switching Capacity | 8 Tbps | 8 Tbps | 8 Tbps |
| Forwarding Rate | 1,200 Mpps | 1,200 Mpps | 1,200 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine 6885H‑48YS8CQ‑B |
| Ports | 48 × 25/50 GE SFP28; 8 × 100 GE QSFP28 (40/100 GE breakout; upgradeable to 200GE) |
| Switching Capacity | 8 Tbps |
| Forwarding Rate | 1,200 Mpps |
| System Buffer | 32–42 MB |
| CPU | Quad-core 1.4 GHz |
| Memory & Storage | 8 GB DRAM, 64 MB NOR, 4 GB NAND Flash |
| Fabric & Virtual Features | VXLAN/BGP‑EVPN, M‑LAG, MACsec, RoCE, VXLAN OAM, YScale |
| Congestion Control | PFC, ECN, AI‑ECN, YScale congestion control |
| O&M & Security Features | Telemetry, ZTP, ERSPAN, ACL, DoS/ARP protection, AAA, MAC binding, DDoS detection |
| Power Supplies | 2 × 600 W AC, hot-swappable |
| Cooling Modules | 5 × hot-swappable fan trays; intake/exhaust |
| Typical Power Consumption | 147–177 W typical (25G configs); max 326 W © |
| Dimensions (H×W×D) | 43.6 × 442 × 420 mm |
| Weight (full config) | 9.2 kg |
| Operating Environment | 0–40 °C (≤1,800 m; higher altitudes derated) |
| Noise Levels | 52.8 dBA avg; 58.7 dBA max |
| Certifications | UL 62368, CE, FCC, RoHS, EMC Class A |
| Availability & MTBF | 0.999994851 availability; 44‑year MTBF |
| Redundancy & Maintenance | Dual PSUs/fans hot-swappable; maintenance windows supported |
