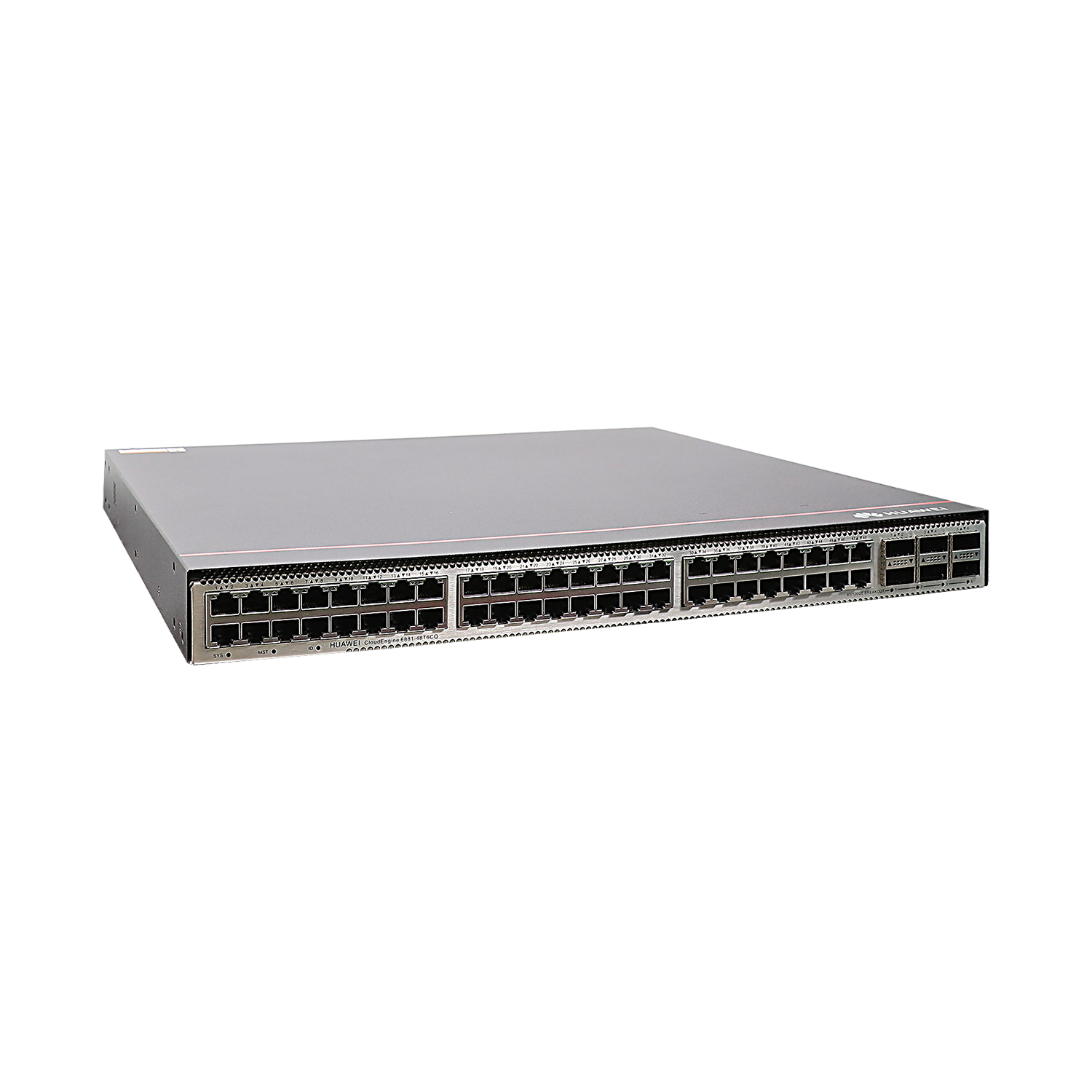

Huawei CE6881H-48T6CQ Data Center Switch
The Huawei CloudEngine 6881H‑48T6CQ‑B is a fixed 1RU data center switch delivering high-density server connectivity. It features 48 × 10 GE Base‑T ports, 6 × 100 GE QSFP28 uplinks (dual-mode 40/100 GE), 2 × 600 W AC redundant power modules, and 4 hot-swappable fan trays, with front-port intake airflow design (also reversible). Powered by Huawei’s YunShan platform and VRP8, it offers 2.16 Tbps switching capacity and 954 Mpps forwarding, along with advanced capabilities such as VXLAN/BGP‑EVPN, M‑LAG, PFC/ECN, RoCE v1/v2, Zero Touch Provisioning, telemetry, and iStack/NSH support.
Overview
Highlights
-
48 × 10 GE Base‑T access ports + 6 × 100 GE QSFP28 uplinks (40/100 GE breakout).
-
Performance: 2.16 Tbps switching and 954 Mpps forwarding.
-
Modern DC features: VXLAN/BGP‑EVPN, M‑LAG, PFC, ECN, RoCE v1/v2, iStack, NSH, plus ZTP, telemetry, NetStream.
-
Flexible cooling: front intake with reversible airflow; 4 hot-swap fans plus redundant power.
-
Serviceability: front-panel modules and LEDs for easy maintenance, hot-swappable design.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 100 GE QSFP28 optics/DAC | Uplink Module | Supports 40/100 GE uplinks |
| 10 GE SFP+ optics/DAC | Access Module | For optional server connectivity |
| PAC600S12‑EF/EB 600 W PSU | Power Supply | Front/back installable, hot-swappable |
| FAN‑031A‑F/B Fan Tray | Cooling | Hot-swappable; supports front/reverse airflow |
Comparison with Similar Models
| Feature / Model | 6881H‑48T6CQ‑B (front intake) | 6881H‑48T6CQ (bare chassis) | 6881H‑48T6CQ‑F (rear intake) |
|---|---|---|---|
| 10 GE Ports | 48 × Base‑T | 48 × Base‑T | 48 × Base‑T |
| 100 GE Uplink Ports | 6 × QSFP28 | 6 × QSFP28 | 6 × QSFP28 |
| Power Modules | 2 × 600 W AC | — | 2 × 600 W AC |
| Fan Modules | 4 × front-intake | — | 4 × rear intake |
| Airflow Direction | Front intake (reversible) | Flexible | Rear intake |
| Switching Capacity | 2.16 Tbps | 2.16 Tbps | 2.16 Tbps |
| Forwarding Rate | 954 Mpps | 954 Mpps | 954 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine 6881H‑48T6CQ‑B |
| Ports | 48 × 10 GE Base‑T; 6 × 100 GE QSFP28 (40/100 GE breakout) |
| Switching Capacity | 2.16 Tbps |
| Forwarding Rate | 954 Mpps |
| System Buffer | 42 MB |
| CPU | Quad-core 1.4 GHz |
| Memory & Storage | 4 GB DRAM, 64 MB NOR, 4 GB NAND flash |
| Fabric & Virtualization Features | VXLAN/BGP‑EVPN, M‑LAG, iStack, NSH, programmable APIs |
| Congestion & QoS | PFC, ECN, RoCE v1/v2, WRED |
| O&M & Analytics | ZTP, telemetry, NetStream, sFlow, ERSPAN+ |
| Power Supplies | 2 × 600 W AC, hot-swappable |
| Cooling Modules | 4 × fan trays; front/reverse airflow |
| Noise (27 °C) | < 58dBA front; < 57dBA rear |
| Power Consumption (typ/max) | 194 W / 349 W |
| Heat Dissipation | 662–1,191 BTU/hr |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight (full config) | 7.8 kg |
| Operating Temperature & Altitude | 0–40 °C (≤1,800 m; derated above) |
| Certifications | UL, CE, FCC, RoHS, EMC Class A |
