Description

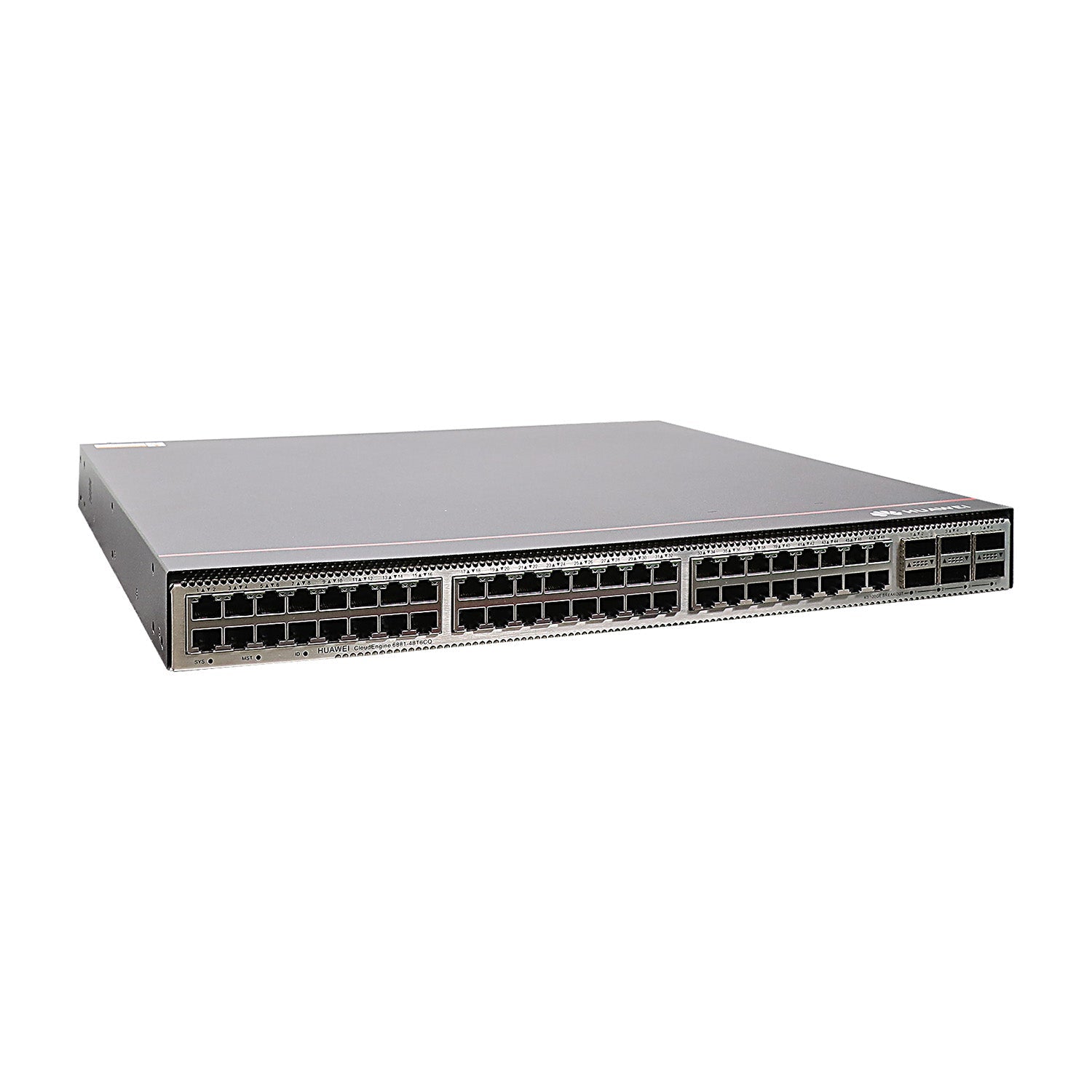

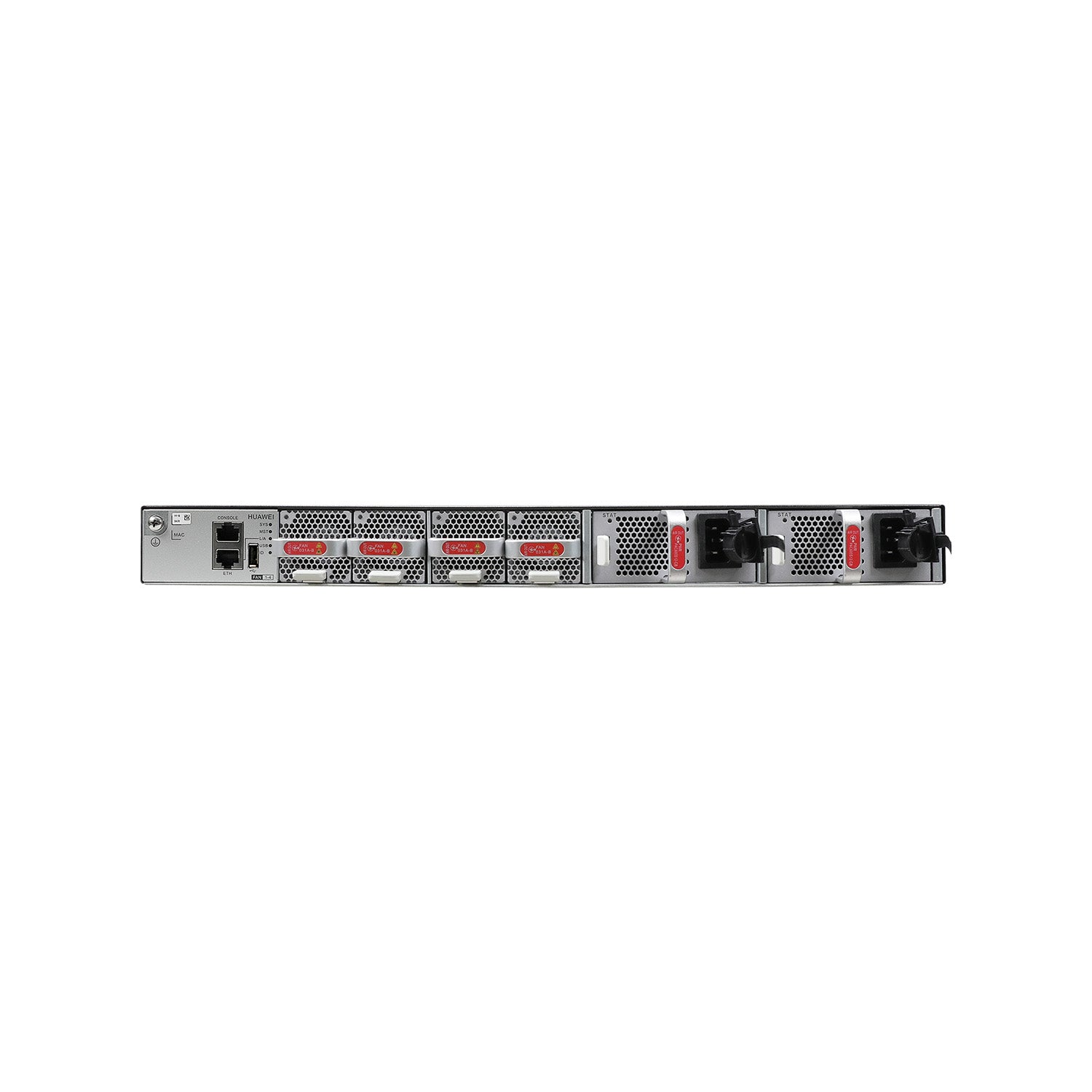

Huawei CE6881-48T6CQ Data Center Switch
The Huawei CloudEngine 6881‑48T6CQ‑B is a fixed 1RU data center switch optimized for high-density server deployments. It includes 48 × 10 GE RJ45 ports, 6 × 100 GE QSFP28 uplinks, 2 × 600 W AC power modules, 4 hot-swappable fan trays, and features front-port intake airflow. Built on the VRP8 platform, it delivers high performance and modern data center functionalities.
Overview
Highlights
-
48 × 10 GE RJ45 access ports and 6 × 100 GE QSFP28 uplinks, each breakout-capable to 40 GE.
-
2.16 Tbps switching capacity with 940 Mpps forwarding performance.
-
Data center-grade features: VXLAN (routing/bridging), BGP-EVPN, M‑LAG, PFC, ECN, RoCE (v1/v2), iStack, NSH, telemetry, ZTP.
-
Flexible airflow options: Front-to-back or back-to-front based on deployment.
-
Resilient design: Dual AC PSUs, 4 fan trays, hot-swappable modules, front-panel maintenance indicators
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| 100 GE QSFP28 optics/DAC | Uplink Module | Supports 40 GE/100 GE uplinks |
| 10 GE SFP+ optics/DAC | Access Module | For server connectivity options |
| PAC600S12‑CF 600 W AC Power Module | Power Supply | Hot-swappable, front-panel installation |
| FAN‑031A‑F Fan Tray | Cooling | Front-port intake, hot-swappable fan module |
Comparison with Similar Models
| Feature / Model | 6881‑48T6CQ‑B (this model) | 6881‑48T6CQ (bare chassis) | 6881‑48T6CQ‑F (rear airflow) |
|---|---|---|---|
| 10 GE Ports | 48 × RJ45 | 48 × RJ45 | 48 × RJ45 |
| 100 GE Uplinks | 6 × QSFP28 | 6 × QSFP28 | 6 × QSFP28 |
| Power Modules | 2 × 600 W AC | — | 2 × 600 W AC |
| Fan Trays | 4 × front intake | — | 4 × rear airflow |
| Airflow | Front intake (reversible) | Flexible | Rear intake |
| Switching Capacity | 2.16 Tbps | 2.16 Tbps | 2.16 Tbps |
| Forwarding Rate | 940 Mpps | 940 Mpps | 940 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine 6881‑48T6CQ‑B |
| Ports | 48 × 10 GE RJ45; 6 × 100 GE QSFP28 (40/100 GE breakout) |
| Switching Capacity | 2.16 Tbps |
| Forwarding Performance | 940 Mpps |
| System Buffer | 42 MB |
| CPU | 1.4 GHz quad-core |
| Memory & Storage | 4 GB DRAM; 64 MB NOR; 4 GB NAND |
| Virtualization & Fabric Features | VXLAN/BGP‑EVPN, M‑LAG, iStack, NSH |
| QoS & Congestion Control | PFC, ECN, RoCE v1/v2, WRED |
| O&M Features | Telemetry, ZTP, NetStream, sFlow, ERSPAN+ |
| Power Supplies | 2 × 600 W AC hot-swappable |
| Cooling Modules | 4 × hot-swappable fan trays; front intake |
| Noise (27 °C) | < 57 dBA |
| Typical / Max Power Consumption | 347 W / 452 W |
| Heat Dissipation | 1,191–1,542 BTU/hr |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight (full config) | 8.9 kg |
| Operating Temperature | 0–40 °C (derated above 1,800 m) |
| Certifications | UL, CE, FCC, RoHS, EMC Class A |
