Description

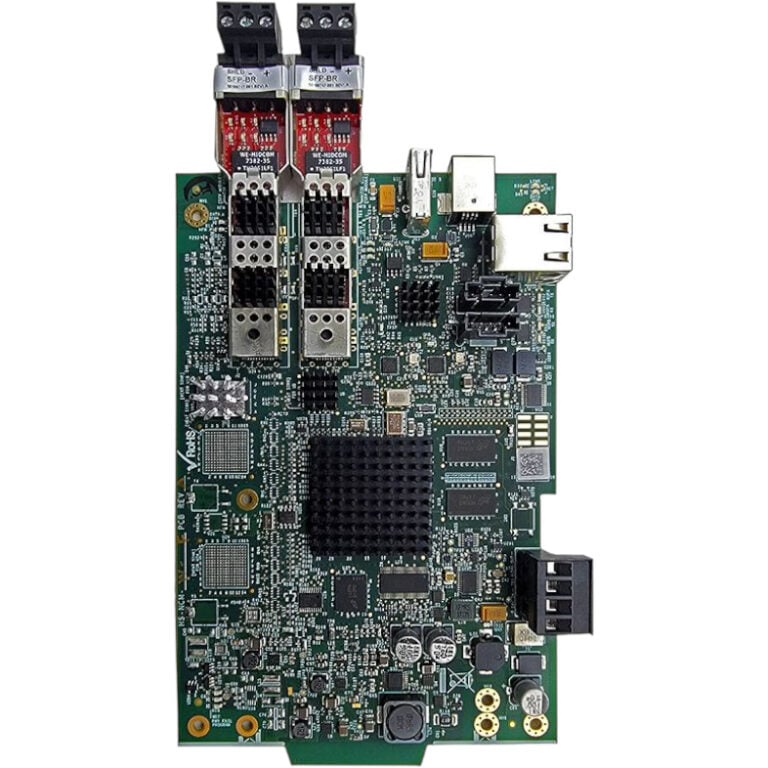

The Notifier HS-NCM-WMF-2 is a High-Speed Network Communications Module designed to provide reliable networking between Notifier intelligent fire alarm control panels, annunciators, and digital voice systems. Supporting both twisted-pair wiring and fiber-optic connections, it enables seamless integration and communication across High-Speed NOTI•FIRE•NET (NFN) networks.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier (Honeywell) |
| Part Number |
HS-NCM-WMF-2 |
| Category |
Fire Safety |
| Subcategory |
Network Communications Module |
| Series |
HS-NCM |
| Unit of Measurement |
Each (EA) |
| Compatibility |
N16e, N16x, NFS-320, NFS2-3030, NFS2-640, NFS-640, NFS-3030, NCA/NCA-2, DVC |
| Media Support |
Twisted-pair wire + fiber-optic |
| Fiber Types |
62.5/125 µm, 50/125 µm multimode; 9/125 µm single-mode |
| Max Attenuation |
10 dB (62.5/125 µm), 6.5 dB (50/125 µm), 30 dB (9/125 µm) |
| Wavelength |
1310 nm |
| Operation |
NFPA Style 4 (Class B) / Style 7 (Class A) |
| Node Support |
Up to 2 nodes |
| Function |
Repeater when not connected to a panel |
| Listings & Approvals |
UL, ULC, CSFM, FM, NYC |
| Production Status |
Active |
| Weight |
1 lbs |
Information About HS-NCM-WMF-2
The HS-NCM-WMF-2 belongs to the Notifier HS-NCM series, offering dual media connectivity for advanced fire system networking. It supports two node addresses, allowing it to serve both a control panel and an annunciator simultaneously. When not connected to a panel, it defaults to repeater mode, boosting signals and bridging different network segments. Compatible with NFS-320, NFS-640, NFS2-640, NFS-3030, and NFS2-3030 systems, as well as NCA/NCA-2 and DVC, the HS-NCM-WMF-2 provides robust Class A and Class B network options, ensuring reliability for critical life safety communications.
Key Features:
- Dual Media Support: Interfaces with both twisted-pair wire and multimode fiber optic cable.
- High-Speed NOTI•FIRE•NET Connectivity: Provides reliable communication for Notifier intelligent systems.
- Repeater Mode: Functions as a signal booster or bridge when not panel-connected.
- Two Node Support: Can connect both a fire panel and annunciator with a single module.
- Flexible Topologies: Supports NFPA Style 4 (Class B) and Style 7 (Class A) networking.
- Fiber Compatibility: Works with 62.5/125 µm, 50/125 µm multimode, or 9/125 µm single-mode fiber.
- Pluggable Service Connector: Maintains network continuity during maintenance or power loss.
- Regenerates Data: Ensures clean and reliable transmissions at every node.
The HS-NCM-WMF-2 delivers the connectivity and fault-tolerance required for large-scale fire and life safety networks.
