Description
Tech Specs
Chassis:
- 10 Bay SFF (SAS/SATA/NVMe)
Processor types:
- Up to four, Intel Xeon E7-4800 or E7-8800 v3 or v4,
housing up to 96 cores and 192 Threads - 24 Cores and 48 Threads per CPU
- Intel C602J Chipset
Memory RAM types:
- ECC Registered Memory, up to Max 128GB DDR4
- RAM Capacity: 8GB, 16GB, 32GB, 64GB, 128GB
- Mx Configuration RDIMM: 12TB (96x128GB)
- Memory Speeds: 1600MT/s to 1866T/s clocked down
- CPU Impacts on the available speeds RAM can run. But 2133MT/s and 2400MT/s modules are recommended
Storage Options 2.5" Drives
- NVMe PCIe SSDs: 1.6TB
- SAS SSDs: 7.68TB @ 12GB/s
- SATA SSD: 7.68TB @ 6GB/s
- SAS HDD: 2.4TB @ 7.2K
- SAS HDD: 2.4TB @ 10K
- SAS HDD: 2.4TB @ 15K
- SATA HDD: 2TB @ 7.2K
Power Supplies:
- HPE 1500W Common Slot Platinum Plus Hot Plug
- HPE 1500W Common Slot 48VDC Hot Plug
- HPE 1200W Common Slot Platinum Plus Hot Plug
Systems Management Solutions
- Integrated Lights-out 4 (iLO 4)
Storage Controllers RAID Options:
- HPE Smart Array P431/4GB FBWC 12Gb 2-ports Ext SAS Controller
- HPE Smart Array P830/4GB FBWC 12Gb 2-ports Int SAS Controller
- HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter
- HPE H240 12Gb 2-ports Int Smart Host Bus Adapter
- HPE H240 12Gb 2-ports Int FIO Smart Host Bus Adapter
Supported Operating Systems:
- Windows Server 2019: Essentials
- Windows Server 2019: Standard
- Windows Server 2019: Data Center
- Windows Server 2022: Essentials
- Windows Server 2022: Standard
- Windows Server 2022: Data Center
- Red Hat Enterprise Linux (RHEL)
- Suse Linux Enterprise Server
- VMware
- CentOS
- Oracle Linux
FLOM Network Cards:
- HPE Ethernet 1Gb 4-port 331FLR FIO Adapter
- HPE Ethernet 1Gb 4-port 366FLR FIO Adapter
- HPE FlexFabric 10Gb 2-port 533FLR-T FIO Adapter
- HPE FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter
- HPE Ethernet 10Gb 2-port 546FLR-SFP+ FIO Adapter
- HPE FlexFabric 10Gb 2-port 556FLR-SFP+FIO Adapter
- HPE FlexFabric 10Gb 2-port 556FLR-T FIO Adapter
- HPE Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter
- HPE Ethernet 10Gb 2-port 561FLR-T FIO Adapter
- HPE Ethernet 10Gb 2-port 562FLR-SFP+FIO Adapter
PCIe Network Card Options:
- HPE Ethernet 331T Quad Port 1GbE Network Adapter
- HPE Ethernet 366T Quad Port 1GbE Network Adapter
- HPE Ethernet 332T Dual Port 1GbE Network Adapter
- HPE Ethernet 361T Dual Port 1GbE Network Adapter
- HPE Ethernet 530SFP+ Dual Port DA/SFP+ 10Gb Network Adapter
- HPE Ethernet 530T Dual Port 10GbE Network Adapter
- HPE Ethernet 562SFP+ Dual Port DA/SFP+ 10Gb Network Adapter
- HPE Ethernet 560SFP+ Dual Port DA/SFP+ 10Gb Network Adapter
- HPE Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter
- HPE Ethernet 561T Dual Port 10GbE Network Adapter
- HPE Ethernet 640SFP28 Dual Port SFP28 10/25GB PCIE Adapter

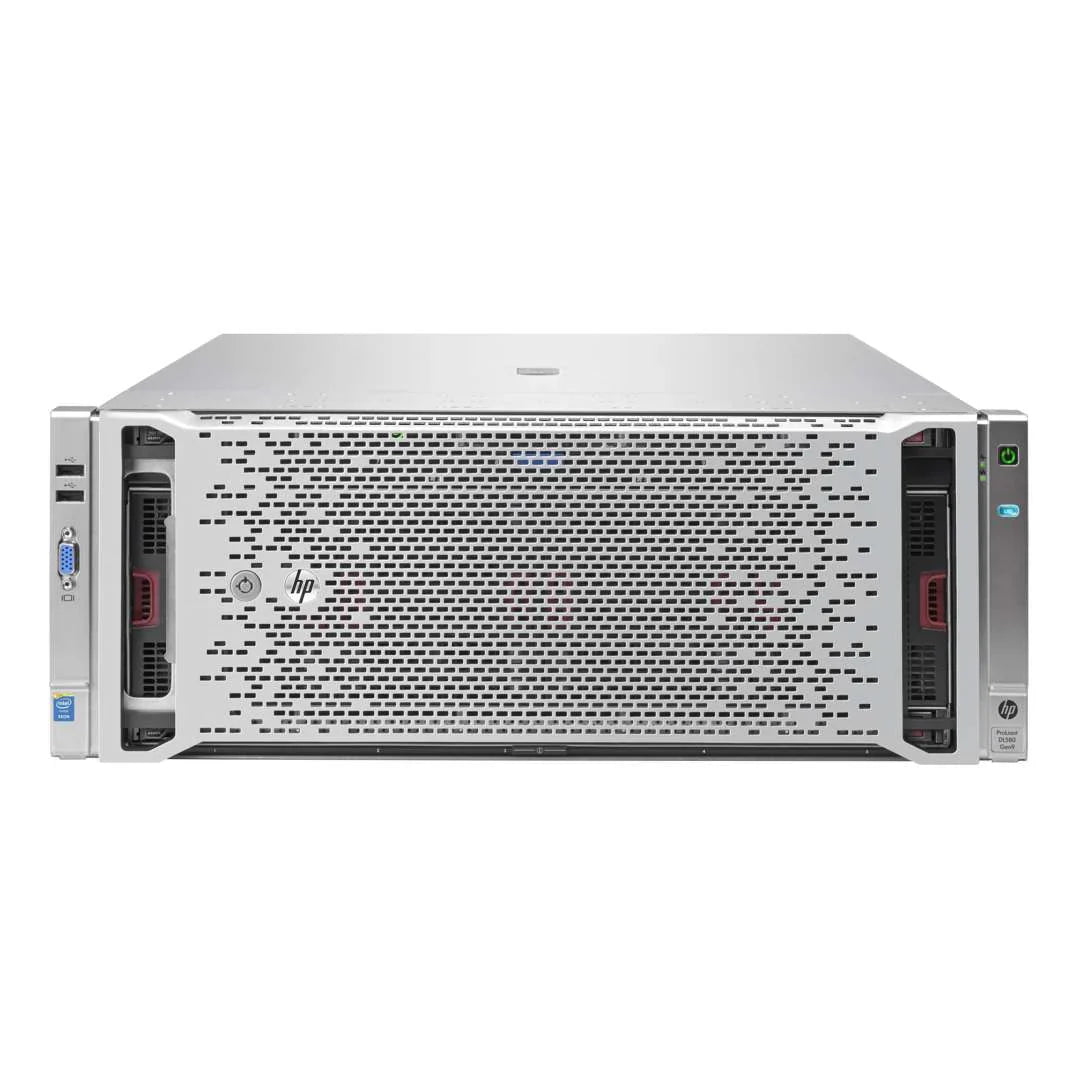

HPE ProLiant DL580 Gen9 Supported CPUs
| CPU | Cache | Cores/Threads | Frequency |
|---|---|---|---|
| E7-8893v3 | 45MB | 4C/8T | 3.2GHz |
| E7-8891v3 | 45MB | 10C/20T | 2.8GHz |
| E7-8890v3 | 45MB | 18C/36T | 2.5GHz |
| E7-8880v3 | 45MB | 18C/36T | 2.3GHz |
| E7-8880Lv3 | 45MB | 18C/36T | 2.0GHz |
| E7-8870v3 | 45MB | 18C/36T | 2.1GHz |
| E7-8867v3 | 45MB | 16C/32T | 2.5GHz |
| E7-8860v3 | 40MB | 16C/32T | 2.2GHz |
| E7-4850v3 | 35MB | 14C/28T | 2.2GHz |
| E7-4830v3 | 30MB | 12C/24T | 2.1GHz |
| E7-4820v3 | 25MB | 10C/20T | 1.9GHz |
| E7-4809v3 | 20MB | 8C/16T | 2.0GHz |
| CPU | Cache | Cores/Threads | Frequency |
|---|---|---|---|
| E7-8894v4 | 60MB | 24C/48T | 2.4GHz |
| E7-8893v4 | 60MB | 4C/8T | 3.2GHz |
| E7-8891v4 | 60MB | 10C/20T | 2.8GHz |
| E7-8890v4 | 60MB | 24C/48T | 2.2GHz |
| E7-8880v4 | 55MB | 22C/44T | 2.2GHz |
| E7-8870v4 | 50MB | 20C/40T | 2.1GHz |
| E7-8867v4 | 45MB | 18C/36T | 2.4GHz |
| E7-8860v4 | 45MB | 18C/26T | 2.2GHz |
| E7-4850v4 | 40MB | 16C/32T | 2.1GHz |
| E7-4830v4 | 35MB | 14C/28T | 2.0GHz |
| E7-4820v4 | 25MB | 10C/20T | 2.0GHz |
| E7-4809v4 | 20MB | 8C/16T | 2.1GHz |
HPE ProLiant DL580 Gen9 RAID Options
| RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
|---|---|---|---|---|---|
| HPE Smart Array P431/4GB FBWC 12Gb 2-ports Ext SAS Controller | 0, 1, 5, 6, 10, 50, 60 | 4GB | 6Gb/s SATA 12GB/s SAS |
PCIe 3.0 x8 | Hardware |
| HPE Smart Array P830/4GB FBWC 12Gb 2-ports Int SAS Controller | 0, 1, 5, 6, 10, 50, 60 | 4GB | 6Gb/s SATA 6GB/s SAS |
PCIe 3.0 x8 | Hardware |
| HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter | 0, 1, 5 | 6GB | 12Gb/s SAS 6GB/s SATA |
PCIe 3.0 x8 | Hardware |
| HPE H240 12Gb 2-ports Int Smart Host Bus Adapter | 0, 1, 5, 10 | 6GB | 12Gb/s SAS 6GB/s SATA |
PCIe 3.0 x8 | Hardware |
| HPE H240 12Gb 2-ports Int FIO Smart Host Bus Adapter | 0, 1, 5, 10 | 6GB | 12 Gb/s SAS 6GB/s SATA |
PCIe 3.0 x8 | Hardware |
