Description
Tech Specs
Chassis:
- 8 Bay LFF
- 12 Bay LFF
- 8 Bay SFF (SAS/SATA/NVMe)
- 24 Bay SFF (SAS/SATA/NVMe)
- 12 Bay SFF (EDSFF E3.S)
Rear extra Bay:
- Up to 2x 2.5" or 6x 2.5" depending on Riser configuration
Processor types:
- Up to two, 4th generation AMD EPYC,
housing up to 256 cores and 512 Threads - 128 Cores and 256 Threads per CPU
Memory RAM types:
- ECC Registered Memory, up to Max 256GB DDR5
- RAM Capacity: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
- Max Configuration RDIMM: 6TB (24x256GB)
- Memory Speeds: 4000MT/s to 4800MT/s
- CPU Impacts on the available speeds RAM can run.
Storage Options 2.5" Drives
- NVMe SSDs: 15.36TB @ 24GB/s
- SAS SSDs: 15.36TB @ 12GB/s
- SATA SSD: 15.36TB @ 6GB/s
- SAS HDD: 2.4TB @ 7.2K
- SAS HDD: 2.4TB @ 10K
- SAS HDD: 2.4TB @ 15K
- SATA HDD: 2TB @ 7.2K
Storage Options 3.5" Drives
- MVMe SSD: 15.36TB @ 24GB/s
- SAS SSDs: 15.36TB @ 12GB/s
- SATA SSD: 15.36TB @ 6GB/s
- SAS HDD: 18TB @ 7.2K
- SATA HDD: 18TB @ 7.2K
Network Interface Card Options (NICs)
- Up to 2 NIC ports on the LAN on motherboard (LOM) and up to 4x 200GBe ports integrated on the OCP (Open Compute Project) card
Power Supplies:
- Hot Swap 500W Platinum 100 to 240 VAC or 240 HVDC
- Hot swap 800W Titanium 100 to 240 VAC or 240 HVDC
- Hot swap 800W Platinum 100 to 240 VAC or 240 HVDC
- Hot swap 800W -48VDC
- Hot swap 800W Universal
- Hot Swap 1600W Platinum 100 to 240 VAC or 240 HVDC
Systems Management Solutions
- Integrated Lights-out 6 (iLO 6)
Storage Controllers RAID Options:
- Intel Virtual RAID
- Smart Array E208i-p
- SmartRAID SR932i-p
- Broadcom MegaRAID MR216i-o
- Broadcom MegaRAID MR216i-p
- Broadcom MegaRAID MR408i-o
- Broadcom MegaRAID MR416i-o
- Broadcom MegaRAID MR416i-p
Supported Operating Systems:
- Windows Server 2016: Essentials
- Windows Server 2016: Standard
- Windows Server 2016: Data Center
- Windows Server 2019: Essentials
- Windows Server 2019: Standard
- Windows Server 2019: Data Center
- Windows Server 2022: Essentials
- Windows Server 2022: Standard
- Windows Server 2022: Data Center
- Microsoft Hyper-V Server: 2016, 2019 & 2022
- VMware vSphere: 6.7 U3 w /P03, 7.0 U2
- Red Hat Enterprise Linux (RHEL): 8.6, 9.0 (64 bit, includes KVM)
- Canonical Ubuntu: 20.04 LTS (64 bit)
- SUSE Linux Enterprise Server (SLES) 15 SP4
- VMware ESXi 7.0 U3/8.0
GPU/FPGA/Accelaration cards, NVMe Boot Optimized Storage Cards
- NVIDIA A100 80GB PCIe NonCEC Accelerator
- NVIDIA A16 64GB PCIe Non-CEC Accelerator for HPE
- NS204i-u NVMe Hot Plug Boot Optimized Storage Device
PCIe Network Card Options:
- Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter
- Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter
- Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter
- Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter
- Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter
- Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter
- Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter
- Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter
- Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter
- Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter
- Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter
- Mellanox MCX623105AS-VDAT Ethernet 200Gb 1-port QSFP56 Adapter
- HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe4 x16 MCX653105A-ECAT Adapter P23665-B21
- HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe4 x16 MCX653106A-ECAT Adapter P23666-B21
- HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 MCX653105A-HDAT Adapter P23664-B21
- HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 MCX653106A-HDAT Adapter P31324-B21
- HPE InfiniBand NDR 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter P45641-B21
- HPE InfiniBand NDR200 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Adapter P45642-B21
- HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 OCP3 MCX653435A-HDAI Adapter P31323-B21
- HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 OCP3 MCX653436A-HDAI Adapter P31348-B21
OCP Network Cards:
- Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter
- Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter
- Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter
- Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter
- Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter
- Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter
- Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter
- Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter
- Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter

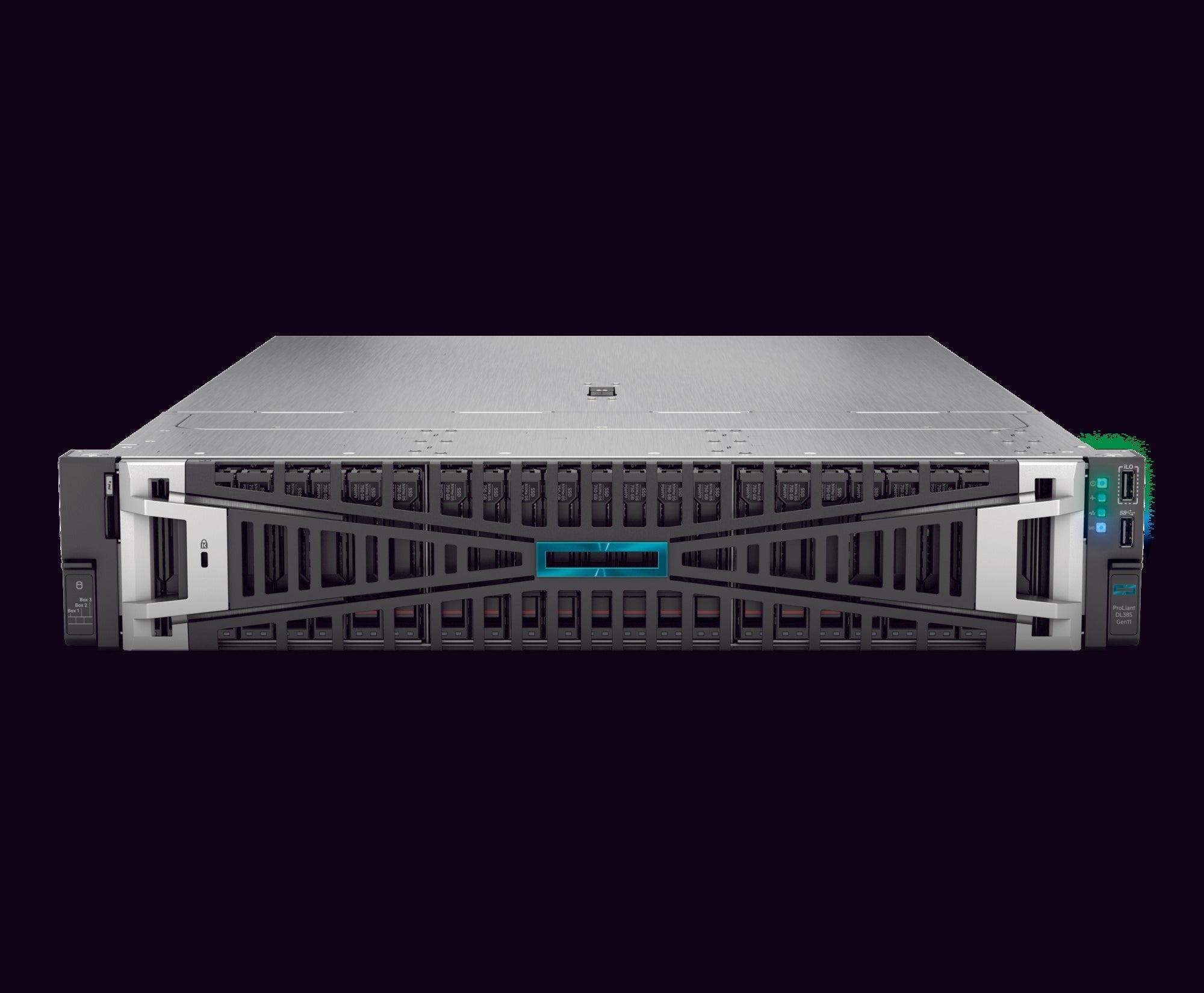

HPE ProLiant DL385 GEN11 Supported CPUs
| CPU | Step Code | Cores/Threads | Frequency |
|---|---|---|---|
| EPYC 9124 | Genoa | 16C/32T | 3.05GHz |
| EPYC 9174F | Genoa | 16C/32T | 4.1GHz |
| EPYC 9224 | Genoa | 24C/48T | 2.5GHz |
| EPYC 9254 | Genoa | 24C/48T | 2.9GHz |
| EPYC 9274F | Genoa | 24C/48T | 4.05GHz |
| EPYC 9354 | Genoa | 32C/64T | 3.25GHz |
| EPYC 9374F | Genoa | 32C/64T | 3.85GHz |
| EPYC 9334 | Genoa | 32C/64T | 2.7GHz |
| CPU | Step Code | Cores/Threads | Frequency |
|---|---|---|---|
| EPYC 9454 | Genoa | 48C/96T | 2.75GHz |
| EPYC 9474F | Genoa | 48C/96T | 3.6GHz |
| EPYC 9554 | Genoa | 64C/128T | 3.1GHz |
| EPYC 9534 | Genoa | 64C/128T | 2.45GHz |
| EPYC 9634 | Genoa | 84C/168T | 2.25GHz |
| EPYC 9654 | Genoa | 96C/192T | 2.4GHz |
| EPYC 9734 | Genoa | 112C/224T | 2.2GHz |
| EPYC 9754 | Genoa | 128C/256T | 2.25GHz |
HPE ProLiant DL385 GEN11 RAID Options
| RAID Options | RAID Levels | Cache | Drive Speeds | PCIe Generation | RAID Hardware |
|---|---|---|---|---|---|
| Intel Virtual RAID | 0,1,5,10 | None | 6 Gb/s SATA, 8GB/s NVMe | PCIe 4.0 | Software |
| Smart Array E208i-p | 0,1,5,10 | None | 6 Gb/s SATA 12GB/s SAS |
PCIe 3.0 | Hardware |
| SmartRAID SR932i-p | RAID 0, 1, 1 ADM, 10, 10 ADM, 5, 6, 50, 60 | 8GB | 6/12/24Gb/s SAS 6GB/s SATA 16GB/s NVMe |
PCIe 4.0 | Hardware |
| Broadcom MegaRAID MR216i-o | 0, 1, 10 | None | 12Gb/s SAS 6GB/s SATA 16GB/s NVMe |
PCIe 4.0 | Hardware |
| Broadcom MegaRAID MR216i-p | 0, 1, 10 | None | 12 Gb/s SAS 6GB/s SATA 16GB/s NVMe |
PCIe 4.0 | Hardware |
| Broadcom MegaRAID MR208i-p | 0, 1, 5, 6, 10, 50, 60 | 4GB | 12 Gb/s SAS 6GB/s SATA 16GB/s NVMe |
PCIe 4.0 | Hardware |
| Broadcom MegaRAID MR416i-o | 0, 1, 5, 6, 10, 50, 60 | 8GB | 12 Gb/s SAS 6GB/s SAS/SATA 16GB/s NVMe |
PCIe 4.0 | Hardware |
| Broadcom MegaRAID MR416i-p | 0, 1, 5, 6, 10, 50, 60 | 8GB | 12 Gb/s SAS 6GB/s SAS/SATA 16GB/s NVMe |
PCIe 4.0 | Hardware |
