[shortdesc]
- Type: HP X120 1G SFP LC SX Transceiver, Ports: 1 LC 1000BASE-SX port, Connector Type: LC
[/shortdesc]
[properties]
| Product Name |
JD118B |
| Description |
HPE JD118B, an SFP Gigabit LX transceiver module for extending network connectivity over single-mode fiber. |
| Transceiver Type |
SFP (Small Form-Factor Pluggable) |
| Data Rate |
1 Gbps |
| Connector Type |
LC Duplex |
| Wavelength |
1310 nm |
| Maximum Distance |
10 km (6.2 miles) |
| Fiber Type |
Single-mode fiber |
| Digital Diagnostic Monitoring |
No |
| Hot-Swappable |
Yes |
| Operating Temperature |
0°C to 70°C (32°F to 158°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Power Consumption |
<1W |
| Dimensions |
5.6 cm x 1.3 cm x 1.2 cm (2.2 in x 0.51 in x 0.47 in) |
| Weight |
0.018 kg (0.04 lb) |
| Compatibility |
Compatible with HPE networking equipment |
| Usage |
Suitable for enterprise networks, data centers, and campus environments |
| Durability |
Designed for reliable long-distance data transmission |
[/properties]
[specifications]
| Form Factor |
SFP MSA compliant |
| Supported Standards |
IEEE 802.3z (1000BASE-LX) |
| Certifications |
CE, FCC, RoHS compliant |
| Environmental Safety |
Complies with environmental standards for electronic products |
| EMC Compliance |
Meets international EMC standards for networking equipment |
| Transmission Media |
Single-mode optical fiber |
| Signal Integrity |
Ensures stable data transmission over long distances |
| Hot-Swappable |
Yes, supports hot-swapping without network downtime |
| MTBF |
1,000,000 hours |
| Security |
Supports secure connections with compatible devices |
| Power Supply |
3.3V DC |
| Monitoring |
Not supported |
| Latency |
Low latency for Gigabit data transmission |
| Installation |
Easy plug-and-play installation |
| Deployment |
Ideal for extending network reach in large-scale enterprise or service provider networks |
| Firmware Compatibility |
Firmware updates supported when needed |
[/specifications]

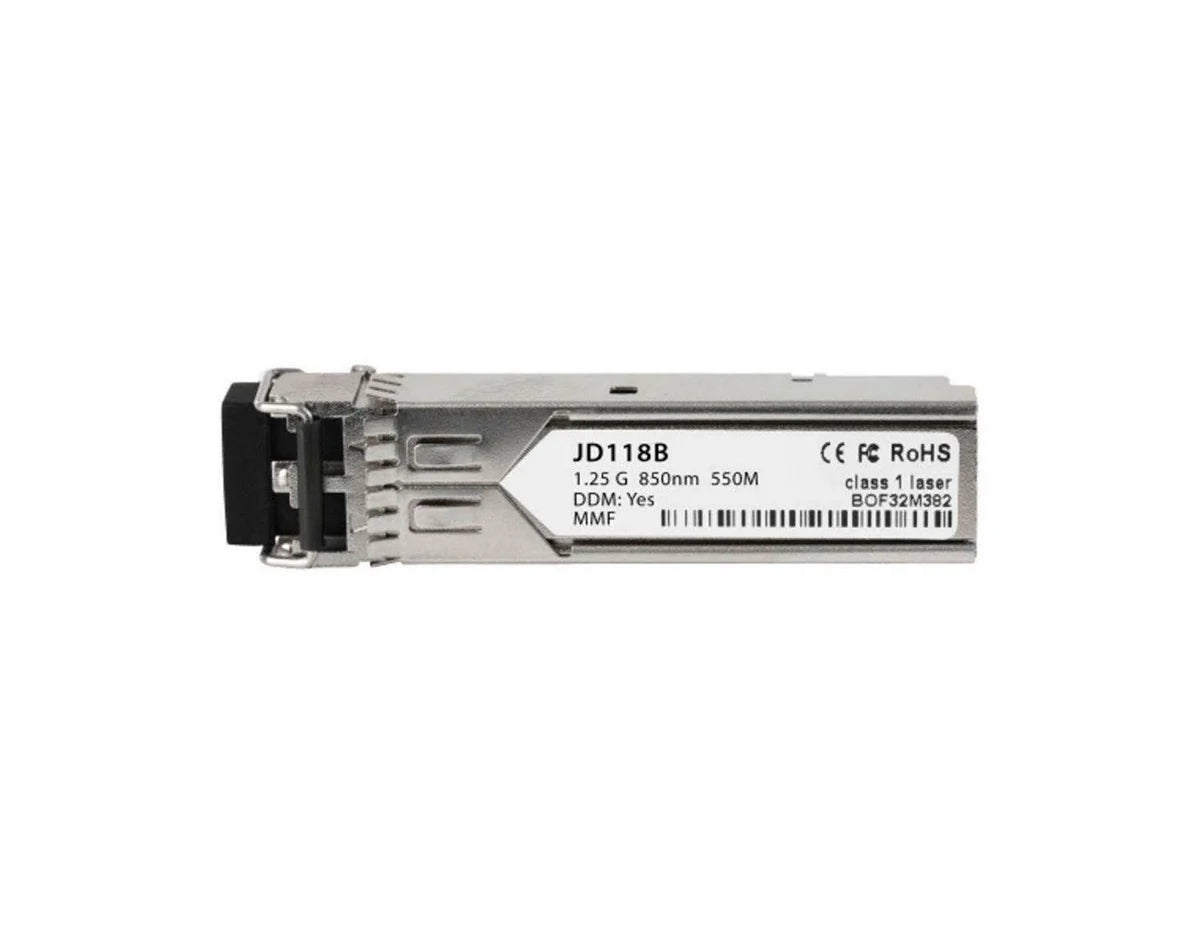

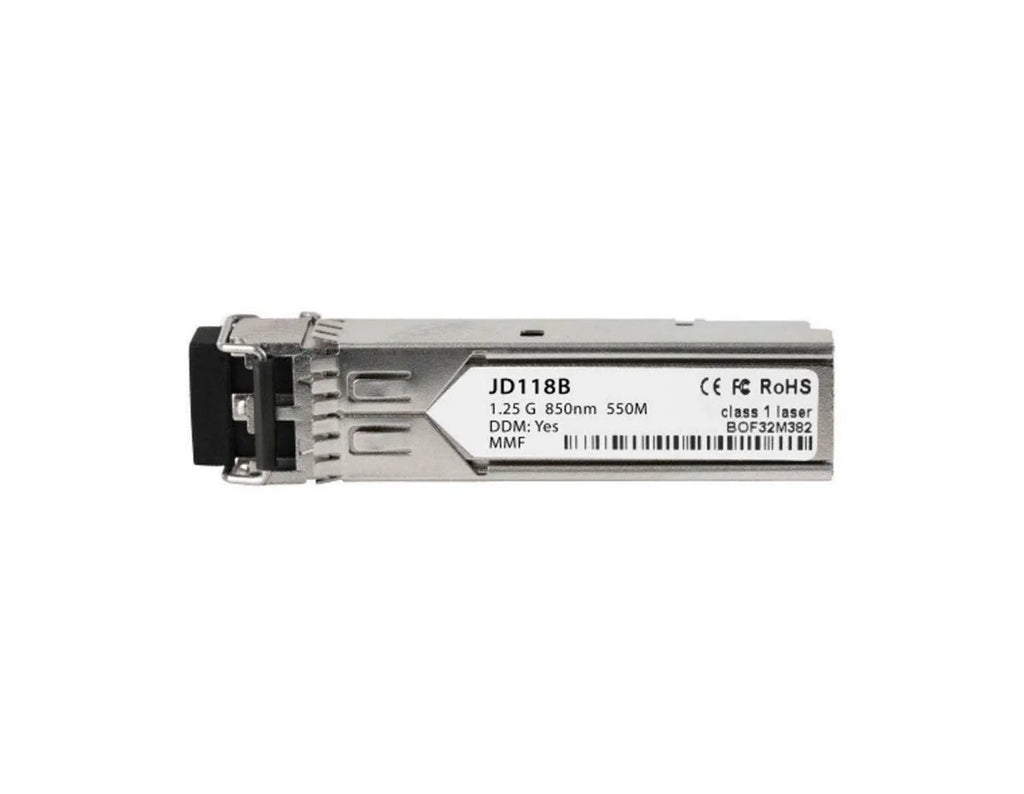

HPE JD118B HP X120 1G SFP LC SX Transceiver
The HPE JD118B is a HP X120 1G SFP LC SX Transceiver, offering a small form-factor pluggable (SFP) Gigabit SX solution. It provides a full-duplex Gigabit solution up to 550m on a Multimode fiber, making it ideal for high-speed networking needs.
Quick Specs:
- Product Number: JD118B
- Type: HP X120 1G SFP LC SX Transceiver
- Ports: 1 LC 1000BASE-SX port
- Connector Type: LC
- Wavelength: 850 nm
- Cabling Distance (maximum):
- FDDI Grade distance: 220m
- OM1: 275m
- OM2: 500m
- OM3: Not Specified by standard
- Dimensions: 2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
- Weight: 0.04 lb.
- Power Consumption Typical: 0.8 W
- Power Consumption Maximum: 1.0 W
- Fiber Type: Multi Mode
- Cable Length: Up to 550m
