[shortdesc]48G, managed, desktop, wall-mountable, Switch, 24 x 10/100/1000 (PoE+) + 24 x 10/100/1000 + 4 x Fast Ethernet/Gigabit SFP, rack-mountable, PoE+ (370 W)[/shortdesc]
[properties]
| Product Name |

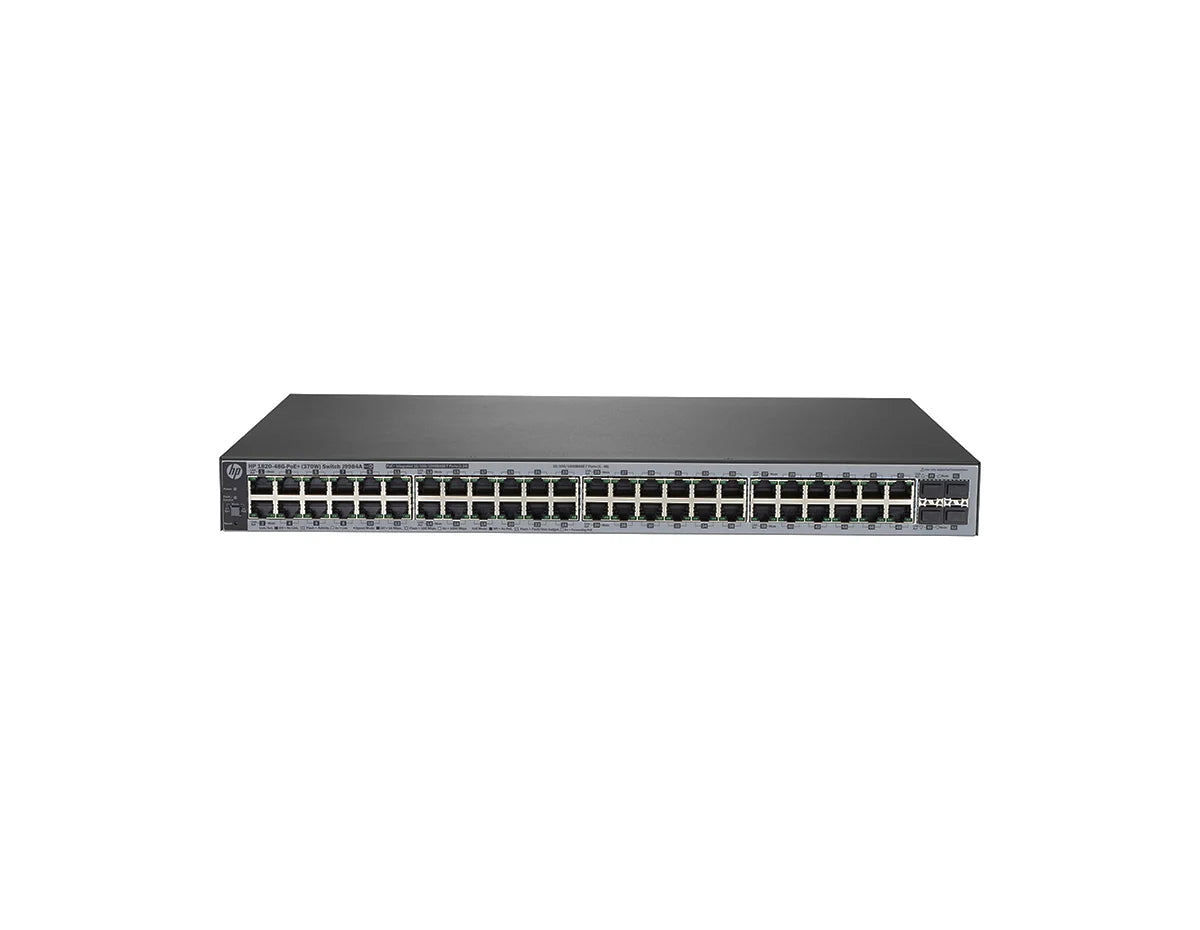

HPE 1820-48G PoE+ Switch (J9984A) |
| Product Description |
48-port managed Gigabit switch with PoE+ support, designed for small businesses with desktop, wall-mountable, and rack-mountable options. |
| Port Configuration |
24 x 10/100/1000 PoE+ ports, 24 x 10/100/1000 ports, 4 x SFP ports |
| Power over Ethernet (PoE) |
Supports PoE+ with 370W power budget |
| Switching Capacity |
104 Gbps |
| Use Case |
Small business Layer 2 "smart" switch for easy management and setup |
| Mounting Options |
Desktop, wall-mountable, and rack-mountable |
| VLAN Support |
Supports VLAN configuration |
| Link Aggregation |
Supports Link Aggregation for enhanced performance |
| Management Features |
Managed switch with intuitive web interface |
[/properties]
[specifications]
| Device Type |
Layer 2 managed Gigabit switch |
| PoE+ Power Budget |
370 W |
| Ports |
24 x 10/100/1000 PoE+ ports, 24 x 10/100/1000 non-PoE ports, 4 x SFP 100/1000 Mbps ports |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.4 Mpps |
| Environmental Specifications |
Fanless design for silent operation |
| Dimensions |
17.42 x 12.8 x 1.73 inches (44.3 x 32.5 x 4.4 cm) |
| Weight |
9.3 lb (4.2 kg) |
| Operating Temperature Range |
32°F to 104°F (0°C to 40°C) |
| Compliance Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az |
| Energy Efficiency |
Supports IEEE 802.3az for energy-efficient Ethernet |
[/specifications]
HPE OfficeConnect 1820 Series switches are basic Gigabit "smart" Layer 2 switches, designed for small businesses. The HPE 1820-48G PoE+ Switch (J9984A) supports VLANs, Link Aggregation and have 48 ports, including 24 PoE+ ports with a power budget of 370W. The switch also has four non-combo 1000/100 SFP ports for fiber connectivity.
Key Features:
- 370 W PoE+
- 4 SFP ports
- Switching capacity 104 Gb/s
Please check the detailed specifications of the Aruba JL998A Switch in the tabs.
