[shortdesc]
- Managed, Rack-mountable, 24 x 1G Class 4 PoE ports, 4 x 1G/10G SFP+ Uplinks, PoE+ (370W), Layer 2+
[/shortdesc]
[properties]
| Properties |
HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930 (JL684B) |
| Description |
Advanced, smart-managed, fixed-configuration Gigabit switch with 24 10/100/1000 Class 4 PoE ports and 4 SFP+ 1/10GbE uplink ports. Provides 370W of PoE power and is ideal for small businesses. |
| Product Family |
Instant On 1930 Switch Series |
| Product Type |
Ethernet Switch |
| I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports |
| 4 SFP+ 1/10GbE ports |
| Electrical characteristics |
| Frequency |
50/60 Hz |
| AC Voltage |
100 - 127 / 200 - 240 VAC |
| Current |
4.9 A / 2.4 A |
| Maximum power rating |
490 W |
| Idle power |
30 W |
| PoE capability |
370 W Class 4 |
| Power supply |
Internal power supply |
| Dimensions |
4.39 x 44.25 x 26.47 cm (1.73 x 17.42 x 10.42 in) |
| Weight |
3.73 kg (8.23 lb) |
[/properties]
[specifications]
| Specifications |
JL684B |
| Memory and processor |
ARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer |
| Performance |
| 100 Mbps Latency |
< 4.7 µs |
| 1000 Mbps Latency |
< 2.4 µs |
| 10 Gbps Latency |
< 1.3 µs |
| Throughput |
95.23 Mpps |
| Switching Capacity |
128 Gbps |
| Routing Table size |
32 static entries |
| MAC Address Table Size |
16,000 entries |
| Operating temperature |
32°F to 104°F (0°C to 40°C) |
| Acoustic |
Sound Power: LWAd = 3.7 Bel
Sound Pressure: LpAm (Bystander) = 23 dB |
| Device Management |
Instant On Portal, Web browser, SNMP Manager |
[/specifications]

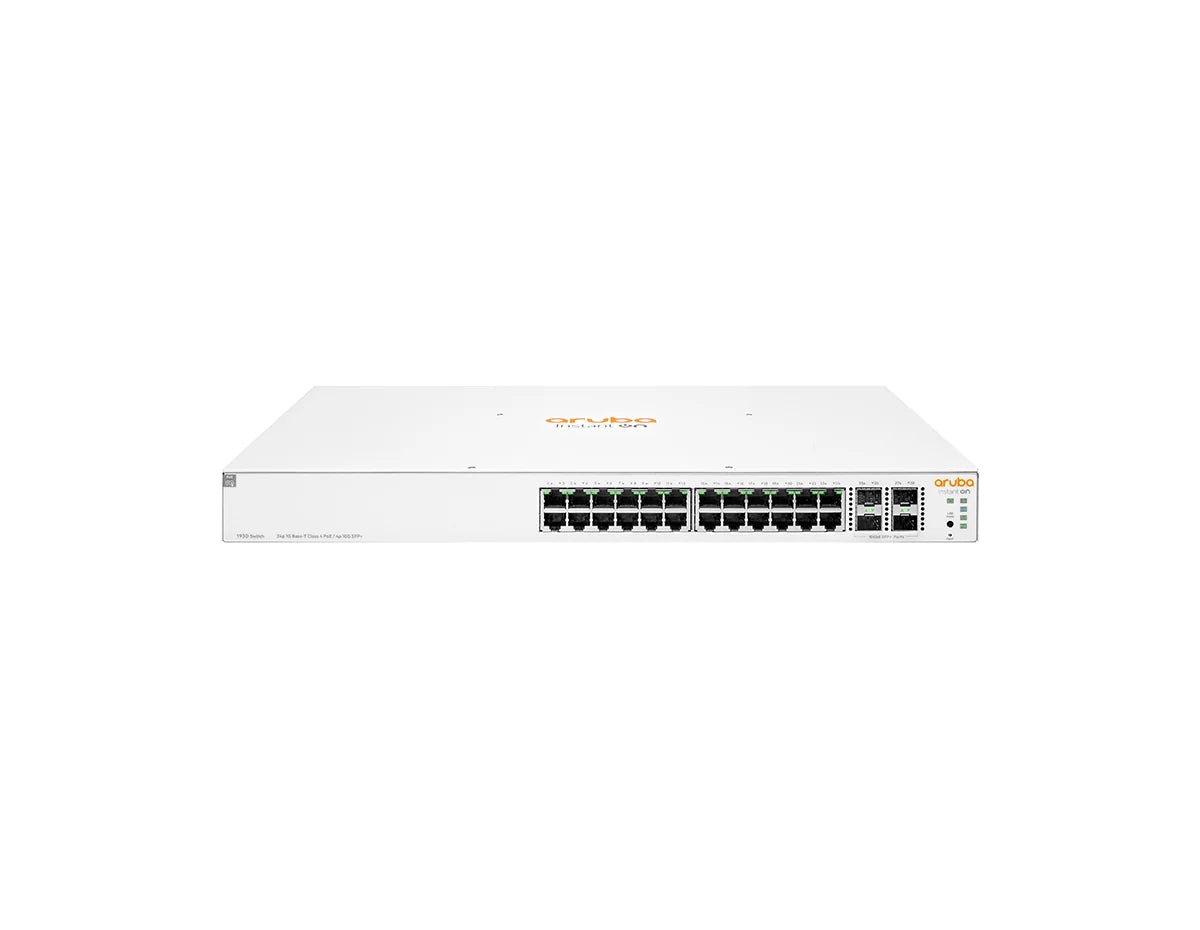

HPE Aruba Networking Instant On 1930 24G PoE+ 4SFP+ Switch (JL684B)
The HPE Aruba Networking Instant On 1930 24G PoE+ 4SFP+ Switch (JL684B) is a high-performance, smart-managed switch designed for growing businesses. With 24 Gigabit Ethernet ports, this switch offers Class 4 PoE to power connected devices such as IP cameras, access points, and VoIP phones. The four SFP+ uplink ports ensure high-speed fiber connectivity, supporting up to 10Gbps for a reliable network backbone.
Key Features:
-
24 x 1GbE Class 4 PoE Ports: Delivers up to 30W per port to power devices such as access points and security cameras.
-
4 x SFP+ Uplink Ports: Provides high-speed 10Gbps uplinks for fast connections to the network core.
-
370W PoE Power Budget: Ensures sufficient power for multiple PoE-enabled devices across the network.
-
Layer 2+ Features: Includes VLANs, link aggregation, and static routing for advanced traffic control and network segmentation.
-
Cloud and Mobile Management: Easily configure, monitor, and manage your network remotely through the Aruba Instant On mobile app or cloud-based web portal.
