[properties]

Properties	HPE Aruba 3810M 16SFP+ 2-slot Switch (JL075A)
Description	The HPE Aruba 3810M 16SFP+ 2-slot Switch (JL075A) is a high-performance networking switch with 16 10 Gigabit SFP+ ports. It offers flexibility with two module slots for expansion, making it an ideal choice for fast and reliable connectivity in demanding enterprise environments.
Product Family	Aruba 3810 Switch Series
Product Type	Switch
Key Features	• Advanced Layer 3 switch series with backplane stacking, Dynamic Segmentation, low latency and resiliency • Advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central • Modular line rate 10GbE and 40GbE ports for wireless aggregation • HPE Smart Rate for high-speed multi-gigabit bandwidth (IEEE 802.3bz) and PoE+ power • Software defined ready with REST APIs and OpenFlow support

[/properties] [specifications]

Specifications	HPE Aruba 3810M 16SFP+ 2-slot Switch (JL075A)
I/O ports and slots	16 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 16 support MACSec 2 open module slots Supports a maximum of 8 SFP+ ports or 2 40GbE ports, with optional module or 4 Smart Rate ports
Additional ports and slots	1 stacking module slot 1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 dual-personality (RJ-45 or USB micro-B)
Power supplies	2 power supply slots 1 minimum power supply required (ordered separately)
Included accessories	1 Aruba 3810 Switch Fan Tray (JL088A)
Fan tray	Includes: 1 x JL088A 1 fan tray slot Switch ships with 1 JL088A fan tray installed. Spares ordered separately.
Physical Characteristics
Dimensions	17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)
Weight	13.28 lb (6.02 kg)
Memory and processor
• P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card • Dual ARM Cortex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal
Mounting and enclosure
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only
Performance (IPv6 Ready Certified)
1000 Mb Latency	< 2.8 µs (FIFO 64-byte packets)
10 Gbps Latency	< 1.8 µs (FIFO 64-byte packets)
40 Gbps Latency	< 1.5 µs (FIFO 64-byte packets)
Throughput	up to 285.7 Mpps (64-byte packets)
Routing/Switching capacity	480 Gbps
Switch fabric speed	508 Gbps
Routing table size	10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size	64000 entries
Environment
Operating temperature	32°F to 113°F (0°C to 45°C)
Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	15% to 90% @ 149°F (65°C), noncondensing
Altitude	up to 10,000 ft (3 km)
Acoustic	Power: 39 dB, Pressure: 22.3 dB
Primary Airflow Direction	Front to Side and Front to Rear
Electrical Characteristics
Frequency	50/60Hz
Voltage	JL085A PSU: 100-127/200-240 VAC
Current	JL085A PSU (Each): 1A/0.5A
Max/Idle Power Rating (Switch+ 1 PSU)	120W/95W
Second PSU Power Adder	10W
Max/Idle Uplink Power Adder	JL078A: 4W/3W JL079A: 7W/3W JL081A: 4W/3W JL083A: 11W/4W
Maximum Heat Dissipation *(Max Case)	480.81
PoE Power (Max Possible)	N/A
Notes	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product. *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator.

[/specifications] [accesories]

Modules
JL081A	Aruba 3810M/2930M 4 1/2.5/5/10 GbE HPE Smart Rate Module
JL084A	Aruba 3810M 4-port Stacking Module
JL078A	Aruba 3810M/2930M 1QSFP+ 40GbE Module
JL083A	Aruba 3810M/2930M 4SFP+ MACsec Module
JL079A	Aruba 3810M 2QSFP+ 40GbE Module
TAA-Compliant Transceivers
JL745A	Aruba 1G SFP LC SX 500m MMF TAA XCVR
JL746A	Aruba 1G SFP LC LX 10km SMF TAA XCVR
JL747A	Aruba 1G SFP RJ45 T 100m Cat5e TAA XCVR
JL748A	Aruba 10G SFP+ LC SR 300m MMF TAA XCVR
JL749A	Aruba 10G SFP+ LC LR 10km SMF TAA XCVR
Transceivers
J9054D	Aruba 100M SFP LC FX 2km MMF XCVR
J8177D	Aruba 1G SFP RJ45 T 100m Cat5e XCVR
J4858D	Aruba 1G SFP LC SX 500m MMF XCVR
J4859D	Aruba 1G SFP LC LX 10km SMF XCVR
J4860D	Aruba 1G SFP LC LH 70km SMF XCVR
J9150D	Aruba 10G SFP+ LC SR 300m MMF XCVR
J9151E	Aruba 10G SFP+ LC LR 10km SMF XCVR
J9152D	Aruba 10G SFP+ LC LRM 220m MMF XCVR
J9153D	Aruba 10G SFP+ LC ER 40km SMF XCVR
J9281D	Aruba 10G SFP+ to SFP+ 1m DAC Cable
J9283D	Aruba 10G SFP+ to SFP+ 3m DAC Cable
J9285D	Aruba 10G SFP+ to SFP+ 7m DAC Cable
JL308A	Aruba 40G QSFP+ LC BiDi 150m MMF XCVR
JH231A	HPE X142 40G QSFP+ MPO SR4 Transceiver
JH232A	HPE X142 40G QSFP+ LC LR4 SM Transceiver
JH233A	HPE X142 40G QSFP+ MPO eSR4 300M XCVR
JH234A	HPE X242 40G QSFP+ to QSFP+ 1m DAC Cable
JH235A	HPE X242 40G QSFP+ to QSFP+ 3m DAC Cable
JH236A	HPE X242 40G QSFP+ to QSFP+ 5m DAC Cable
Cables
JL448A	Aruba X2C2 RJ45 to DB9 Console Cable
J9578A	HPE 3800 0.5m Stacking Cable
J9665A	HPE 3800 1m Stacking Cable
J9579A	HPE 3800 3m Stacking Cable
Power Supply
JL085A	Aruba X371 12VDC 250W 100-240VAC Power Supply
JL086A	Aruba X372 54VDC 680W 100-240VAC Power Supply
JL087A	Aruba X372 54VDC 1050W 110-240VAC Power Supply
Fan Tray
Aruba 3810 Switch Fan Tray (JL088A)
Mounting Kit
J9583A	HPE X410 1U Universal 4-post Rack Mounting Kit
J9583B	Aruba X414 1U Universal 4-post Rack Mounting Kit
Aruba Central Foundation Licenses
Q9Y78AAE	Aruba Central Switch 6300/38xx Foundation 1 year Subscription E-STU
Q9Y79AAE	Aruba Central Switch 6300/38xx Foundation 3 year Subscription E-STU
Q9Y80AAE	Aruba Central Switch 6300/38xx Foundation 5 year Subscription E-STU
Q9Y81AAE	Aruba Central Switch 6300/38xx Foundation 7 year Subscription E-STU
R3K02AAE	Aruba Central Switch 6300/38xx Foundation 10 year Subscription E-STU
R6U83AAE	Aruba Central On-Premises 63xx or 38xx Switch Foundation 1 year Subscription E-STU
R6U84AAE	Aruba Central On-Premises 63xx or 38xx Switch Foundation 3 year Subscription E-STU
R6U85AAE	Aruba Central On-Premises 63xx or 38xx Switch Foundation 5 year Subscription E-STU
R6U86AAE	Aruba Central On-Premises 63xx or 38xx Switch Foundation 7 year Subscription E-STU
R6U87AAE	Aruba Central On-Premises 63xx or 38xx Switch Foundation 10 year Subscription E-STU
Support
JL075A: 4 Hour Onsite 3 Year (U6TD8E)

[/accesories]

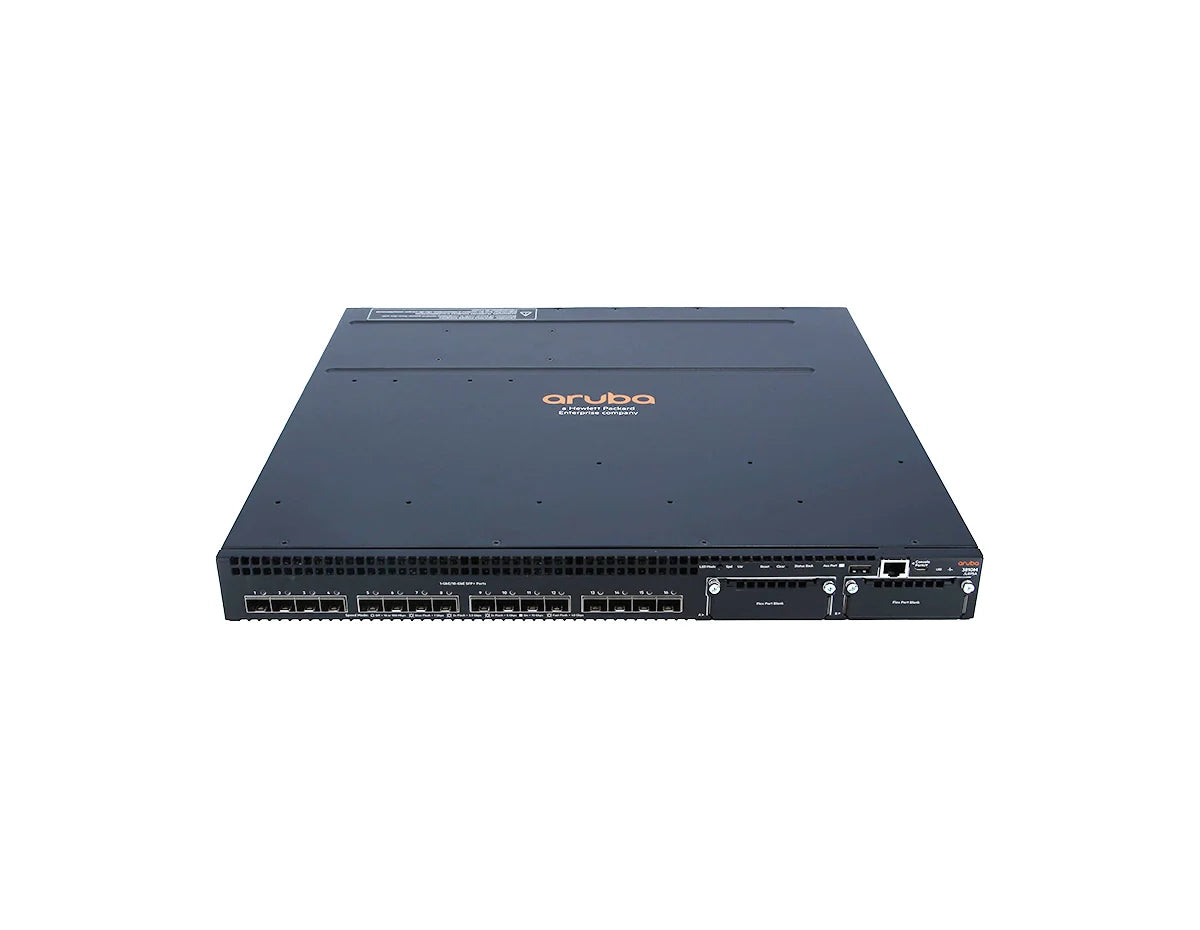

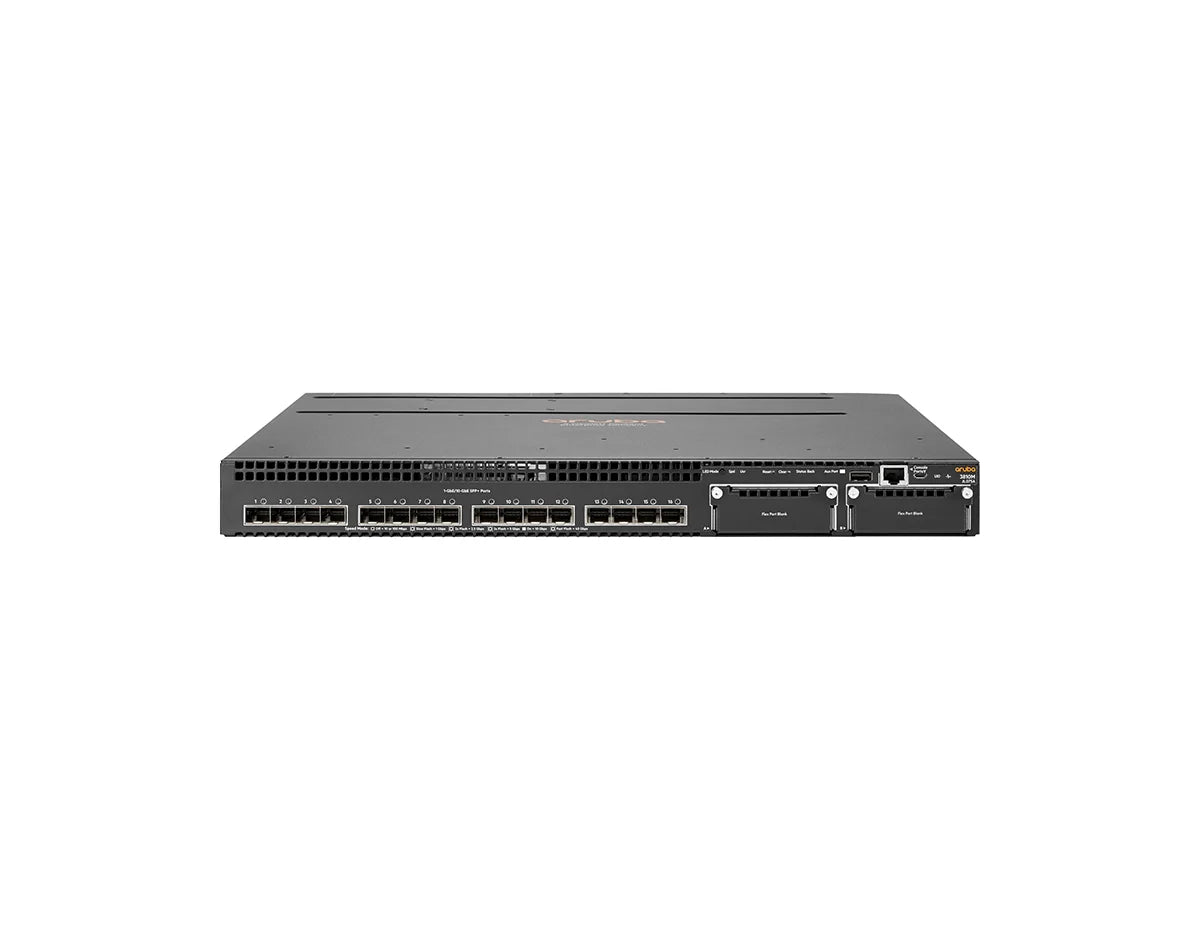

HPE Aruba 3810M 16SFP+ 2-slot Switch (JL075A)

The HPE Aruba 3810M 16SFP+ 2-slot Switch (JL075A) is designed for businesses requiring high-performance networking with flexibility and scalability. Equipped with 16 fixed SFP+ ports and two additional module slots, this switch delivers exceptional throughput and adaptability for growing network demands. Supporting up to 40GbE uplinks, it is ideal for environments that require fast and reliable data transfer, such as data centers, campus networks, and enterprises.

Key Features:

• 16 x 10GbE SFP+ Ports: Delivers fast and reliable fiber connectivity for data-intensive applications and core network infrastructure.
• 2 Modular Slots: Provides flexibility for expansion with support for up to 8 additional SFP+ ports or 2 x 40GbE uplinks.
• Advanced Layer 3 Capabilities: Supports OSPF, BGP, and IPv6, ensuring efficient traffic routing and network segmentation.
• Stackable Architecture: Supports stacking for up to 10 switches, enhancing redundancy and simplifying management.
• Cloud and Local Management: Managed through Aruba Central, AirWave, and CLI for both on-premise and cloud-based network control.

Technical Overview:

• Recommended for: Enterprise networks, data centers, and campus environments.
• Ports: 16 x SFP+ fixed ports, 2 module slots for expansion.
• Switching Capacity: 320 Gbps.
• Forwarding Rate: 190.5 Mpps.
• Layer 3 Features: OSPF, BGP, IPv6, and QoS support.
• Management: Managed via Aruba Central, AirWave, and CLI.
• Energy Efficiency: Complies with IEEE 802.3az standards, reducing power consumption.

You can check the related tab for the JL075A datasheet.
