[properties]

Properties	HPE Aruba Networking 5406R zl2 Switch (J9821A)
Description	Switch, L3, managed, 6 open module slots, rack-mountable, does not come with power supply
Product Family	5400R Series
Product Type	Ethernet Switch
I/O ports and slots	6 open module slots
	Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
Included accessories	1 HPE Aruba Networking 5400R zl2 Management Module (J9827A) 1 HPE Aruba Networking 5406R zl2 Switch Fan Tray (J9831A)

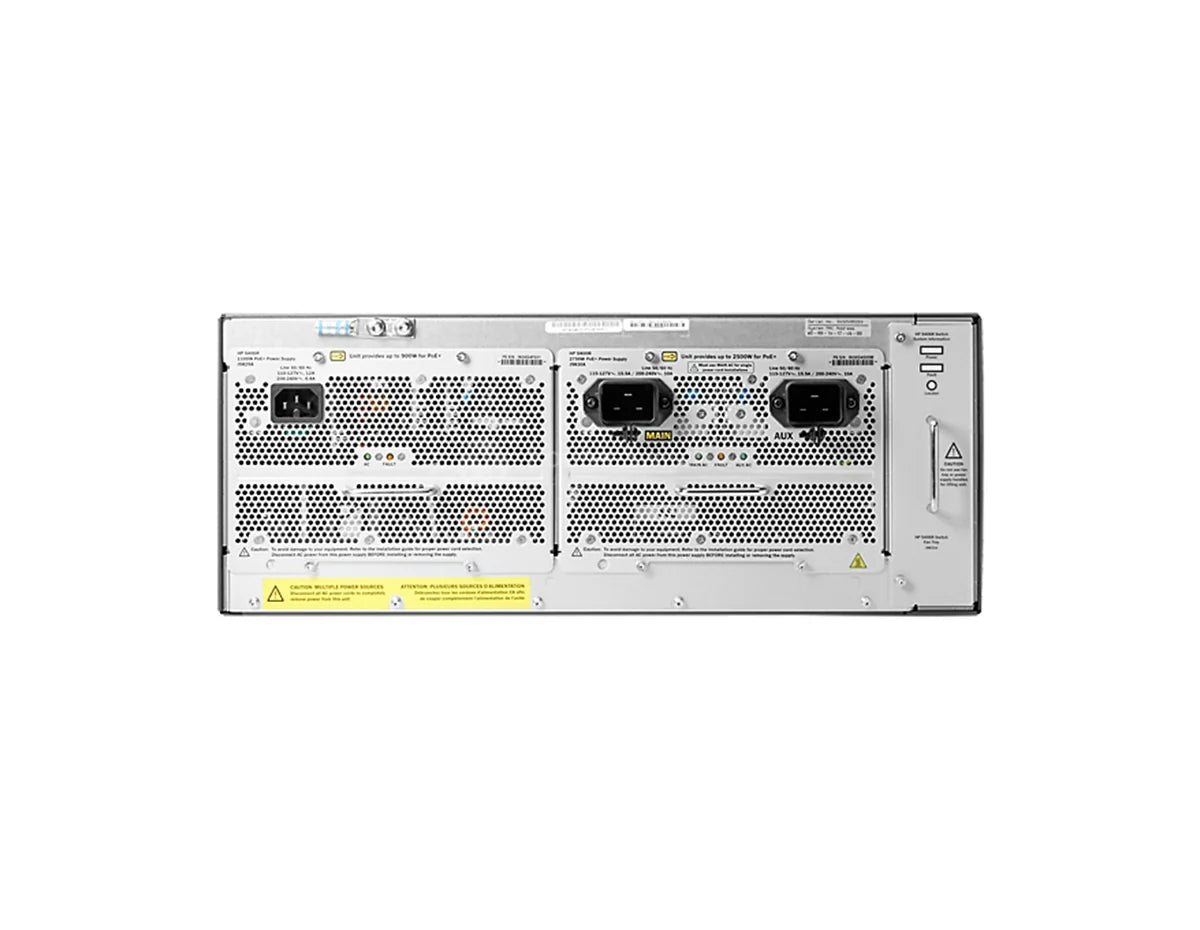

Power supplies	2 power supply slots 1 minimum power supply required (ordered separately)
Fan tray	Includes: 1 x J9831A 1 fan tray slot
Dimensions	17.5 (w) x 17.75 (d) x 6.9 (h) in (44.45 x 45.09 x 17.53 cm) (4U height)
Weight	24.5 lb (11.11 kg)
Electrical characteristics
Frequency	50/60 Hz
80plus.org Certification	Gold
Description	Does not come with power supply. Two power supply slots are available; three different power supplies are available. See power supply products for additional specifications.
Heat dissipation	2450 BTU/hr (2584 kJ/hr), (max. non‑PoE) 3700 BTU/hr (3903 kJ/hr) (max. using PoE)
Input voltage	100–127/200–240 VAC, rated (depending on power supply chosen)
Notes	Heat dissipation does not include heat dissipated by the PoE-powered devices themselves.

[/properties]

[specifications]

Specifications	5406R-J9821A
Memory and processor
v3 Gigabit Module v3 10G Module v3 40G Module	Dual ARM® Cortex A9 at 1 GHz @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 Gigabit Module v2 10G Module	ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal
Management Module	Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM
Mounting and enclosure	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included); Horizontal surface mounting only
Performance
	IPv6 Ready Certified
1000 Mb Latency	< 2.8 µs (FIFO 64-byte packets)
10 Gbps Latency	< 1.8 µs (FIFO 64-byte packets)
40 Gbps Latency	< 1.5 µs (FIFO 64-byte packets)
Throughput	up to 571.4 Mpps
Routing/Switching capacity	960 Gbps
Switch fabric speed	1015 Gbps
Routing table size	10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size	64000 entries
Management	HPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager
Operating temperature	32°F to 113°F (0°C to 45°C); 0°C to 40°C with J8177C transceiver installed, 0°C to 35°C with FIPS Opacity Shield installed
Operating relative humidity	15% to 95% @ 113°F (45°C), noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	15% to 95% @ 149°F (65°C), noncondensing
Altitude	up to 10,000 ft (3 km)
Acoustic	Power: 44 dB, Pressure: 31.7 dB ISO 7779, ISO 9296
Safety	CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Emissions	FCC part 15 Class A; EN 55022/CISPR 22 Class A
Immunity	EN 55024, CISPR 24 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3

[/specifications]

[accesories]

Transceivers
J9054D	Aruba 100M SFP LC FX 2km MMF XCVR
J8177D	Aruba 1G SFP RJ45 T 100m Cat5e XCVR
J4858D	Aruba 1G SFP LC SX 500m MMF XCVR
J4859D	Aruba 1G SFP LC LX 10km SMF XCVR
J4860D	Aruba 1G SFP LC LH 70km SMF XCVR
J9150D	Aruba 10G SFP+ LC SR 300m MMF XCVR
J9151E	Aruba 10G SFP+ LC LR 10km SMF XCVR
J9152D	Aruba 10G SFP+ LC LRM 220m MMF XCVR
J9153D	Aruba 10G SFP+ LC ER 40km SMF XCVR
J9281D	Aruba 10G SFP+ to SFP+ 1m DAC Cable
J9283D	Aruba 10G SFP+ to SFP+ 3m DAC Cable
J9285D	Aruba 10G SFP+ to SFP+ 7m DAC Cable
JL308A	Aruba 40G QSFP+ LC BiDi 150m MMF XCVR
JH231A	HPE X142 40G QSFP+ MPO SR4 Transceiver
JH232A	HPE X142 40G QSFP+ LC LR4 SM Transceiver
JH233A	HPE X142 40G QSFP+ MPO eSR4 300M XCVR
JH234A	HPE X242 40G QSFP+ to QSFP+ 1m DAC Cable
JH235A	HPE X242 40G QSFP+ to QSFP+ 3m DAC Cable
JH236A	HPE X242 40G QSFP+ to QSFP+ 5m DAC Cable
TAA-Compliant Transceivers
JL745A	Aruba 1G SFP LC SX 500m MMF TAA XCVR
JL746A	Aruba 1G SFP LC LX 10km SMF TAA XCVR
JL747A	Aruba 1G SFP RJ45 T 100m Cat5e TAA XCVR
JL748A	Aruba 10G SFP+ LC SR 300m MMF TAA XCVR
JL749A	Aruba 10G SFP+ LC LR 10km SMF TAA XCVR
Stacking cables
J9734A	Aruba 2920/2930M 0.5M Stacking Cable
J9735A	Aruba 2920/2930M 1m Stacking Cable
J9736A	Aruba 2920/2930M 3m Stacking Cable
Power supplies
J9828A	5400R 700W PoE+ zl2 Power Supply
J9829A	5400R 1100W PoE+ zl2 Power Supply
J9830B	5400R 2750W PoE+ zl2 Power Supply
Mounting kit
J9852A	HPE X450 4U/7U Universal 4-Post Rack Mounting Kit
Cables
JL448A	Aruba X2C2 RJ45 to DB9 Console Cable
Aruba Central Foundation Licenses
R8L80AAE	Aruba Central 64xx or 54xx Switch Foundation 1 year Subscription E-STU
R8L81AAE	Aruba Central 64xx or 54xx Switch Foundation 3 year Subscription E-STU
R8L82AAE	Aruba Central 64xx or 54xx Switch Foundation 5 year Subscription E-STU
R8L83AAE	Aruba Central 64xx or 54xx Switch Foundation 7 year Subscription E-STU
R8L84AAE	Aruba Central 64xx or 54xx Switch Foundation 10 year Subscription E-STU
R8M10AAE	Aruba Central On-Premises 64xx or 54xx Switch Foundation 1 year Subscription E-STU
R8M11AAE	Aruba Central On-Premises 64xx or 54xx Switch Foundation 3 year Subscription E-STU
R8M12AAE	Aruba Central On-Premises 64xx or 54xx Switch Foundation 5 year Subscription E-STU
R8M13AAE	Aruba Central On-Premises 64xx or 54xx Switch Foundation 7 year Subscription E-STU
R8M14AAE	Aruba Central On-Premises 64xx or 54xx Switch Foundation 10 year Subscription E-STU
Support
H1NC1E	JL001A: 4 Hour Onsite 3 Year
H1MT0E	JL002A: 4 Hour Onsite 3 Year
H1MT0E	JL003A: 4 Hour Onsite 3 Year
H1MT0E	JL095A: 4 Hour Onsite 3 Year

[/accesories]

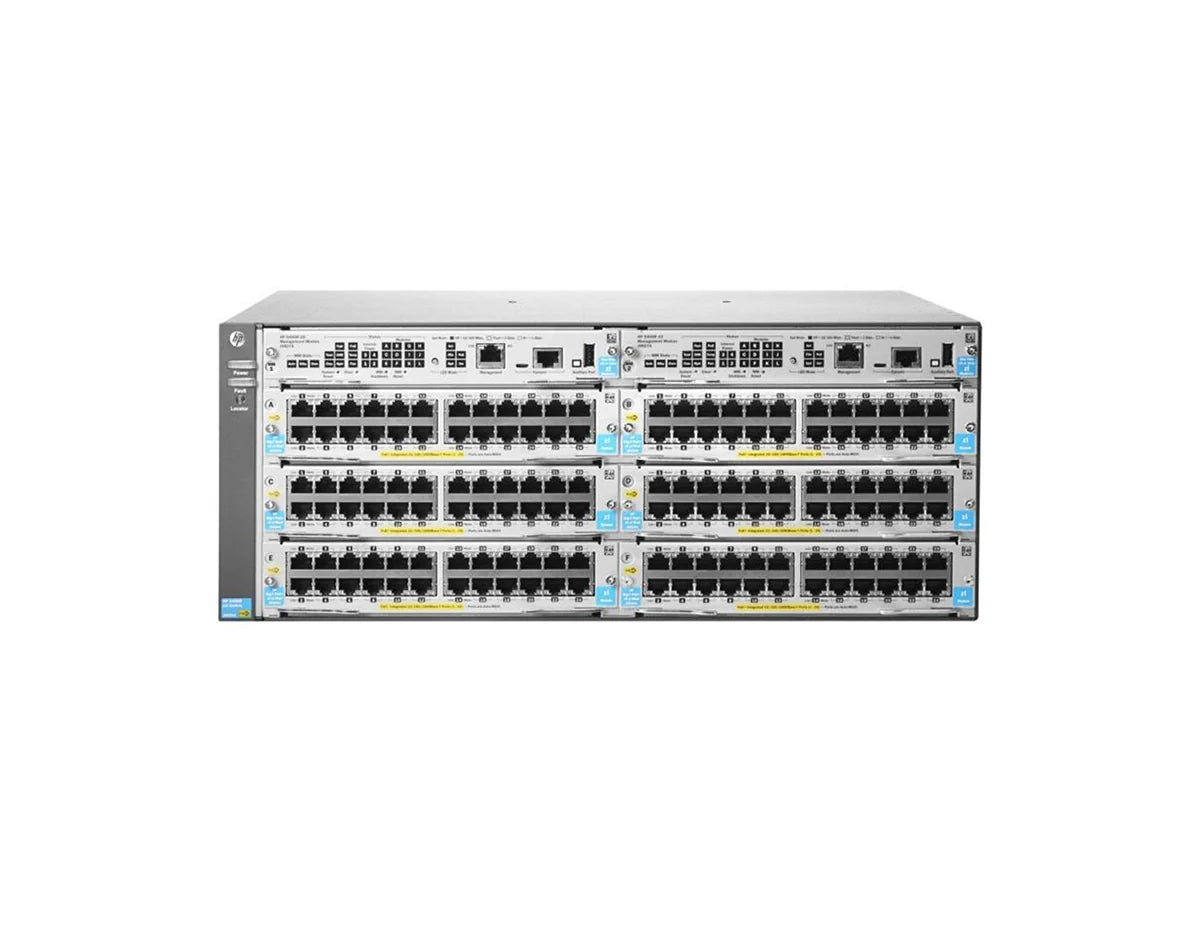

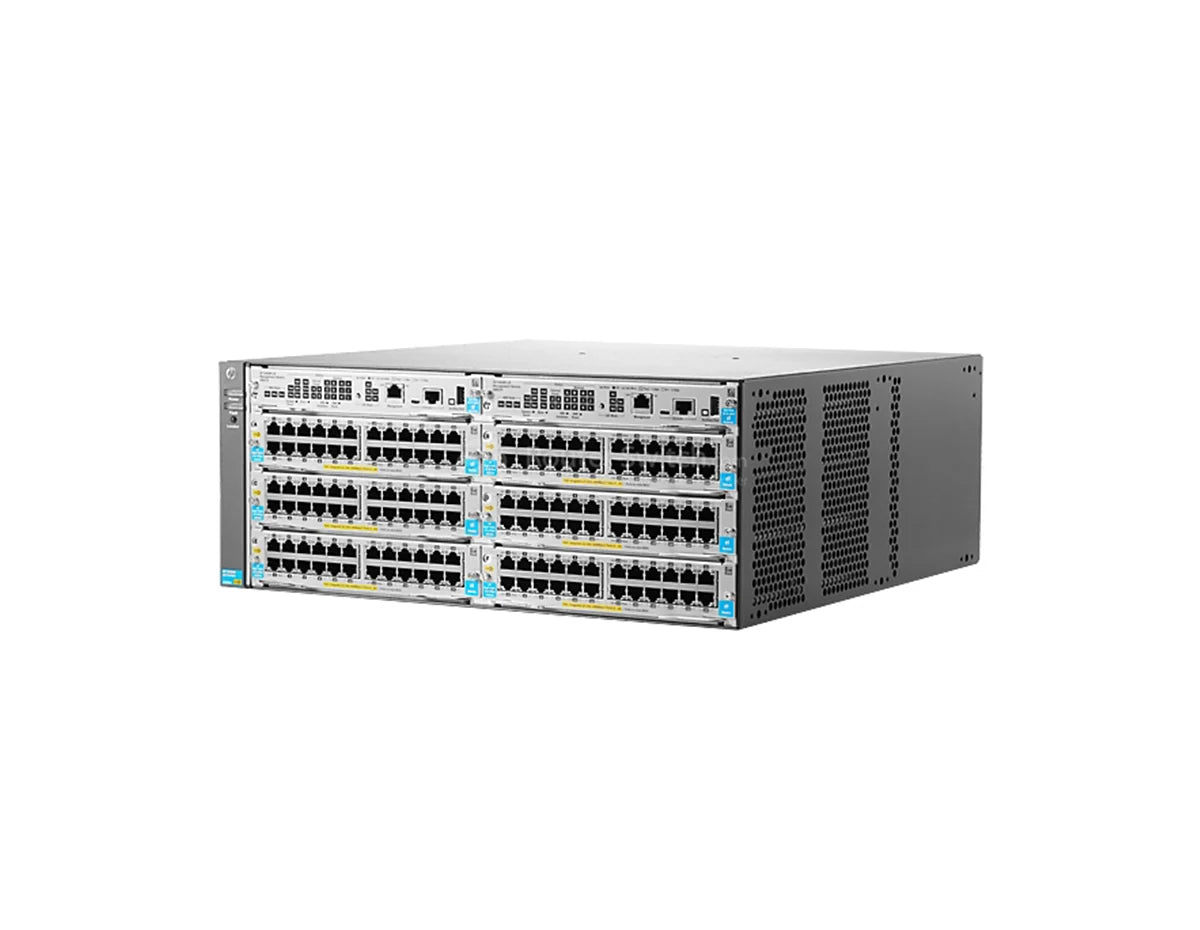

HPE Aruba 5406R zl2 Switch (J9821A)

The HPE Aruba 5406R zl2 Switch (J9821A) is a versatile and high-performance switch designed for enterprise networks that require scalable and secure network connectivity. Featuring a modular design, the 5406R zl2 offers six slots, providing flexibility for various networking requirements. With advanced Layer 2 and Layer 3 features, including routing, traffic management, and security capabilities, the switch is ideal for growing network environments such as campuses, data centers, and branch offices.

Key Features:

• Modular Design: Six slots for flexible configuration options to meet diverse network requirements.
• Advanced Layer 2 and Layer 3 Features: Supports VLANs, OSPF, BGP, and QoS for robust network management and traffic optimization.
• High Performance: Offers wire-speed performance with low latency, ensuring seamless connectivity for mission-critical applications.
• Redundant Power and High Availability: Supports dual power supplies and hot-swappable components for enhanced network uptime and reliability.
• Energy Efficiency: Energy-efficient design with support for EEE (Energy Efficient Ethernet) for reducing operational costs.

Technical Overview:

• Recommended for: Campus, branch, and data center environments requiring scalable and secure network solutions.
• Ports: Modular, supporting multiple port options via expansion modules.
• Form Factor: 6-slot chassis design for flexibility in network infrastructure deployments.
• Power: Redundant, hot-swappable power supplies for high availability and continuous operation.
• Management: Managed via Aruba Central, CLI, SNMP, and web-based GUI for comprehensive network control.

You can check the related tab for the HPE Aruba 5406R zl2 Switch (J9821A) datasheet.
