[shortdesc]
- HPE Aruba Networking 1G SFP LC SX (1000Base-SX) MMF transceiver, 850 nm, up to 500 m (1640 ft)
[/shortdesc]
[specifications]
| Specifications |
JL4858D |
| Description |
J4858D transceiver, LC SX, 850 nm, OM2 MMF up to 500 m (for selected HPE Aruba Networking switches) |
| Product Family |
HPE Aruba Networking |
| Product Type |
Transceiver Module SFP |
| Network Technology |
1000Base-SX |
| Fiber mode |
MMF |
| Connectors |
Duplex LC |
| Operating Distance |
500 m |
| Center Wavelength |
850 nm |
| Data Rate |
Up to 1.25 Gb/s |
| Transmit power |
–9.5 to 0 dBm |
| Receive power |
–17 to –3 dBm |
| Compatibility |
Aruba 4100i, 6000, 6100, 6200 ,6400, 8320, 8325, 8360, 8400x, 10000 Switch Series |
| Fiber mode |
Fiber diameter (µm) |
Modal bandwidth (MHz*km) |
Transmission distance |
| MMF |
50/125 |
500 (OM2) |
550m (1804.46 ft) |
| 400 |
500 m (1640.42 ft) |
| 62.5/125 |
200 (OM1) |
275m (902.23 ft) |
| 160 |
220m (721.78 ft) |
[/specifications]

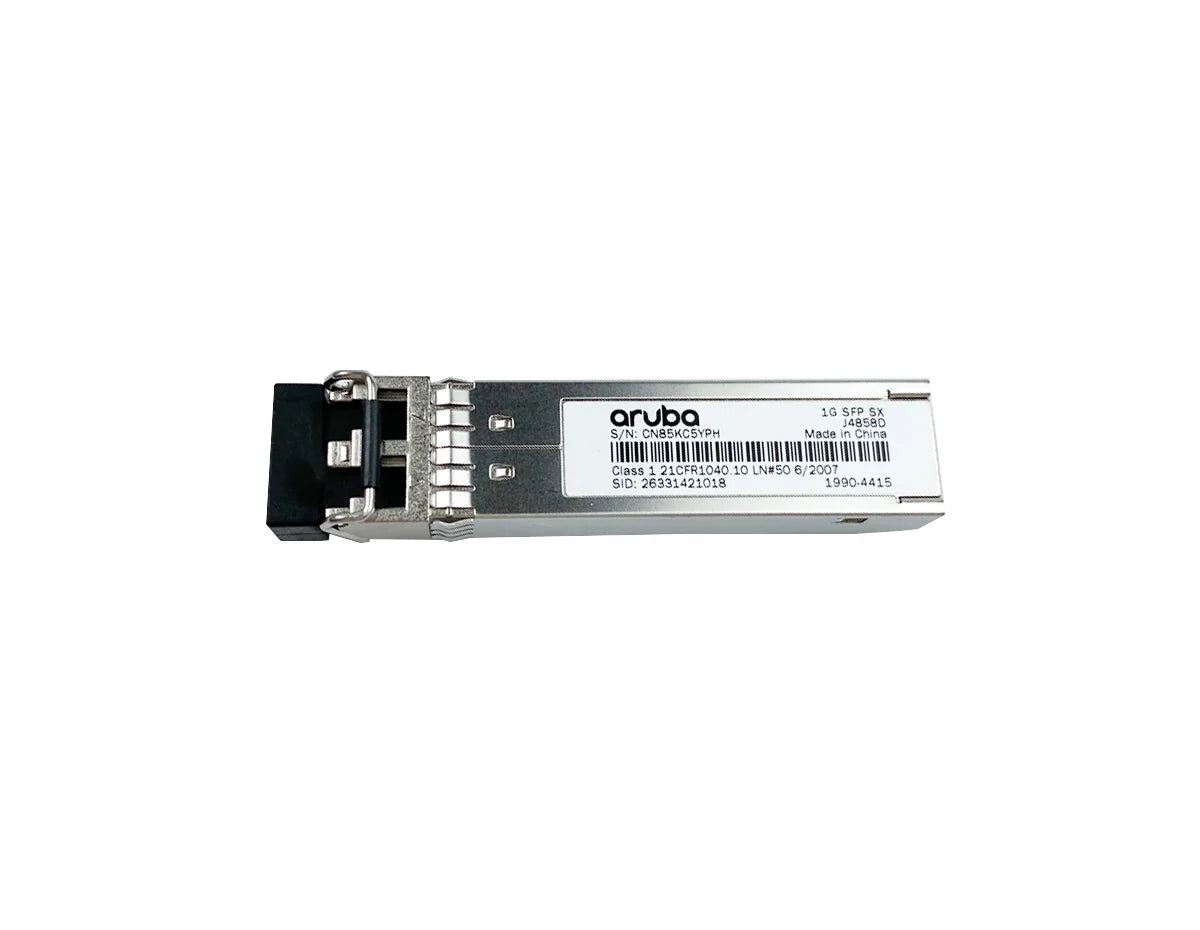

HPE Aruba Networking J4858D SFP LC SX (1000Base-SX) Transceiver
The HPE Aruba J4858D SFP LC SX transceiver is a reliable and cost-effective solution for short-range fiber uplinks in enterprise and campus networks. Supporting 1 GbE 1000Base-SX over multimode fiber (MMF), it delivers seamless connectivity with a reach of up to 550 meters on OM2 fiber. With its hot-swappable SFP design, this module ensures zero-downtime servicing and effortless integration into Aruba switches.
Key Features
-
1G Gigabit Performance: Supports 1000Base-SX, 850 nm wavelength, up to 1.25 Gb/s data rate.
-
Flexible Reach: Up to 550 m on OM2 fiber and 275 m on OM1, ideal for campus and enterprise deployments.
-
Compact Hot-Swappable Design: Simple plug-and-play installation without disrupting operations.
-
Wide Compatibility: Fully tested with Aruba 4100i, 6000, 6100, 6200, 6400, 8320, 8325, 8360, 8400X, and 10000 Switch Series.
-
Trusted for Enterprise Applications: Perfect for uplinking IDFs to MDFs, Wi-Fi backhaul, VoIP, and surveillance traffic.
Ideal Use Cases
- Short-to-medium distance fiber uplinks between access and aggregation switches.
- Campus networks connecting IDFs to MDFs.
- Reliable, budget-friendly fiber links for VoIP, Wi-Fi, and IP surveillance.
