Description

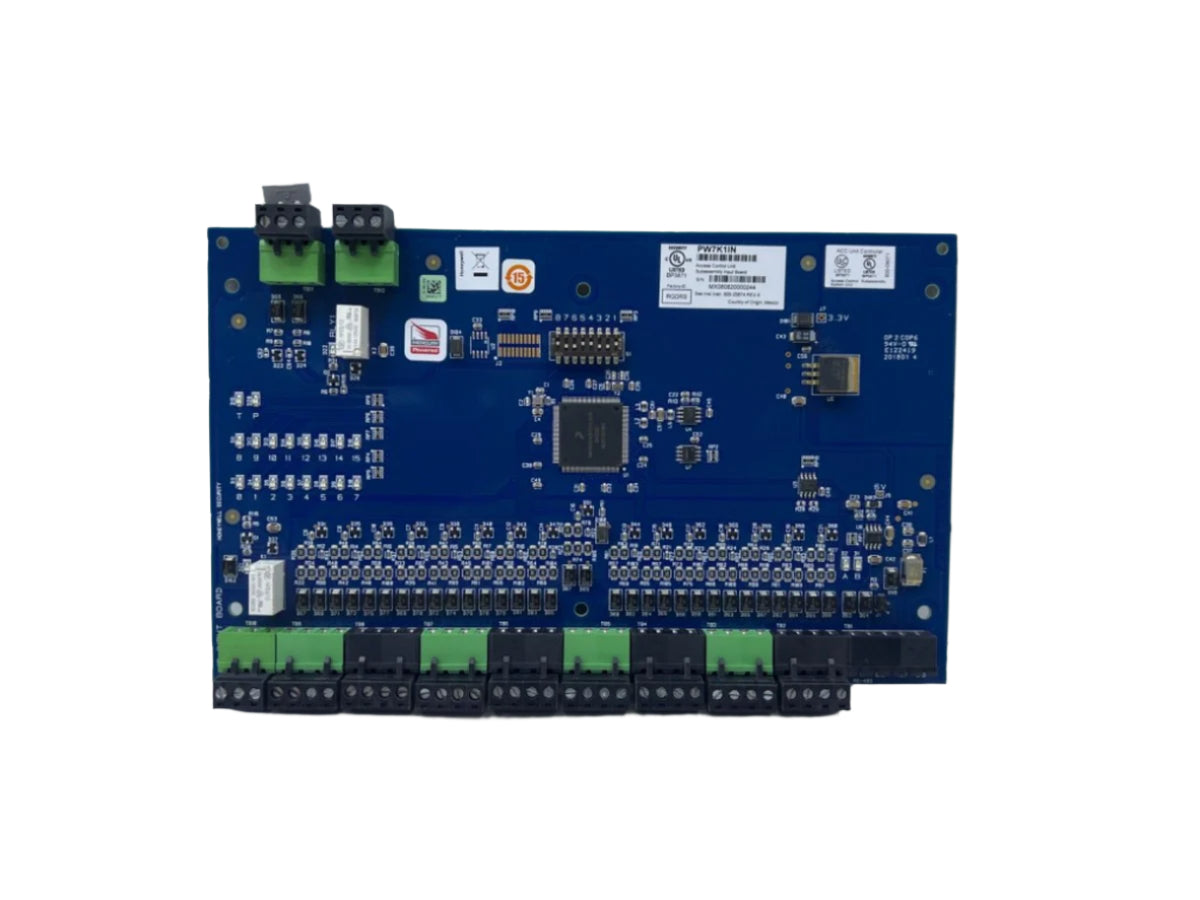

The PW7K1IN is a 16-input access control module designed for integration into the Honeywell PW-7000 system architecture. It enables the connection of supervised input points and relay outputs in rack-mounted or flat-mounted configurations. Ideal for enterprise security applications, it communicates over RS-485 and is powered by 12VDC. The device is built for reliability in critical environments requiring tamper detection and continuous alarm monitoring.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
PW7K1IN |
| Subcategory |
Input Interface Modules |
| Series |
PW-7000 Series |
| Input Channels |
16 supervised (with EOL resistors) |
| Relay Outputs |
2 × Form-C relays, 2A @ 30VDC |
| Communication Interface |
RS-485, shielded twisted pair (Belden 9842 or equiv.) |
| Input Voltage |
12VDC ±10% |
| Current Draw |
250 mA max |
| Dimensions (W × L × H) |
140 mm × 229 mm × 25 mm |
| Mounting |
Rack or flat panel mount |
| Temperature Range |
0°C to +49°C (operating), –55°C to +85°C (storage) |
| Humidity |
0% to 85% RHNC |
| Alarm Inputs |
2 unsupervised dedicated |
| Certifications |
CE, UL, CSA, FM |
| Weight |
340 g (12 oz) nominal |
Information About PW7K1IN
The PW7K1IN is an input module from the Honeywell PW-7000 series, built for commercial access control systems. It offers 16 supervised inputs and 2 Form-C relay outputs, supporting dry contact circuits and EOL supervision. Designed for compatibility with controllers like PW7K1IC, the module uses RS-485 communication and operates on 12VDC nominal input. Its rack-mountable form factor and industry certifications make it suitable for large-scale enterprise deployments.
Key Features:
- High Input Capacity: Provides 16 supervised input channels for secure monitoring.
- Relay Outputs: Equipped with two Form-C relays, each rated for 2A at 30VDC.
- Power Input: Operates on 12VDC ±10%, consuming a maximum of 250mA.
- Mounting Options: Supports both rack-mounted and flat-mounted installations.
- Communication: Uses RS-485 interface with up to 4,000 feet range (shielded twisted pair).
- Mechanical Size: Compact form factor—5.5” × 9” × 1” (140mm × 229mm × 25mm).
- Environmental Tolerance: Operates from 0°C to +49°C, storage from –55°C to +85°C.
- Weight: Approx. 340g (12 oz), allowing for easy integration in panels.
- Alarm Inputs: Includes two additional alarm input terminals for tamper and fault detection.
- Reliable Output Holding: Maintains last state upon communication loss with controller.
The PW7K1IN delivers the reliability and precision required for enterprise-grade access control systems.
