[shortdesc]
- Interface Type: USB, Scan Speed: 270 scan/sec, Scan Element Type: Linear Imager
[/shortdesc]
[properties]
| Product Name |
Honeywell Hyperion 1300g Barcode Scanner (1300G-1USB) |
| Description |
The Honeywell Hyperion 1300g is a reliable and high-performance barcode scanner designed to meet the needs of various industries. With its versatile capabilities and robust build, it ensures efficient and accurate data capture. |
| Product Type |
Barcode Scanner |
| Interface Type |
USB |
| Connectivity Technology |
Wired |
| Cables Included |
1 x USB cable |
| Compliant Standards |
RoHS, WEEE, cULus, IP41 |
| Brand |
Honeywell |
| Power Connector Type |
Corded |
| Form Factor |
Gun Shape |
| OK Notification |
Beeper, LED indicator |
| Features |
Automatic Interface Detection, Triggered |
| Standby Power |
0.63 W |
| Operating Power |
1 W |
| Input Voltage |
5 V DC |
| Operating Temperature |
32°F to 122°F (0°C to 50°C) |
| Storage Temperature Range |
-40°F to 140°F (-40°C to 60°C) |
| Operating Humidity |
0% to 95% (non-condensing) |
|
|
[/properties]
[specifications]
| Minimum Bar Width |
3 mil |
| Scan Field Width |
0.39 in - 25.98 in |
| Scan Element Type |
Linear Imager |
| Scan Mode |
Single-pass |
| Scan Speed |
270 scan/sec |
| Max Working Distance |
18 in |
| Skew (Degrees) |
65 |
| Pitch (Degrees) |
65 |
| Print Contrast Signal (PCS) |
0.2 |
| Depth of Field |
0.5 - 26 in |
| Motion Tolerance |
51 cm/s (20 in/s) |
| Scanning Range |
Standard range (SR) |
| Decode Capability |
Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 49, ISBT 128, ISBN, GS1 DataBar, Telepen, Code 32, EAN/JAN-13, UPC-A, Codabar, Code 128, Code 11, Interleaved 2 of 5, China Post, Korea Post, Codablock F, UPC-E1, UPC-E0, Trioptic Code, Plessey, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, MSI, Straight 2 of 5 |
| TTL Decoding |
Decoded |
| Brightness |
0 - 70,000 lux |
| Dimensions (W x D x H) |
3.1 in x 4.4 in x 5.9 in (15 x 11.2 x 7.9 cm) |
| Weight |
5.64 oz |
| Drop Specification |
50 drops from 5 ft to concrete |
| Protection Ratings |
IP41 |
| Host System Interfaces |
KBW, RS-232, RS-232C, RS-485, USB |
| Engine Type |
1D Imager |
[/specifications]

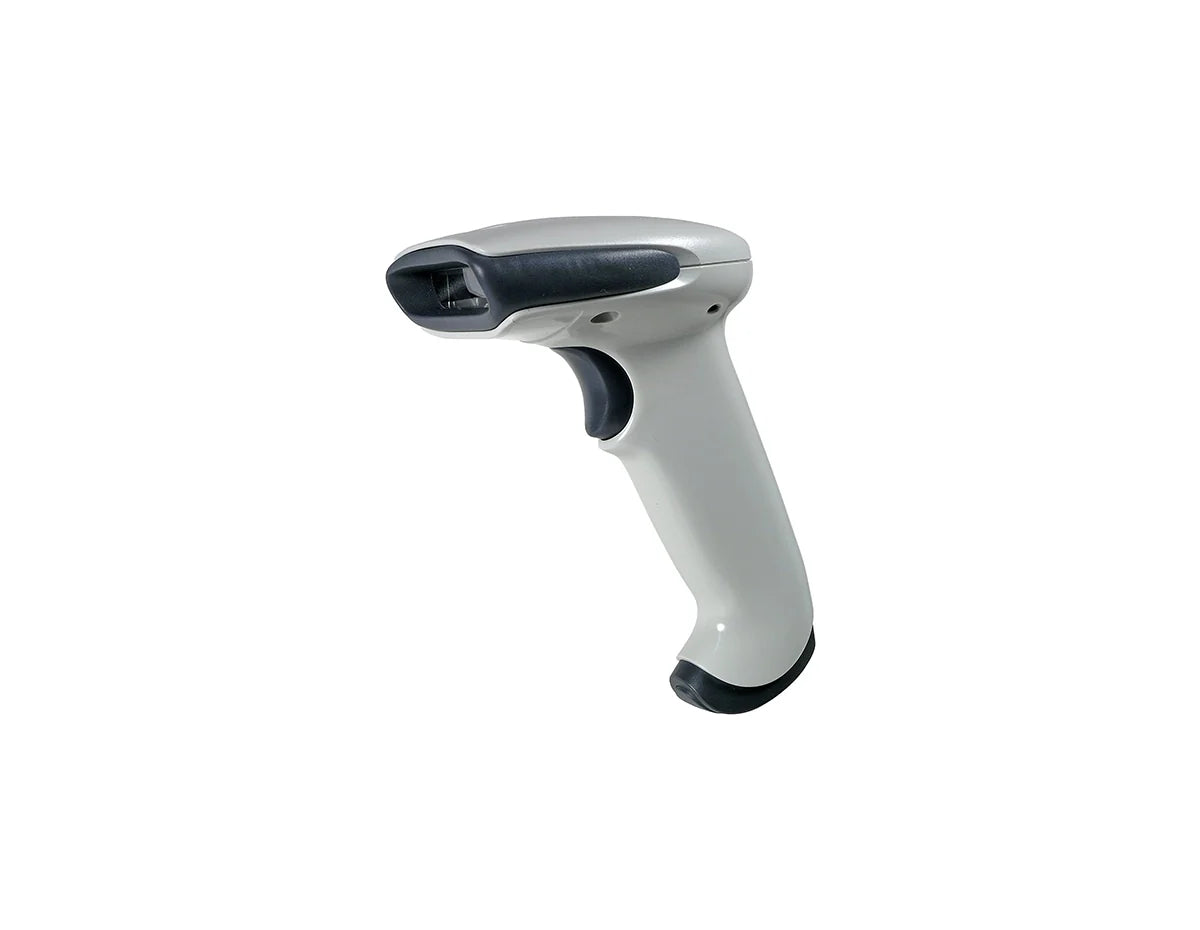

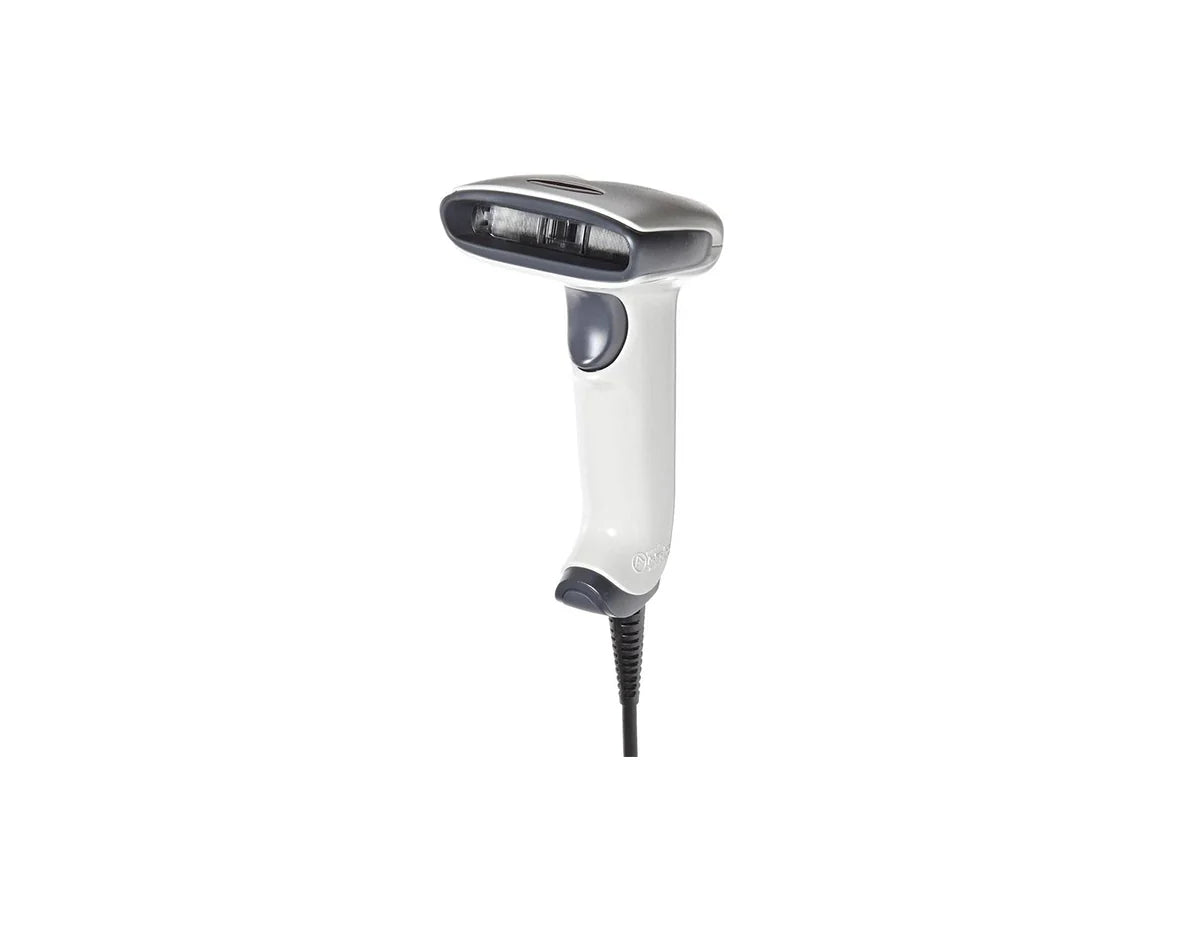

Honeywell Hyperion 1300g Barcode Scanner (1300G-1USB)
The Honeywell Hyperion 1300g is a reliable and high-performance barcode scanner designed to meet the needs of various industries. With its versatile capabilities and robust build, it ensures efficient and accurate data capture.
Quick Specs:
- Product Type: Barcode Scanner
- Interface Type: USB
- Minimum Bar Width: 3 mil
- Scan Field Width: 0.39 in - 25.98 in
- Scan Element Type: Linear Imager
- Scan Mode: Single-pass
- Scan Speed: 270 scan/sec
- Max Working Distance: 18 in
- Skew (Degrees): 65
- Pitch (Degrees): 65
- Print Contrast Signal (PCS): 0.2
- Decode Capability: Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 49, ISBT 128, ISBN, GS1 DataBar, Telepen, Code 32, EAN/JAN-13, UPC-A, Codabar, Code 128, Code 11, Interleaved 2 of 5, China Post, Korea Post, Codablock F, UPC-E1, UPC-E0, Trioptic Code, Plessey, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, MSI, Straight 2 of 5
- TTL Decoding: Decoded
- Connectivity Technology: Wired
- OK Notification: Beeper, LED indicator
- Features: Triggered
- Interfaces: 1 x USB
- Cables Included: 1 x USB cable
- Compliant Standards: RoHS, WEEE, cULus, IP41
- Electric Current Required: 125 mA (standby)
- Dimensions (W x D x H): 3.1 in x 4.4 in x 5.9 in
- Weight: 5.64 oz
- Min Operating Temperature: 32°F
- Max Operating Temperature: 122°F
- Humidity Range Operating: 0 - 95% (non-condensing)
- Drop Specification: 5 ft to concrete
