Description

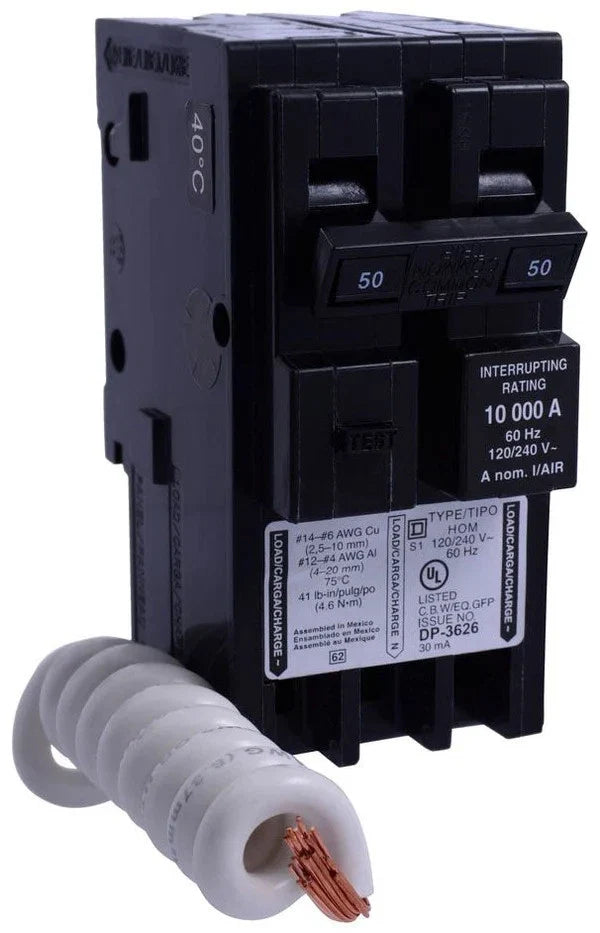

The Square D HOM250EPD is a 2-pole molded case circuit breaker designed to provide combined overcurrent and ground fault protection in residential and light commercial electrical systems. Rated at 50 amps and 120/240VAC, this Homeline breaker features thermal-magnetic protection with Class B equipment ground fault functionality.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D / Homeline |
| Category |
Molded Case Circuit Breaker |
| Part Number |
HOM250EPD |
| Subcategory |
Ground Fault Breaker |
| Series |
Homeline |
| Circuit Breaker Type |
Thermal Magnetic, Equipment Protector |
| Amperage |
50 Amp |
| Voltage Rating |
120/240 VAC |
| Poles |
2 |
| Phase |
1 |
| Mounting Type |
Plug-On |
| Connection Type |
Plug-In |
| Interrupting Rating |
10kA at 240V |
| Trip Functions |
LI – Long-Time and Instantaneous |
| Trip Sensitivity |
30 mA |
| Terminal Type |
Screw Clamp |
| Wire Size |
AWG 8 to AWG 2 Aluminum/Copper |
| Certifications |
UL, CSA |
| Dimensions (HxWxD) |
3.7 in x 2.0 in x 2.6 in |
| Weight |
1.21 lbs |
Information About HOM250EPD
The HOM250EPD is part of the Square D Homeline series, engineered for compatibility with Homeline load centers and plug-on installation. This breaker uses a common-trip thermal-magnetic mechanism with long-time and instantaneous functions to protect against overloads and short circuits. Designed for single-phase systems, it also incorporates equipment ground fault protection with a 30 mA trip sensitivity. Its compact construction and screw clamp terminals support aluminum and copper conductors for flexible installation.
Key Features:
- 50 Amp Current Rating: Suitable for feeder and branch circuit protection.
- 2-Pole Configuration: Supports 120/240VAC single-phase electrical systems.
- Equipment Ground Fault Protection: Class B protection with 30 mA trip sensitivity.
- Thermal-Magnetic Trip Unit: Provides reliable overload and short-circuit protection.
- LI Trip Functions: Long-time and instantaneous response enhances circuit safety.
- Plug-On Mounting: Designed for fast installation in Homeline load centers.
- 10kA Interrupting Rating: Rated to interrupt fault currents up to 10kA at 240V.
The HOM250EPD delivers the reliability and precision required for equipment protection and ground fault safety in low-voltage power distribution applications.
