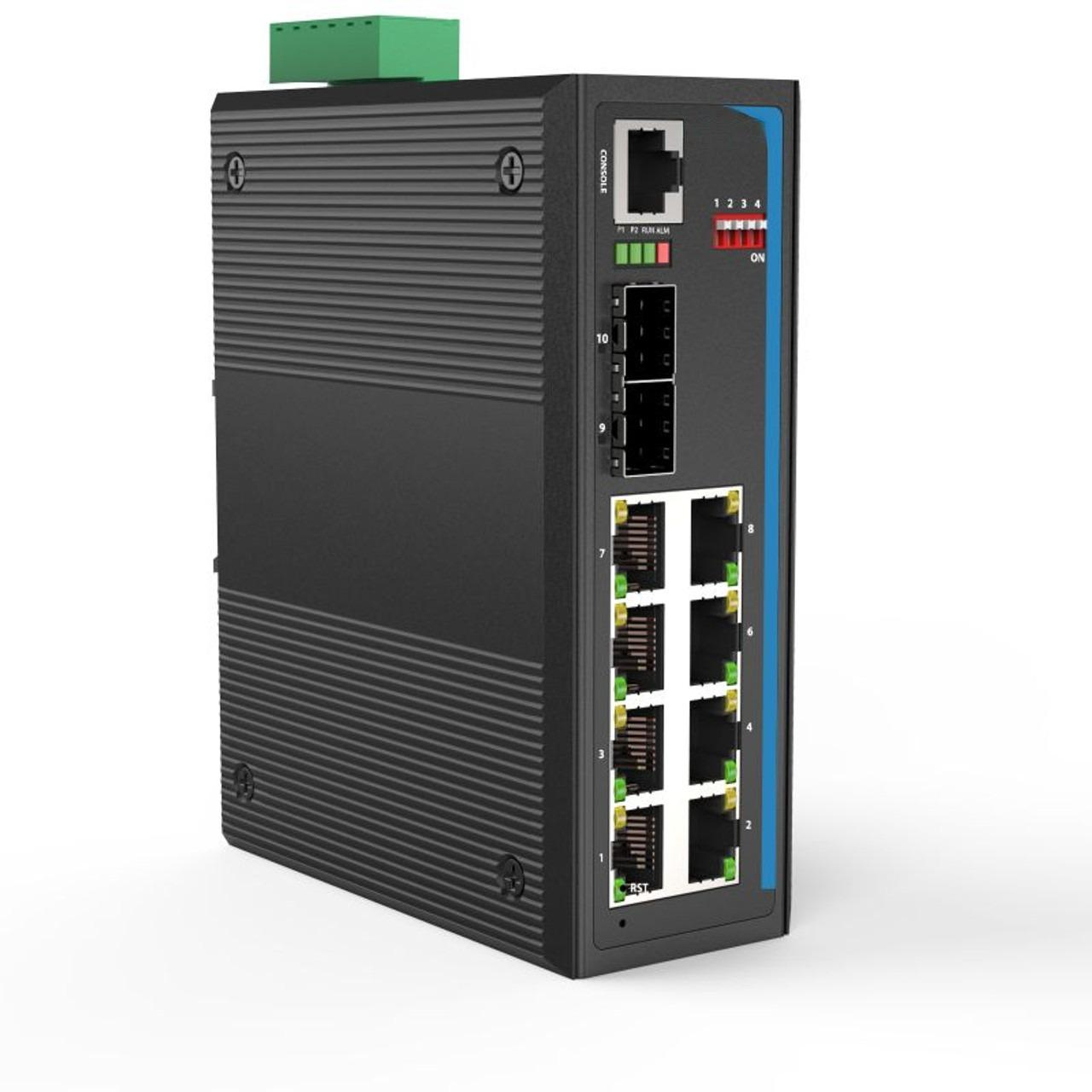

The HGW-802SM is a 10 port Gigabit Ethernet managed Industrial Switch with 8x10/100/1000Base-Tx & 2x 100/1000Base-X ports, hardened for extreme operating temperatures: -40 to +75 Celsius.

The managed switch supports a variety of Ethernet functions, including STP/RSTP/MSTP and multiple sub-Ring for redundant cabling, layer 2 Ethernet IGMP, VLAN, QoS, Security, bandwidth control, port mirroring and is housed in IP40 rated rugged metal housing designed to operate in difficult conditions, including mechanically and electrically extreme environments.

All Industrial switches have strong surge protection (4kV~8kV) per port, depending on models and strict compliance with IEC and EN standards for industrial-grade equipment.

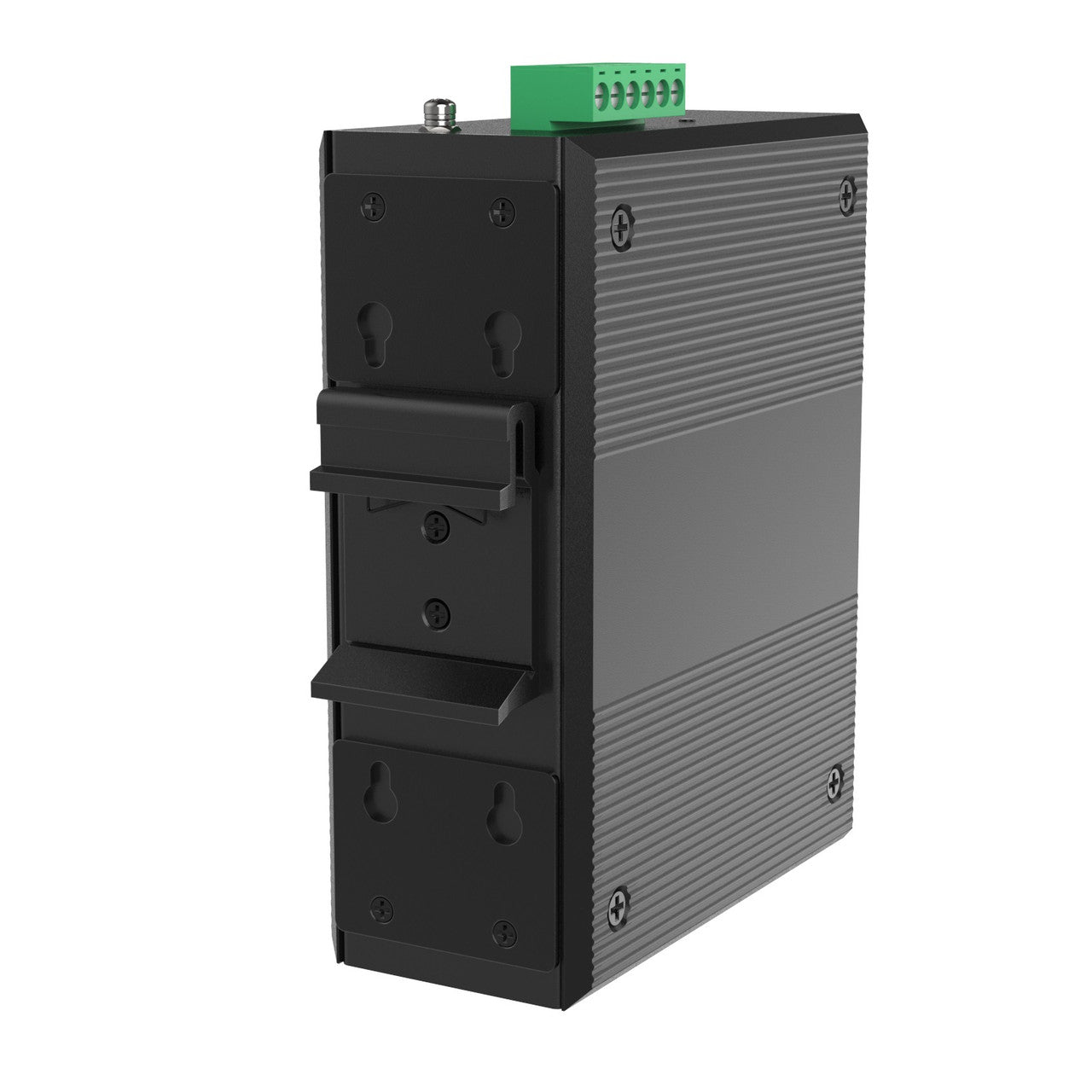

All Industrial Ethernet switches include a DIN rail mounting kit and wall mounting kit.

Features:

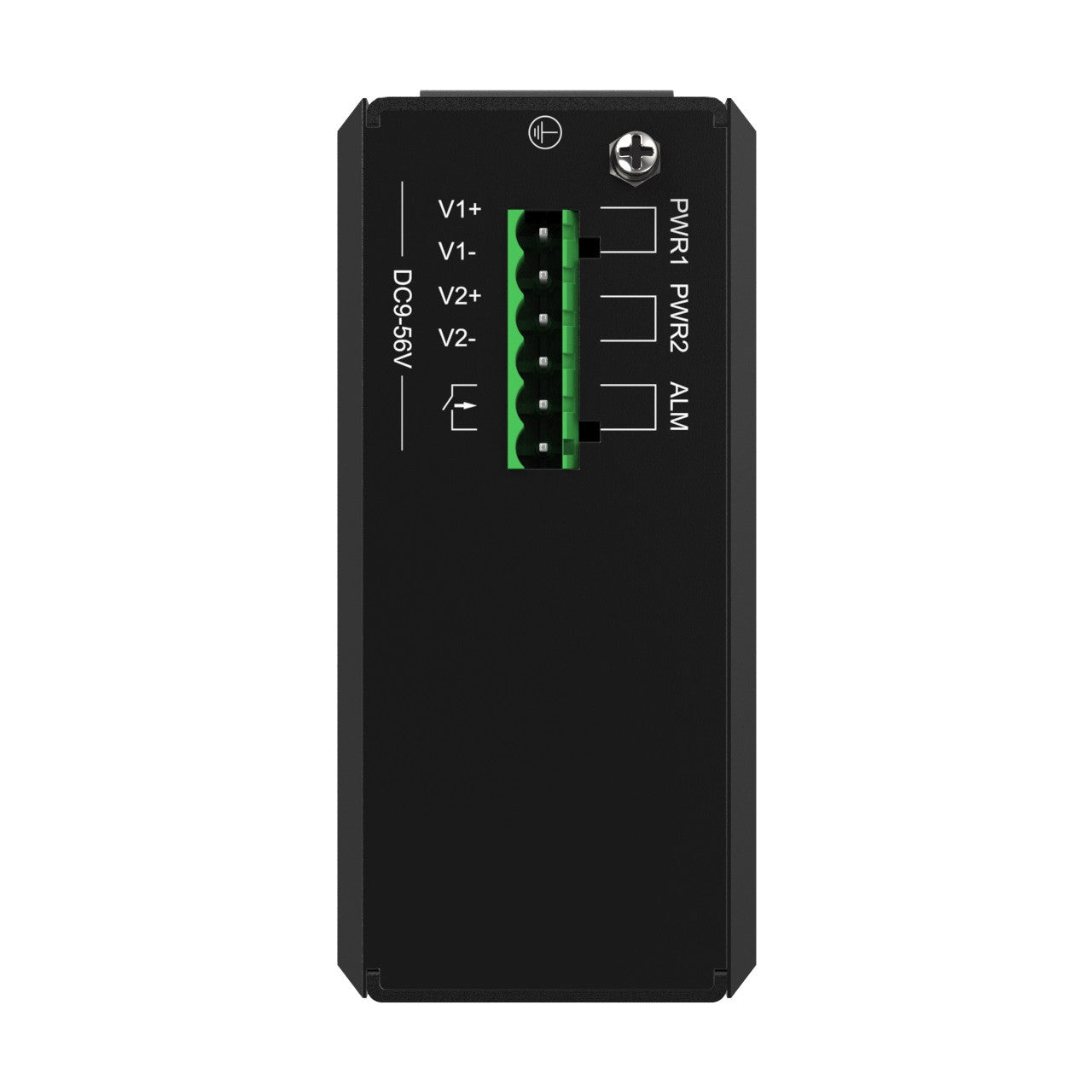

• Redundant dual DC input Power 12/24/48VDC (9.6~60VDC)
• IP40 rugged metal housing
• Wide operating temperature -40~75°C
• Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 Certified

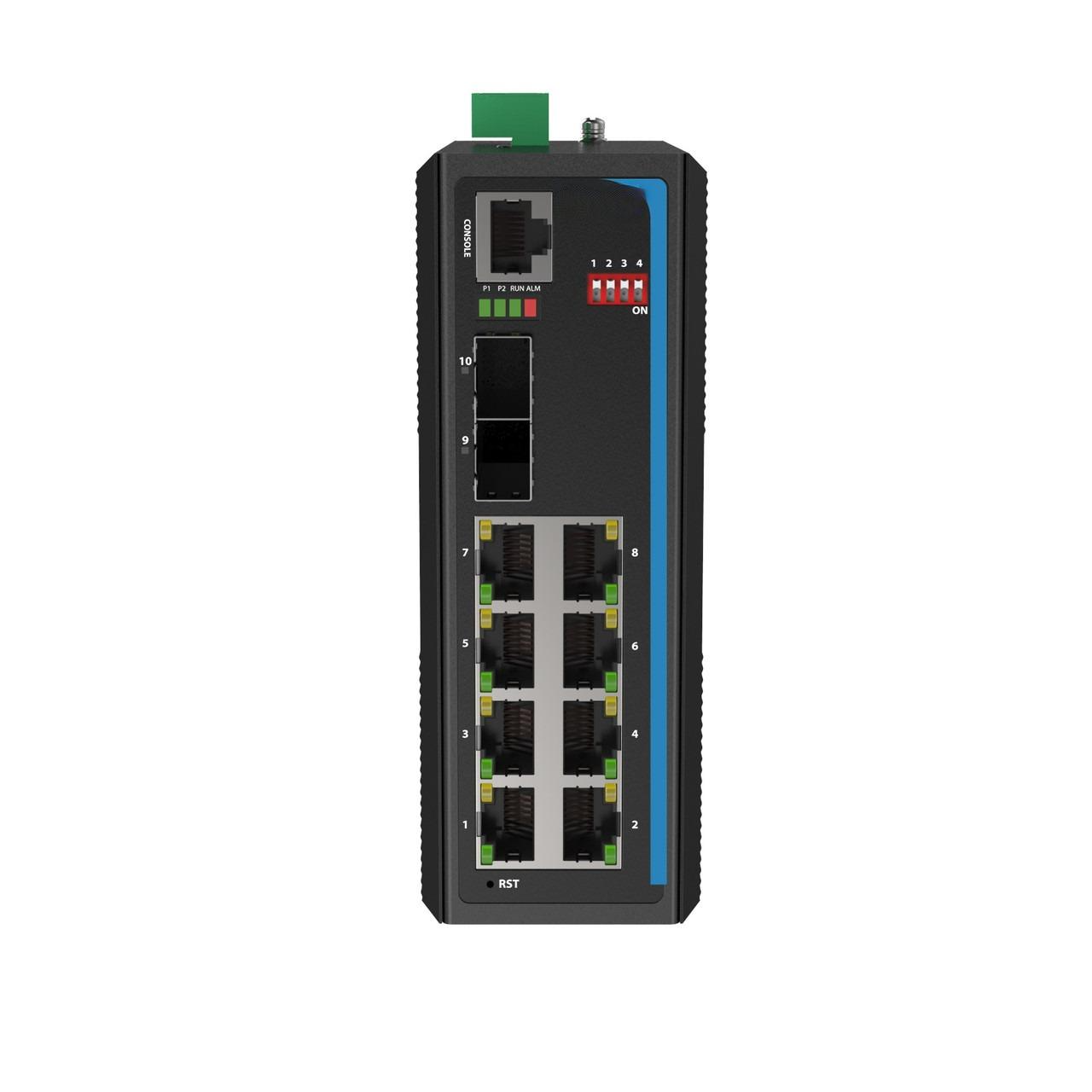

• 8-Port 10/100/1000Base-T(X) copper ports and 2x 100/1000Base-X SFP slot
• Reversed power polarity protection
• STP, RSTP, MSTP for redundant cabling
• DHCP Server/Client/Relay/Snooping
• QoS, CoS, bandwidth control for Ingress and Egress, Storm Control
• Dynamic IEEE 802.3ad LACP Link Aggregation
• Supports 8kV surge protection on all TP ports
• Supports IEEE 802.1Q Tag VLAN and port VLAN
• IGMP snooping V1/V2/V3, IGM P Filtering/ Throttling/ IGMP query
• Port-based and MAC-based IEEE802.1X, RADIUS, ACL
• Software upgrade via TFTP and HTTP
• Port mirroring, System log, DNS, SNTP, LLDP
• Web-based management, SNMP v1/v2, Telnet

Additional information on HGW-802SM model:

• Product Datasheet
• Product Installation Manual
