Description

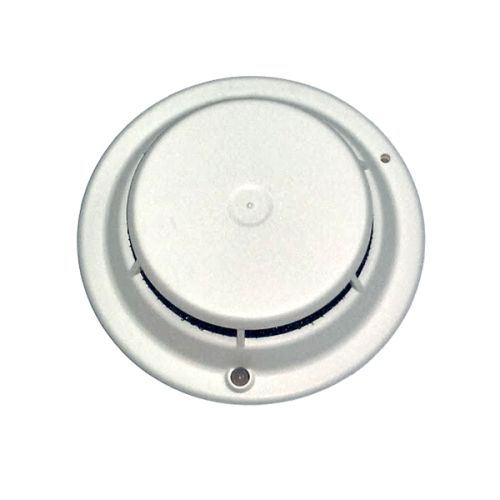

The Siemens HFPO-11 is a photoelectric smoke detector designed exclusively for the FS-250 fire alarm control panel. This intelligent, two-wire, plug-in detector provides reliable fire detection using FirePrint™ technology, ensuring rapid response to smoke while minimizing nuisance alarms. Compact and low profile, the HFPO-11 integrates seamlessly into Siemens fire safety systems for dependable protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Fire Safety |
| Part Number |
HFPO-11 |
| Subcategory |
Smoke Detector |
| Detector Type |
Intelligent Photoelectric, FirePrint™ |
| System Compatibility |
FS-250 Fire Alarm Control Panel |
| Wiring |
2-Wire, Plug-In |
| Indicators |
Tri-color LED (green, yellow, red) |
| Operating Voltage |
12 VDC nominal |
| Current Consumption |
0.55 mA typical |
| Operating Temp |
32°F to 100°F (0°C to 38°C) |
| Humidity Range |
Up to 93% RH, non-condensing |
| Air Velocity Range |
0–4000 ft/min |
| Dimensions |
4.3 in (109 mm) square × 1.06 in (27 mm) deep |
| Material |
ABS plastic |
| Color |
White |
| Mounting |
DB-11 detector base (optional DB-HR relay base) |
| Maintenance Kit |
DMK-11 (for cleaning/replacement of parts) |
| Weight |
0.30 lbs (approx. 110 g) |
Information About HFPO-11
The HFPO-11 is part of Siemens’ line of intelligent photoelectric detectors, developed for high-performance fire detection in commercial and institutional environments. Engineered with FirePrint™ technology, it distinguishes between real fire signatures and environmental disturbances, reducing false alarms. It is a microprocessor-based detector that performs self-checks and uses tri-color LED indicators (green, yellow, red) to display operating, service, or alarm conditions. Designed for use with Siemens FS-250 panels, the HFPO-11 offers simplified installation through its plug-in base, compatibility with optional detector guards, and straightforward addressing using Siemens programming tools.
Key Features:
- Photoelectric FirePrint™ Technology: Provides intelligent detection while minimizing nuisance alarms.
- Exclusive Compatibility: Designed for Siemens FS-250 fire alarm systems.
- Tri-Color LED Indicators: Green (normal), yellow (service required), and red (alarm) status.
- Wide Environmental Range: Operates in conditions up to 93% humidity and 0–4000 ft/min air velocity.
- Plug-In Base Mounting: Ensures quick installation and secure locking with optional LK-11 screw.
- Programmable Addressing: Uses Siemens DPU or configuration tools for flexible setup.
- Field Cleanable: Can be disassembled and cleaned with maintenance kit DMK-11.
- UL and NFPA Compliant: Meets NFPA 72, CAN/ULC-S524, and international safety standards.
The HFPO-11 delivers the precision and reliability required for advanced Siemens fire detection systems.
