Description

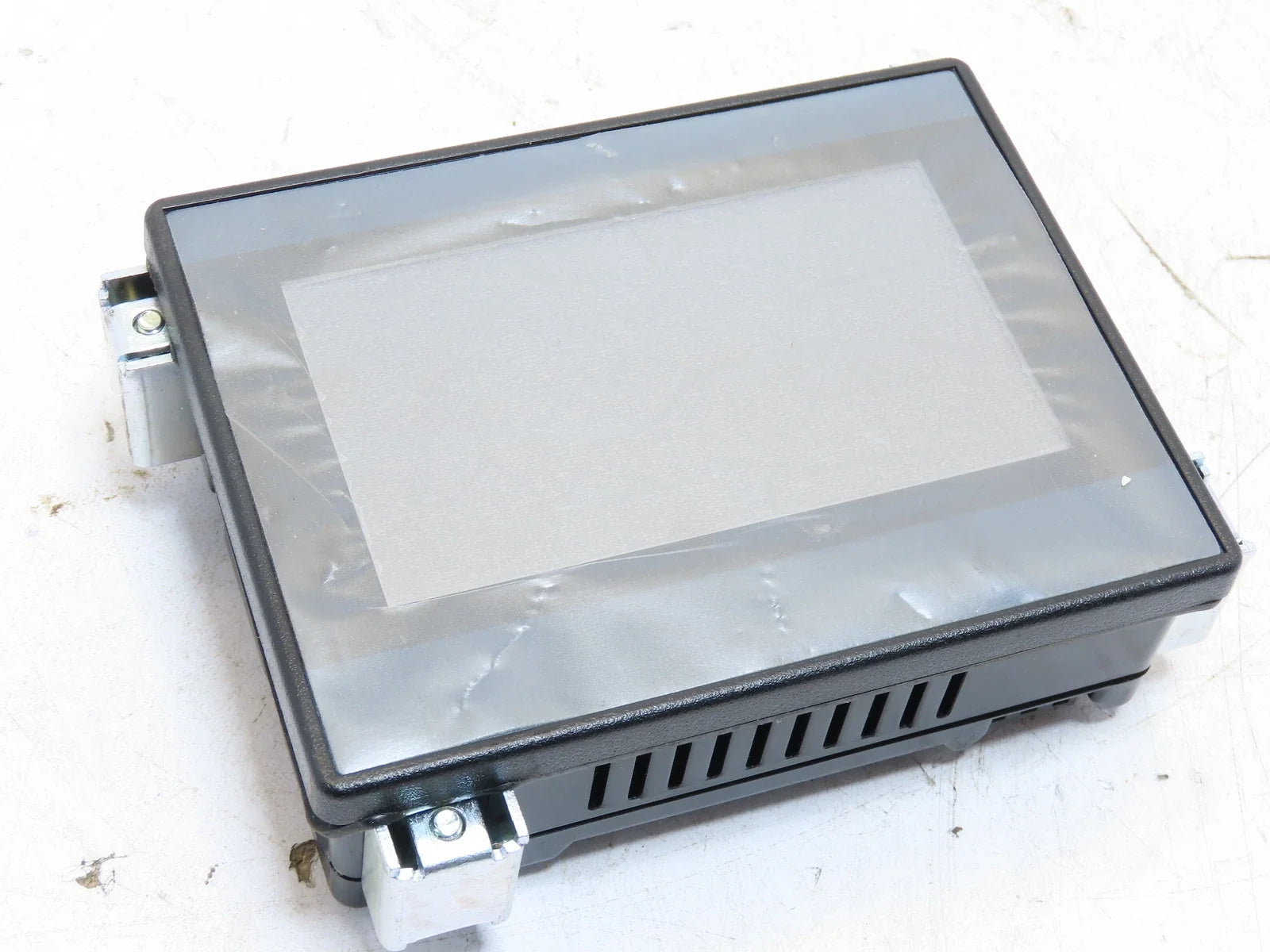

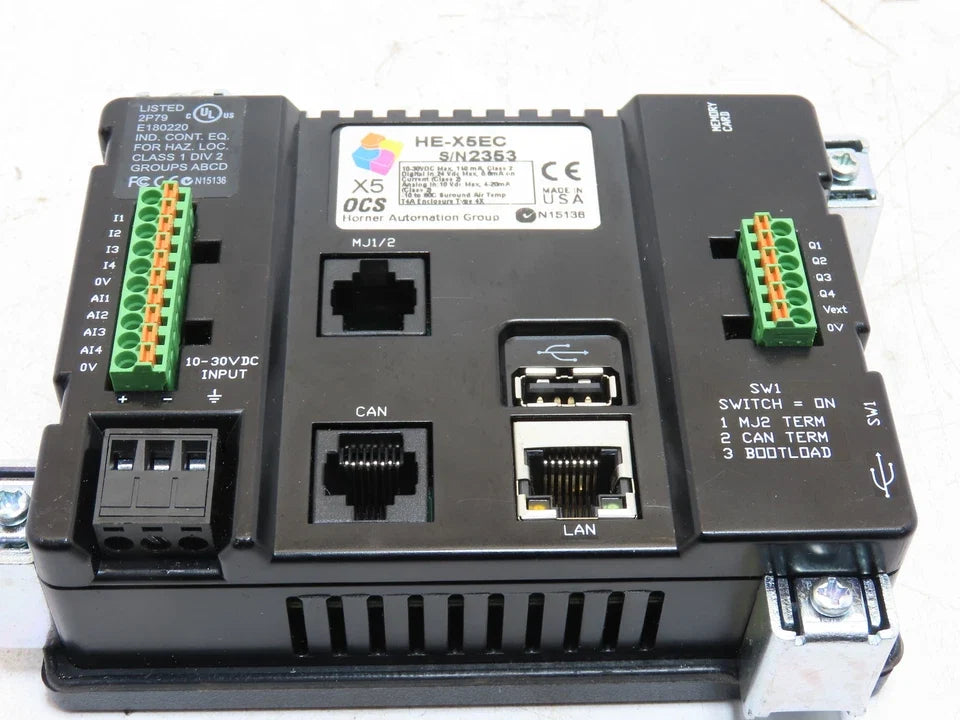

The HE-X5EC is a compact all-in-one PLC controller designed for automation tasks requiring streamlined integration. With built-in I/O, networking, and an onboard HMI, it serves as a powerful control solution for small to mid-sized industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Horner Automation |
| Category |
|
| Part Number |
HE-X5EC |
| Subcategory |
PLC Controllers |
| Display Size |
4.3" TFT Color Touchscreen
|
| Processor |
ARM9 400 MHz
|
| Memory |
256 MB Application Flash
|
| Operating Voltage |
10–30 VDC
|
| Digital Inputs |
12 (sink/source)
|
| Digital Outputs |
6 (relay)
|
| Analog Inputs |
4 (0–10V or 4–20mA selectable) |
| Ethernet Ports |
2 x 10/100 Mbps |
| Communication Protocols |
Modbus TCP/IP, CsCAN |
| USB Ports |
1 host, 1 mini-B device |
| Programming Software |
Cscape |
| Operating Temperature |
-10°C to 60°C |
| Mounting Type |
Panel Mount |
| Dimensions (LxWxH) |
6 x 5 x 2 in |
| Weight |
0.91 lbs (approx. 413 g)
|
Information About HE-X5EC
The HE-X5EC is part of Horner Automation’s XL Series controllers, engineered to provide control, communication, and visualization in one unit. It supports both digital and analog I/O, Modbus communication, and Ethernet connectivity. Designed for machine builders and process automation engineers, the HE-X5EC eliminates the need for separate components. Its embedded color touchscreen HMI allows for direct interface with users in space-constrained installations.
Key Features:
- Integrated I/O System: Offers a combination of digital and analog inputs/outputs for full system control.
- Built-in HMI: 4.3" color touchscreen for real-time process visualization and interaction.
- Networking Capability: Features dual Ethernet ports and Modbus TCP/IP support for seamless device communication.
- Compact Form Factor: Small housing suitable for panel-mounted applications with limited space.
- Programming Environment: Fully programmable via Horner’s Cscape software using IEC 61131 languages.
- Wide Power Supply Range: Operates from a 10–30V DC input, suitable for various industrial power standards.
- Rugged Design: Fanless operation and high electromagnetic compatibility for harsh environments.
- Flexible Expansion: Supports remote I/O through CsCAN and SmartMod modules.
The HE-X5EC delivers the reliability and precision required for integrated machine control and monitoring.
