Description

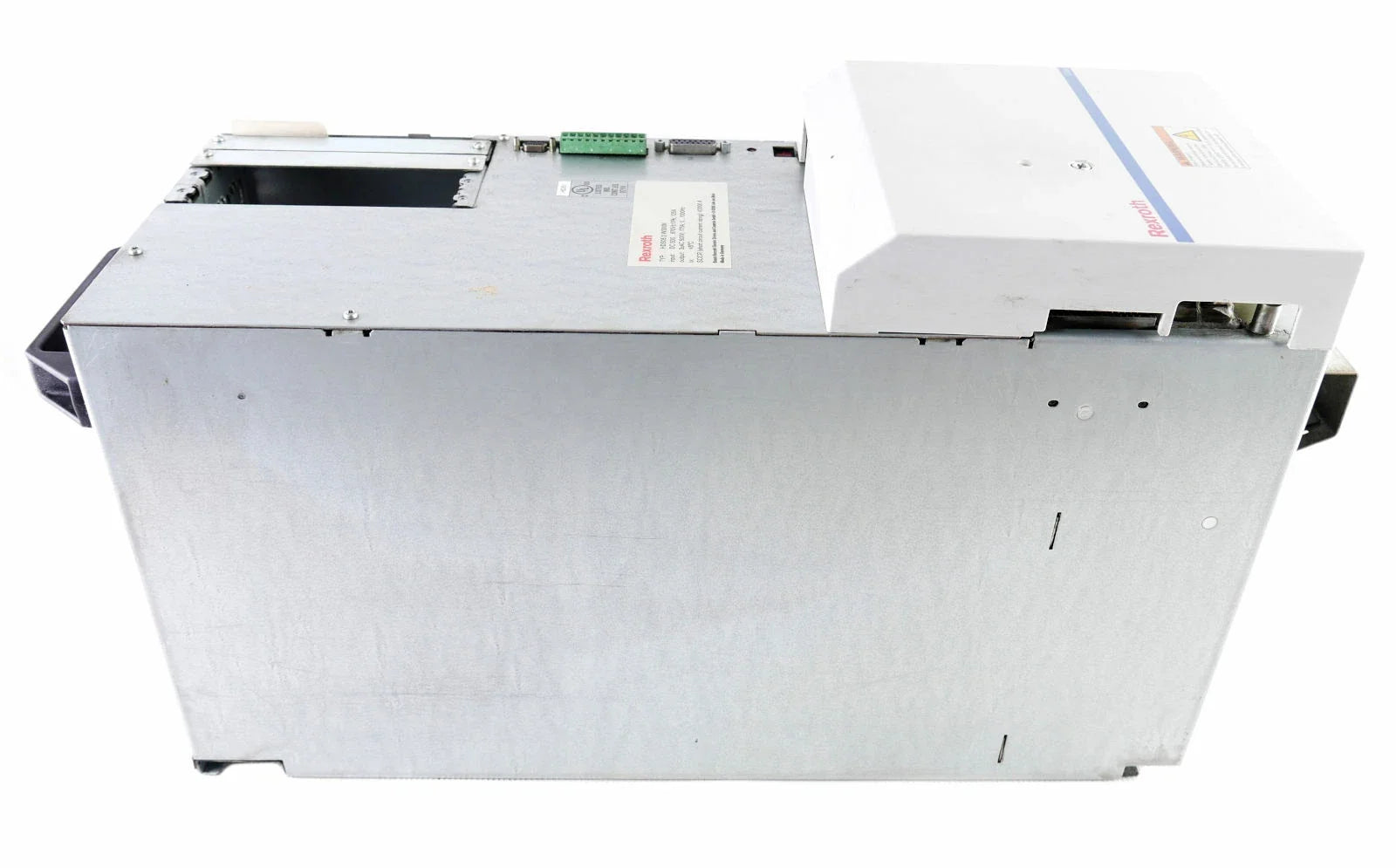

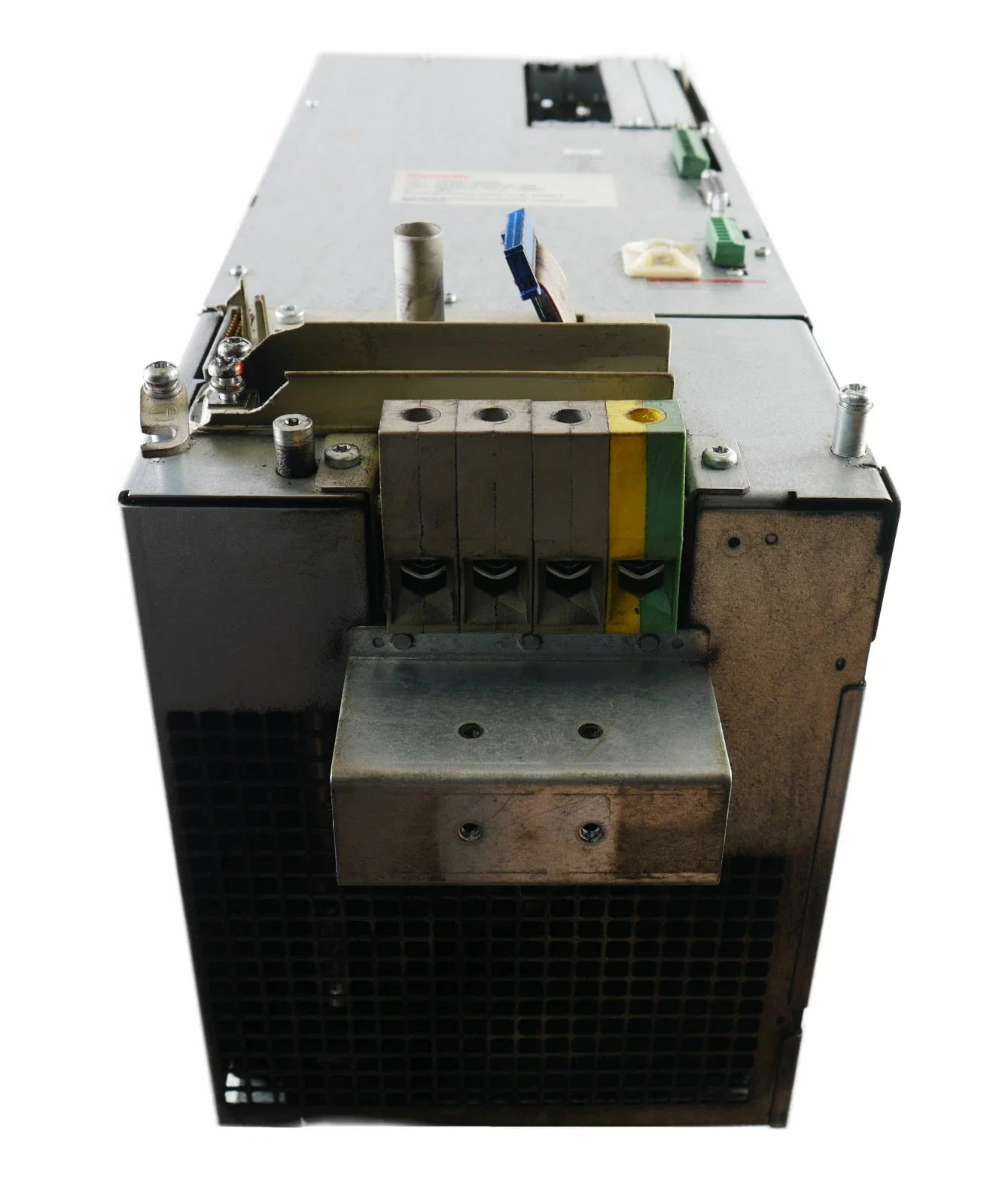

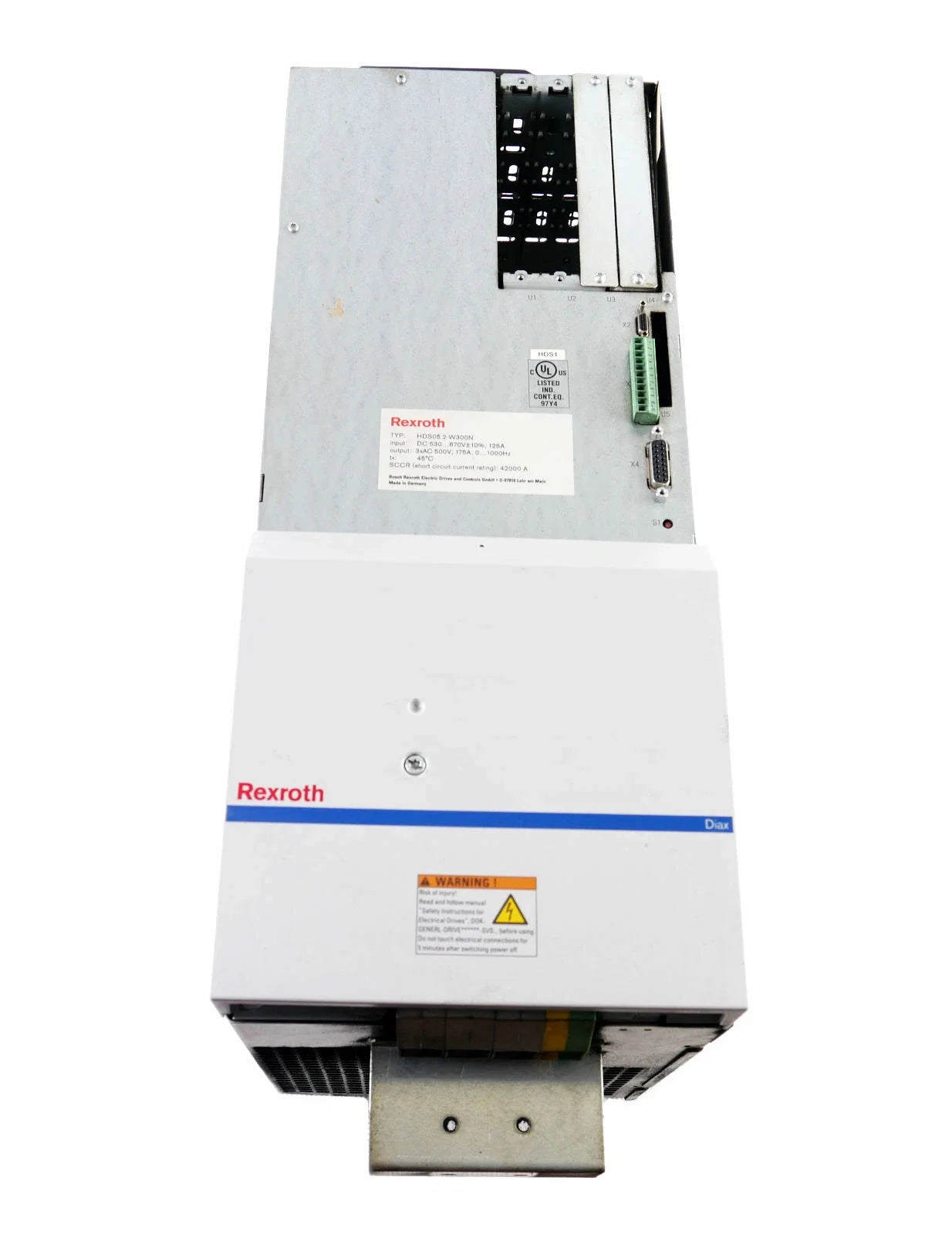

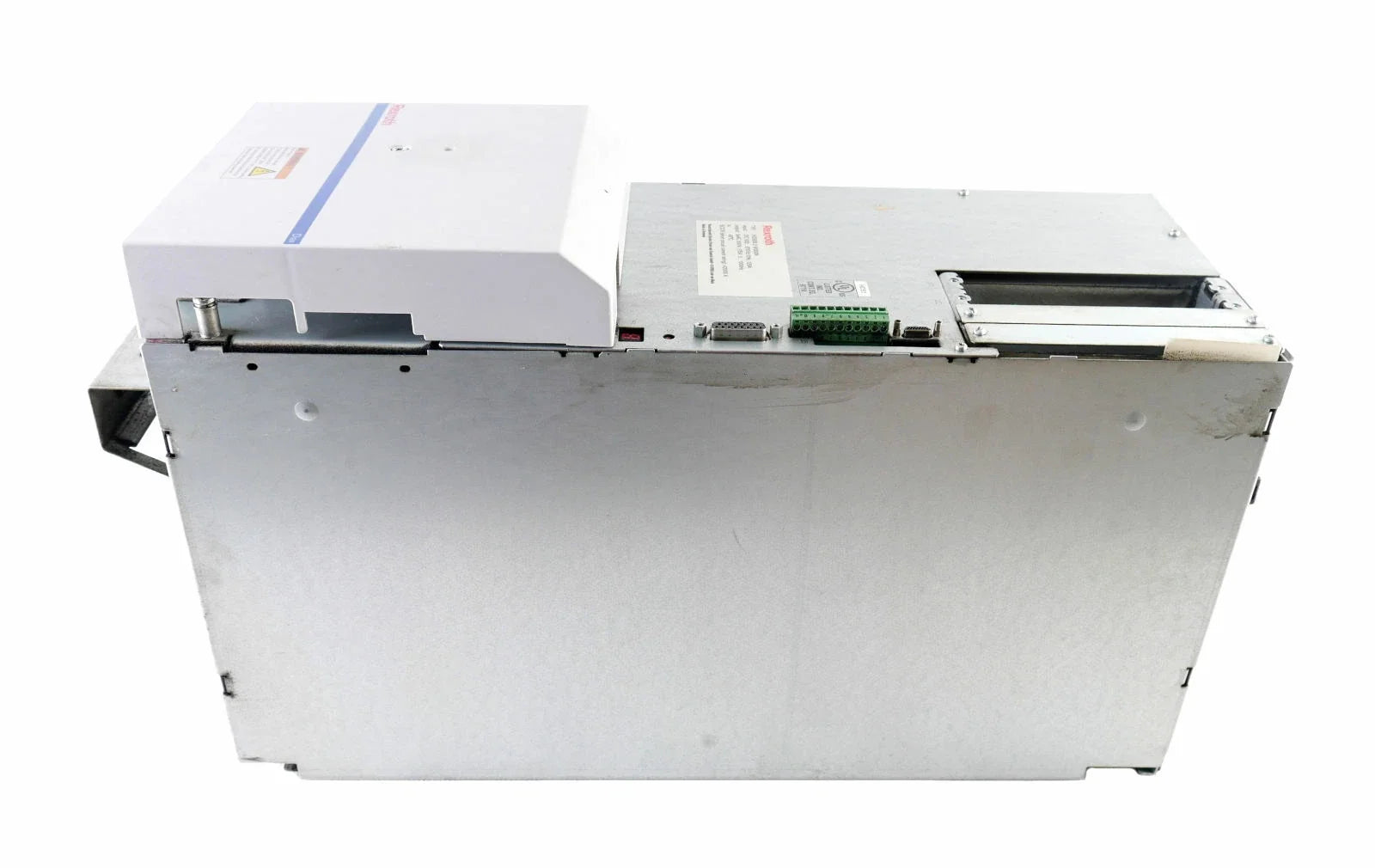

The Bosch Rexroth HDS05.2-W300N-HS12-01-FW servo drive is a high-current drive controller designed for precise control of powerful servo motors in industrial motion systems. Rated at 300 A, it supports SERCOS communication for real-time, deterministic control performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Bosch Rexroth |
| Category |
Industrial Automation |
| Part Number |
HDS05.2-W300N-HS12-01-FW |
| Subcategory |
Drive Controllers |
| Product Type |
HDS Drive Controller |
| Controller Family |
DIAX04 |
| Series |
HDS |
| Line |
05 |
| Version |
2 |
| Command Communication Interface |
SERCOS |
| Rated Current |
300 A |
| DC Bus Input Voltage |
530–670 VDC |
| Output Voltage |
3-Phase, 500 VAC |
| Cooling Method |
Built-In Internal Air Blower |
| Installation Environment |
Control Cabinet |
| Manufacturer Reference |
R911190019 |
| Weight |
18.6 lb |
Information About HDS05.2-W300N-HS12-01-FW
The HDS05.2-W300N-HS12-01-FW is part of the Bosch Rexroth DIAX04 controller family within the HDS series, engineered for modular and high-performance servo drive systems. It operates from a high-voltage DC bus and delivers controlled AC output suitable for demanding motion and automation applications. The unit incorporates a built-in internal air blower to ensure effective cooling during continuous high-current operation. Designed for integration into industrial control cabinets, it supports SERCOS interface communication for synchronized multi-axis motion control.
Key Features:
- DIAX04 HDS Series Drive Controller: Designed for modular, high-power servo drive systems.
- SERCOS Communication Interface: Enables deterministic, real-time motion control and synchronization.
- High Rated Current Capacity: Supports up to 300 A for demanding servo motor applications.
- Built-In Air Blower Cooling: Internal cooling system ensures thermal stability under high load.
- High-Voltage DC Bus Operation: Accepts 530–670 VDC input for industrial drive architectures.
- Three-Phase AC Output: Provides up to 500 VAC output for high-performance motor control.
- Industrial Cabinet Integration: Designed for protected installation within control enclosures.
The HDS05.2-W300N-HS12-01-FW delivers the reliability and precision required for high-current servo drive control in advanced industrial motion and automation systems.
