Description

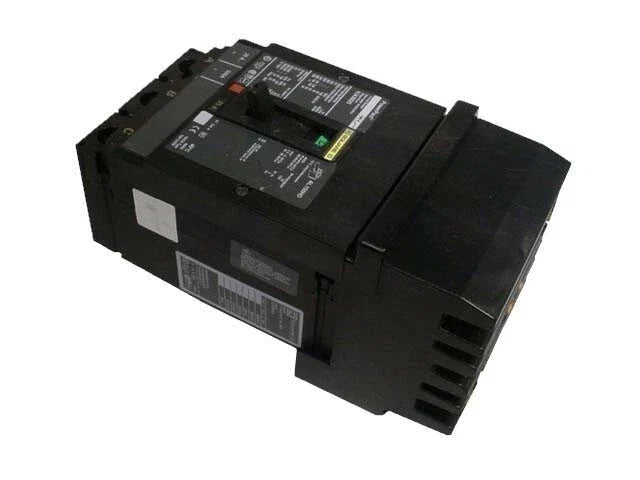

The Square D HDA36035 is a three-pole molded case circuit breaker designed for dependable power distribution protection in commercial and industrial electrical systems. Rated at 35 amps, this breaker supports thermal-magnetic protection and I-Line style plug-in mounting for panelboard and switchboard installations. It is engineered to operate at up to 600 VAC and 250 VDC, providing reliable circuit protection across a wide range of applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Circuit Protection |
| Part Number |
HDA36035 |
| Subcategory |
Panelboard Circuit Breakers |
| Series |
HDA (PowerPact H) |
| Product Type |
Molded Case Circuit Breaker |
| Rated Current |
35 A |
| Number of Poles |
3 |
| Phase |
Three Phase |
| Voltage Rating |
Up to 600 VAC, 250 VDC |
| Protection Type |
Thermal-Magnetic |
| Interrupting Rating |
14 kA @ 600 VAC, 20 kA @ 250 VDC |
| Mounting Type |
I-Line Style Plug-In |
| Terminal Connection |
Line and Load Lugs |
| Wire Size |
AWG 14 to AWG 3/0 Aluminum/Copper |
| Ambient Operating Temperature |
Up to 40 °C |
| Actuator Type |
Toggle |
| Weight |
3.0 lb (approx.) |
Information About HDA36035
The HDA36035 is part of Square D’s PowerPact H (HDA series), which is designed for robust performance in Class 612 I-Line panelboards and switchboards. This circuit breaker features a thermal-magnetic trip mechanism offering long-time and instantaneous protection against overloads and short circuits. It utilizes an I-Line style plug-in connection with line and load lugs, supporting both copper and aluminum conductors across a broad wire gauge range. Built to meet multiple international standards, the breaker is suited for three-phase power distribution systems requiring consistent and compliant circuit protection.
Key Features:
- 35 Amp Current Rating: Designed for controlled protection of three-phase branch and feeder circuits.
- Three-Pole Configuration: Provides full protection across all phases in three-phase systems.
- Thermal-Magnetic Protection: Combines long-time and instantaneous trip functions for comprehensive fault response.
- I-Line Style Plug-In Connection: Enables secure and efficient installation in compatible panelboards and switchboards.
- High Voltage Capability: Rated for operation up to 600 VAC and 250 VDC.
- Multiple Interrupting Ratings: Provides up to 14 kA at 600 VAC and 20 kA at 250 VDC.
- Wide Conductor Compatibility: Accepts aluminum or copper conductors from AWG 14 to AWG 3/0.
The HDA36035 delivers the reliability and precision required for industrial and commercial power distribution protection.
