Description

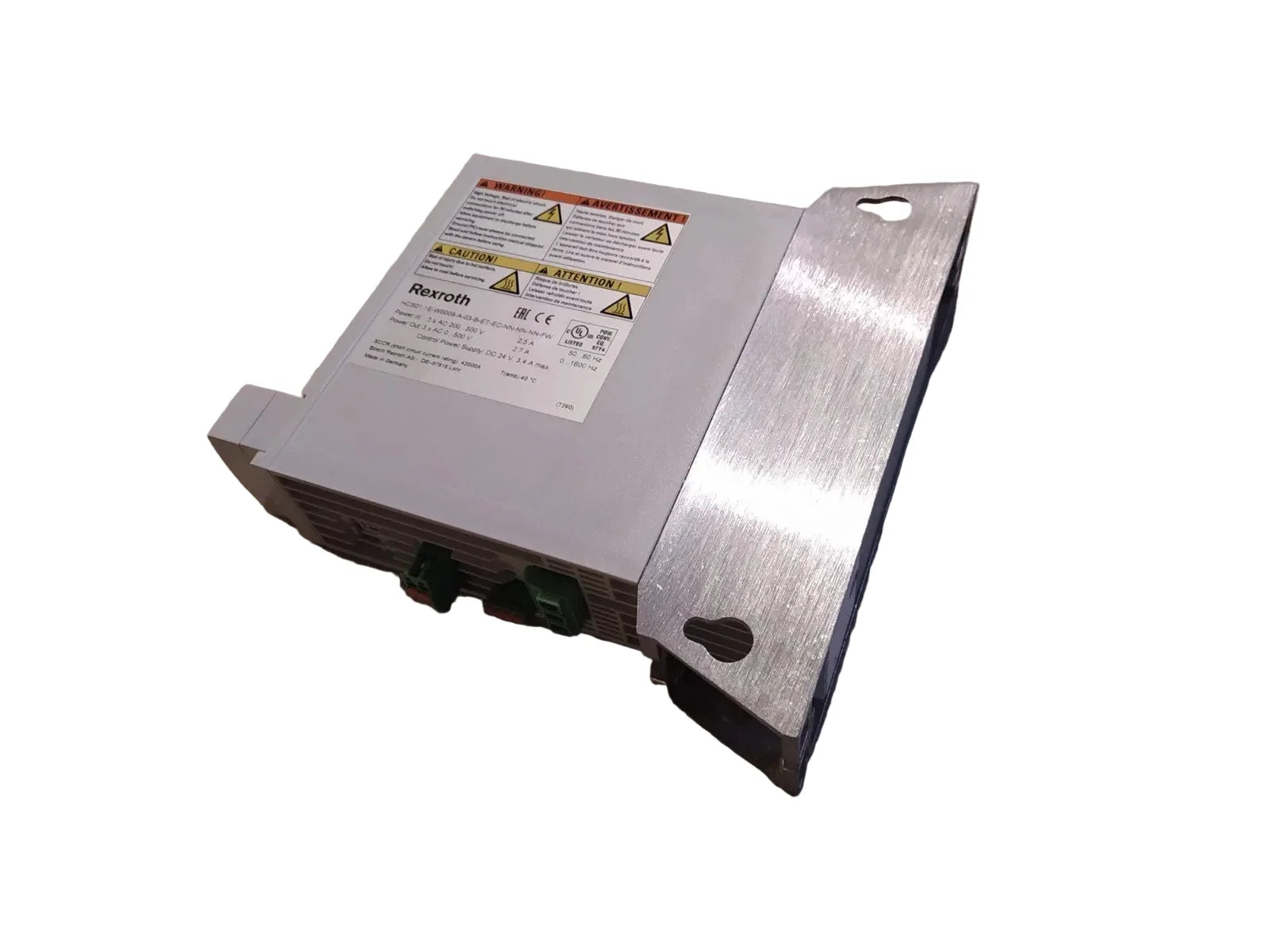

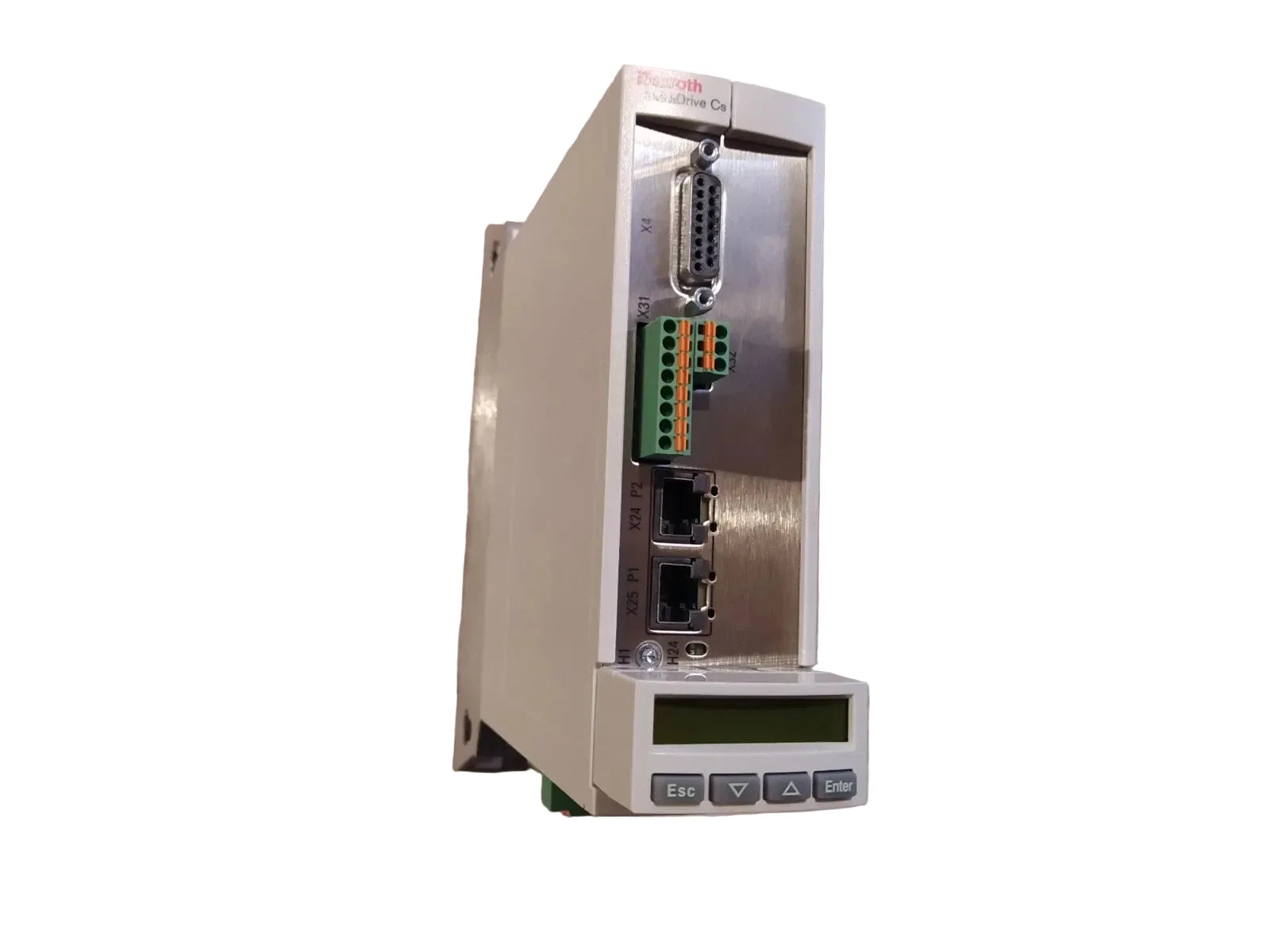

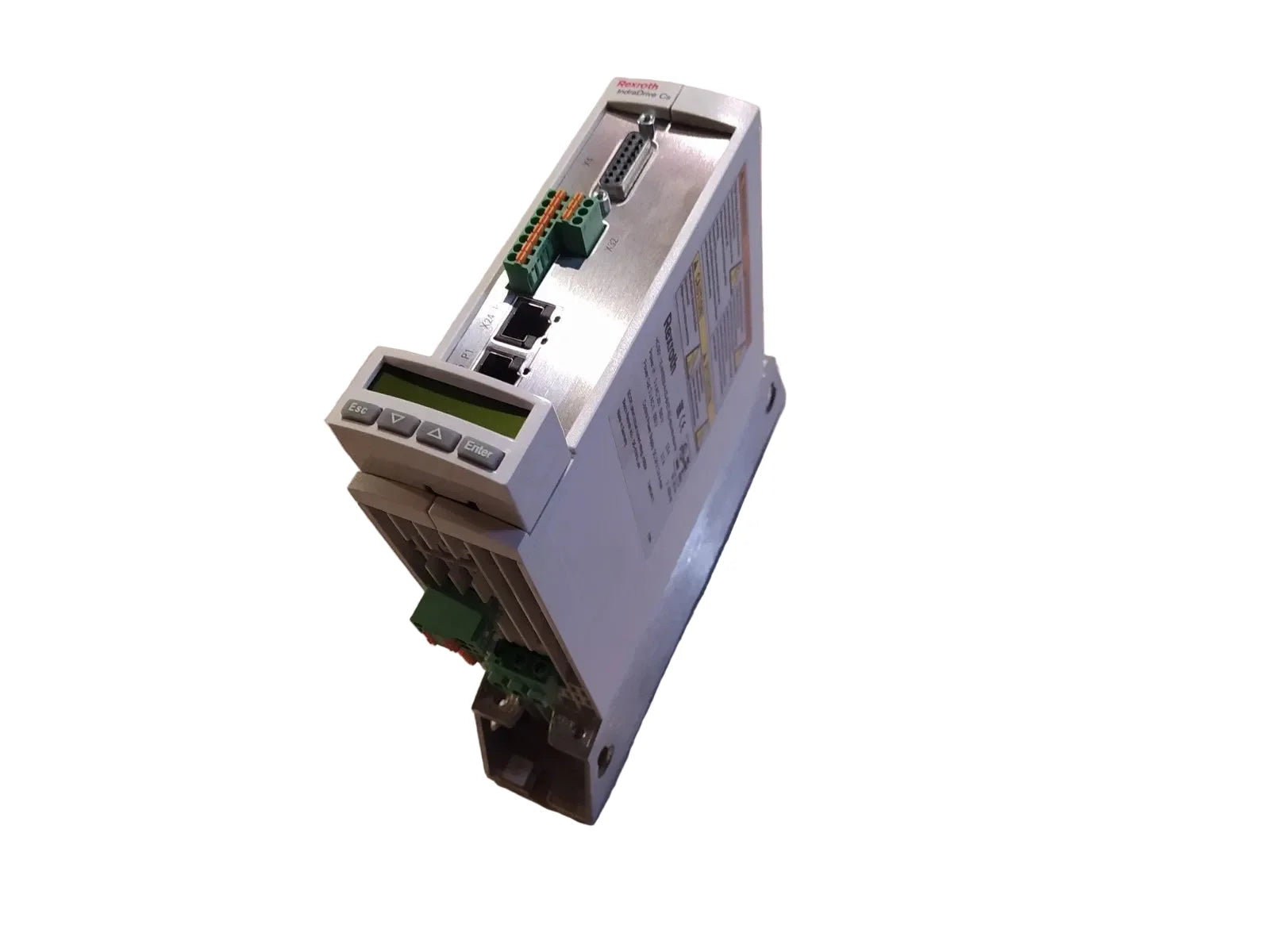

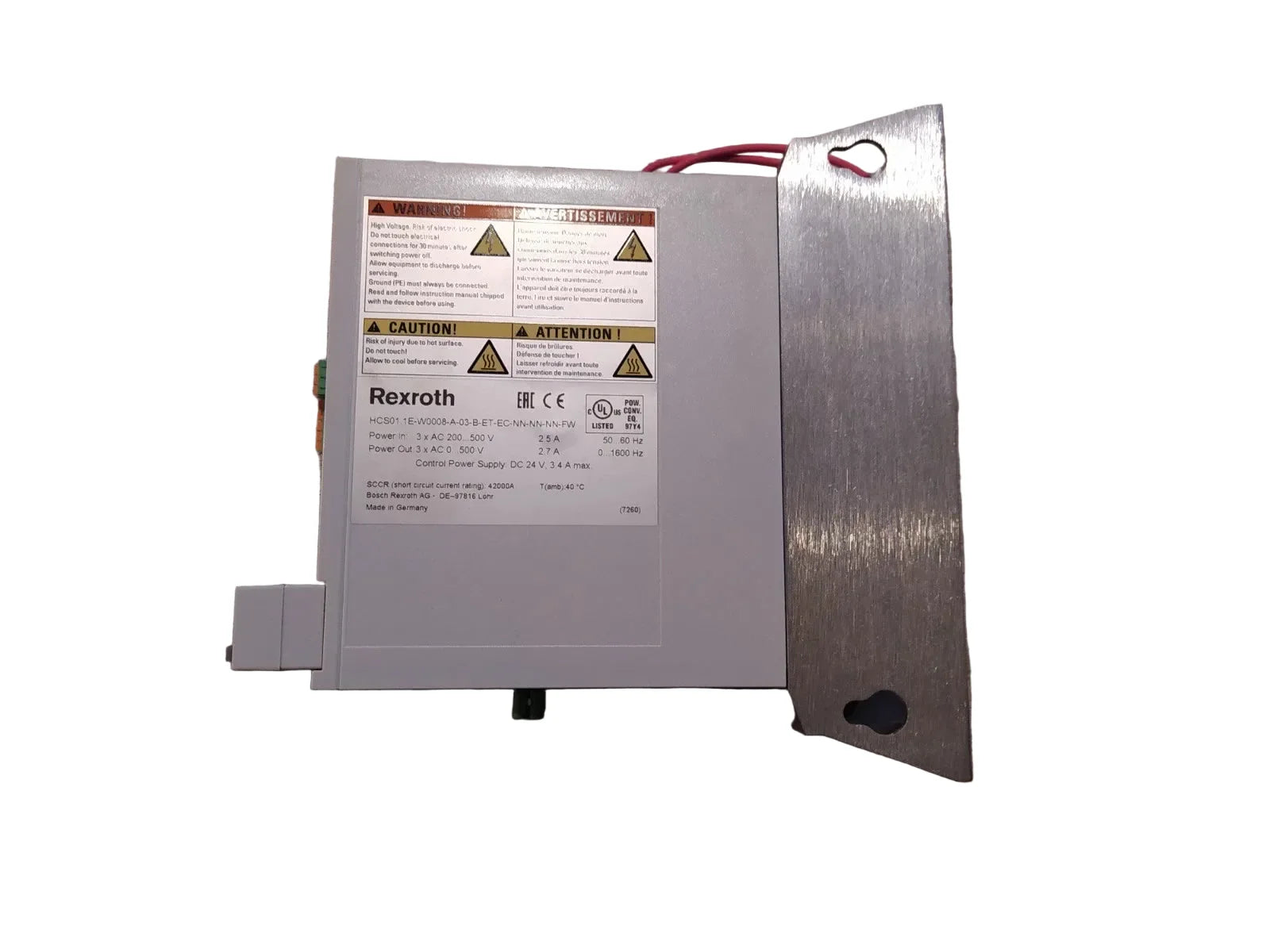

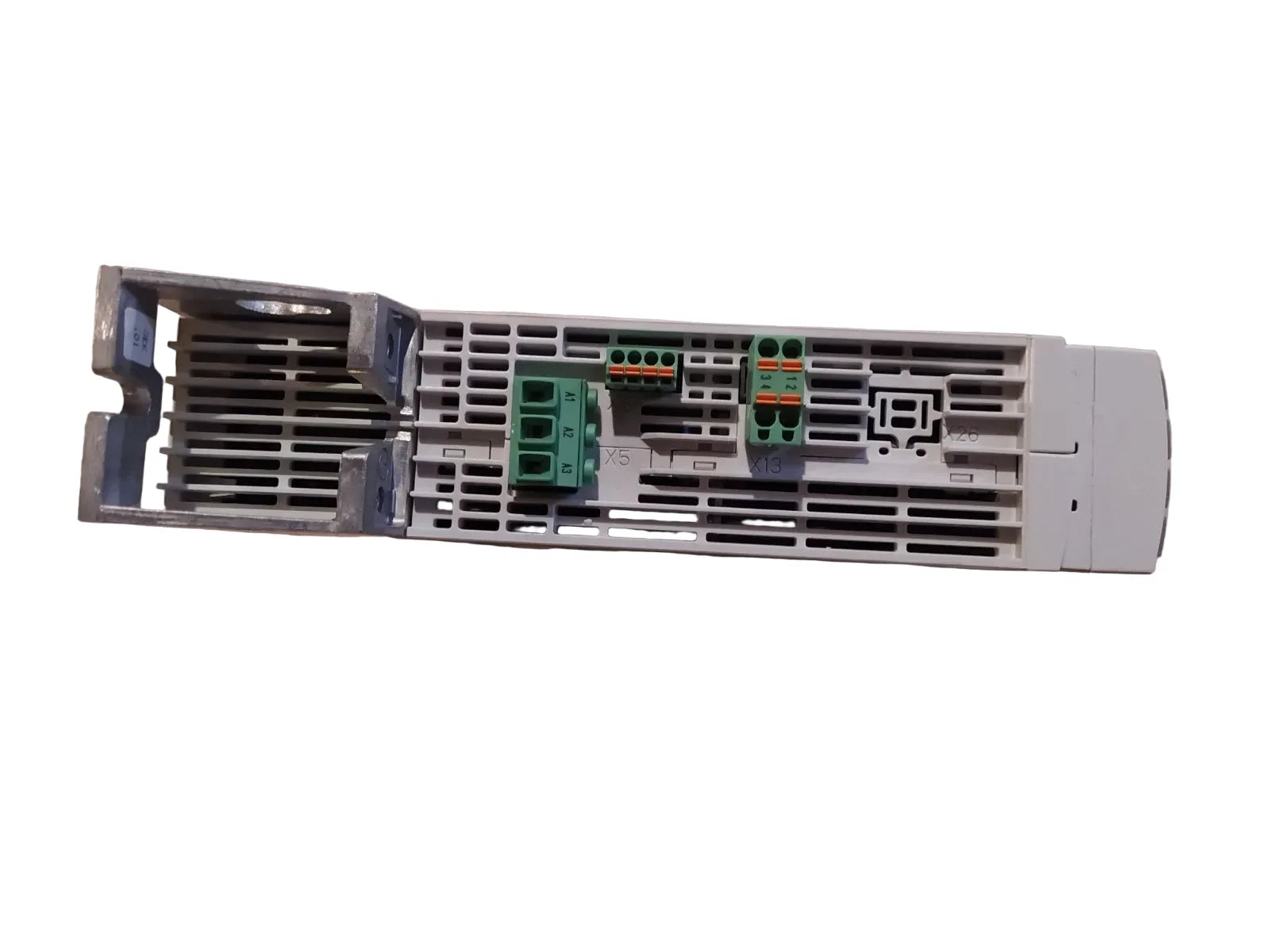

The Bosch Rexroth HCS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-FW servo drive is a compact IndraDrive CS controller designed for precise control of three-phase servo motors. It supports MultiEthernet communication and integrated encoder interfaces for accurate speed and position control. This drive is intended for cabinet-mounted industrial automation systems requiring reliable low-power servo control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Bosch Rexroth |
| Category |
Industrial Automation |
| Part Number |
HCS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-FW |
| Subcategory |
Servo Drives |
| Product Type |
Servo Drive |
| Drive Platform |
IndraDrive CS |
| Series |
HCS01 |
| Power Class |
0.75 kW |
| Input Phase |
Three-Phase |
| Mains Voltage |
3 × AC 200–500 V ±10% |
| Input Current |
2.5 A |
| Output Current |
2.7 A |
| Device Peak Current |
8 A |
| Output Voltage |
3-Phase, 0–500 V |
| Output Frequency Range |
0–1600 Hz |
| Communication Interface |
MultiEthernet |
| Control Section Design |
BASIC |
| Encoder Interface |
Hiperface / EnDat 2.1 / 2.2 |
| DC Bus Connection |
Supported |
| Control Voltage |
24 V DC ±20% |
| Cooling Method |
Internal Air Cooling (Integrated Blower) |
| IP Rating |
IP20 |
| Design Version |
1 |
| Operating Temperature Range |
0 to 40 °C |
| Firmware |
Ordered Separately |
| Weight |
3.8 kg |
Information About HCS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-FW
The HCS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-FW is part of the Bosch Rexroth IndraDrive CS HCS01 series, developed for modular and scalable motion control applications. It is designed to operate on a three-phase AC mains supply and provides controlled three-phase motor output with a wide frequency range. The unit features internal air cooling via an integrated blower and an IP20-rated enclosure for protected control cabinet environments. Designed to pair with a BASIC control section, it supports modern encoder technologies and Ethernet-based communication for seamless integration into Rexroth automation systems.
Key Features:
- IndraDrive CS HCS01 Platform: Engineered for compact and modular servo drive applications.
- MultiEthernet Communication Interface: Enables flexible integration with industrial Ethernet-based networks.
- Integrated Encoder Support: Compatible with IndraDyn Hiperface and EnDat 2.1/2.2 encoder interfaces.
- Wide Output Frequency Range: Supports motor control from 0 to 1600 Hz for dynamic applications.
- Internal Air Cooling System: Integrated blower ensures stable thermal performance during operation.
- Three-Phase Power Design: Operates on 200–500 VAC mains supply for industrial compatibility.
- DC Bus Connection Support: Allows integration into shared DC bus drive systems.
The HCS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-FW delivers the reliability and precision required for compact servo drive control in industrial automation and motion systems.
