Description

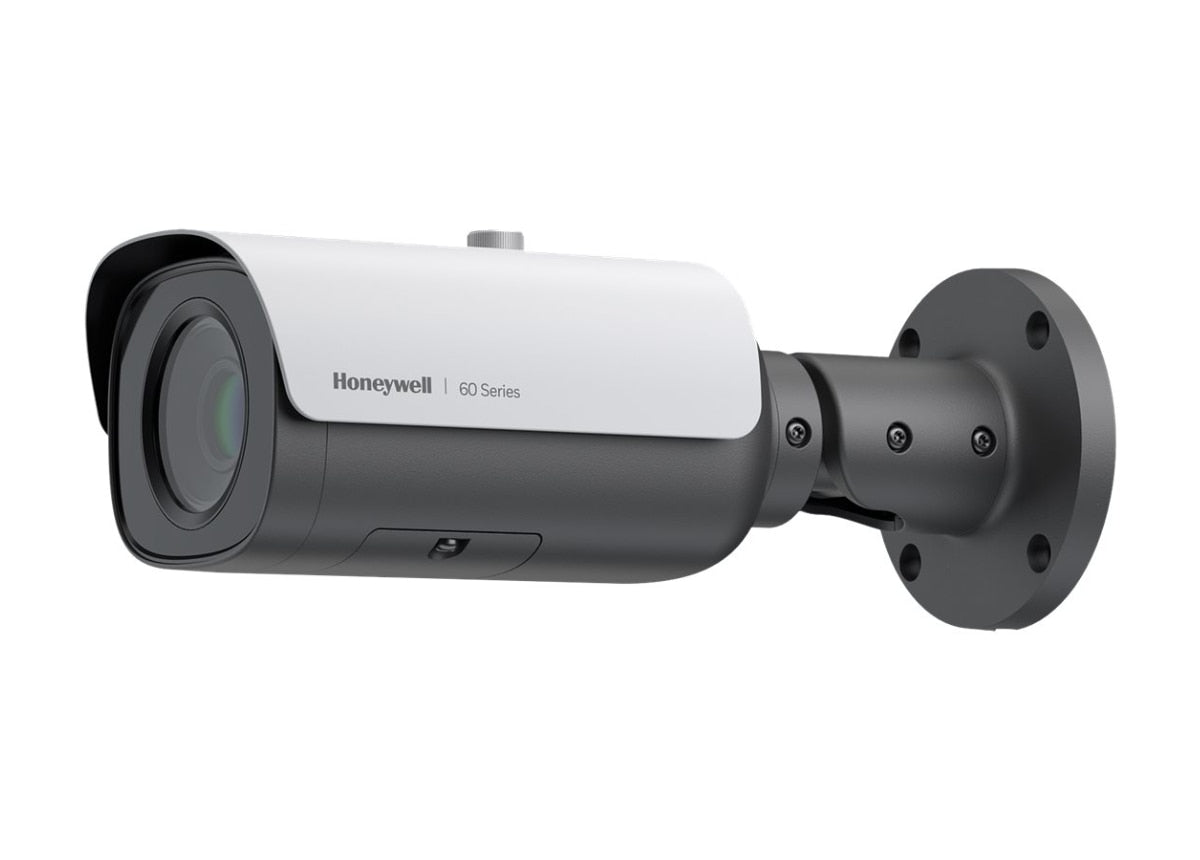

The Honeywell HC60WB5R2 is a 5 MP network bullet camera designed for professional video surveillance in industrial, commercial, and outdoor environments. Featuring advanced analytics, wide dynamic range, and infrared night vision up to 60 m (197 ft), it delivers superior performance and reliability in both day and night conditions.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Security & Surveillance |
| Part Number |
HC60WB5R2 |
| Subcategory |
Network Camera |
| Video Standard |
NTSC / PAL |
| Image Sensor |
1/2.8″ CMOS (5.18 × 3.89 mm) |
| Resolution |
5 MP (2560 × 1920) |
| Scanning System |
Progressive |
| Minimum Illumination |
0.04 Lux (Color) / 0 Lux (IR on @ F1.4) |
| Signal-to-Noise Ratio |
60 dB |
| Electronic Shutter |
1/32,000 – 1/30 s |
| IR Distance |
Up to 60 m (197 ft) |
| IR Control |
Smart IR Auto / Manual / Off |
| IR LEDs |
4 high-power IR LEDs |
| Lens Type |
Remote Focus MFZ (P-IRIS 2.7 – 13.5 mm or DC-IRIS 5 – 50 mm) |
| Angle of View |
H: 100° – 30° / V: 72° – 23° |
| Wide Dynamic Range |
> 120 dB |
| Noise Reduction |
3D DNR |
| Backlight Compensation |
WDR / HLC |
| Local Storage |
MicroSD/SDHC/SDXC (up to 256 GB) |
| Network Protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, SMTP, NTP, SNMP, FTP, TLS |
| Compatibility |
ONVIF Profile G/S |
| Alarm I/O |
2 inputs / 1 relay output |
| Power Supply |
12 V DC or PoE (IEEE 802.3 at Class 3) |
| Power Consumption |
≤ 25.5 W |
| Ingress Protection |
IP66 / IK10 |
| Operating Temperature |
–40 °F to +140 °F (–40 °C to +60 °C) |
| Relative Humidity |
< 90 % non-condensing |
| Dimensions (W × H × L) |
105.5 × 110.6 × 288.6 mm (4.2″ × 4.4″ × 11.4″) |
| Weight |
5.58 lb (2.53 kg) |
| Color |
Lyric White (RAL 120-1) |
| Country of Origin |
Taiwan |
Information About HC60WB5R2
The HC60WB5R2 belongs to Honeywell’s 60 Series network camera line, offering enhanced cybersecurity, high-definition imaging, and ONVIF Profile G/S compatibility. It is equipped with a 1/2.8″ CMOS sensor that provides full 2560 × 1920 resolution and progressive-scan video for sharp, low-noise footage. The camera includes a remote-focus MFZ lens with P-IRIS control, enabling precise optical adjustment and consistent exposure. With built-in FIPS-certified encryption, edge storage, and multiple event-triggered alarm inputs and outputs, the HC60WB5R2 ensures secure and flexible integration into modern IP-based surveillance systems.
Key Features:
- High-Definition 5 MP Imaging: Captures 2560 × 1920 resolution for detailed monitoring and recording.
- Infrared Night Vision: Four IR LEDs provide visibility up to 60 m (197 ft) with Smart IR auto/manual control.
- Wide Dynamic Range (> 120 dB): Maintains clarity in scenes with extreme backlight or glare.
- Advanced Video Analytics: Supports intrusion, loitering, unattended object, missing object, and face detection.
- Remote-Focus MFZ Lens: 2.7 – 13.5 mm P-IRIS (F1.4 – F2.8) or 5 – 50 mm DC-IRIS (F1.9 – F2.1) for flexible coverage.
- Built-In FIPS Encryption Chipset: Ensures end-to-end data security and tamper resistance.
- Dual Power Options: Operates on 12 V DC or PoE (IEEE 802.3 at Class 3).
- Weather-Resistant IP66 / IK10 Housing: Rated for outdoor operation from –40 °C to +60 °C (–40 °F to +140 °F).
- Edge Recording Support: MicroSD/SDHC/SDXC card slot (up to 256 GB) with SD encryption.
- ONVIF Profile G/S Compliance: Ensures interoperability with major VMS platforms and NVRs.
The HC60WB5R2 delivers the durability, security, and image clarity required for modern surveillance networks.
