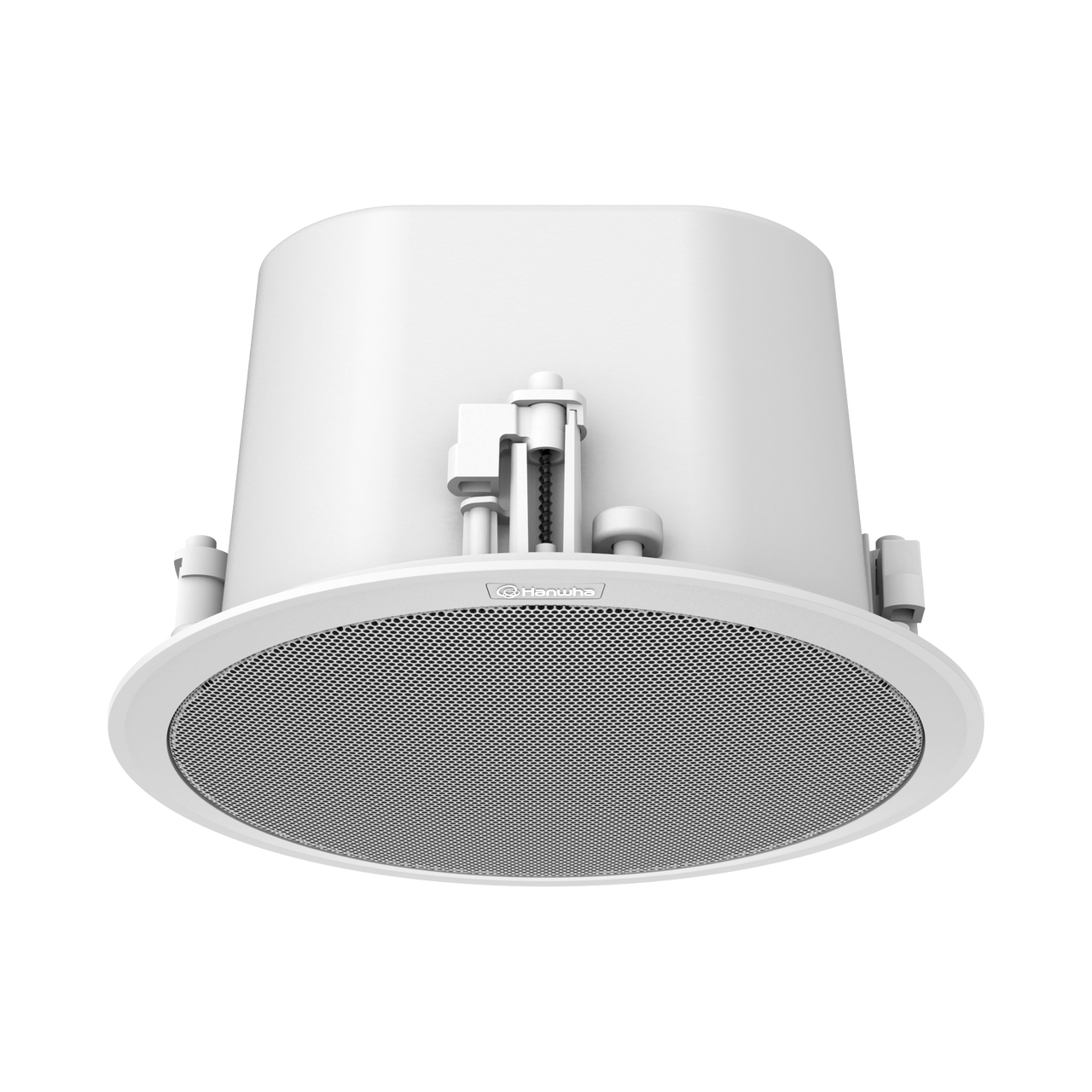

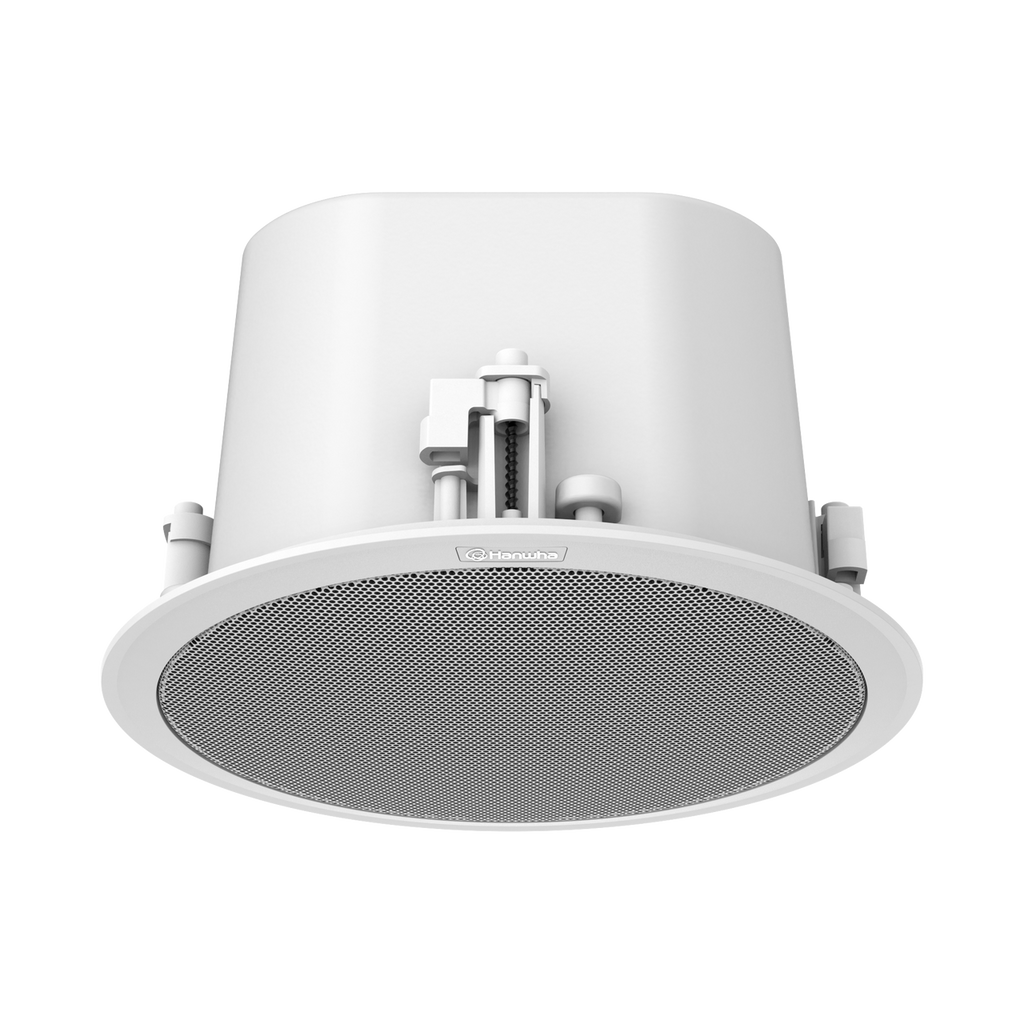

The Hanwha Vision SPA-C110W is a high-quality IP audio speaker designed for in-ceiling mounting in plenum spaces. It is ideal for a wide range of applications, including background music, paging, and security announcements.
The SPA-C110W features a wide frequency response and high sound pressure level, ensuring clear and intelligible audio reproduction in any environment. It is also plenum-rated, meaning that it can be safely installed in plenum spaces without restricting airflow.
The SPA-C110W is easy to install and configure. It supports PoE (Power over Ethernet)/PoE+, so only one cable is needed to provide both power and audio. The speaker can be easily configured and controlled using a web interface.
Key features include:
- Two-way audio
- Scheduler function
- Background Music
- Text To Speech
- 10W, 100dB Output
- Freq. Range 120Hz-20kHz
- 1GB Internal Storage, Single Micro SD slot (Up to 32GB)
- Built-in Relay
- SUNAPI, ONVIF, SIP, & P2P-SIP protocols
- PoE, PoE+ power support
- White Color
| Output Level |
+6dBV ± 3dB |
| Frequency Response |
20Hz ~ 20kHz |
| THD + N Ratio (AES17 LPF) |
Less than 0.1% |
| S/N Ratio (20kHz LPF, A-WTD) |
Greater than 91dB |
| Description |
Built in 10W Class D |
| Ethernet |
10/100 Base-T |
| Internal Memory |
1 GBytes |
| External Memory (Micro SD) |
SDHC upto 32GB (SANDISK) |
| Contact Input. Dry contact |
One channel |
| Contact Output. Dry contact (NO) |
One channel |
| Operating Temperature |
-20 ~ +50℃ (-4°F ~ +122°F) |
| Operating Humidity |
10~85% RH (Non-Condensing) |
| IP code |
- |
| Weight |
2.7Kg |
| Size |
Φ269*156.5(H)mm |
| Color |
Black/White |
| Certificate |
EMC : FCC Part 15 Subpart B, ICES-003 Safety : UL 2043, UL 62368-1, CAN/CSA 62368-1 |
| PoE |
PoE (IEEE 802.3 af type 1 Class 3) |
| PoE+ |
PoE+(IEEE 802.3 at type 2 Class 4) |
| Input Sensitivity |
Sound Level Meter |
| Frequency Response |
Sound Level Meter |
| Supported Audio Format |
WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16 kHz up to 48 kHz |
| Speaker Component |
2Way 8" LF Drive & 2" HF Driver. Passive type |
| Max. Sound Pressure Level (PoE) |
96dB |
| Max. Sound Pressure Level (PoE+) |
100dB |
| Frequency Range (-10dB) |
120Hz~20kHz |
| Sensitivity (1Watt) |
90dB |
| Coverage Pattern |
(HxV) : 90°(1kHz) / 60°(4kHz) |
| Security |
Password protection : admin,setup,user,guest (sha-2, Digest authentication, User access log) Digest authentication, User access log |
| Supported Protocols |
IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
| API (Application Programming Interface) |
SUNAPI |
| Multi-source Dynamic PA control |
Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) Up to 256 Zone Control (Multicast) Up to 20 Zone Control (Unicast) Up to 255 Groups |
| VoIP |
Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk Tested with SIP client such as Grandstream and PBX supplier such as Grandstream Supported SIP features: DTMF (RFC2833) Supported codecs: PCMU, PCMA, speex/8000, speex/16000 |
| TTS |
English(US, UK), German, French, Spanish, Russian |
| Audio Monitoring |
Speaker test by graphic level meter (Built in test tool) |
| Event & Preset |
Virtual Contact, Dry contact |
| Functional Monitoring |
Connection verification, Built-in system logging |
