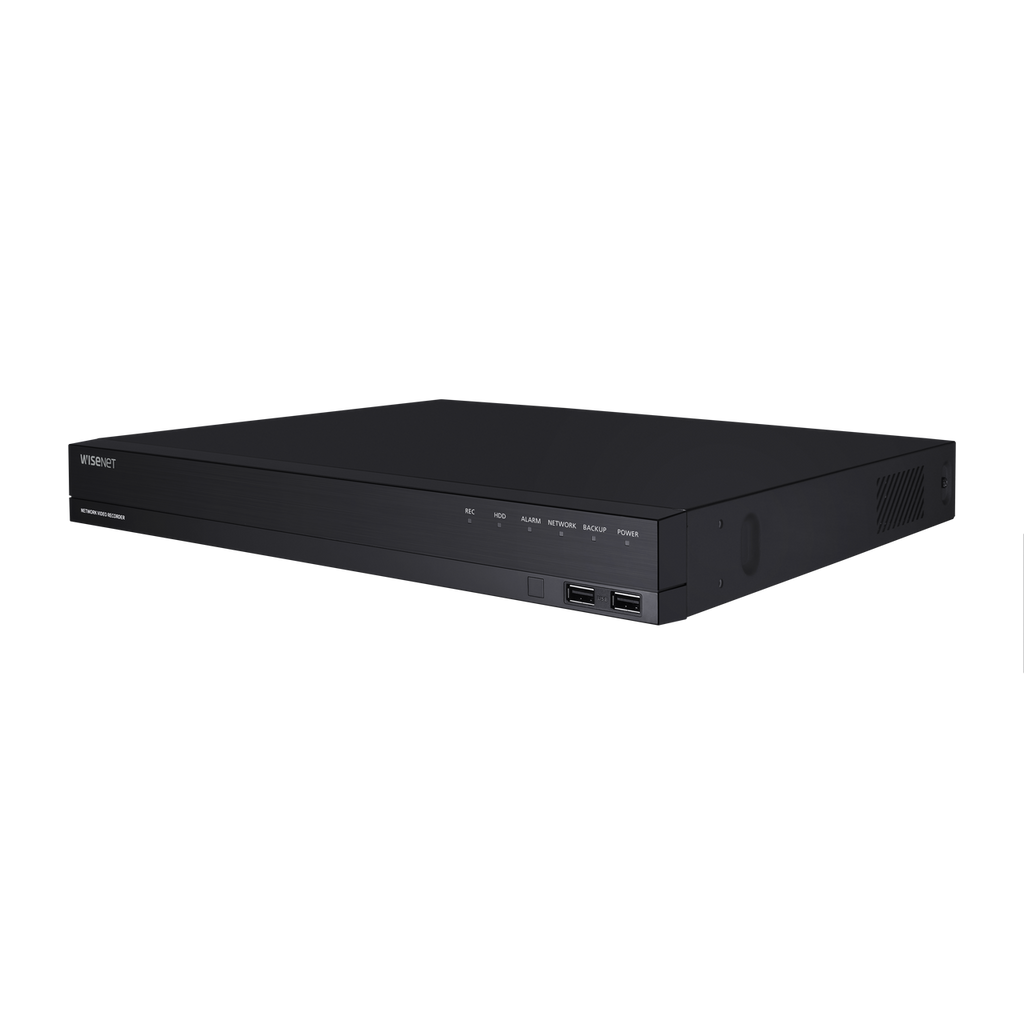

Hanwha ARN-1610S-6TB Wisenet A Series16CH PoE NVR, 6TB Hard Drive Pre-Installed

Up to 16 channels @ 8 megapixel supported
H.265, H.264, MJPEG codec supported
80Mbps network camera recording
Plug & play by 16 PoE ports
Maximum 2 HDDs (up to 6Tb each) supported
HDMI/VGA local monitor
P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile

Network camera
Network camera > Inputs																																																																Max. 16CH
Network camera > Resolution																																																																8MP ~ CIF
Network camera > Protocols																																																																SUNAPI, ONVIF
Decoding
Decoding > Local Display																																																																HDMI, VGA(Clone)
Decoding > Multi Screen Display																																																																[Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9
Decoding > Resolution																																																																[Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps)
Performance
Operating System
Operating System > Embedded																																																																Linux
Record
Record > Compression																																																																H.265, H.264, MJPEG
Record > Recording Bandwidth																																																																Max. 80Mbps
Record > Resolution																																																																8MP ~ CIF
Record > Mode																																																																Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Record > Event Trigger																																																																Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
Record > Event Action																																																																e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Search & Play > Playback Bandwidth																																																																Max. 32Mbps
Search & Play > User																																																																Max. 4 Users (Local 1, Remote 3)
Search & Play > Simultaneous playback																																																																Max. 16CH(Local 4CH, Remote 4CH per user)
Search & Play > Mode																																																																Date & Time(Calendar), Event list, Text Search, Smart Search
Search & Play > Resolution																																																																CIF ~ 8MP
Search & Play > Playback Control																																																																Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Storage > Supported HDD																																																																Up to 6TB
Storage > HDD Slot																																																																SATA 2ea(Max. 12TB)
Backup
Backup > File backup																																																																BU/Exe(GUI), JPG/AVI(Network)
Backup > Function																																																																Multi channel(Up to 4CH) Play, Date-Time/Title display
Network
Protocol																																																																IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS																																																																Hanwha DDNS
Transmission Bandwidth																																																																Max. 80Mbps
Audio
Audio > Input/Output																																																																16 CH(network)
Audio > Compression																																																																G.711, G.726, AAC(16/48KHz)
Audio > Audio Communication																																																																2-Way
Max Remote Users																																																																Search(3), Live Unicast(10), Multicast(20)
Security																																																																IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
Web viewer > Supported OS																																																																Windows 10, macOS 10.13
Web viewer > Supported browser																																																																Google Chrome, Microsoft Edge, Mac Safari
Viewer Software																																																																WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup
Camera Setup > Register																																																																Auto, Manual
Camera Setup > Item																																																																IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
PTZ > Control																																																																Via GUI, Webviewer
PTZ > Preset																																																																300 Presets
Smart phone
Smart phone > Support Model																																																																iOS, Android
Smart phone > Protocol Support																																																																RTP, RTSP, HTTP, CGI(SUNAPI)
Smart phone > Control																																																																Live 4CH(Multi-Profile Support), Playback 4CH
Smart phone > Max. Remote Users																																																																Search(3), Live Unicast(10)
Redundancy
Redundancy > Failover																																																																N+1
Redundancy > ARB																																																																Support
Easy configuration																																																																P2P(QR code)
Interface
Front
Front > Indicator																																																																Power, Record, Network
Reset																																																																Support
HDMI																																																																1EA 3840x2160 30Hz
VGA																																																																1920x1080 30Hz
Ethernet																																																																PoE RJ-45(LAN, 10/100) 16 ea ,RJ-45 1ea (WAN, 1Gbps)
USB																																																																2EA(Front 2 x USB 2.0)
Power inlet																																																																SMPS
System
Log
Log > Log List																																																																Max. 100,000 (System Log, Event Log each)
System Control																																																																Mouse, Web
Language																																																																English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature																																																																0°C to +40°C(32℉ to 104℉)
Operating Humidity																																																																20% ~ 85% RH
Electrical
Power Input																																																																100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption																																																																Max 188.2W (2HDD, PoE On)
PoE Budget																																																																130W
Mechanical
Color / Material																																																																Black / Metal
Dimension (WxHxD)																																																																W370.0 x H44.0 x D320 mm (14.57" x 1.73" x 12.6") (1U)
Weight																																																																2.88Kg

Browse related categories

Hanwha Techwin Security Cameras Hanwha Vision (Wisenet) Cameras & Recorders Video Surveillance & Security Systems

More in Hanwha Techwin Security Cameras:

US-Based Distributor

Wellington, Florida — serving US businesses, agencies & OEMs.

Send a Part Number

Search or send your list — obsolete & current GE Speedtronic, boards & controls.

24-Hour Quotes

US-based specialists reply within 24 hours.

Purchase Orders Welcome

POs accepted from qualified US buyers; cards too.

Product

Name: Hanwha ARN-1610S-6TB Wisenet A Series16CH PoE NVR, 6TB Hard Drive Pre-Installed
Brand: Hanwha Techwin
SKU: ARN-1610S-6TB
Price: 1753.19 USD
Availability: InStock
