Description

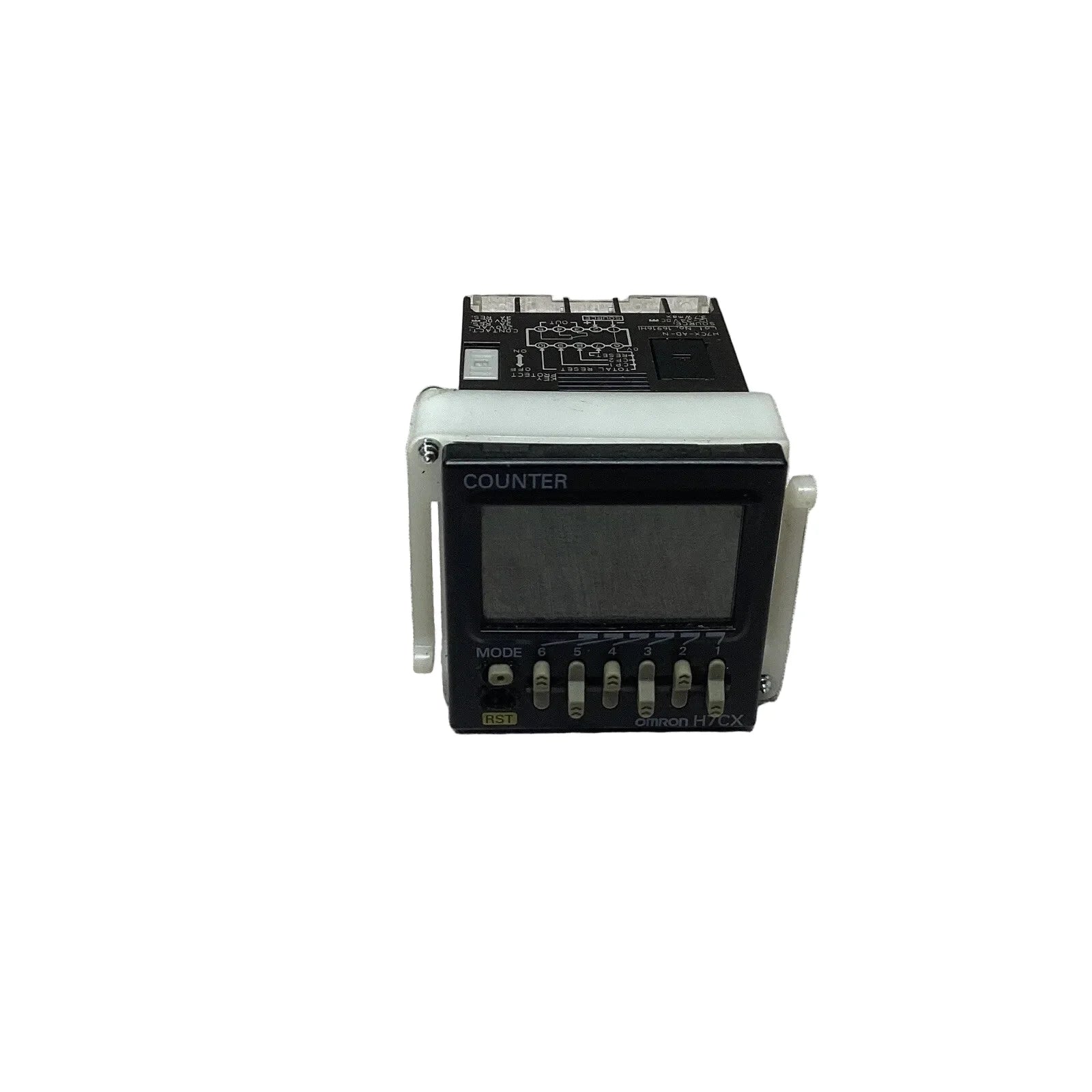

The Omron H7CX-AD-N is a multifunction digital counter designed for precise counting and totalizing in industrial automation systems. This unit supports multiple operating modes, including up, down, and quadrature counting, and features a dual-color LCD for clear status indication. It is suited for panel-mounted applications requiring reliable count monitoring and control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Counters & Timers |
| Part Number |
H7CX-AD-N |
| Subcategory |
Digital Counters |
| Series |
H7CX |
| Product Type |
Multifunction Digital Counter |
| Operating Modes |
Up, Down, Command, Individual, Quadrature |
| Count Rate |
30 Hz, 5 kHz |
| Display Type |
LCD, Dual-Color Characters with Backlight |
| Number of Digits |
6 |
| Input Type |
No Voltage, Voltage |
| Output Type |
Relay |
| Supply Voltage |
12–24 VDC |
| Reset Methods |
External, Front Panel, Programmable |
| Mounting Type |
Panel Mount |
| Panel Cutout Dimensions |
45.0 mm x 45.0 mm |
| Termination Style |
Screw Terminal |
| Ingress Protection |
IP66 |
| Operating Temperature Range |
-10°C to 55°C |
| Weight |
177.7 g |
Information About H7CX-AD-N
The H7CX-AD-N is part of Omron’s H7CX series, a line of compact digital counters engineered for versatility and durability in control panels. It is constructed with a robust, IP66-rated front face and screw terminal connections to ensure stable operation in demanding environments. The counter supports both no-voltage and voltage inputs and provides relay output for integration with control circuits. Designed for use with 12–24 VDC power supplies, it accommodates a wide range of industrial counting and totalizing tasks.
Key Features:
- Multifunction Counter Operation: Supports preset, totalizer, and combined counting functions.
- Multiple Operating Modes: Enables up, down, command, individual, and quadrature counting.
- Dual-Color LCD Display: Provides clear visual differentiation of operational states with backlighting.
- High Count Rate Capability: Handles input frequencies up to 5 kHz for fast-moving processes.
- Flexible Input Types: Accepts both no-voltage and voltage signal inputs.
- Relay Output Configuration: Allows direct control of external devices and alarms.
- IP66 Front Protection: Ensures resistance to dust and water in panel-mounted installations.
The H7CX-AD-N delivers the reliability and precision required for industrial counting, monitoring, and control applications.
