Description

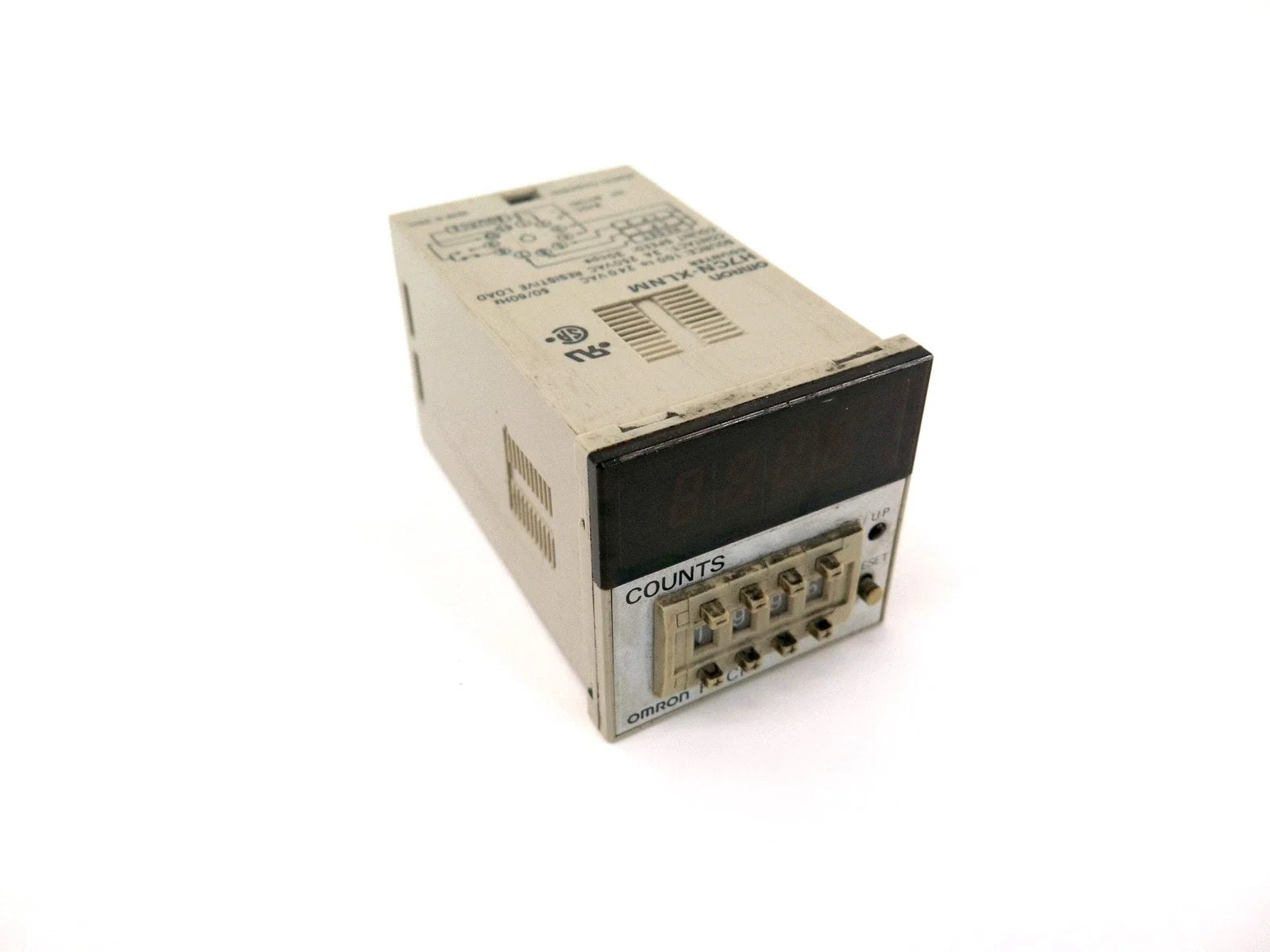

The Omron H7CN-XLNM is a compact preset counter designed for accurate up-counting operations in industrial control panels. It features a red LED display for clear visibility of count values and provides relay output for control signaling. This counter operates on a wide AC supply voltage range, making it suitable for diverse industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Counters & Timers |
| Part Number |
H7CN-XLNM |
| Subcategory |
Preset Counters |
| Series |
H7CN |
| Product Type |
Preset Counter |
| Operating Mode |
Up |
| Count Rate |
30 Hz |
| Display Type |
Red LED Characters |
| Number of Digits |
4 |
| Character Height |
8.0 mm |
| Input Type |
No Voltage |
| Output Type |
Relay |
| Supply Voltage |
100–240 VAC |
| Reset Methods |
External, Front Panel |
| Mounting Type |
Panel Mount |
| Panel Cutout Dimensions |
45.0 mm x 45.0 mm |
| Termination Style |
Plug-In, 11-Pin (Octal) |
| Operating Temperature Range |
-10°C to 55°C |
| Weight |
110 g |
Information About H7CN-XLNM
The H7CN-XLNM is part of Omron’s H7CN series of preset counters, developed for reliable counting applications in automation systems. It is designed for panel mounting with a standardized cutout size, allowing straightforward integration into existing control panels. The unit supports no-voltage input signals and includes both external and front-panel reset capabilities for operational flexibility. Its plug-in terminal design enables easy installation and replacement in industrial applications.
Key Features:
- Preset Counter Functionality: Designed for accurate up-counting operations.
- Red LED Display: Provides clear and highly visible count indication.
- 30 Hz Count Rate: Suitable for standard industrial counting applications.
- Relay Output Type: Enables direct control of external devices or alarms.
- Wide AC Supply Range: Operates on 100 to 240 VAC power.
- Flexible Reset Options: Supports both external and front-panel reset methods.
- Panel Mount Design: Fits standard 45 mm x 45 mm panel cutouts.
The H7CN-XLNM delivers the reliability and precision required for industrial counting and monitoring applications.
