Description

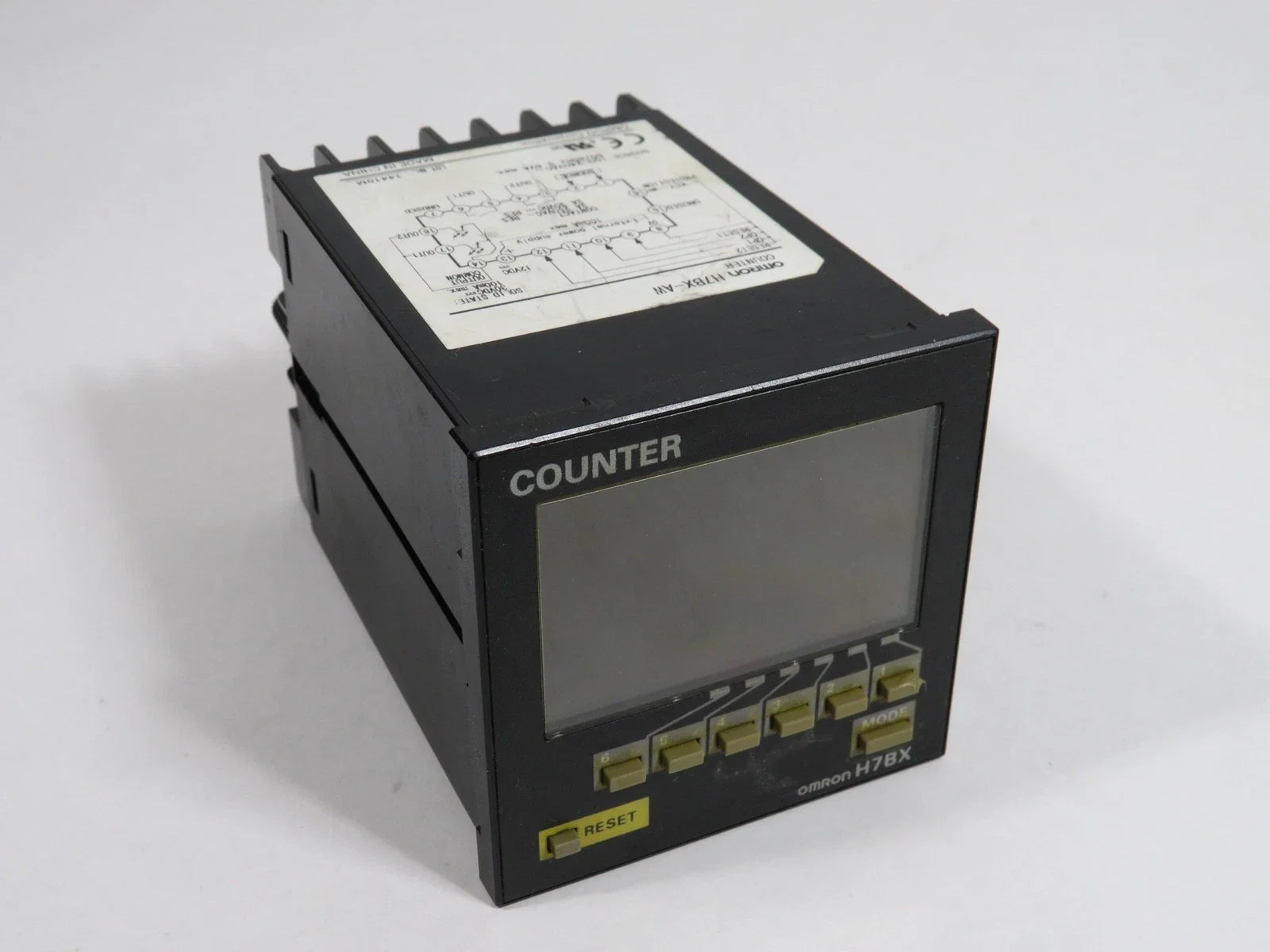

The Omron H7BX-AW is a multifunction digital counter designed for precise event counting and control in industrial automation systems. Featuring a 6-digit LCD display and two-stage preset capability, it supports reliable monitoring and output control in panel-mounted applications. This model operates on a wide 100–240 VAC supply range and provides consistent performance in control cabinets and machinery.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Controls & Indicators |
| Part Number |
H7BX-AW |
| Subcategory |
Timer/Counter |
| Product Type |
Digital counter |
| Series |
H7BX Series |
| Display Type |
LCD |
| Display Digits |
6-digit |
| Mounting Size |
72 x 72 mm DIN |
| Preset Stages |
2-stage preset |
| Output Type |
SPST-NO |
| Contact Rating |
3 A |
| Supply Voltage |
100–240 VAC |
| Function Type |
Multifunction counter |
| Weight |
1.00 lbs |
Information About H7BX-AW
The H7BX-AW is an Omron digital counter from the H7BX Series, engineered for flexible counting and preset control applications. It is housed in a standard 72 x 72 mm DIN panel-mount enclosure for compatibility with common industrial panels. The unit supports multifunction counter operation with two-stage preset outputs to enable sequential control logic. Its solid-state electronics and wide supply voltage range make it suitable for diverse industrial environments requiring dependable counting accuracy.
Key Features:
- Multifunction Counter Operation: Supports multiple counting modes for flexible application use.
- Two-Stage Preset Capability: Allows sequential control using dual preset output settings.
- 6-Digit LCD Display: Provides clear, high-visibility numeric readout.
- Wide AC Power Input: Operates on 100–240 VAC for global power compatibility.
- DIN Panel Mount Design: Standard 72 x 72 mm size for easy control panel installation.
- SPST-NO Output Contact: Rated for up to 3 amps for control signaling.
- Digital Signal Processing: Ensures stable and accurate count performance.
The H7BX-AW delivers the reliability and precision required for industrial counting and preset control applications.
