Description

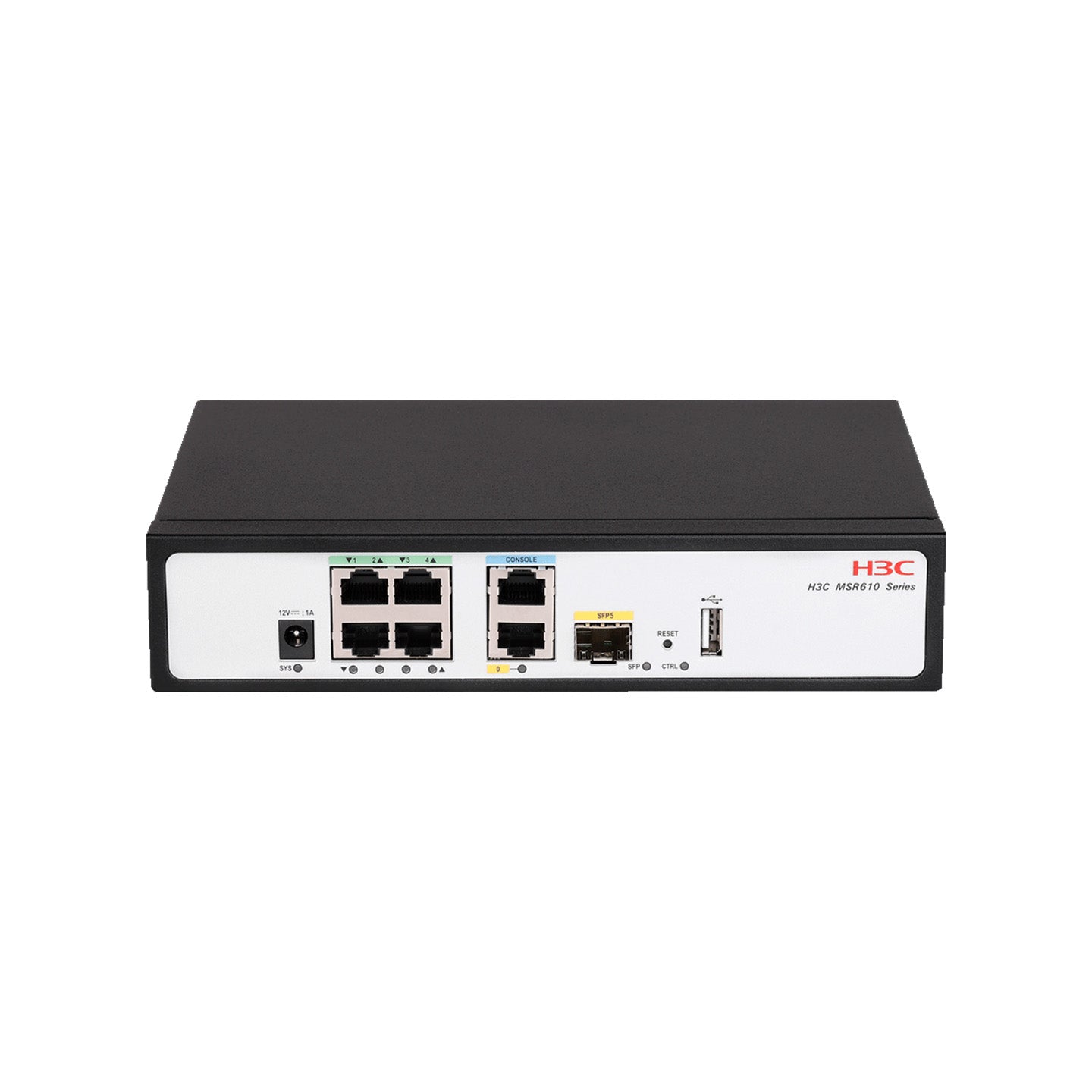

H3C MSR610 SMB Router with VPN, NAT and Advanced IPv4/IPv6 Routing
Overview
The H3C MSR610 is an SMB/branch router in the MSR600 series, designed as an egress router for small to medium-sized enterprise networks. It delivers VPN, NAT, IPSec, routing, security, and basic wireless controller (AC) capabilities in a compact 1U desktop form factor.
Based on the H3C Comware operating system, the MSR610 supports rich IPv4/IPv6 routing, granular QoS, multiple VPN technologies (IPSec, L2TP, GRE, mGRE, GDVPN), and comprehensive security & access control, making it suitable for branches in government, finance, retail, education, and other industries.
Highlights
1. Enterprise-Class Routing for SMB Branches
-
Advanced Comware OS with modular service scheduling and dynamic process loading.
-
Supports IPv4/IPv6, static & dynamic routing (RIP, OSPF, IS-IS, BGP), multicast routing, and policy-based routing.
2. Powerful Integrated Security
-
Rich VPN options: IPSec, L2TP, GRE, mGRE, GDVPN, mix-and-match VPN deployment.
-
Stateful firewall, ACL, ASPF, connection limit, uRPF, ARP attack prevention and more.
-
Role-based access control, secure management (SSH, SNMPv3, HTTPS) and centralized AAA (RADIUS, TACACS+).
3. Integrated AC Function for Small Wireless Deployments
-
Acts as a small wireless AC, supporting up to 64 APs (recommended 8-16) with unified AP onboarding, configuration, and software upgrade.
-
Supports 802.1X/MAC/Portal authentication for wireless users.
4. Intelligent O&M and Cloud Management
-
Cloudnet APP and Oasis cloud management platform support centralized cloud-based O&M.
-
Supports USB-based and URL-based automatic configuration (zero-touch deployment).
-
Built-in EAA event automation for internal fault detection and self-repair.
5. High Availability & Smart Traffic Control
-
BFD and NQA for millisecond-level link fault detection and intelligent route failover.
-
Load balancing and backup based on bandwidth, IP address, service, user, or application.
Recommended Accessories
| Accessory | Model / Type | Description |
|---|---|---|
| Power Adapter | Original MSR610 AC Adapter | 100-240 VAC input, 12 V DC output, matched for max 24 W load. |
| SFP Transceiver | H3C 1G SFP SX/LX | For the 1 × SFP WAN port, enabling fiber uplink. |
| Cat6 Patch Cables | - | For GE WAN/LAN connections in branch offices. |
| Small UPS | - | Keeps router & APs online during power dips/short outages. |
| Wall / Shelf Mount Kit | - | Optional mounting bracket for store/retail environments. |
Comparison with Similar Models
| Model | Positioning | WAN/LAN Interfaces | Key Strength |
|---|---|---|---|
| MSR610 | SMB / small branch | 1 × GE WAN, 1 × SFP WAN, 4 × GE LAN/WAN | All-in-one SMB router with AC function. |
| MSR810-EI | SMB branch | More GE ports & higher performance | Larger branch routing with richer WAN choices. |
| MSR1004S-5G-GL | Enterprise branch with 5G | 5G + multiple GE/SFP | 5G WAN, SD-WAN, higher VPN capacity. |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C MSR610 Router (SMB Router) |
| Product Series | H3C MSR600 Router Series |
| Forwarding Performance (In-service, IMIX) | 200 Mbps |
| NGFW Throughput (1518-byte packets) | 1 Gbps |
| CPU | 800 MHz network processor |
| System Memory | 1 GB DRAM |
| Internal Flash | 256 MB |
| External Flash Slot | Not available |
| USB Ports | 1 × USB 2.0 (no SIM function) |
| Console Ports | 1 × RJ45 console |
| WAN Ports | 1 × GE copper port + 1 × SFP port (WAN) |
| LAN Ports | 4 × GE ports (can be configured as WAN interfaces) |
| Max Power Consumption | 24 W |
| Adapter Input Voltage | External adapter: 100-240 VAC @ 50/60 Hz |
| Device Power Input | DC 12 V, 2 A |
| Dimensions (W × D × H) | 210 × 140 × 44 mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| EMC Compliance | FCC Part 15 Class A, ICES-003 Class A, VCCI Class 3/4, CISPR 22 Class A, EN 55022 Class A, EN 55024, EN 61000-3-2/3-3, EN 61000-6-1, ETSI EN 300 386, EN 301 489-1/17, etc. |
| Safety Compliance | UL 60950-1, CSA C22.2 No.60950-1, IEC 60950-1, EN 60950-1/A11, AS/NZS 60950, EN 60825-1/2, FDA 21 CFR Subchapter J, GB 4943. |
| Layer 2 Features | Ethernet/Ethernet II, VLAN (port-based, guest VLAN), 802.3x flow control, 802.1p/802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client/server, DDR. |
| IP Services | Unicast/multicast, TCP/UDP, IP options, IP unnumbered, policy-based routing, NetStream, sFlow. |
| IP Applications | Ping, Traceroute, ICMP, DHCP server/relay/client, DNS client/proxy, DDNS, NTP/SNTP. |
| IPv4 Routing | Static routing; dynamic routing: RIP v1/v2, OSPFv2, BGP, IS-IS; route recursion; ECMP; policy routing; multicast routing: IGMP v1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP. |
| QoS | Port-based mirroring; Port Trust Mode; port priority; CAR (Committed Access Rate); FIFO, WFQ, CBQ; Generic Traffic Shaping (GTS); traffic classification. |
| AC / WLAN Features | AP onboarding, configuration delivery, version upgrades, AP restart, AP info display; WLAN access, user security, user authentication, roaming, client access control, wireless snooping. Max 64 APs, recommended 8-16. |
| Security & VPN | PPPoE client/server, portal, 802.1X; local auth, RBAC, RADIUS, TACACS+; basic firewall, ASPF, ACL, filters, connection limit; IKE, IPSec, L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, uRPF, mGRE, GRE; ARP attack prevention; GDVPN; AES, DES, 3DES, MD5, SHA1. |
| High Availability | Bandwidth-based and IP-based load balancing/backup; NQA collaboration with routing or interface backup; BFD collaboration with static routing, RIP/OSPF/BGP/IS-IS or interface backup. |
| Management & Maintenance | Cloudnet APP; Oasis cloud platform; SNMP v1/v2c/v3, MIB, SYSLOG, RMON; BiMS remote management; USB boot; CLI, dual image, file system; multiple login methods (console, Telnet/VTY, SSH, FTP); support for DHCP/FTP/HTTP/ICMP/TCP/UDP/SNMP-based management traffic. |
